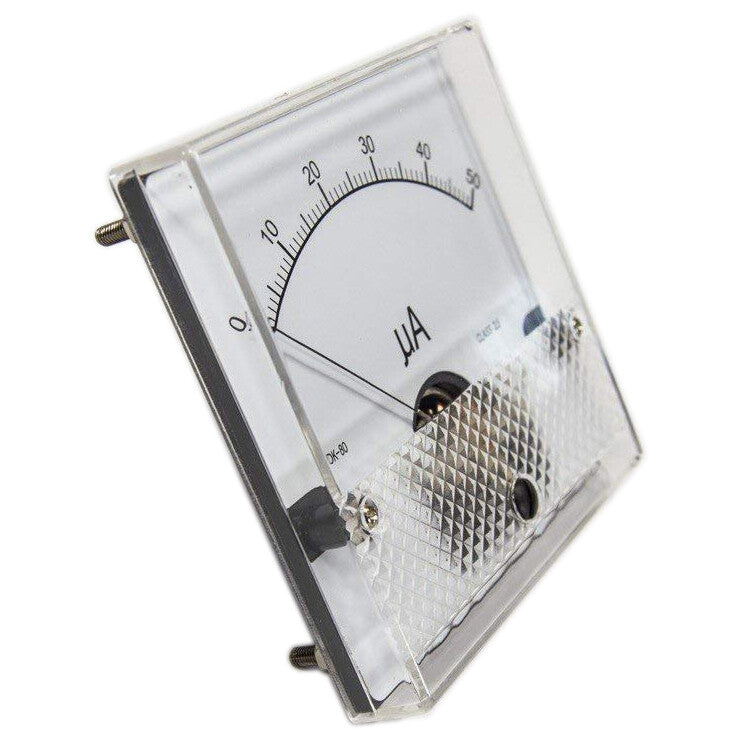

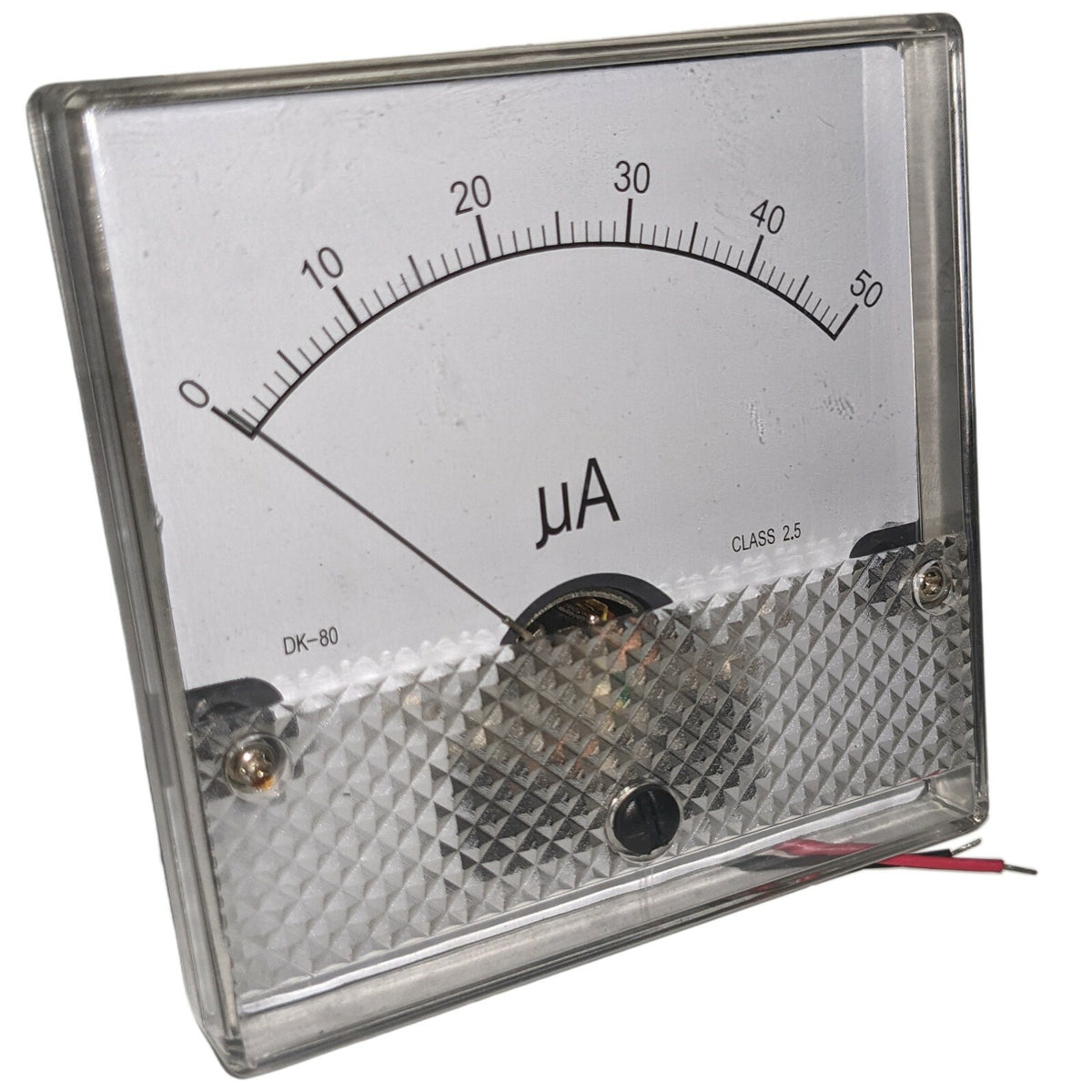

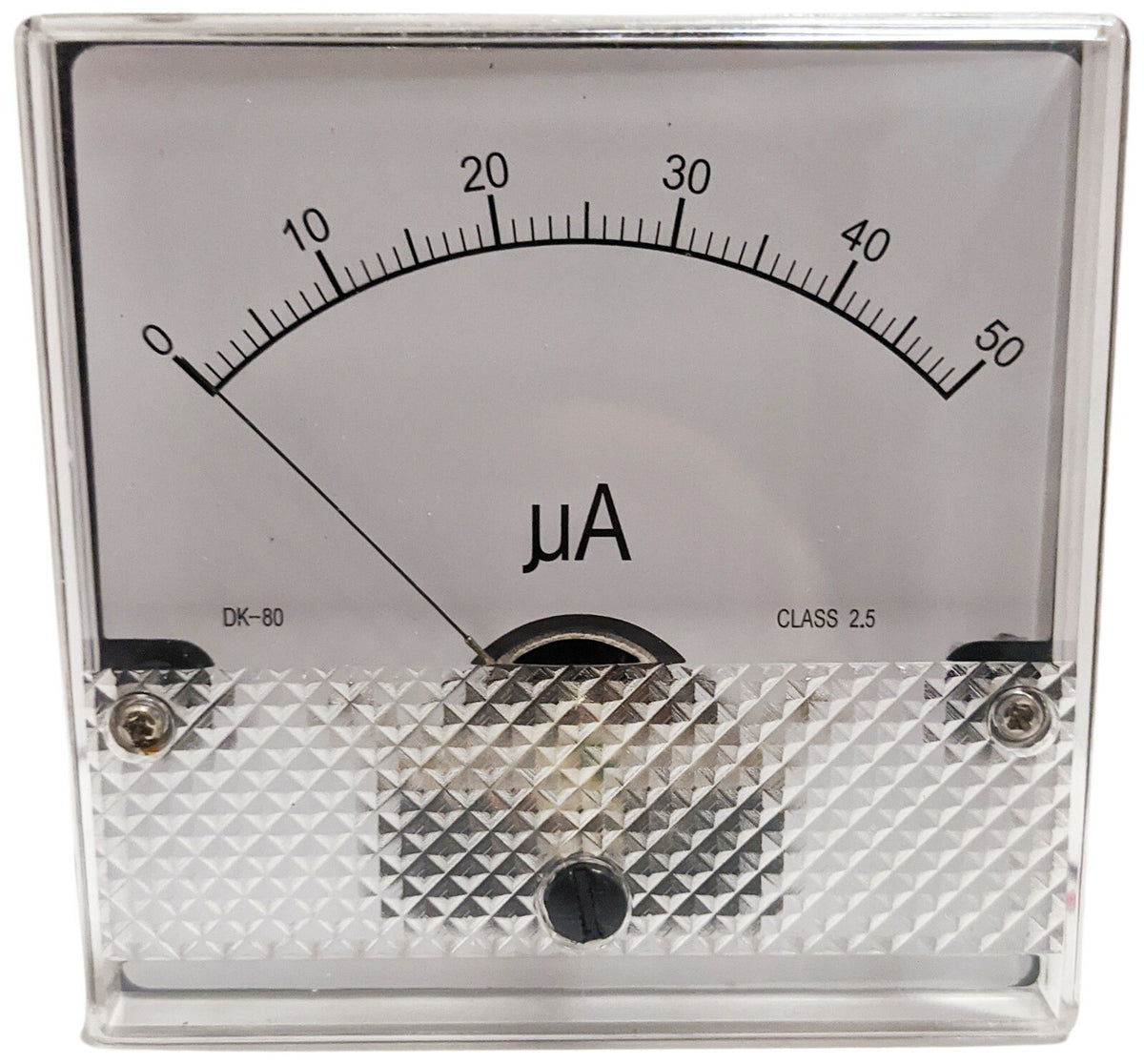

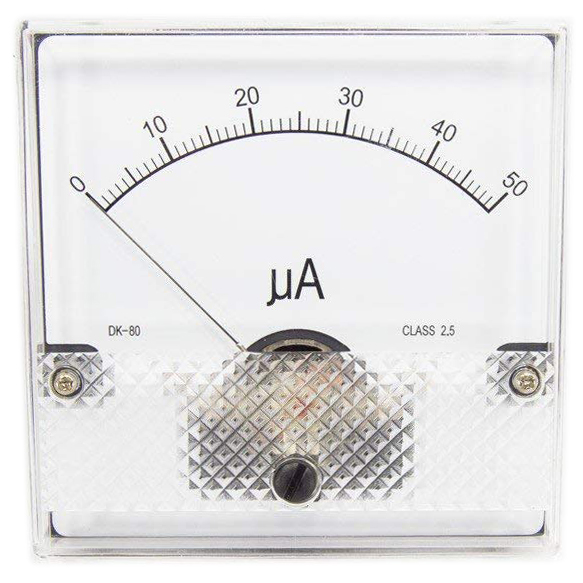

Ammeter DC 0-50µA Meter Movement

The DK-80 DC MicroAmmeter measures DC microampere current in a DC circuit. It has a range of DC 0-50uA. Features a clear and easy to read scale and a zero adjustment screw for fine tuning the dial. For current measurement, open the circuit and connect the instrument in series with the circuit being measured.

Specifications:

• Measuring range: 0-50 µA D.C.
• Resolution: 1µA
• Accuracy: ±2.5% full scale
• Potential drop: 95mv
• Dimensions: 80 x 80 x 45mm
• Weight: 73g
