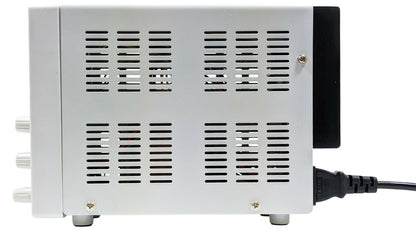

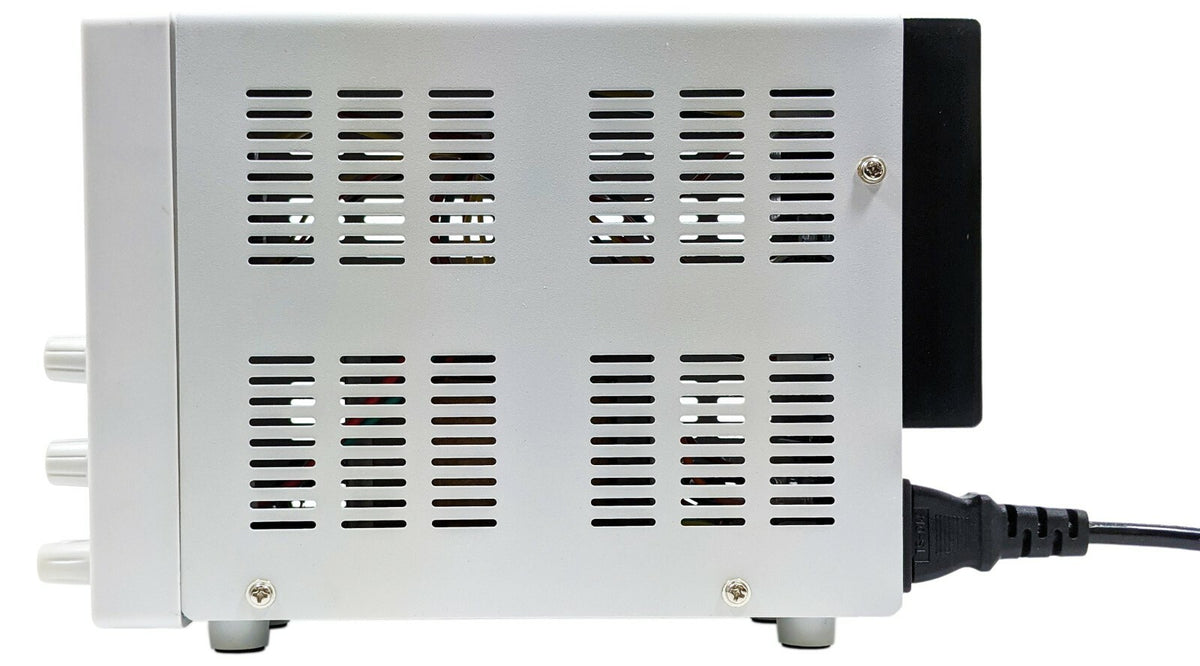

Variable DC Power Supply 0-18V DC, 0-3A with LCD Displays

Lab grade, highly stable, high quality regulated variable linear DC power supply with its output continuously adjustable at 0-18V DC and 0-3A. The unit comes with 2 LCD displays, providing accurate readout for the voltage and current values.

• Voltage Adjustable: 0-18Vdc
• Current Adjustable: 0-3A

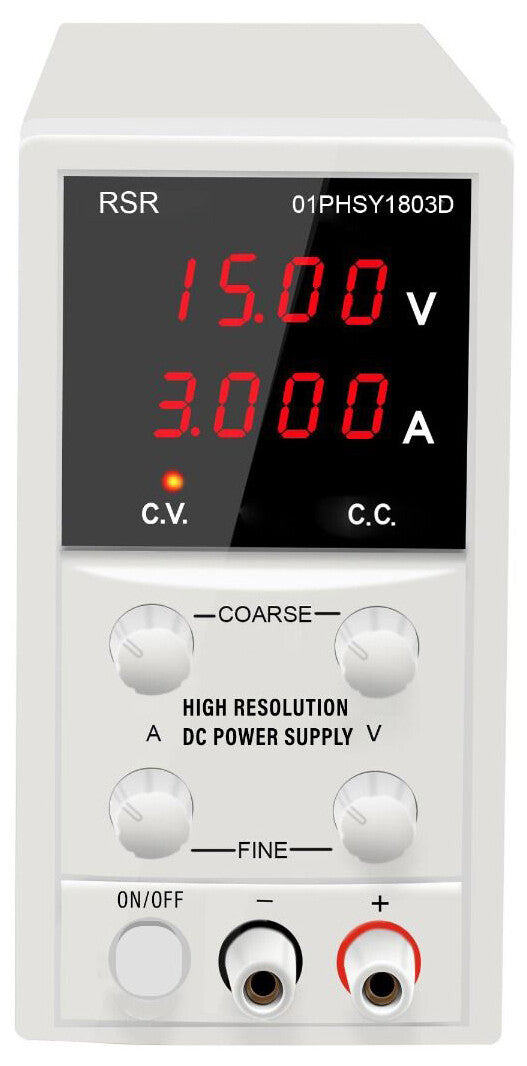

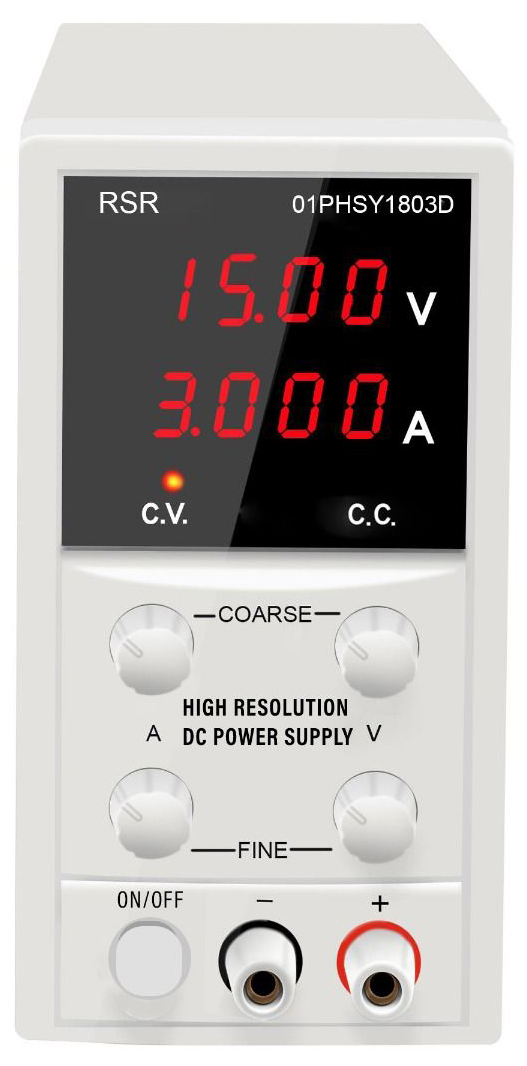

• Coarse and fine adjustment knobs for both output Voltage and output Current levels
• LCD displays for both Current and Voltage
• Constant current and short-circuit protection

Full specifications:

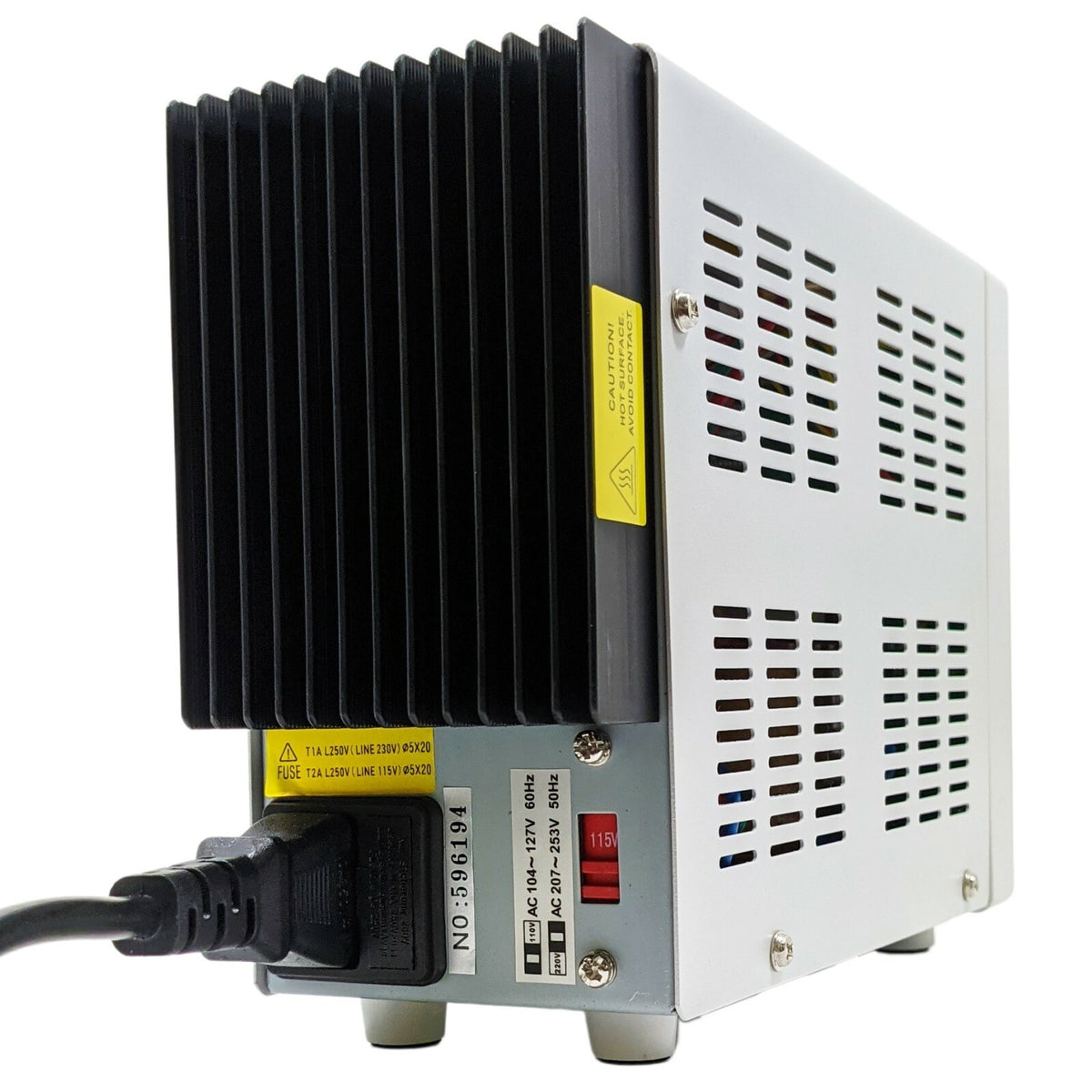

Input voltage, change via switch on back of unit: 104~127V AC (60Hz), 207~253V AC (50Hz)
Line regulation: CV≤0.01%+1mV CC≤0.2%+1mA
Load regulation: CV≤0.01%+3mV CC≤0.2%+3mA
Ripple and noise: CV≤0.5mVr.m.s CC≤3mAr.m.s
Protection: constant current and short-circuit protection
Voltage indication accuracy: LED±0.5%+5digits
Current indication accuracy: LED±0.5%+5digits
Environment: 0 ~ +40 °C relative humidity:<90%

Dimensions: 9" x 3.1" x 6.25"
Weight: ~5.12 lbs.

Product Details
