10/20/50/100 Pairs Male Female Solar Cable Connectors For DIY Solar Pa

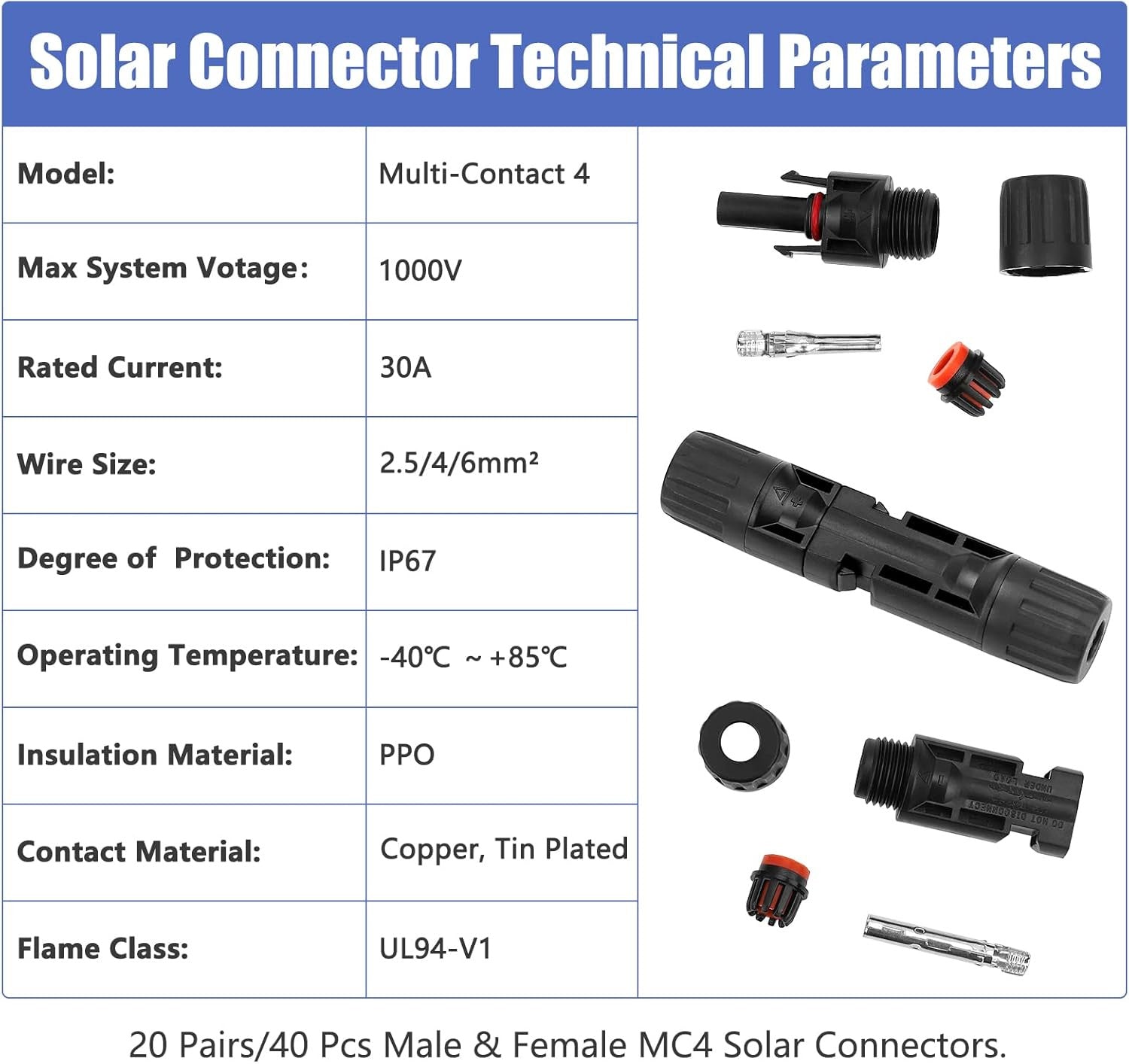

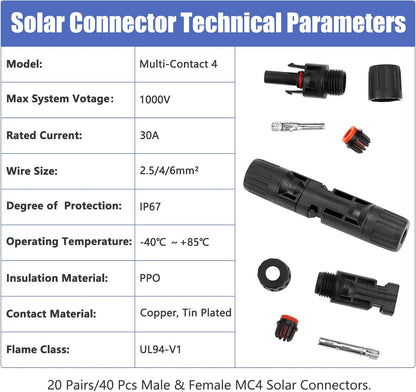

Specifications:

Protection Class: 2
Rated Current: 22(2.5 mm), 30A(4,6 mm)
Protection Degree:IP2X, unmated; IP67, mated

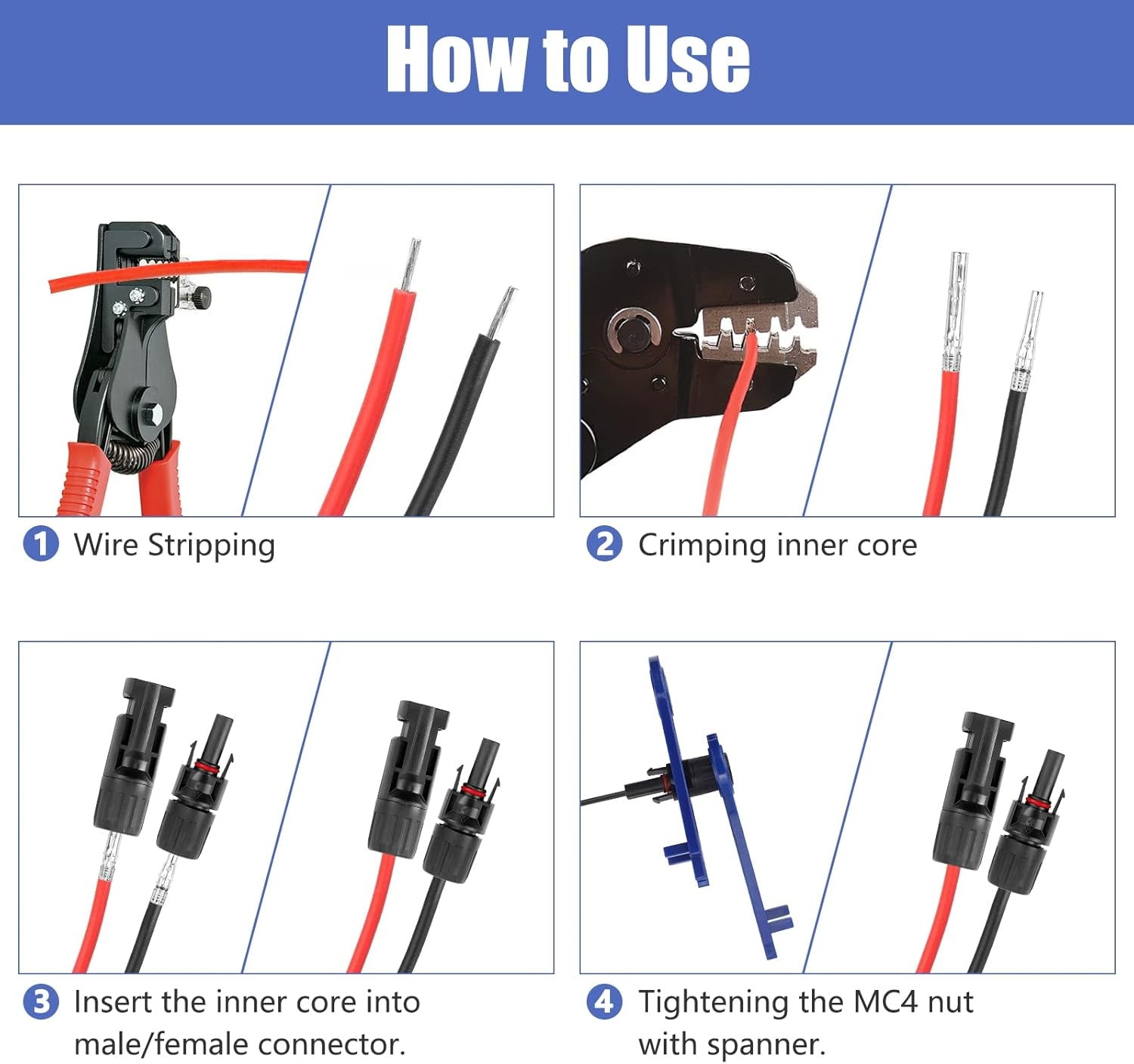

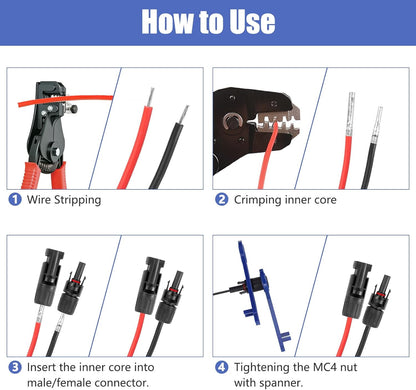

Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument
Compatible with PV cables with different insulation diameters
Resistance of extra high & low temperature and fireproof
Load capability with big current and high voltage
Insulation Material: PC/PA, black
Temperature Range: -40 C ~ +90 C
Contact Material: Copper, Sliver plated
Flame Class: UL94-VO or UL94-5VA
Rated Current: 30A
Suitable cable: 2.5mm2, 4mm2, 6mm2 (AWG14, AWG12, AWG10)

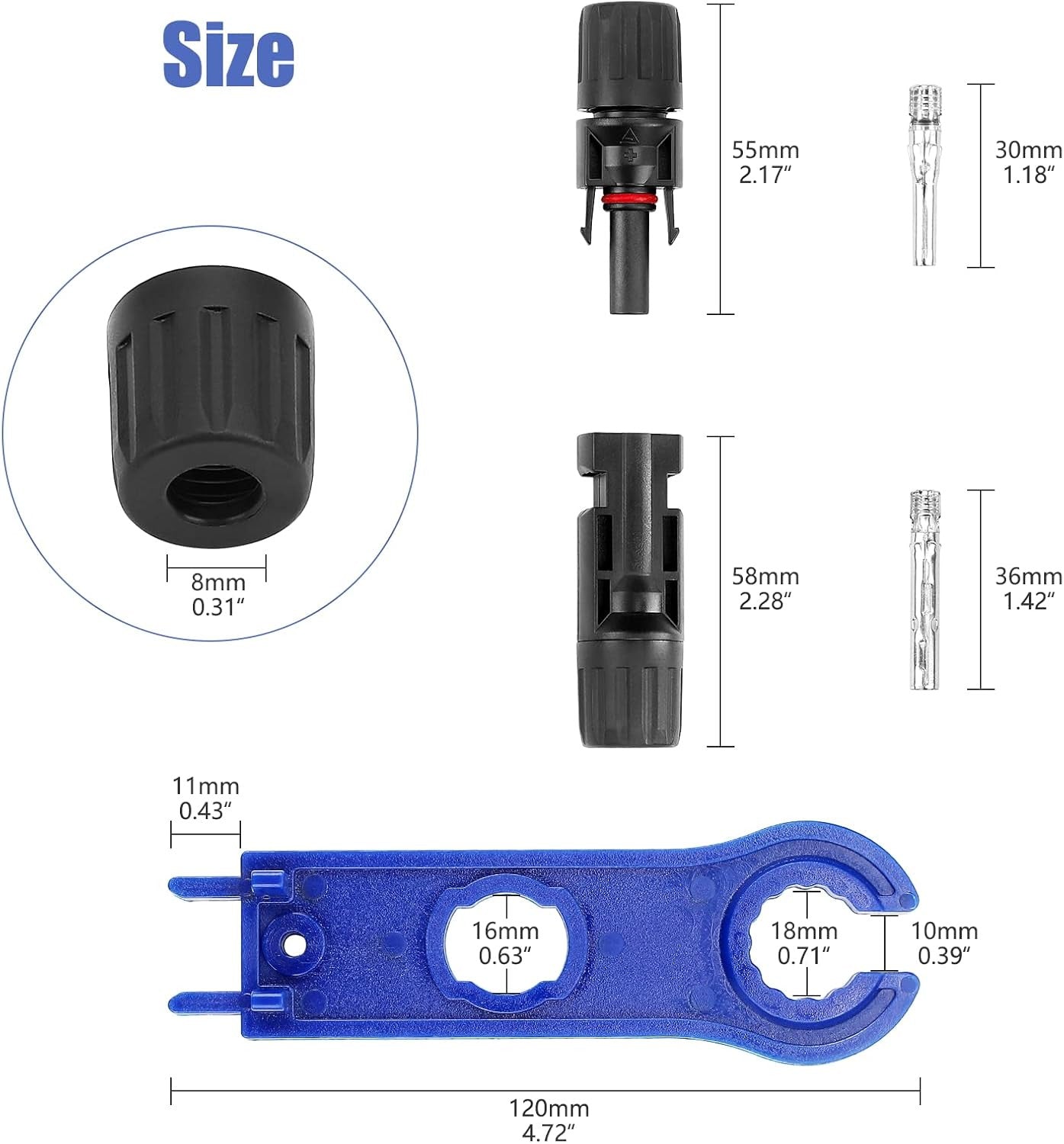

Pin dimension: 4.0 mm dia.
Contact resistance: ≤0.2mmΩ
Withdrawal force: ≥50N
Insertion force: ≤50N
Insulation material: PPO + PA
Connecting system: crimping connection

Desctiption:

【Compatible Cable】Compatible with PV cables with different insulation diameters (2.5m㎡~6m㎡/14AWG ~10AWG).
【Premium Material】Made of PPO material, conductor pin is tin plated copper. PPO material with excellent aging resistance and UV endurance, can resist severe weather such as heavy rain, snowstorm or heat for a long time.

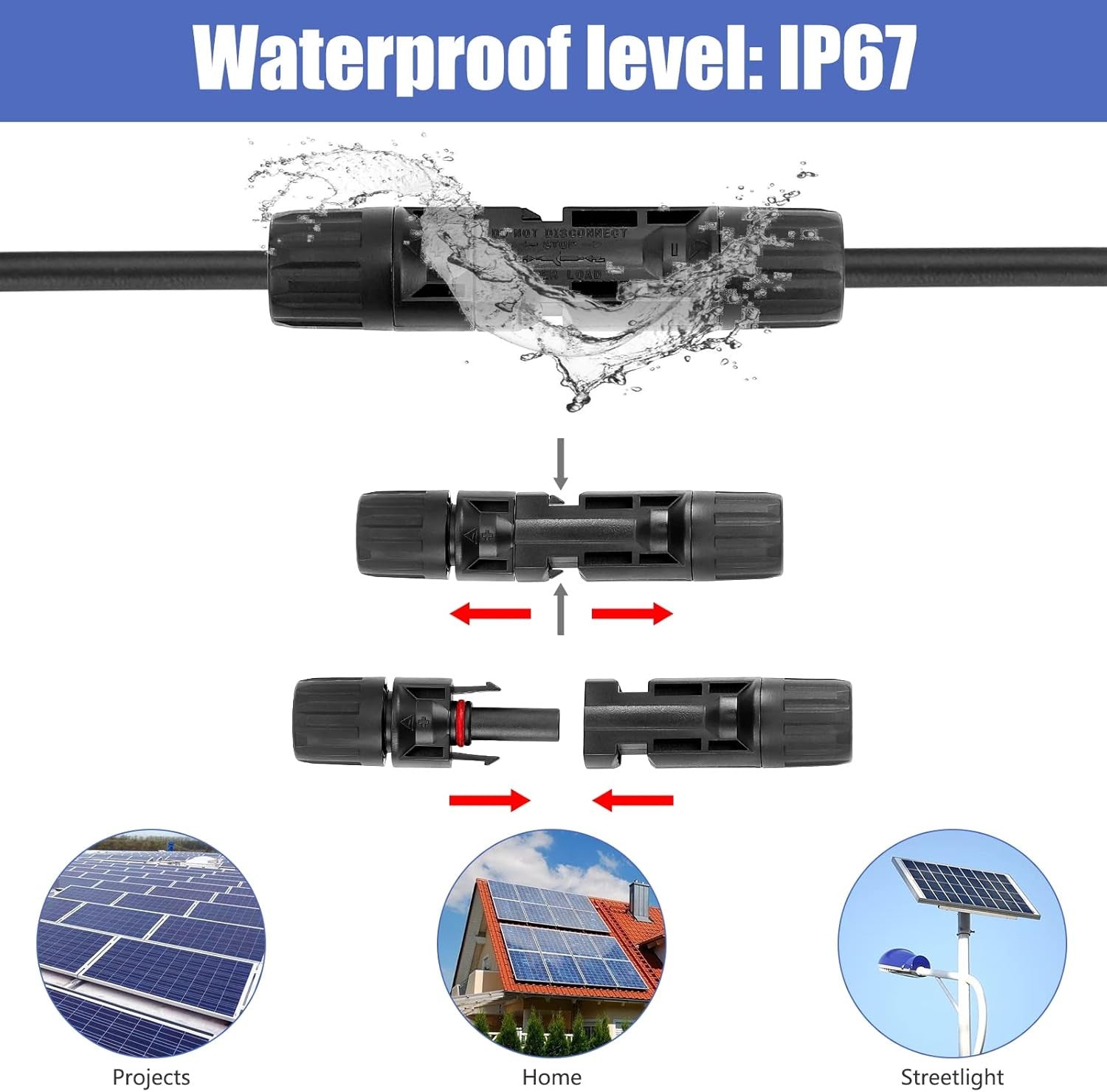

【TUV&CE certification Solar Connectors】 Rated voltage -1000V DC; Rated Current:30A; These solar connectors' degree of waterproof is IP67 and design with sealing ring for dust resistance.
【Application】These solar connectors are designed for connecting photovoltaic solar systems to complete a solar panel (PV) array, typically in parallel applications.
【Package Included】12 pairs solar panel connectors Male & Female + 12 pairs solar connector pins + 2 pieces spanners.
