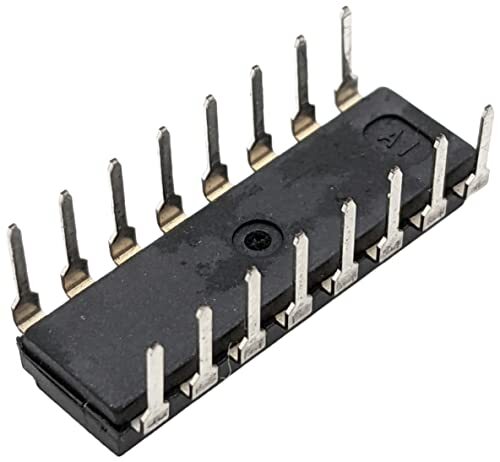

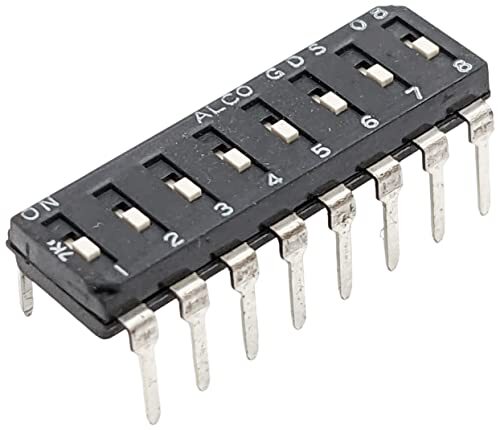

10 Pack 8 Switch DIP Switch, 16-pin, End to End Stackable, Low Profile (20.3mm)

10 Pack 8 Switch DIP Switch, 16-pin
End stackable
Auto-insertable
Withstands wave soldering temperature of 245°C for 3-5 seconds
Contact Rating: 0.4 VA @ 24 VDC
Initial Contact Resistance: 100 Milliohms max.
Insulation Resistance: 100 Megohms min. @ 250 VDC
Dielectric Strength: 300 VAC
Life Expectancy: 1,000 Cycles
Operating Force: 60-600 Grams

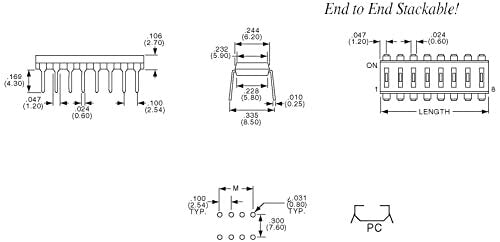

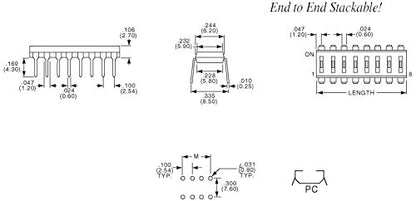

Low Profile, measures 20.3mm x 6.2mm x 2.7mm (not including pins)
