10 Pack Momentary Tactile 2-Pin Push Button Switch, Hole Mount,0.24"x0.24"x27"

10 Pack Momentary Tactile 2-Pin Push Button Switch, Hole Mount,0.24"x0.24"x27"

$6.30 USD
$6.62 USD $6.30 USD
Sale Sold out
Shipping calculated at checkout.
eBay

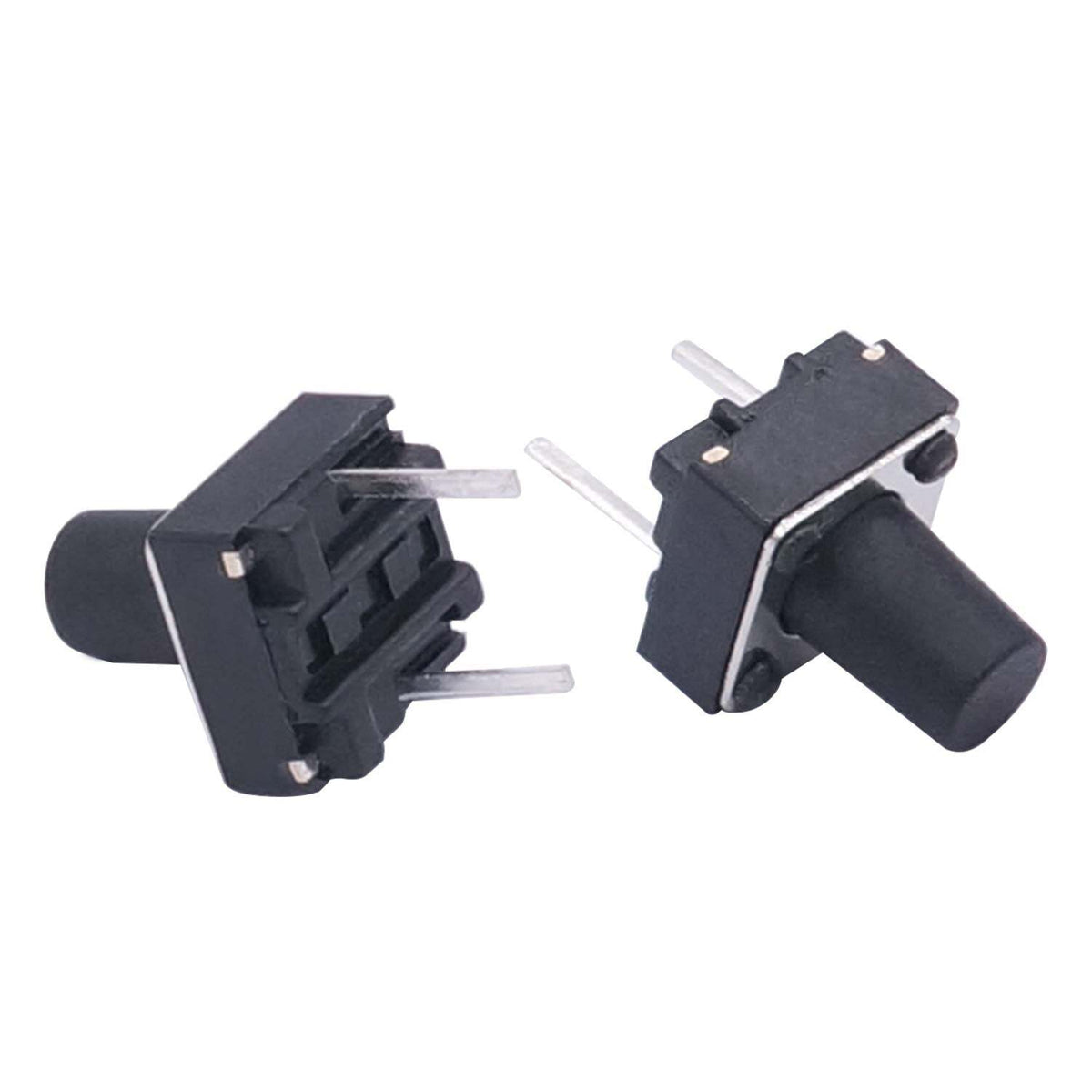

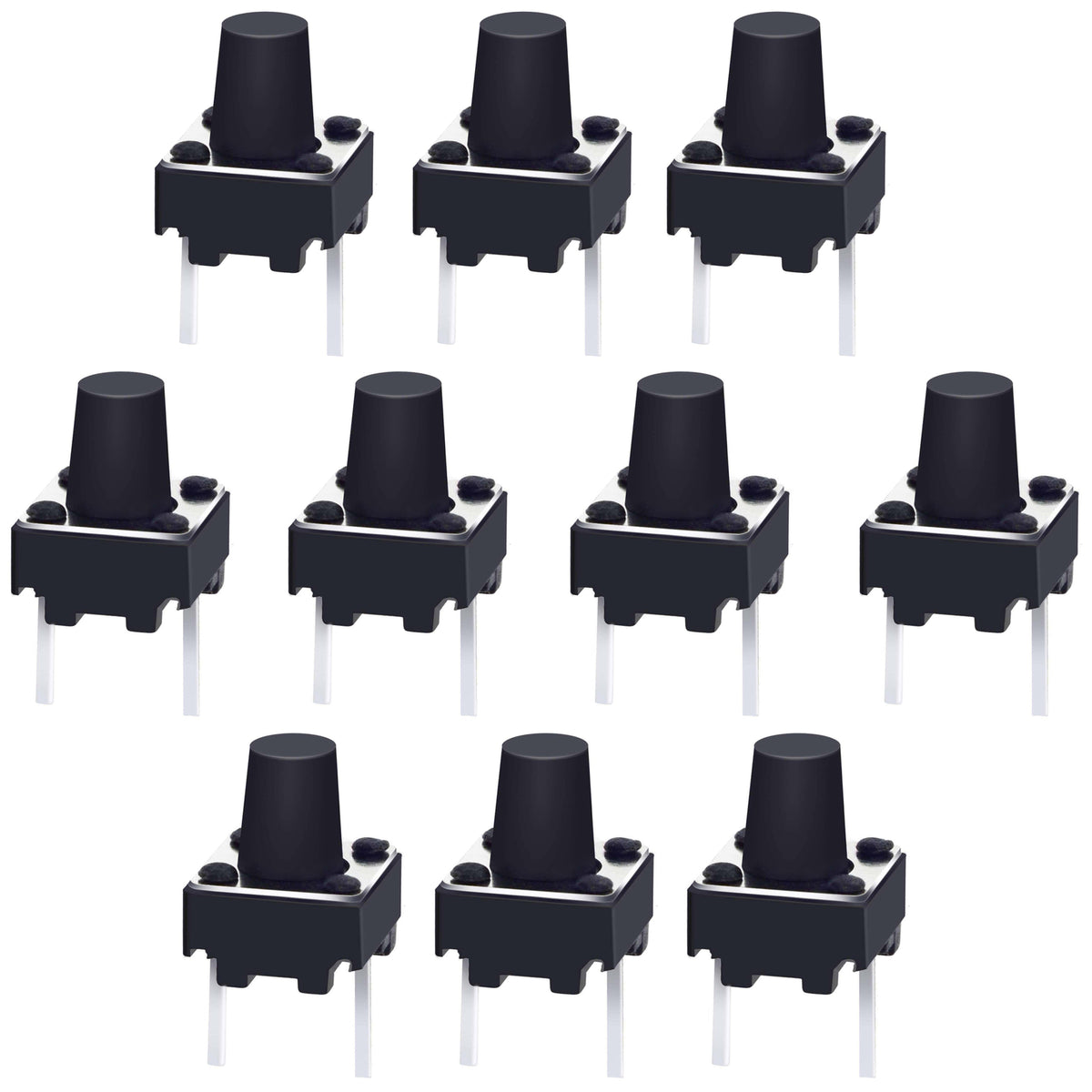

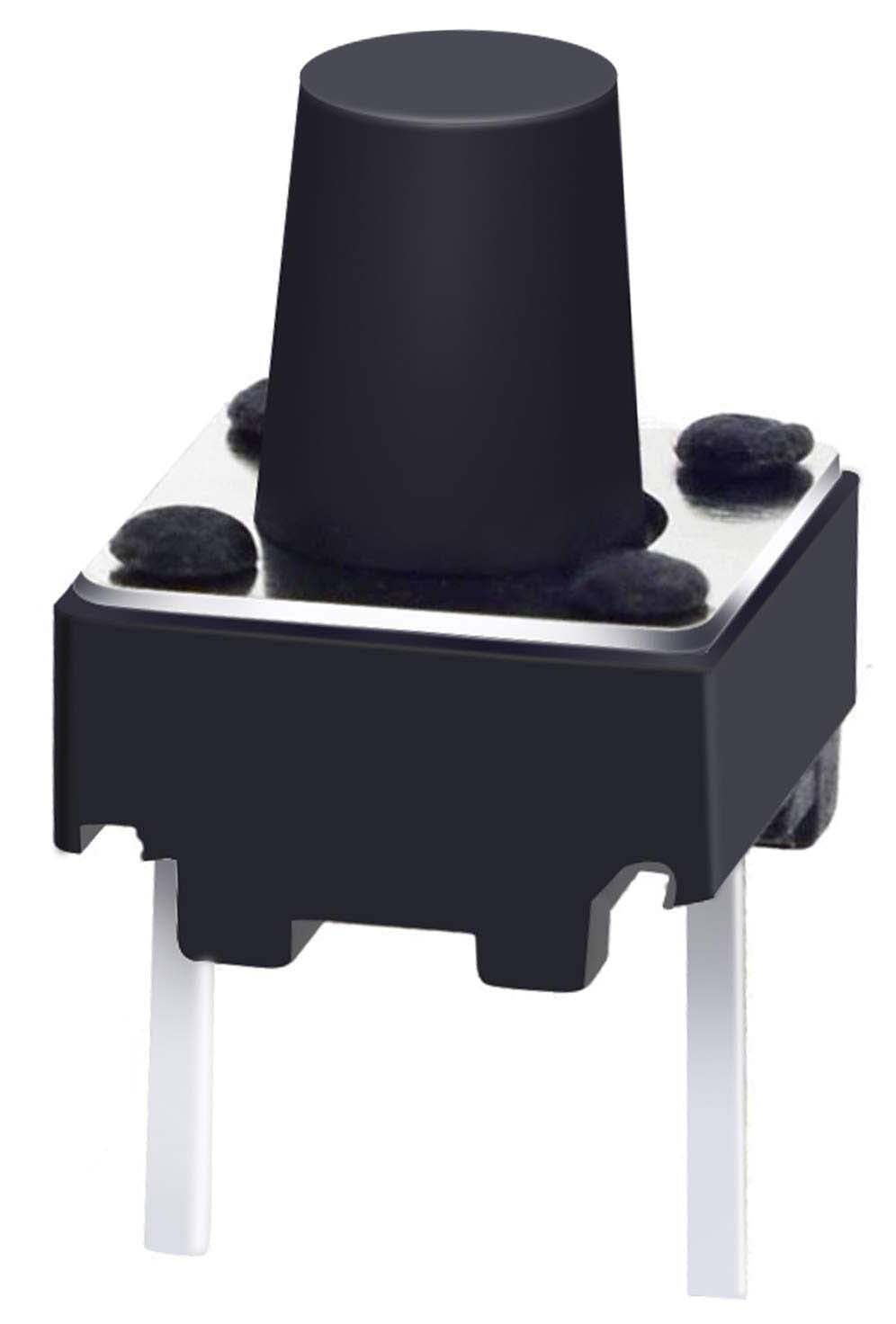

  • 10 Pack Tactile Push Button Switch with round black button
  • Total Size: 6 x 6 x 7mm / 0.24" x 0.24" x 27" (L*W*H)

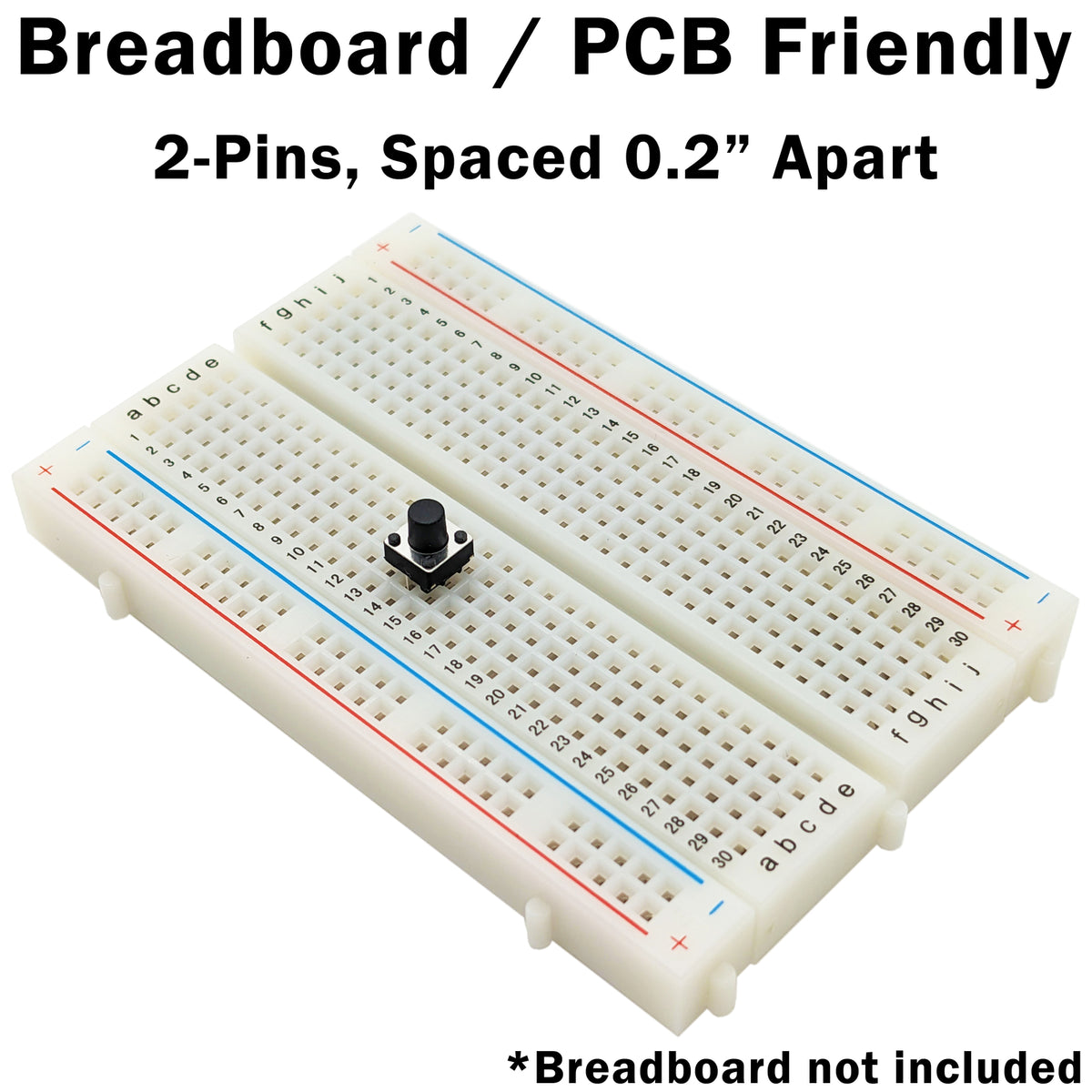

  • 2-Pin Through Hole Mount, 0.2" Pin Spacing (Breadboard and PCB friendly)
  • Good tactile feel
  • Withstand Voltage: AC250V
  • Rated load: DC 12V 50mA
  • Contact resistance: 50mΩ MAX
  • Insulation Resistance: ≥100MΩ
  • Mechanical life: 100,000 times
  • Pin Length: 4.2mm / 0.16"
  • Operating temperature range: -25~85℃
  • Material: Plastic, Metal
  • Color: Black, Silver
