100 MHz Oscilloscope Probe, x1 / x10 Switchable (PP-150)

• Passive low-impedance oscilloscope probe, approx. 4 foot cable length
• Two position slide switch in the body which selects attenuation of x1 or x10
• Bandwidth:
  • X1: DC to 6MHz
  • X10: DC to 100MHz
• Input resistance:
  • X1: 1MΩ±2%
  • X10: 10MΩ±2%
• Max input Voltage:
  • X1: <200V DC + Peak AC
  • X10: <600V DC + Peak AC

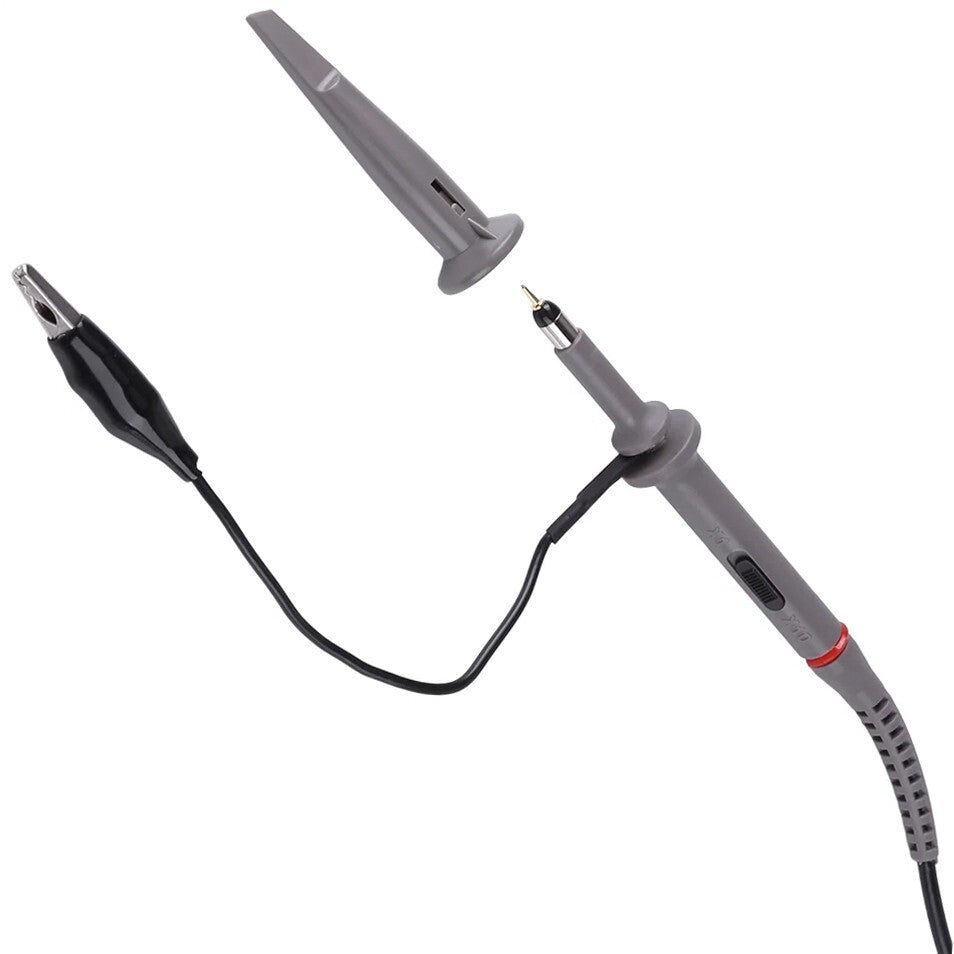

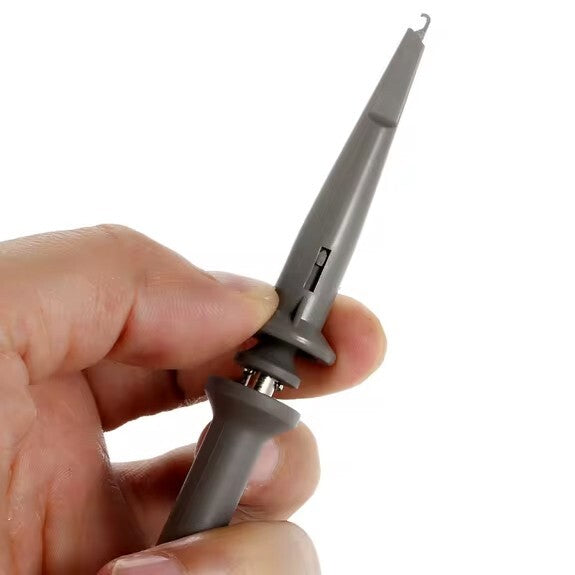

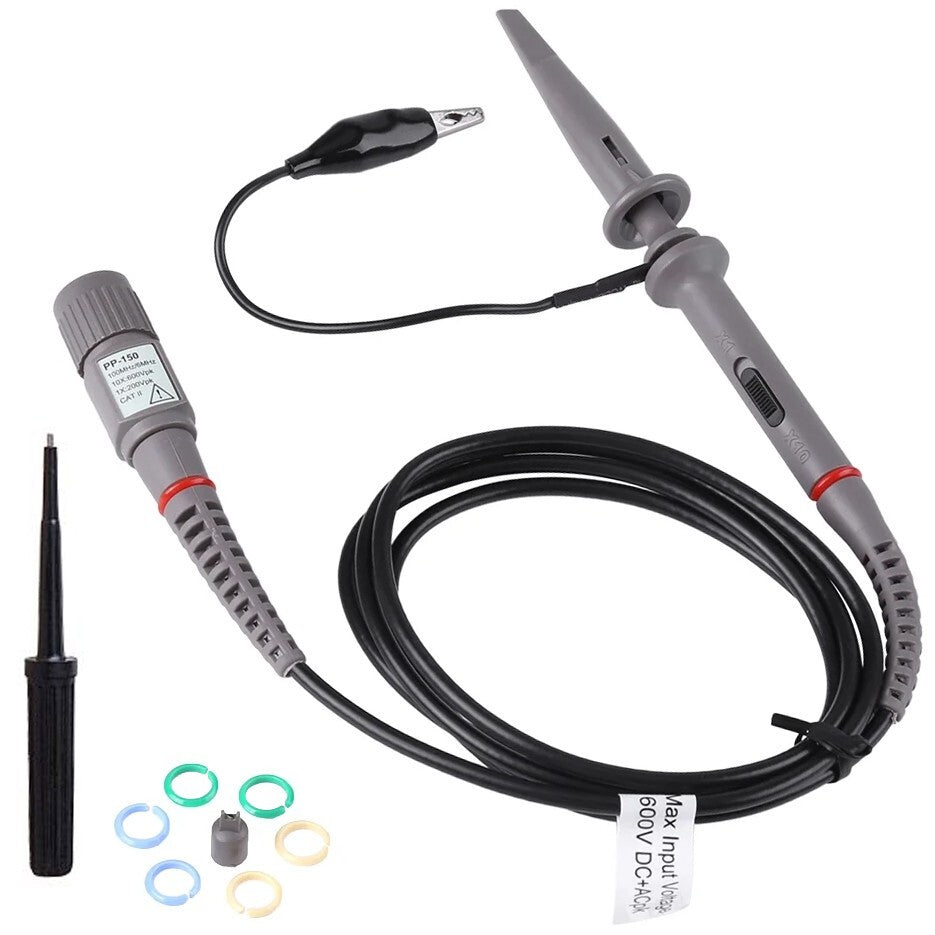

• Included accessories: sprung hook, tool for adjusting compensation capacitance, tip cover for IC probing, ground lead with mini alligator clip, and 3 pairs of colorized marker rings.

The PP-150 is a passive low-impedance oscilloscope probe designed and calibrated for use with instruments having an input impedance of 1MΩ paralleled by 20pF. However, it may be recalibrated for use with instruments having an input capacitance of 15 to 40pF.

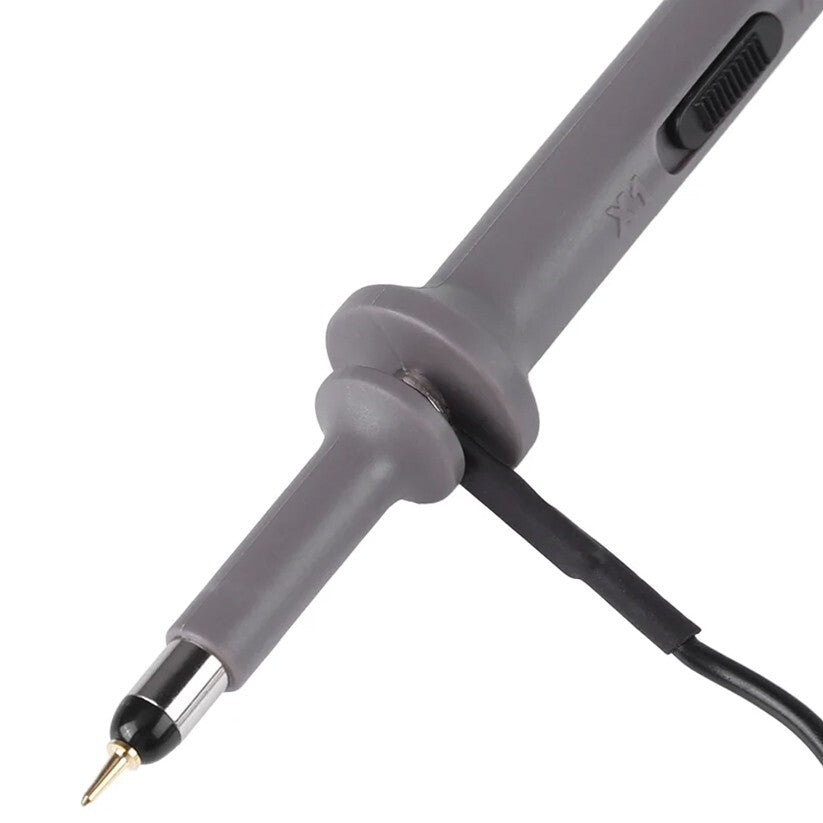

The probe incorporates a two position slide switch in the head which selects attenuation of x1 or x10:

Position X1:

• Attenuation Ratio: 1:1
• Bandwidth: DC to 6MHz

• Input Resistance: 1MΩ±2%
• Input Capacity: 85pF ~ 115pF
• Max. Input Voltage: <200V DC + Peak AC

Position X10:

• Attenuation Ratio: 10:1
• Bandwidth: DC to 100MHz

• Input Resistance: 10MΩ±2%
• Input Capacity: 18.5pF ~ 22.5pF

• Max. Input Voltage: <600V DC + Peak AC

Oscilloscope Input Capacity: 15pF ~ 40pF
