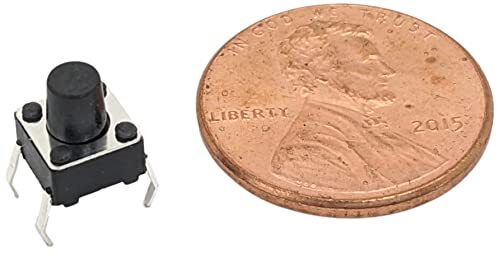

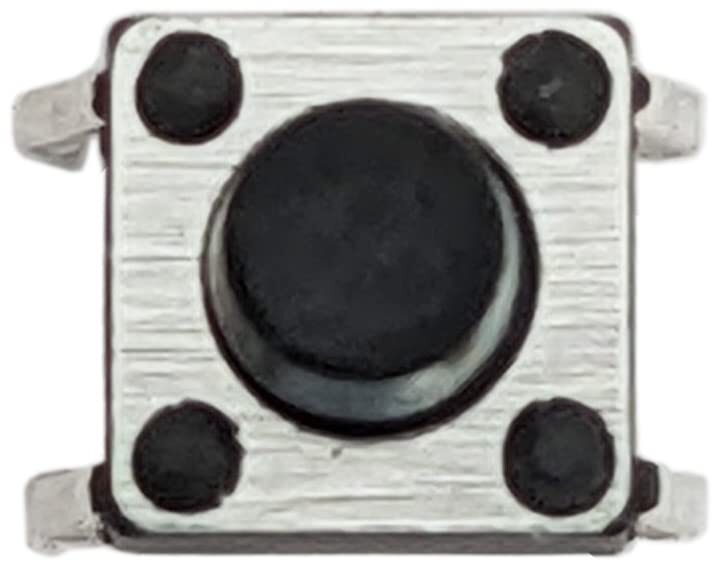

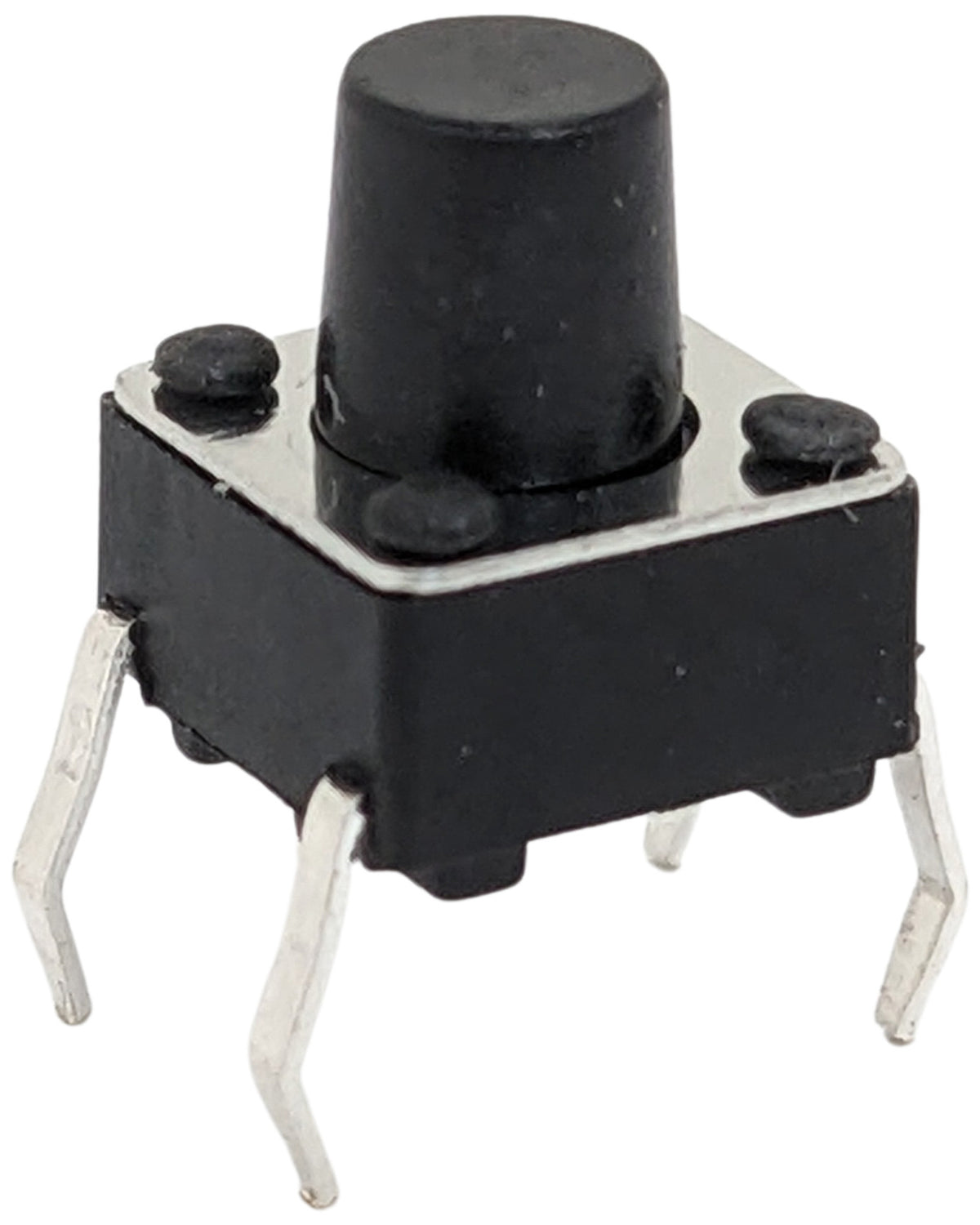

100 Pack 6mm Square Tact Momentary Switch, 3.5mm Button Height-Breadboard & PCB

• 100 Pack 6mm Square Momentary Switches with Round Buttons
• Body height: 3.5mm, Button height: 3.5mm
• Rating: 50mA, 12VDC
• Button color: Black
• Good tactile feel

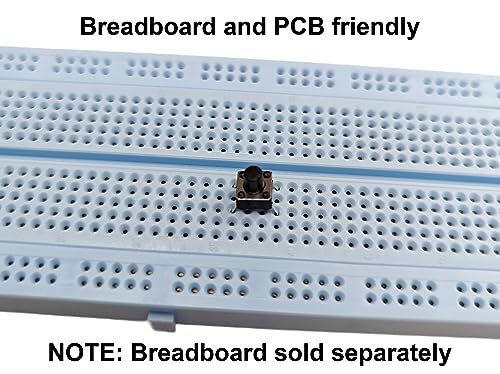

• Leads are spaced to fit most breadboards and PCBs

Specifications:

• Rating: 50mA, 12VDC
• Electrical Life:
• 100,000 cycles (ELTS)
• 1,000,000 cycles (EHTS)
• Contact Resistance: 100mΩ max
• Insulation Resistance: 100MΩ min. 500VDC
• Dielectric Strength: 250VAC/1 min
• Operation Force: 100gf, 160gf, 260gf, 320gf, 520gf
• Storage Temperature: -30°C to 80°C
• Contact Arrangement: 1 pole 1 throw

Materials:

• COVER: Stainless steel or SPCC
• CASE: UL94V-0 Nylon Thermoplastic(Black)
• STEM: UL94V-0 Nylon Thermoplastic
• CONTACT DISC: Phosphor bronze or stainless steel with silver cladding
• TERMINAL: Brass with silver cladding
• CAP: Thermoplastic ABS
