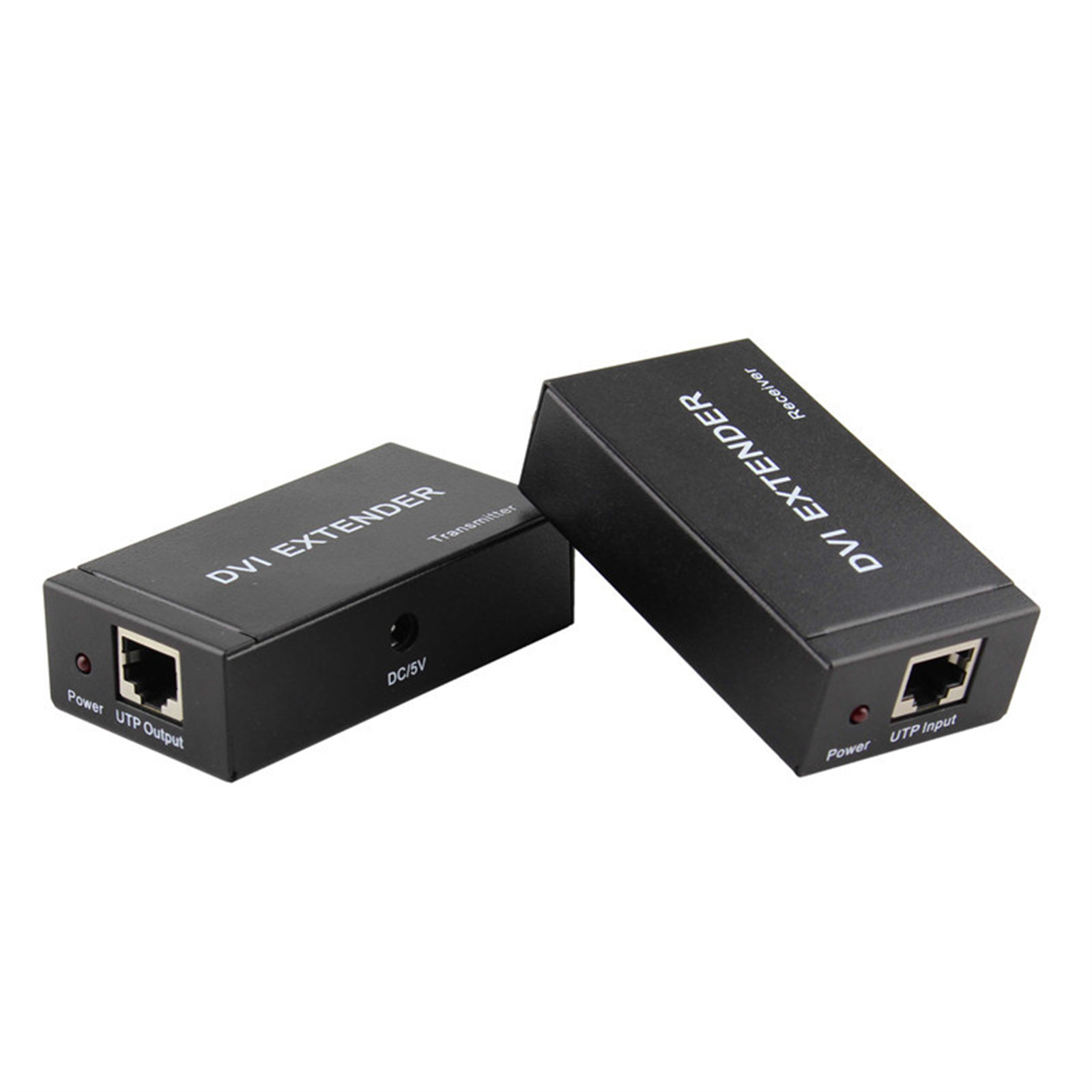

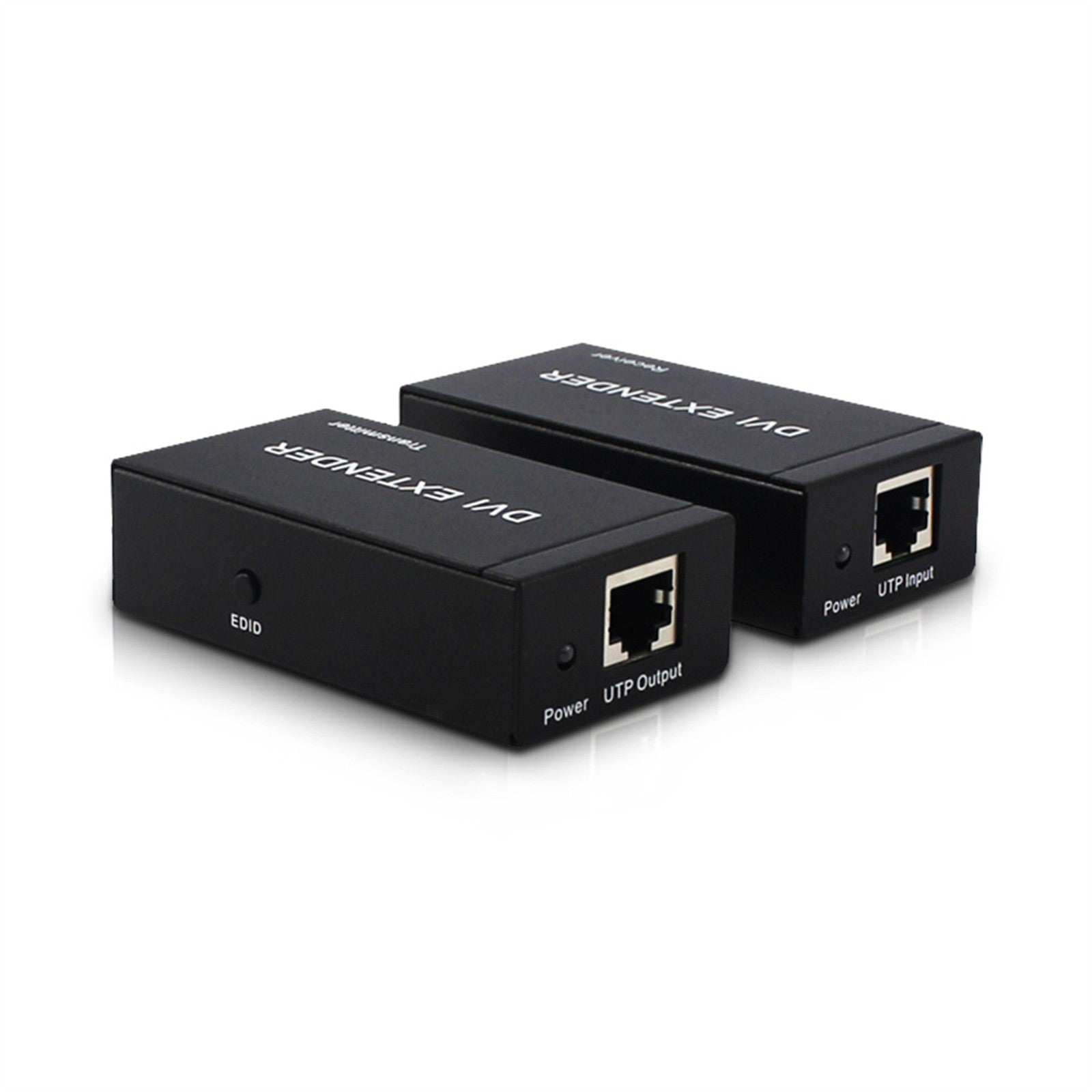

1080P 3D DVI Extender Transmitter&Receiver Via Rj45 Cat5e Cat6 Cable 60m To HDMI

60M DVI Extender Via RJ45 Cable With EDID Support 1080P 3D DVI TO RJ45 Transmitter And Receiver

Specifications:
HDCP: Compliant with HDCP1.2
Support 3D
Support resolution: 480i, 480p, 720p, 1080i, 1080p, 1920 * 1200
Depth support video color: 24-bit color / 30-bit depth, 36-bit
Supports audio formats: DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Video bandwidth: 6.75Gbps
Video Bit Rate: 225Mhz
Input / output TMDS signal: 0.5 ~ 1.5Volts p-p (TTL)
Input / output DDC signal: 5Volts p-p (TTL)
Input line length: ≤10m DVI-D 28AWG standard cable

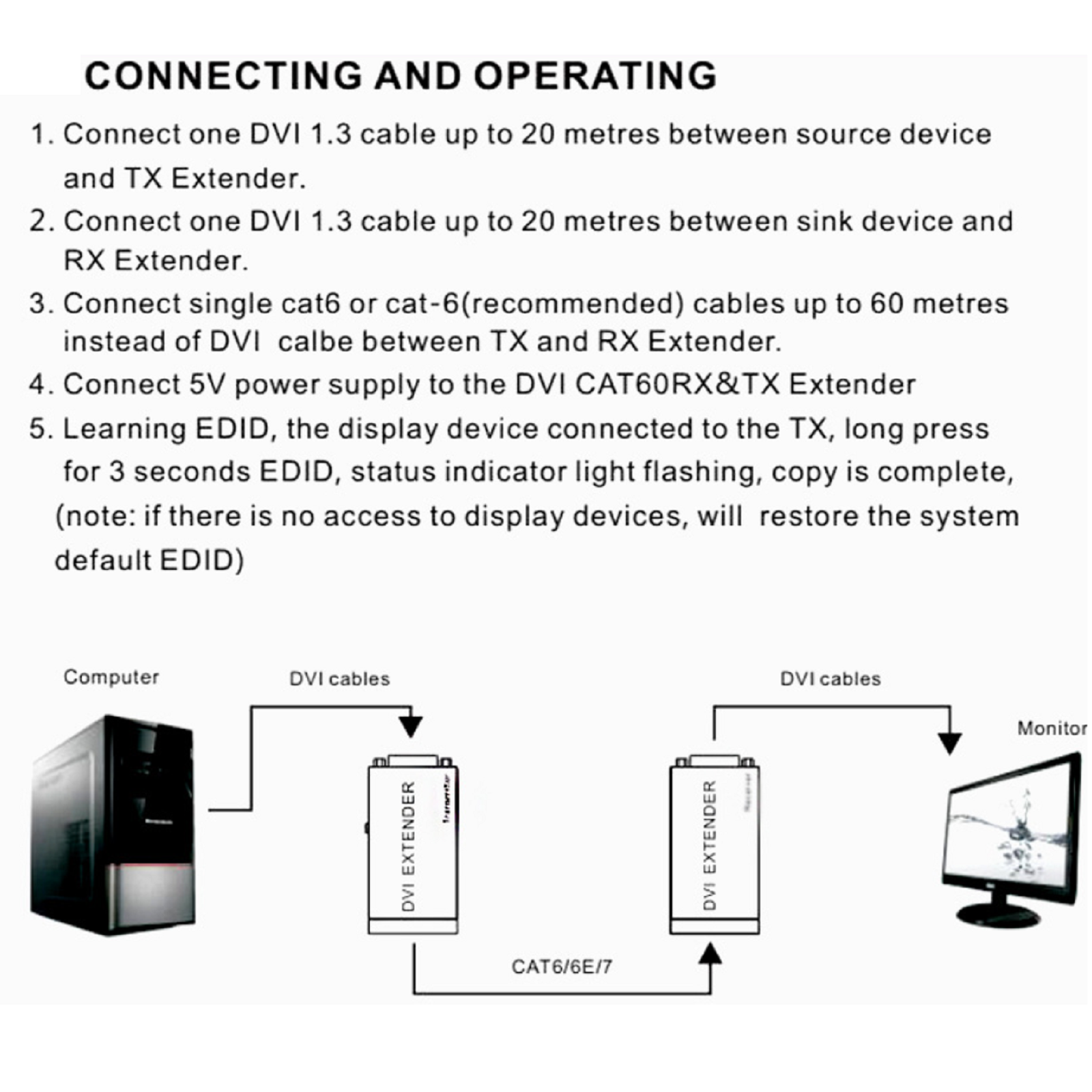

CAT5E/6 Cable: ≤60m
Output line length: ≤10 meters DVI-D 28AWG standard cable
Power Supply: DC5V/1A
Product power: ≤3.5W
Operating temperature range: -15 to + 55 ° C
Operating humidity range: 5 to 90% RH (non-condensing)

Feature:
1. No setting required, plug and play, supports hot swapping

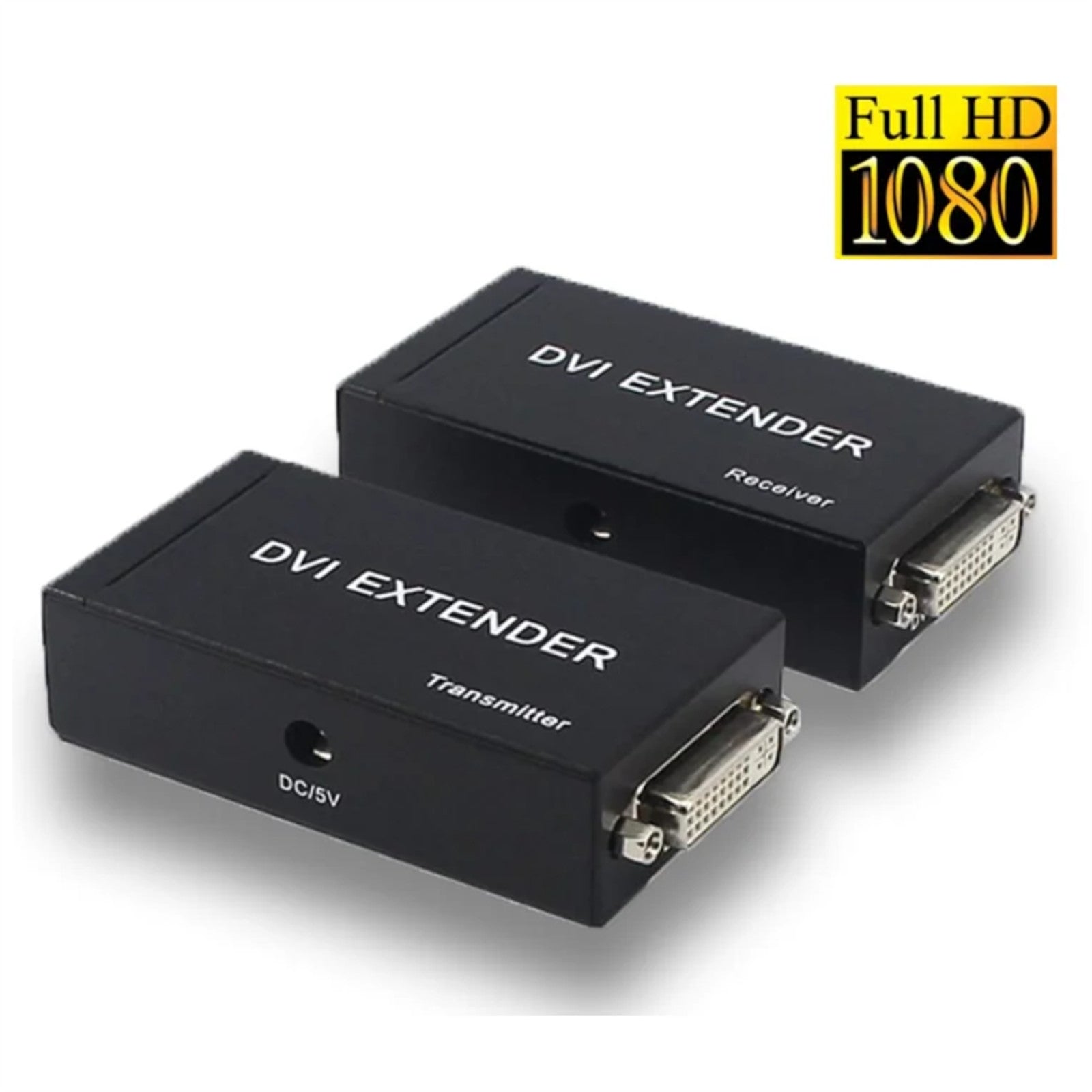

2. Support 1080P high-definition resolution
3. Support DVI to HDMI conversion and conversion to HDMI signals

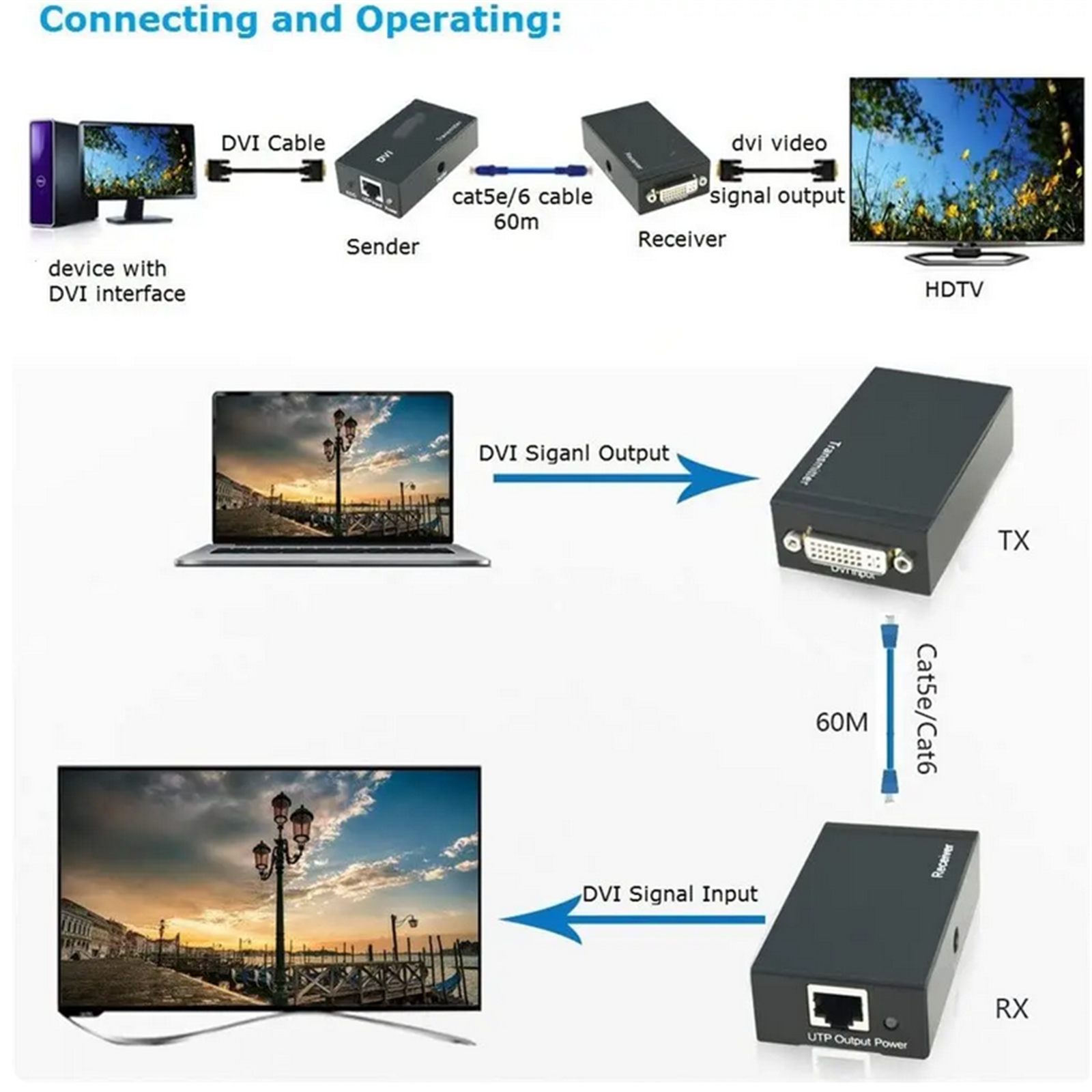

4. Support Cat5e/6 with a transmission distance of up to 60 meters
5. Optimized signal transmission, lossless and zero delay
6. Support resolutions: 480i, 480p, 720p, 1080i, 1080p, 1920 * 1200

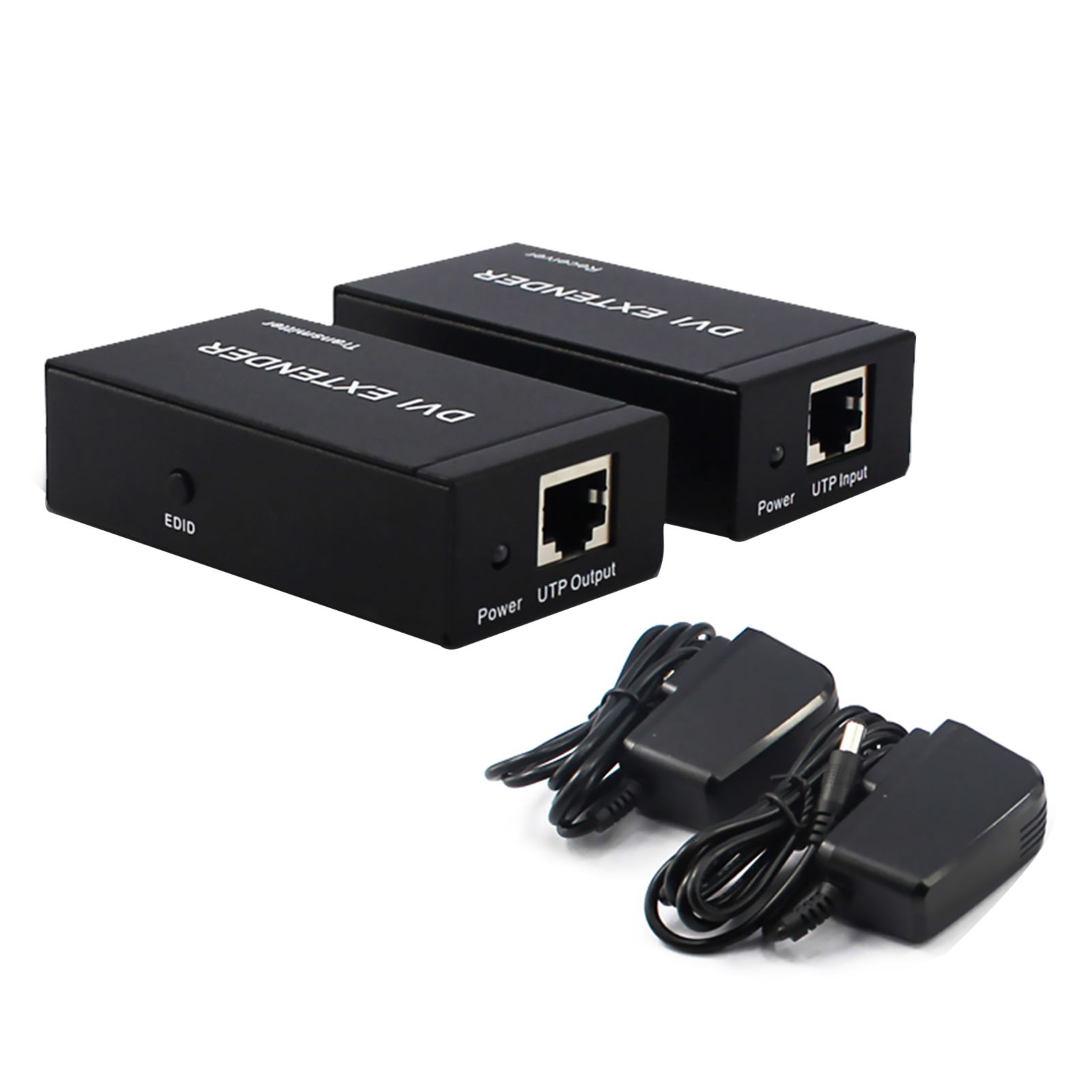

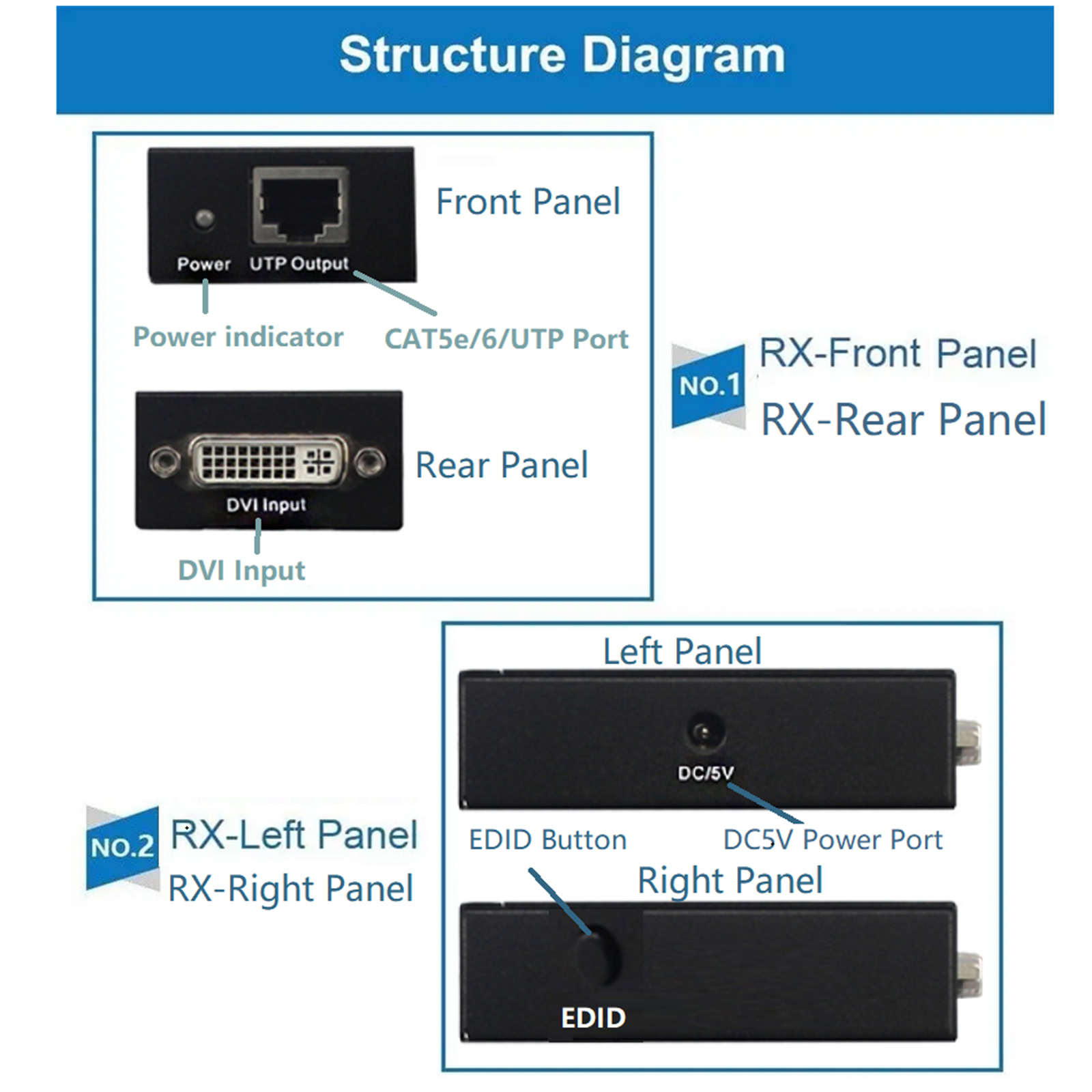

7. LED working status indication

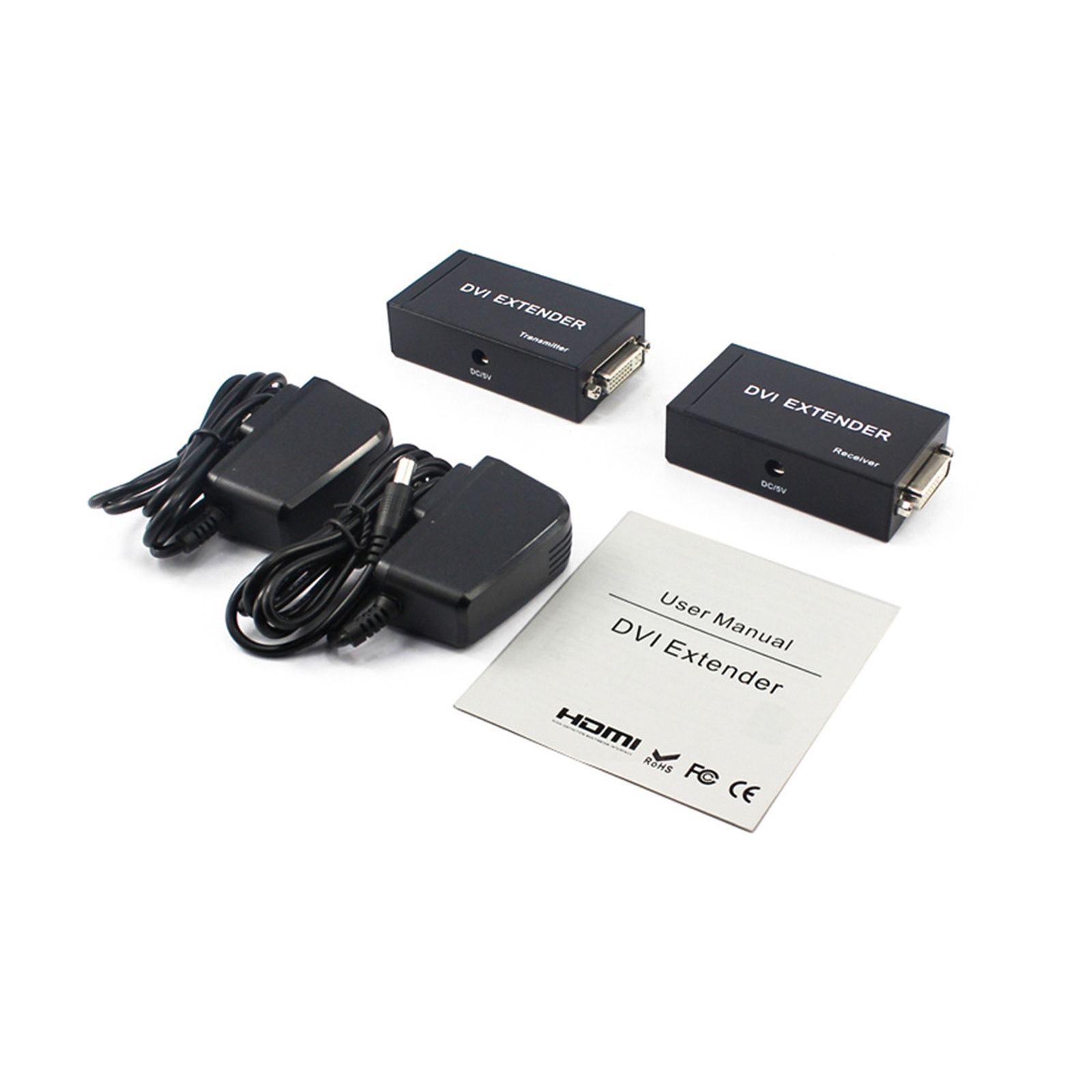

Product List:

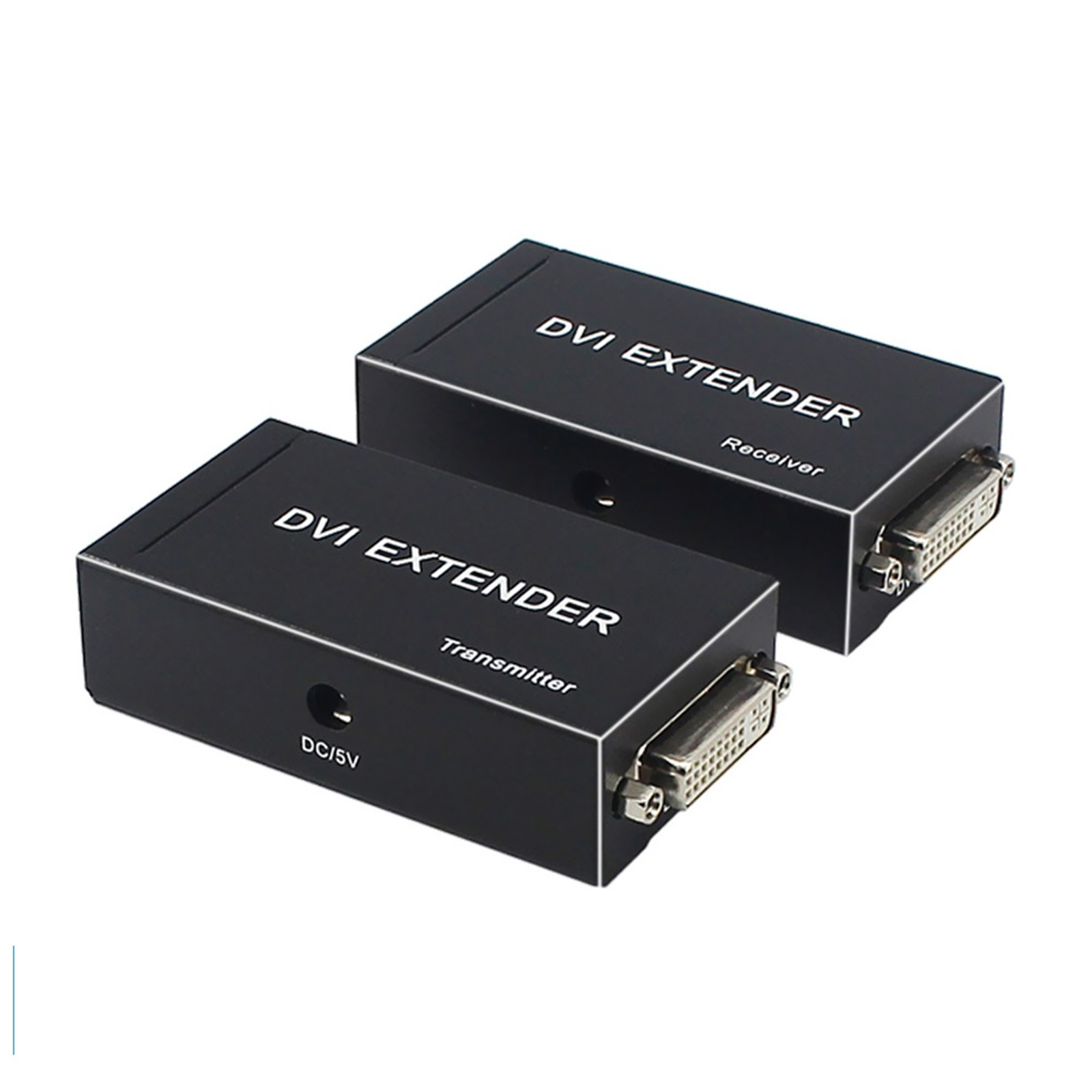

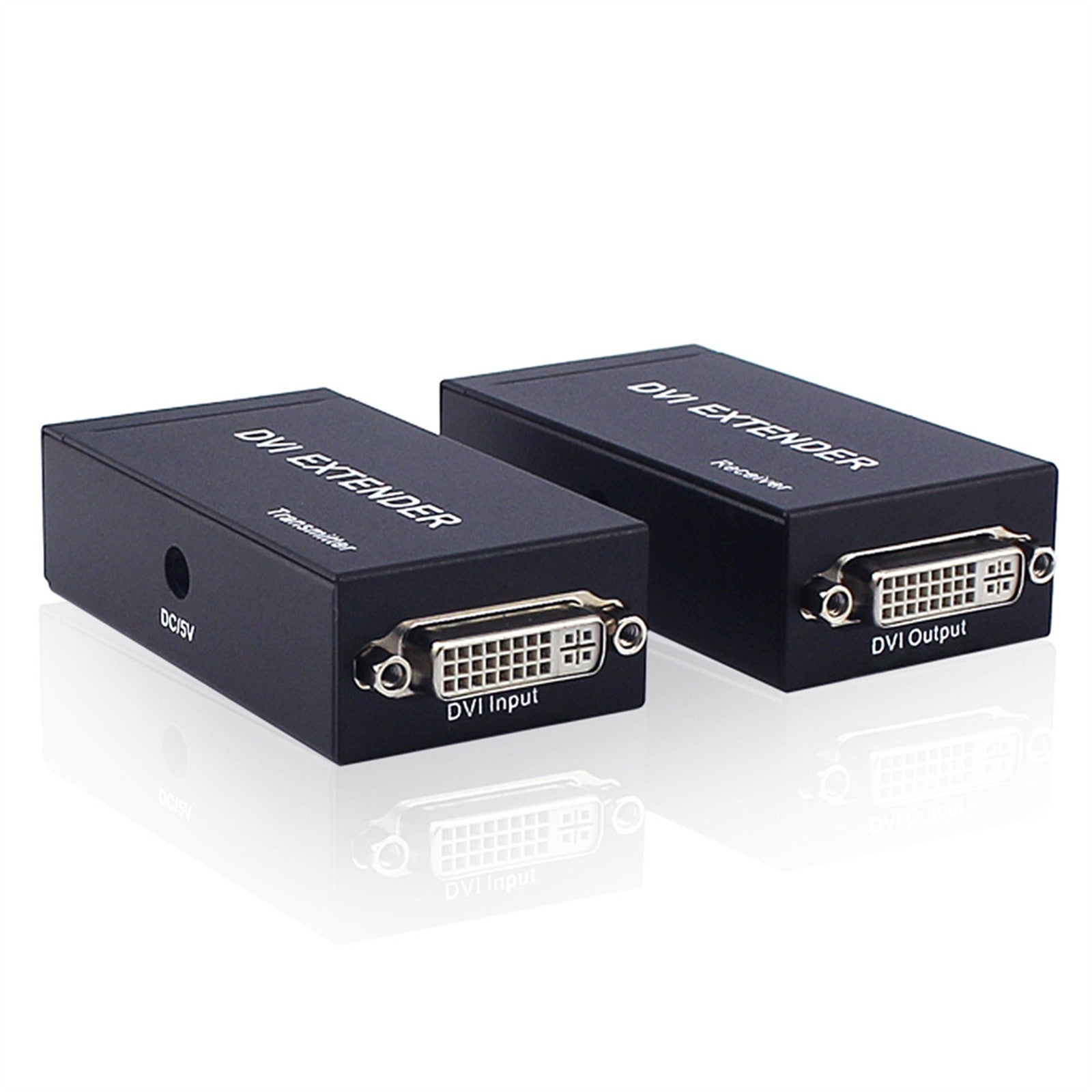

1 * DVI transmitter
1 * DVI receiver
2 * DC5V Power adapter
1 * User manual
