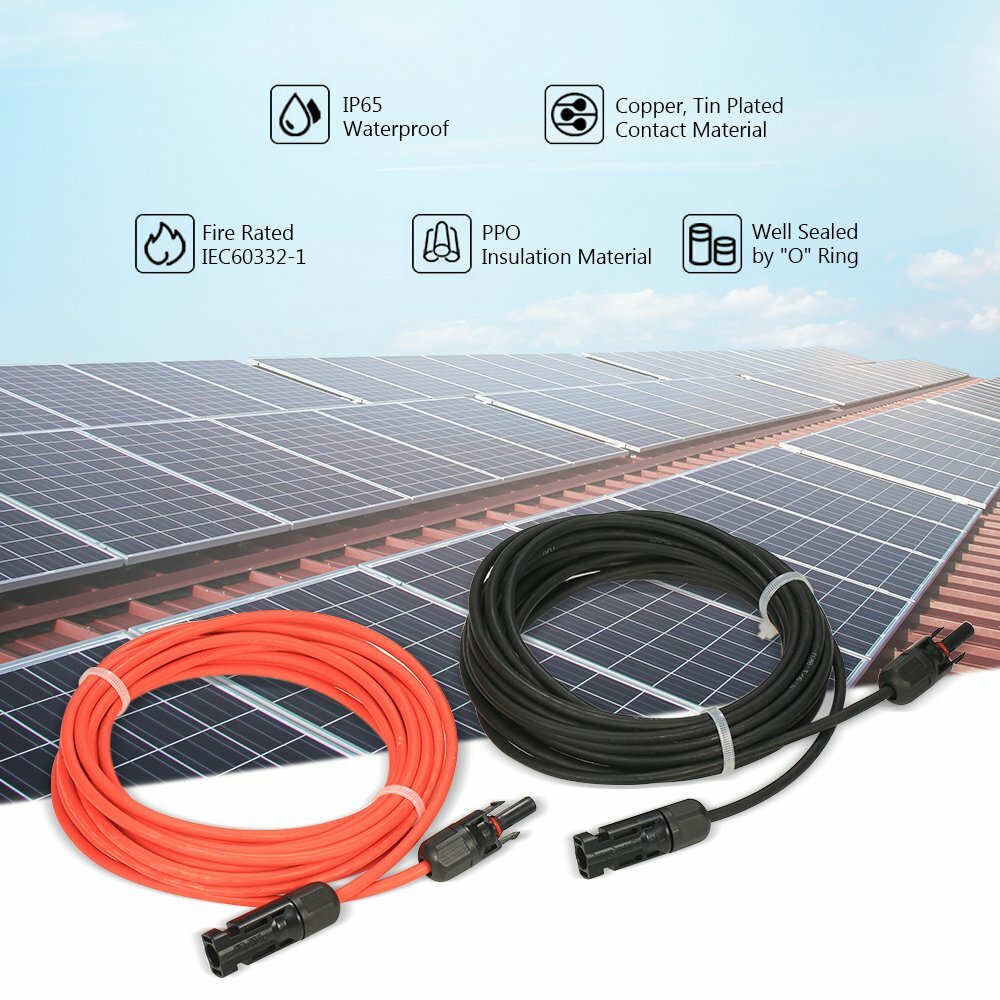

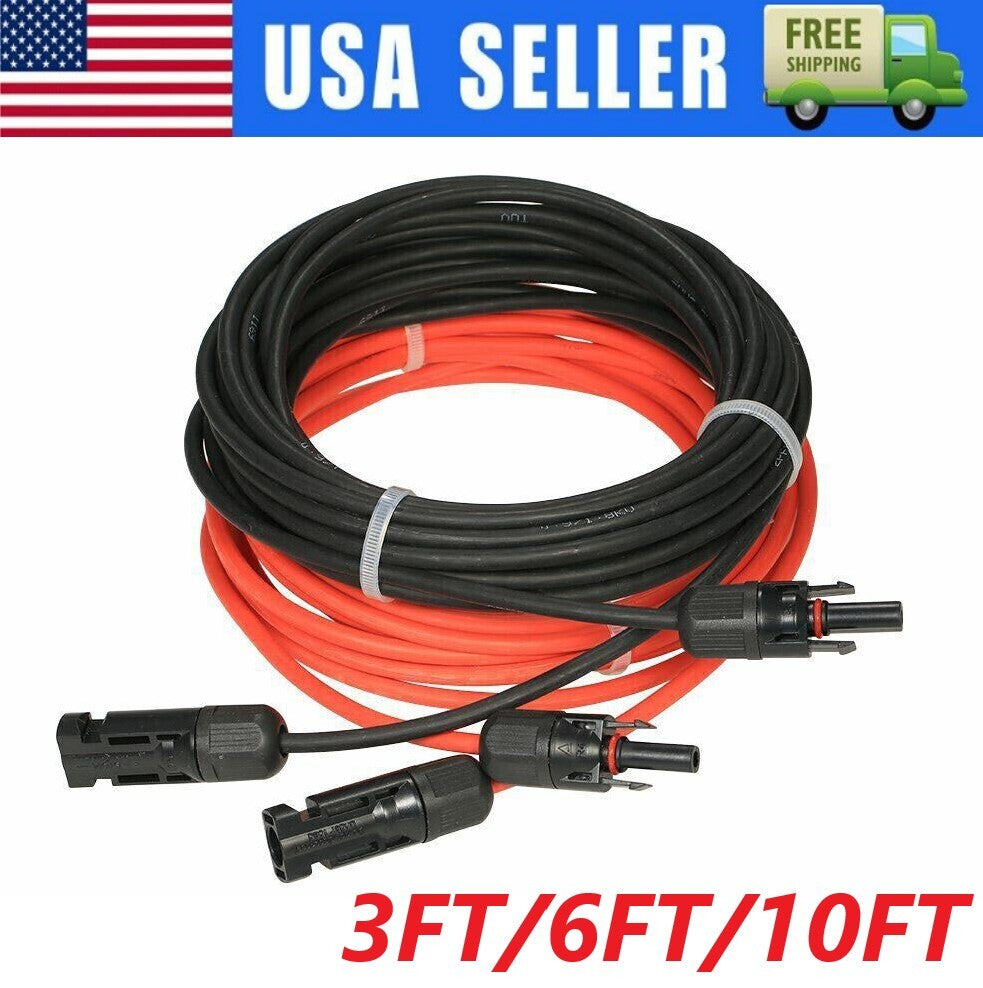

10AWG 1 Pair Black+Red Solar Panel Extension Cable with Female & Male Connectors
10AWG 1 Pair Black+Red Solar Panel Extension Cable with Female & Male Connectors
Regular price
$17.85 USD
Regular price
$22.05 USD
Sale price
$17.85 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Features
- 【Safe】Protecting against short circuits and ground leakages. Suitable for use inside and connected to insulated equipment.
- 【High performance】High current carrying capacity.
- 【High quality】Resistance against UV, water, ozone, fluids, oil, salt and general weathering.
- 【Wide use】Hard plastic connectors at each end. Suitable for using in solar panels, DC circuits, inverter wiring.
- 【Long life】Engineered for long life and outdoor applications. Good abrasion resistance,excellent softness and stripping performance.

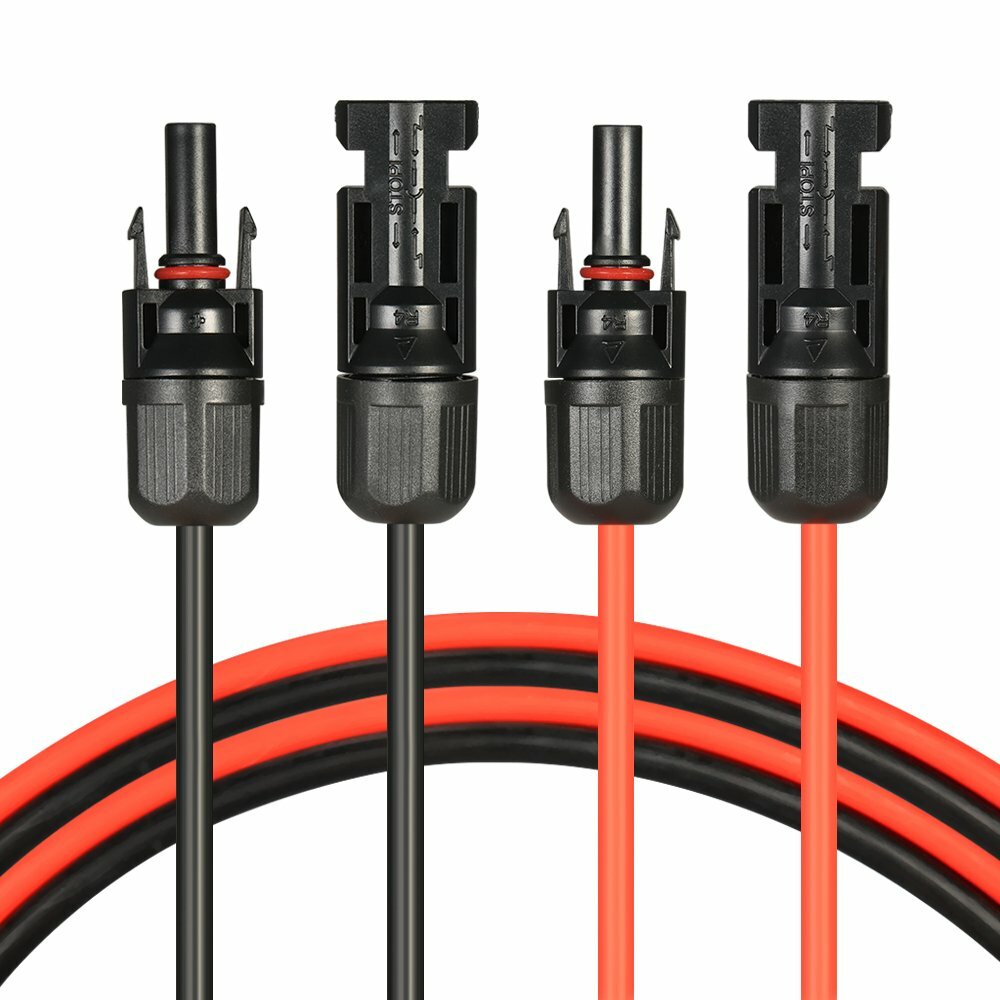

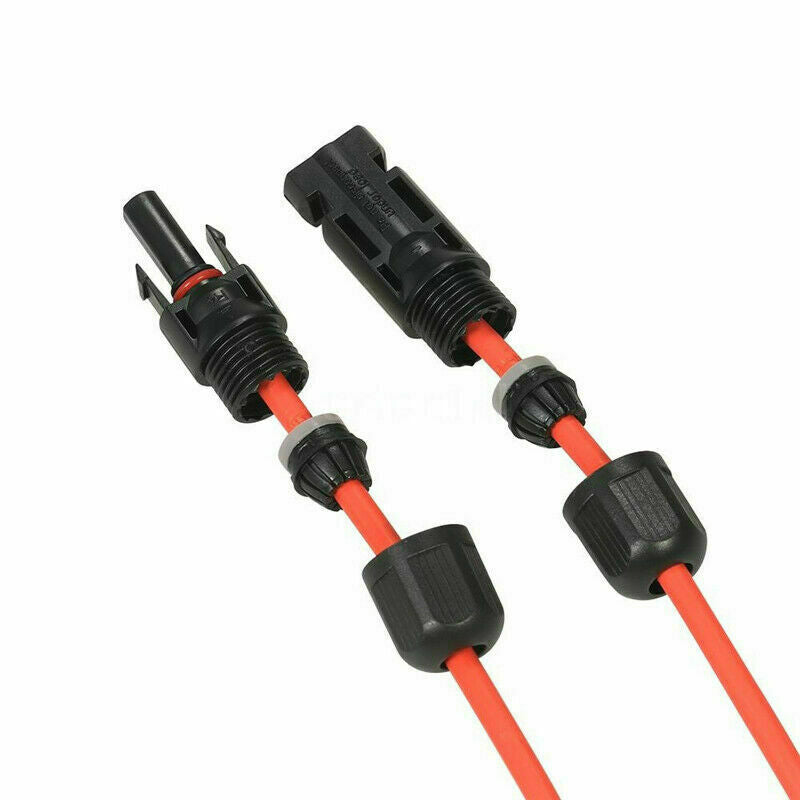

Connectors
Test voltage: 6 kV (50 Hz)
Operating temperature: -40°C ~ 85°C
Approvals: IP 67 protecting grade, safety class ii, flame class UL94-V0
Contact resistance: ≤5mΩ
Insertion / withdrawal force: ≤50N / ≥50N
Locking system: Snap in
Wire
Diameter: 10AWG 6mm²
Max. amps per conductor: 55A/70 A
Max. voltage: 600 V
Temperature rating: -104°F to 194°F
Specification
Color: Black&Red
Connectors insulation material: PC/PA
Connectors contact material: copper, silver-plated
Wire conductor material: bare copper
Wire insulation material: cross linked Polyethylene (XLP)
Quantity: 1 Pair (Black + Red)
Package Include
Solar Panel Extension Cable 10AWG
Note:
Please allow 1-3cm error due to manual measurement and make sure you do not mind before ordering.
The color of the actual items may slightly vary from the above images due to different computer screen. Thanks for your understanding.
