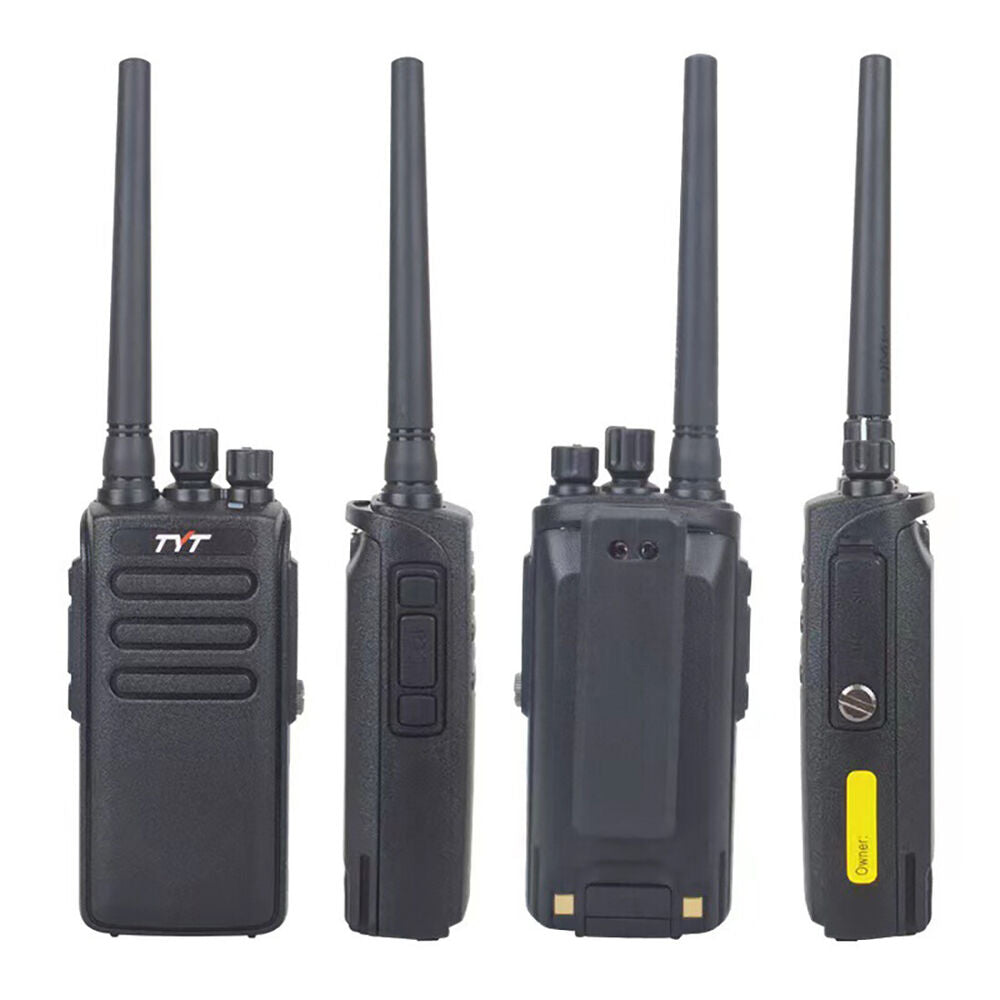

10W MD680 DMR Radio 16 CANALI Dual Time Spot Encryption HAM Wireless Interphone
Descriptions:
MD-680 is a DMR two-way radio, adopts hi-technology and novel design, bring you a stable, reliable and efficient communication service.
The 10Watt output power allows the radio has a long communication distance.
Optional IP67 waterproof function makes the radio immersed in 1M deep water within 30 minutes can still be used normally, so that your radio would be worked more freely in outdoors.
More fantastic function, MD-680 will take you to enjoy them.
TYT MD-680 Features:
1. Monitor
2. Wide band/narrow band selection
3. Battery save/low battery alarm
4. Encryption
5. Lone worker
6. Single call,group call
7. End-tone elimination
8. IP 67 waterproof
9. Battery Indicator
10. Side key programmable
11. Talk around
12. 16 channels
13. Digital/analog double modes
14. Read and write by computer
15. TX High/low power selection
16. Time out timer
17. Chinese and English audio prompt
18. Busy channel lockout
19. Online update
20. QT(analog mode)
21. DQT (digital mode)
Specifications:
General |
Frequency Range |
400-470MHz |
Memory Channel |
16 |
Working Voltage |
7.2V |
Working Temperature |
-30~+60 |
Storage Temperature |
-40~+80 |
Continuous Working Time |
Analog:15hours
Digital:25 hours
|
Battery Capacity |
2200mAh |
Channel Space |
12.5KHz |
Dimensions |
140*63*32mm |
Net weight |
300g(with battery) |
Receiver |
Frequency Stability |
±1.0ppm |
Analog Sensibility |
0.35uV/-116dBm (20dB SINAD)
0.22uV/-120dBm(Typical)
|
Digital Sensibility |
0.3uV/-117.4dBm(BER 5%)
0.22Uv/-110DbM(BER 1%)
|
Spurious response |
TIA03C:65dB
ETSI:65dB
|
Adjacent channel selectivity |
TIA603C:60dB@12.5KHz
ETSI: 60Db@12.5KHz
|
Spurious response suppression |
TIA603C:70Db etsi:70dB |
Receiving spurious emissions |
≤-57dBm@1GHz |
Blocking |
84dB |
Rated Audio Power |
1W |
Audio response |
+1Db~-3dB |
Rated audio distortion |
≤3% |
Transmitter |
Power Output |
High:10W, Low:1W |
FM Noise |
-40dB@12.5KHz |
Spurious emission |
-36dBm@1GHz |
Adjacent channel selectivity |
-60dB@12.5KHz |
FM Modulation |
12.5KHz:11K Ø F3E |
4FSK digital modulation mode |
12.5KHz(data only):7K60FXD
12.5KHz(data and voice): 7K60FXW
|
Modulation limit |
2.5KHz@12.5KHz |
Audio response |
+1dB~-3dB |
Rated Audio distortion |
≤3% |
Digital Protocol |
ETSITSI02361-1,-2-3 |
Vocoder Type |
AMBE+2TM |
Packages included:
1x TYT MD-680 DMR Digital 10W Two-way Radio
1x Antenna
1x Charger Dock
1x Power Adapter
1x Belt Clip
1x User Manual
