12V Linear Actuator 50mm 100mm 150/200mm Stroke Drive Electric Motor Controller

12V Linear Actuator 50mm 100mm 150/200mm Stroke Drive Electric Motor Controller

Technical Parameters:

1. Input Voltage: 12V DC

2. Rated power: 20W, maximum 30W.

3. Material: Aluminum alloy

4. Ambient temperature -20°C to +75°C.

5. Standard protection class: IP54.

6. Low noise design, noise level less than 42dB.

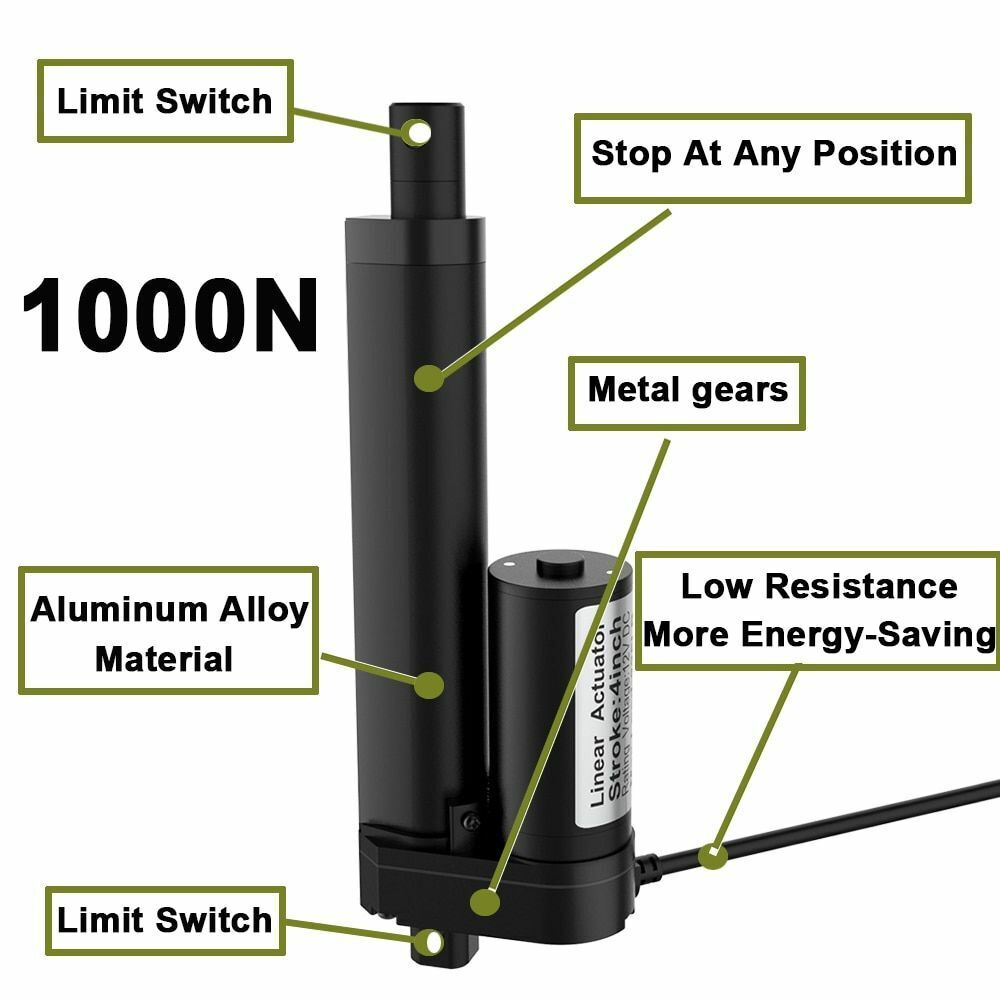

Product Description:

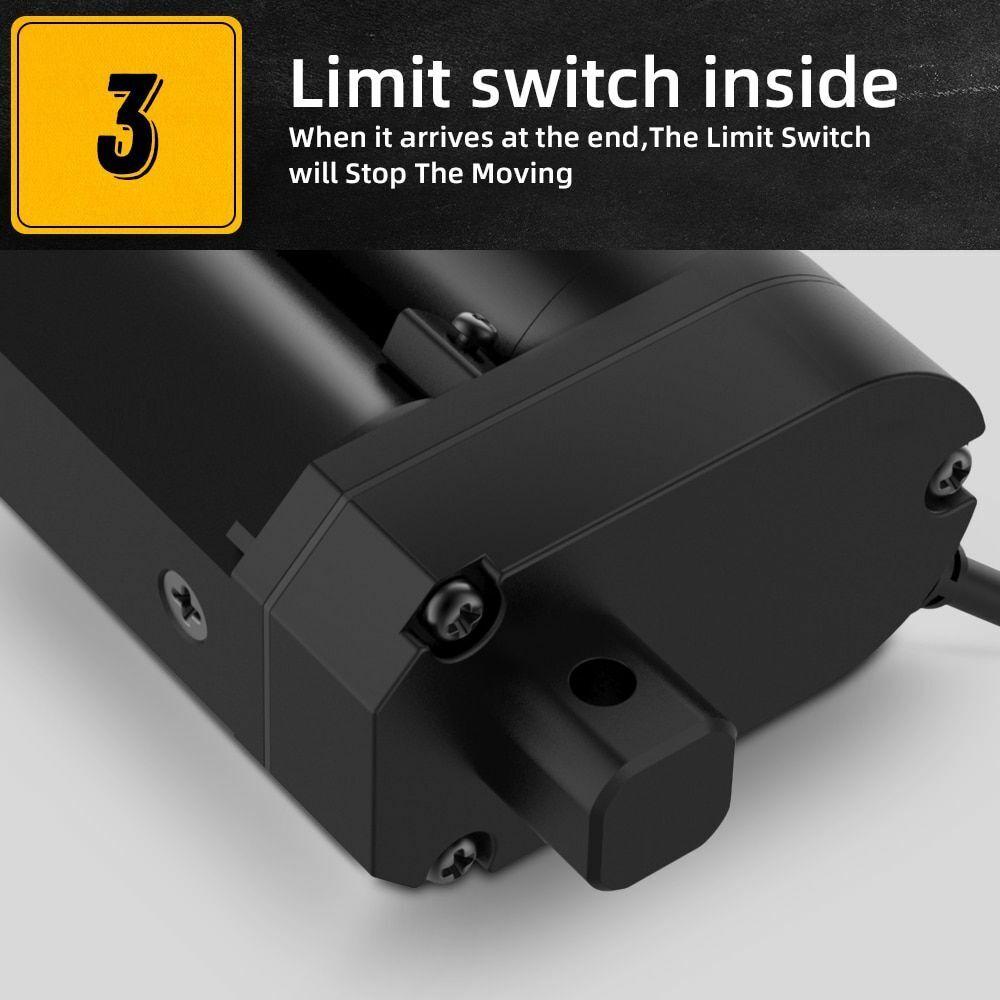

1. Limit Switch: The telescopic rod will automatically stop when it reaches the top/bottom. Make sure the motor will not burn empty.

2. Stop Anywhere: stop at any position, with machine lock, safe and secure..

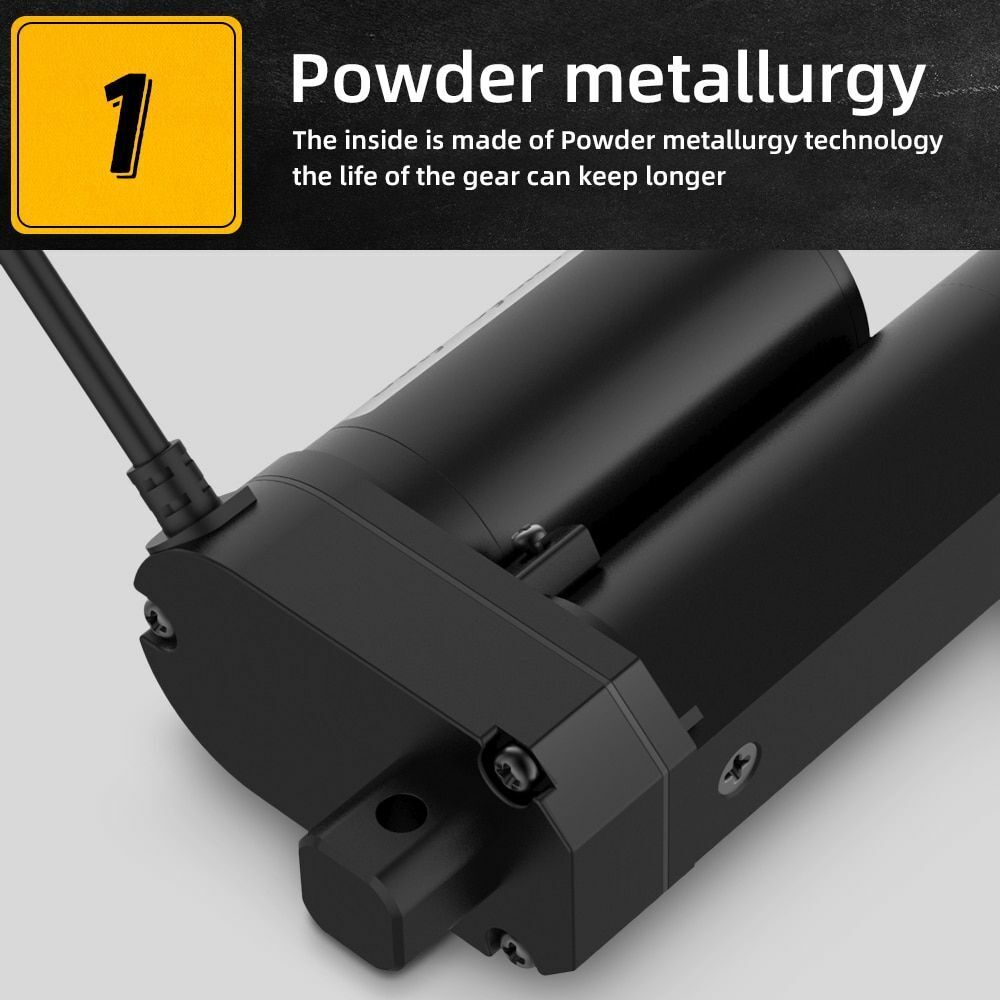

3. Metal gears: powder alchemy technology, pure metal gears, double strength and toughness.

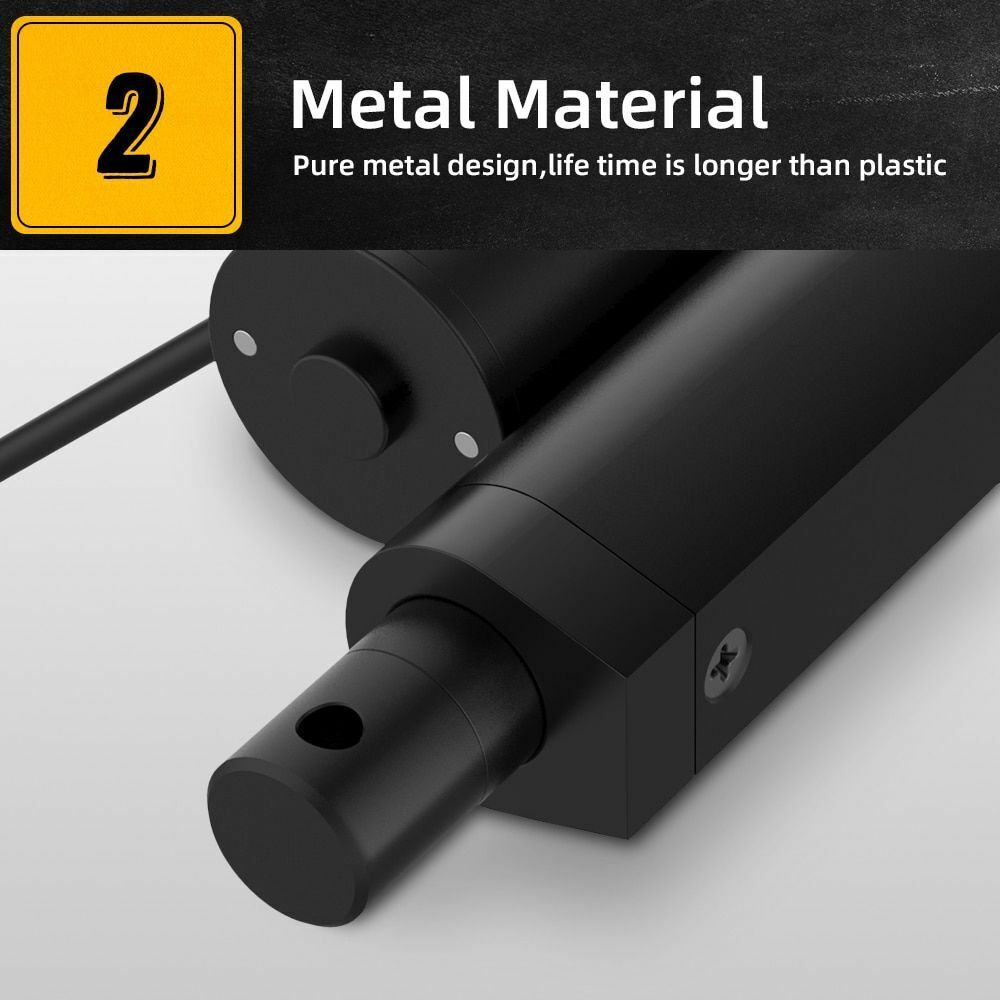

4. Aluminum Alloy Material: The surface has undergone 27 polishing processes, and the structure design is tight.

5. Low Resistance More Power-Saving: the wire uses oxygen-free pure copper as the conductor, low resistance, durable and safe to use.

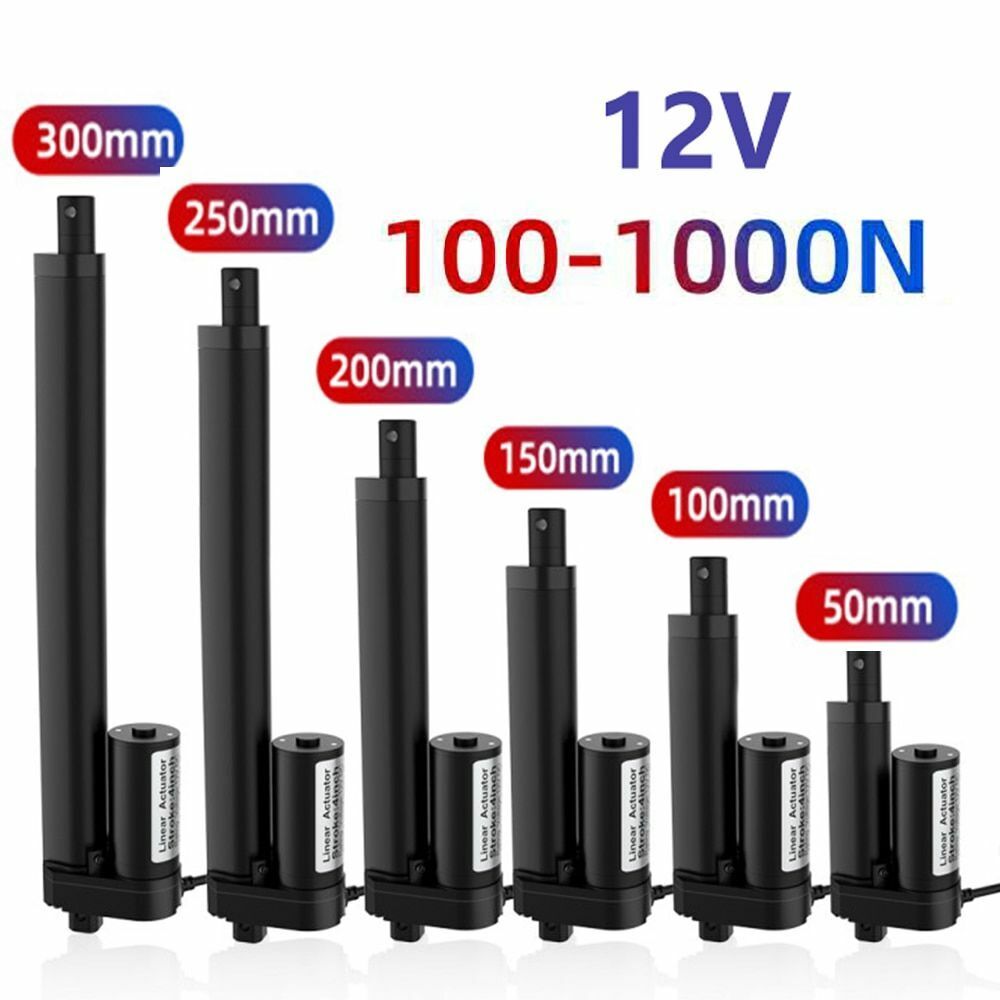

Stroke Length:

50mm(2inch),  100mm(4inch), 150mm(6inch),  200mm(8inch),  250mm(10inch), 300mm(12inch)，

Force And Speed：

The power of the putter is related to speed. The faster the speed, the smaller the power, and the slower the speed, the greater the power.

100N≈10kg  150N≈15kg  180N≈18kg

200N≈20kg  230N≈23kg  250N≈25kg

300N≈30kg  500N≈50kg  700N≈70kg

1000N≈100kg

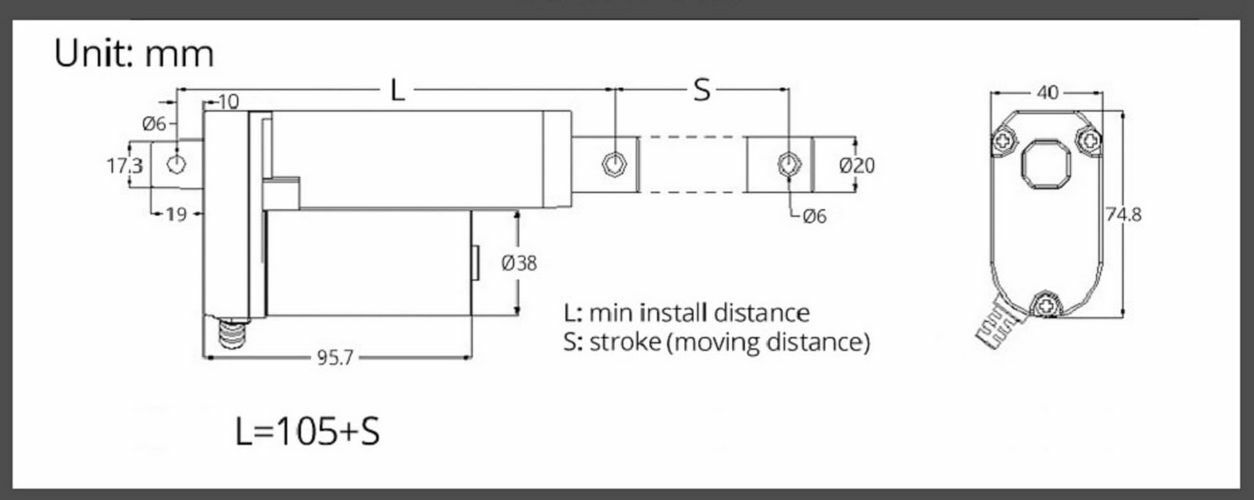

Size:

50mm(2inch) Stroke Length:

Fully retracted Length：155mm

Fully extended Length：205mm

100mm(4inch) Stroke Length:

Fully retracted Length：205mm

Fully extended Length：305mm

150mm(6inch) Stroke Length:

Fully retracted Length：255mm

Fully extended Length：405mm

200mm(8inch) Stroke Length:

Fully retracted Length：305mm

Fully extended Length：505mm

250mm(10inch) Stroke Length:

Fully retracted Length：355mm

Fully extended Length：605mm
