12V Linear Actuator Aluminum Alloy Small Electric Push Rod Mini Motor 25/50/75mm

12V Linear Actuator Aluminum Alloy Small Electric Push Rod Mini Motor 25/50/75mm

Specification

If you need a large amount of custom Stroke Length, Speed or other data, please contact me. Thanks

Voltage(V): 12

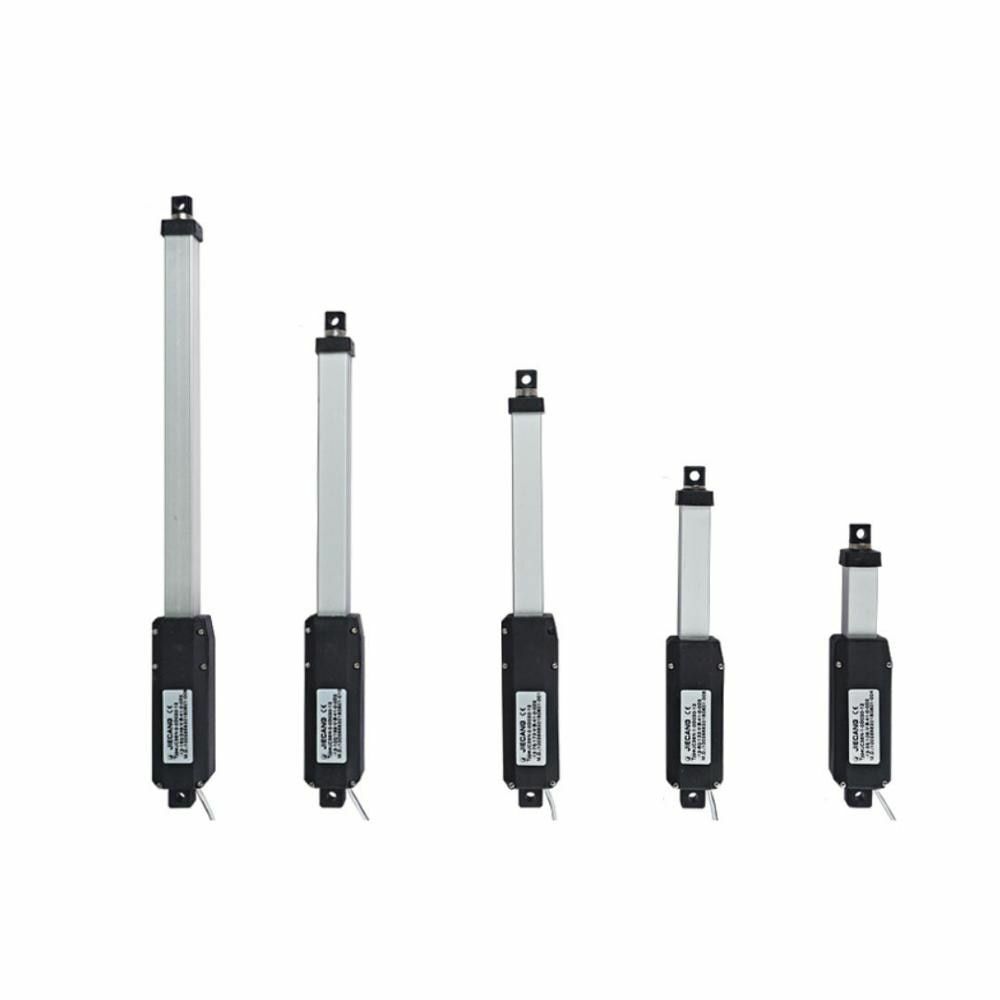

Stroke Length: 25mm/50mm/75mm/100mm/150mm, 125mm need 7 days to customized.

Maximum thrust: 20N

Maximum pulling force: 20N

Self-locking force (push): 30N

Self-locking force (pulling): 25N

Load speed: 15mm / s

Limit switch: built-in

Frequency of use (ED): 10% ED

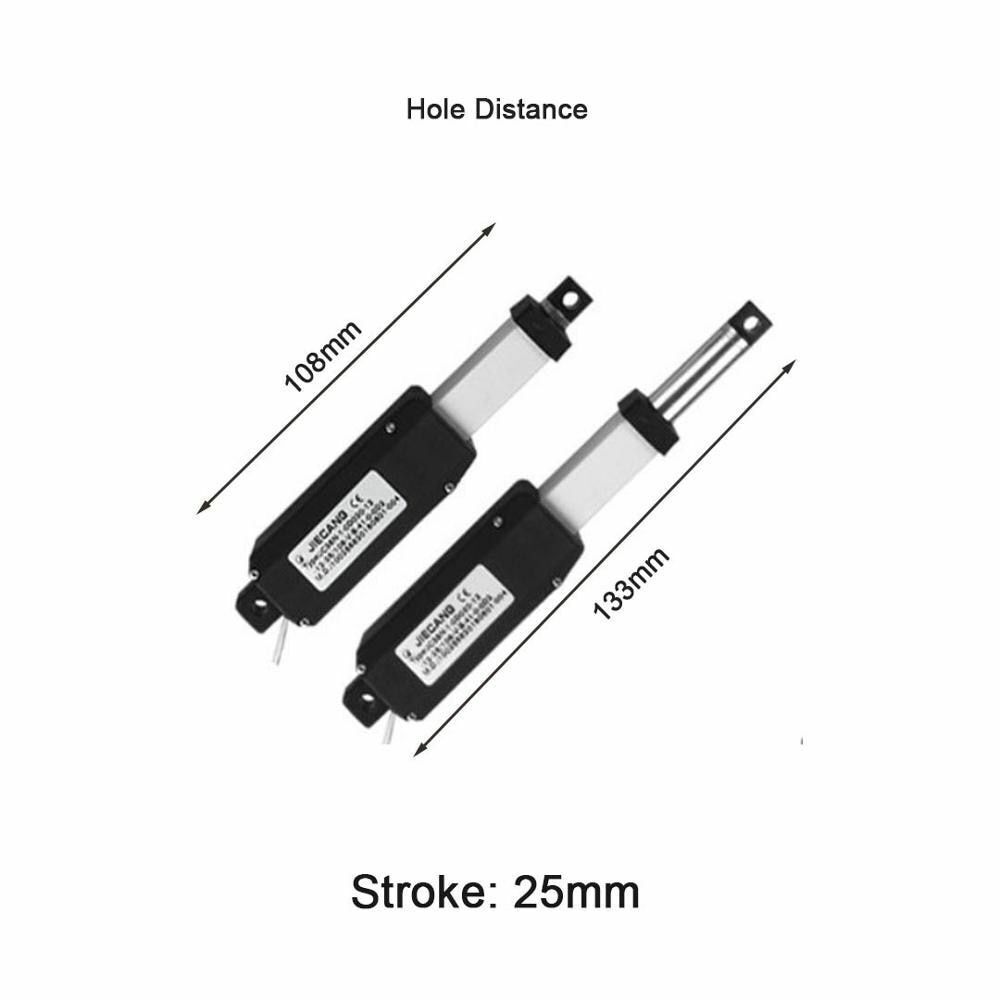

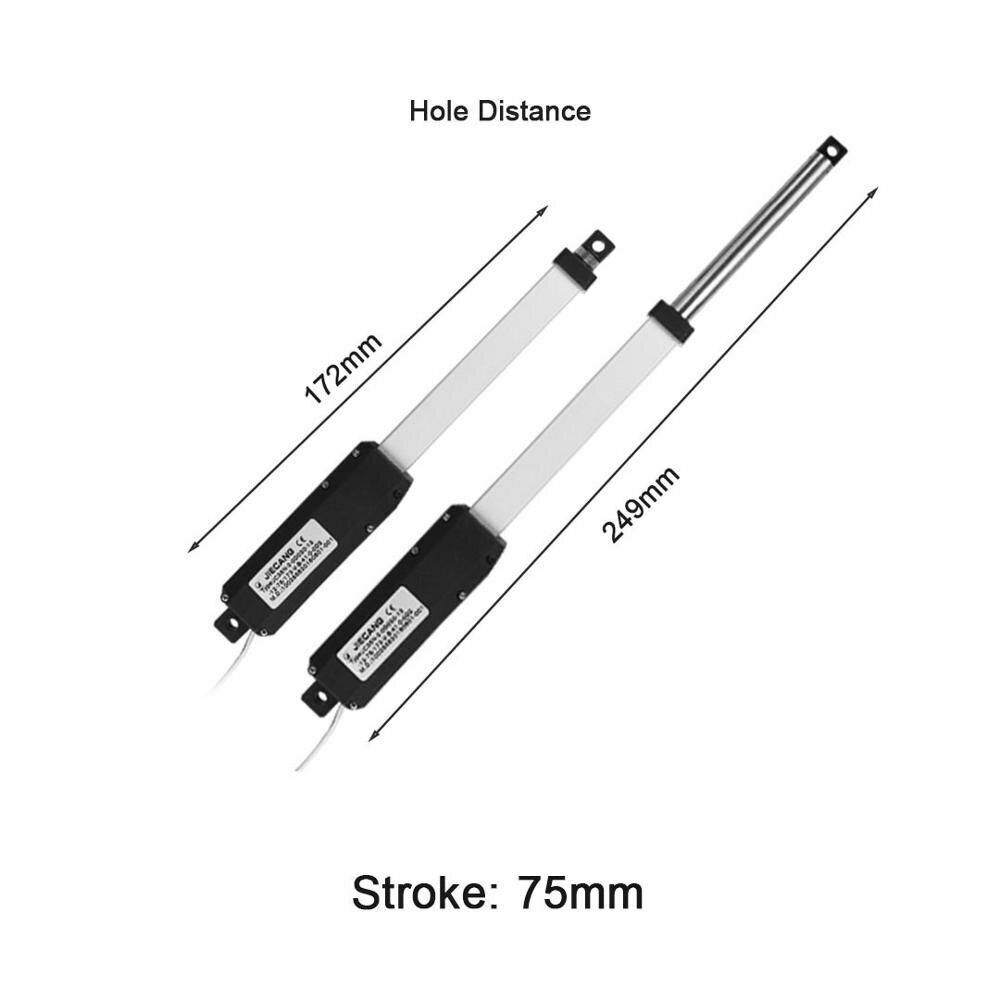

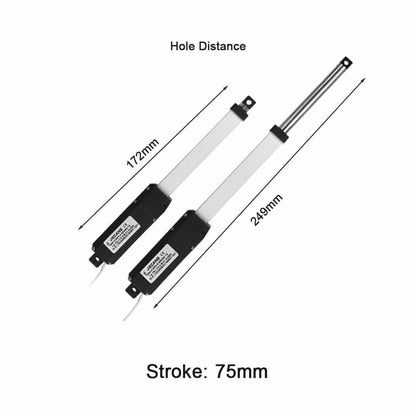

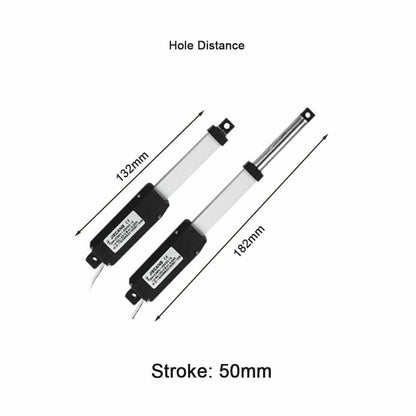

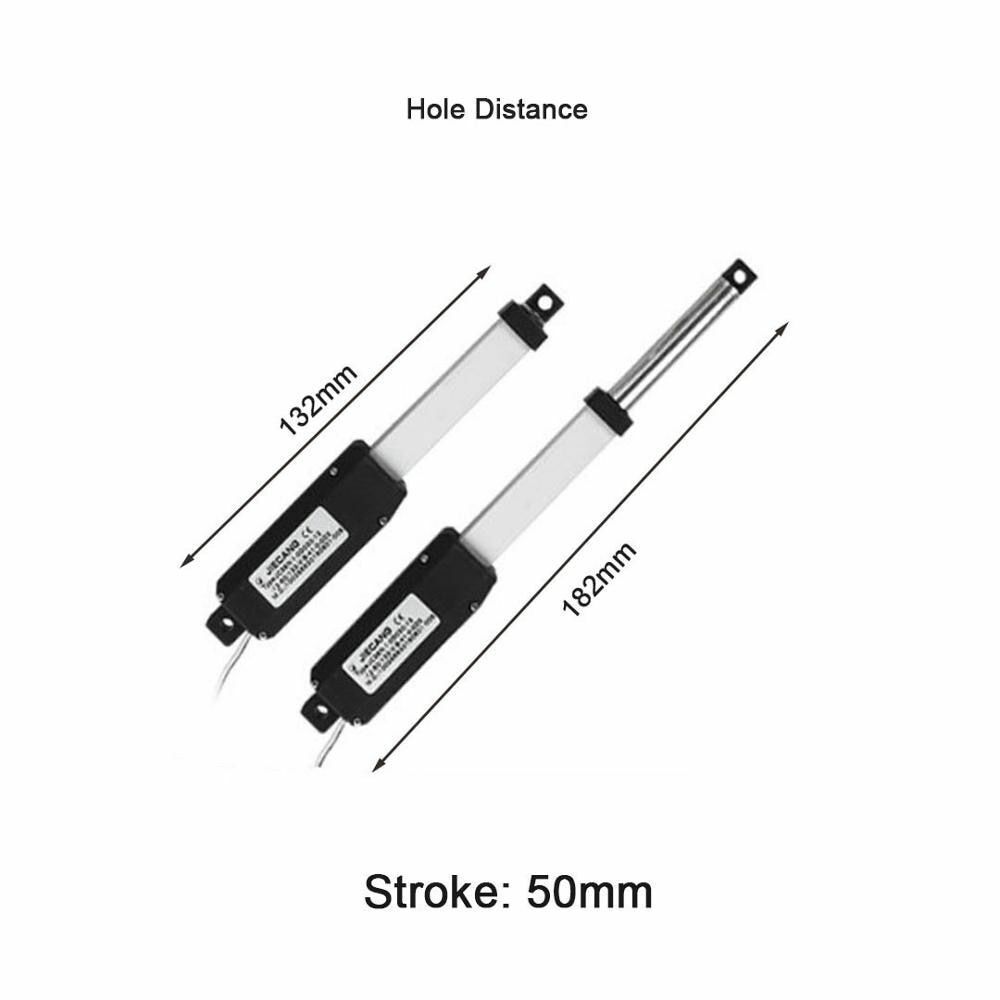

Minimum installation distance: 160+Smm

Protection level: IP66

Working environment temperature: 0 ℃ ~ 50 ℃

Application

This miniature linear actuator is widely used in electric power, chemical industry, metallurgy, mining, light industry, transportation, shipping and other sectors of the throttle, valve, gate and other mechanisms of the opening and closing, material handling, flow control.

Product Features

1) Limit switches at both ends, when the extension rod reaches the top and the bottom, it will stop automatically to protect the motor from damage.

2) Aluminum alloy material, surface after 27 polishing process, compact structure.

3) It can be stopped at any position, with its own machine lock, safe.

4) Stainless steel extension rod, rust free, durable.

5) Multiple safety designs, over current protection, short circuit protection, overload protection, overvoltage protection, over discharge protection, over seismic protection
