250 MHz Oscilloscope Probe with Accessories, Compensation range: 10 to 30pF
250 MHz Oscilloscope Probe with Accessories, Compensation range: 10 to 30pF
Regular price
$48.30 USD
Regular price
$60.06 USD
Sale price
$48.30 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

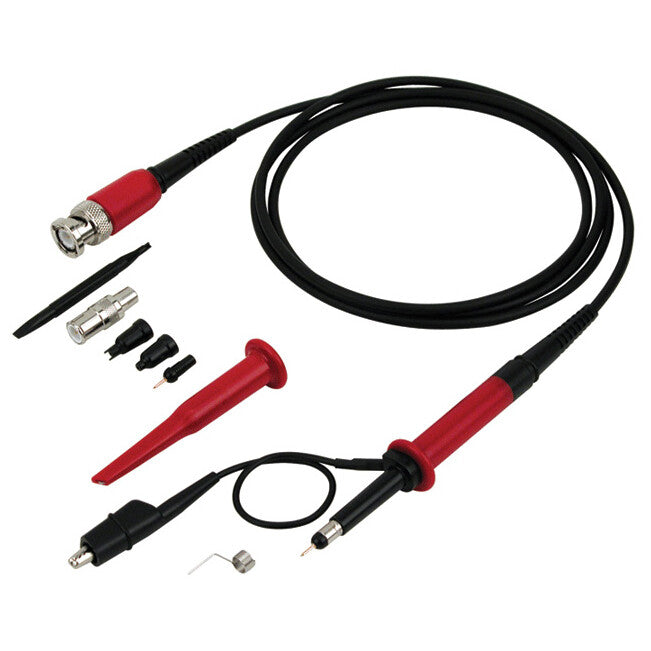

Bandwidth DC to 250 MHz. BNC to IC Test Hook. Includes 1 ea. probe, spring hook, ground lead, insulating tip, measuring tip, IC tip, adjusting tool, channel identifier clip, BNC adapter.
The HP-9258 is a low-input capacitance high voltage oscilloscope probe designed and calibrated for use with instruments having an input impedance of 1MΩ shunted by 20pF. However, it may be compensated for use with instruments having an input capacitance of 10 to 30pF.
Specifications:
Attenuation ratio: 100:1
Bandwidth: DC to 250 MHz
Rise time: 1.4nS
Input resistance: 100MΩ when used with oscilloscopes which have 1MΩ input
Input capacitance: Approx. 5.5pF
Compensation range: 10 to 30pF

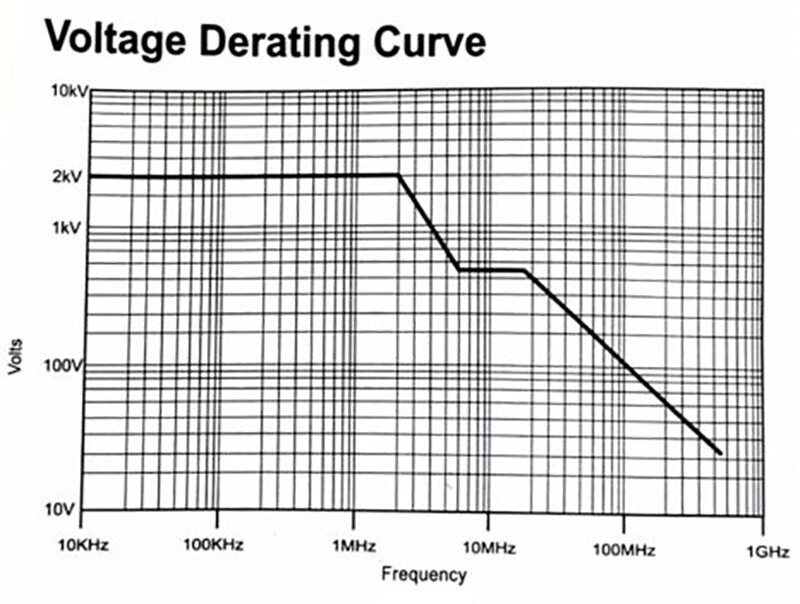

Working voltage: 1500Vrms CAT II (200V DC inc. peak AC derating with frequency)
Operating temperature: 0° to 50° C
Humidity: 85% RH or less (at 35° C)
Safety: Meets EN61010-031 CAT II
Cable length: 1.2 Meter
Included Accessories:
The HP-9258 is a low-input capacitance high voltage oscilloscope probe designed and calibrated for use with instruments having an input impedance of 1MΩ shunted by 20pF. However, it may be compensated for use with instruments having an input capacitance of 10 to 30pF.
Specifications:
Attenuation ratio: 100:1
Bandwidth: DC to 250 MHz
Rise time: 1.4nS
Input resistance: 100MΩ when used with oscilloscopes which have 1MΩ input
Input capacitance: Approx. 5.5pF
Compensation range: 10 to 30pF
Working voltage: 1500Vrms CAT II (200V DC inc. peak AC derating with frequency)
Operating temperature: 0° to 50° C
Humidity: 85% RH or less (at 35° C)
Safety: Meets EN61010-031 CAT II
Cable length: 1.2 Meter
Included Accessories:
- Channel Identifier Clips
- Sprung Hook
- Ground Lead
- Insulating Tip
- IC Tip
- Adjusting Tool
- Measuring Tip
- BNC Adapter
