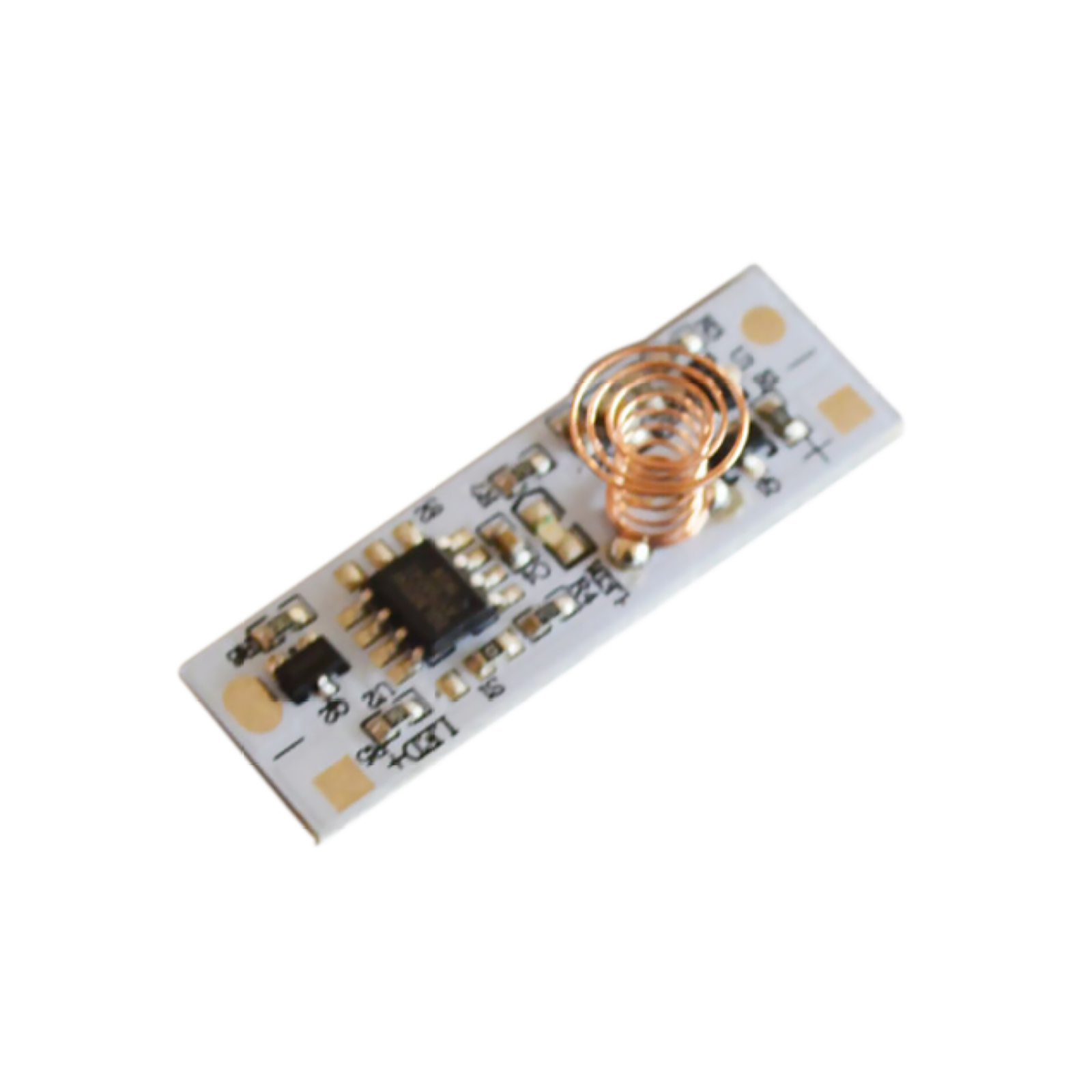

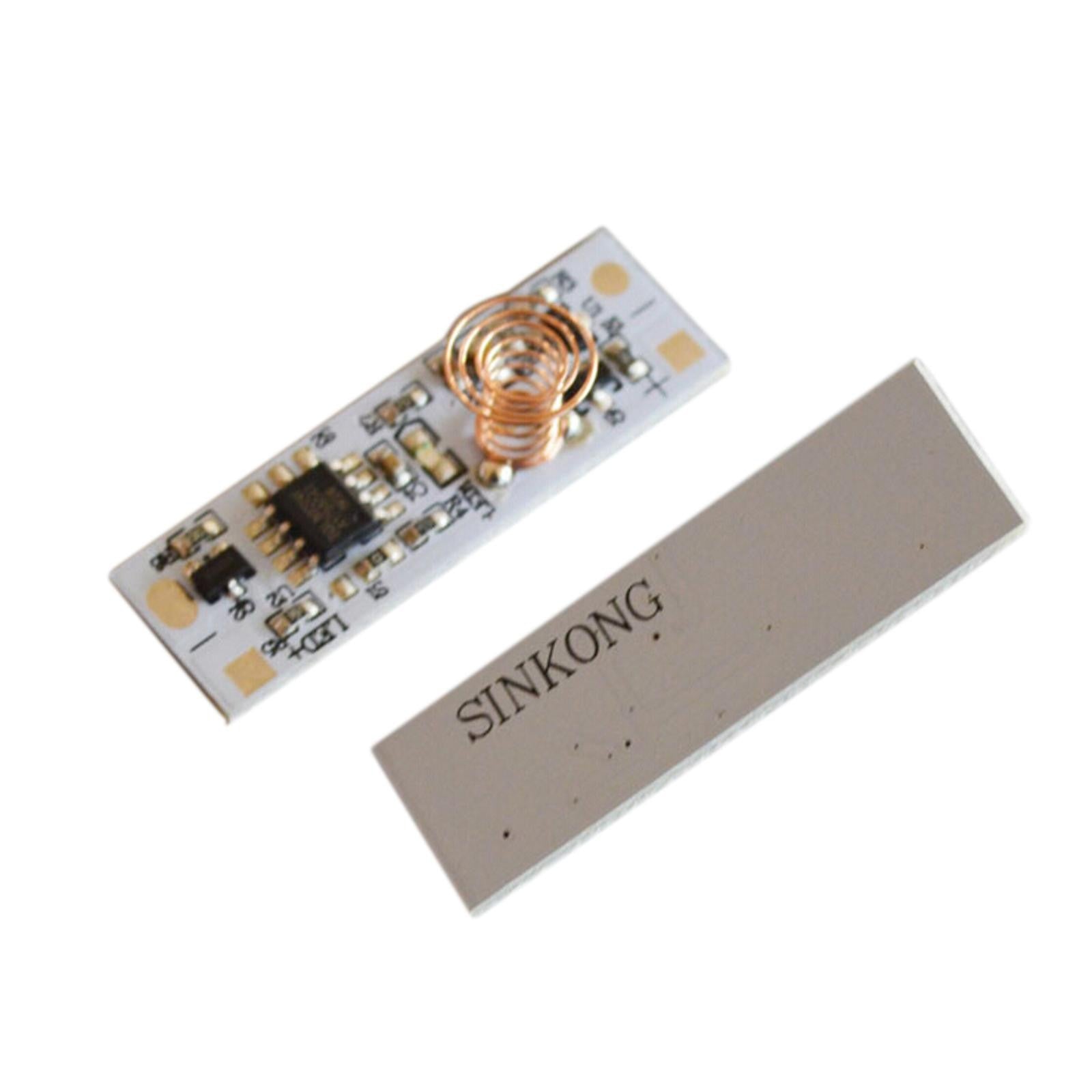

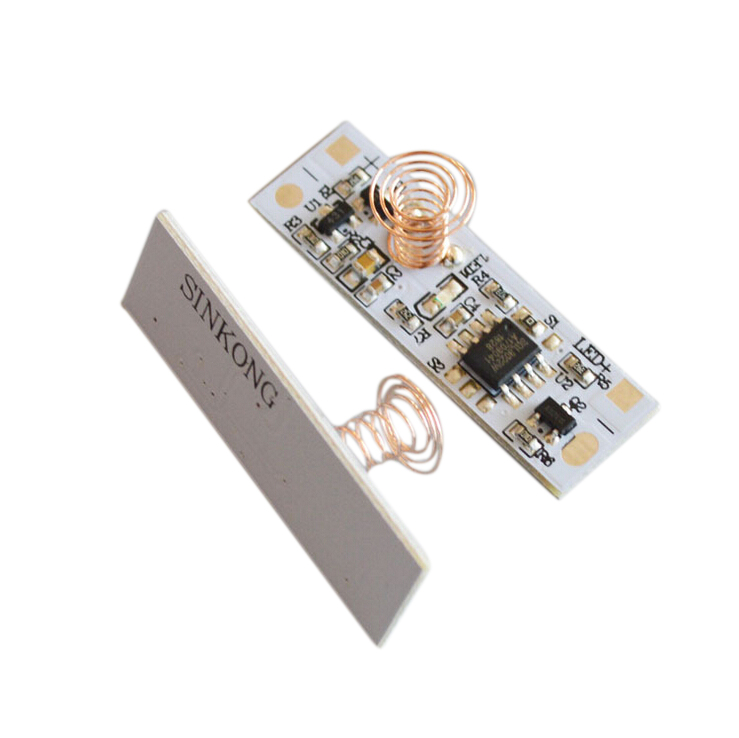

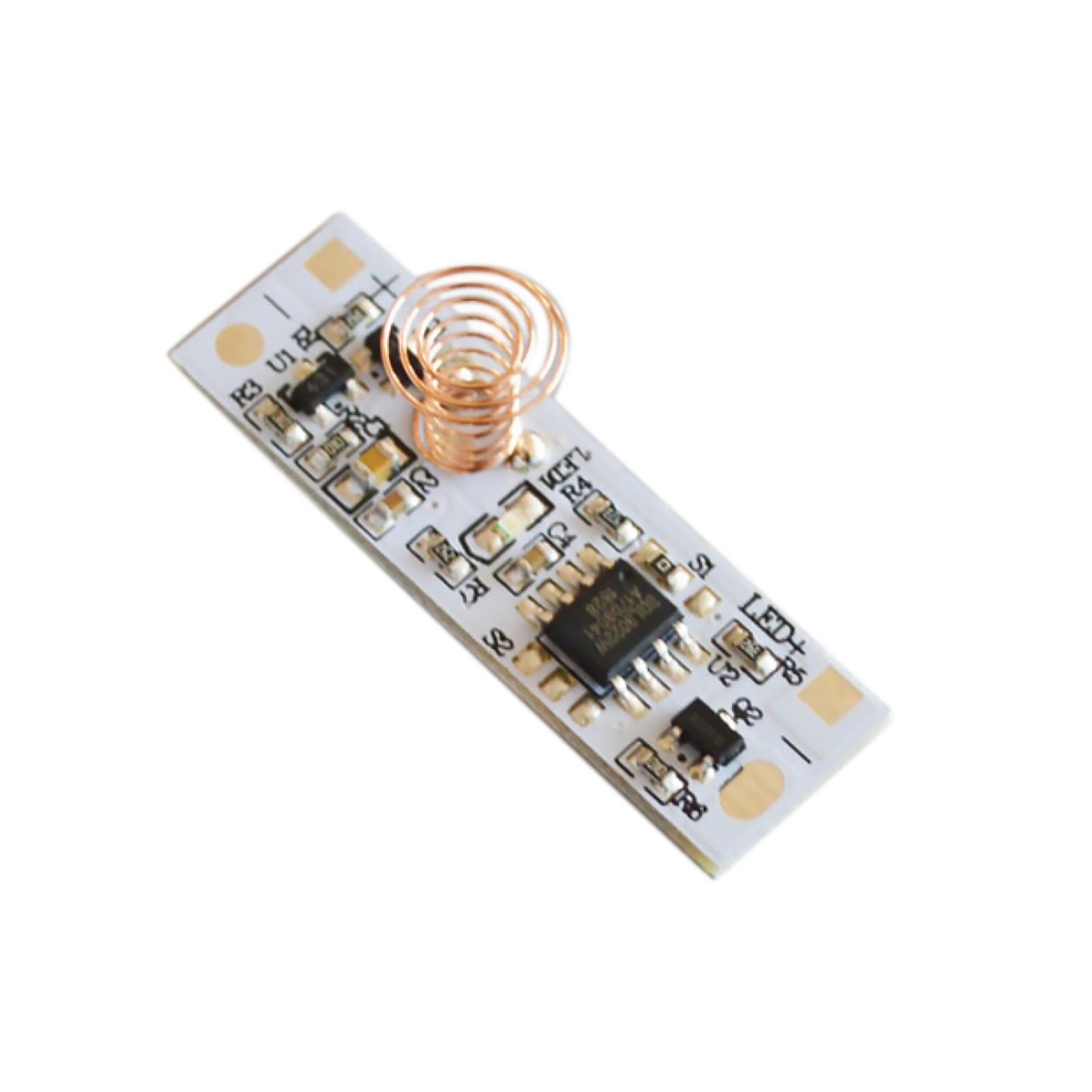

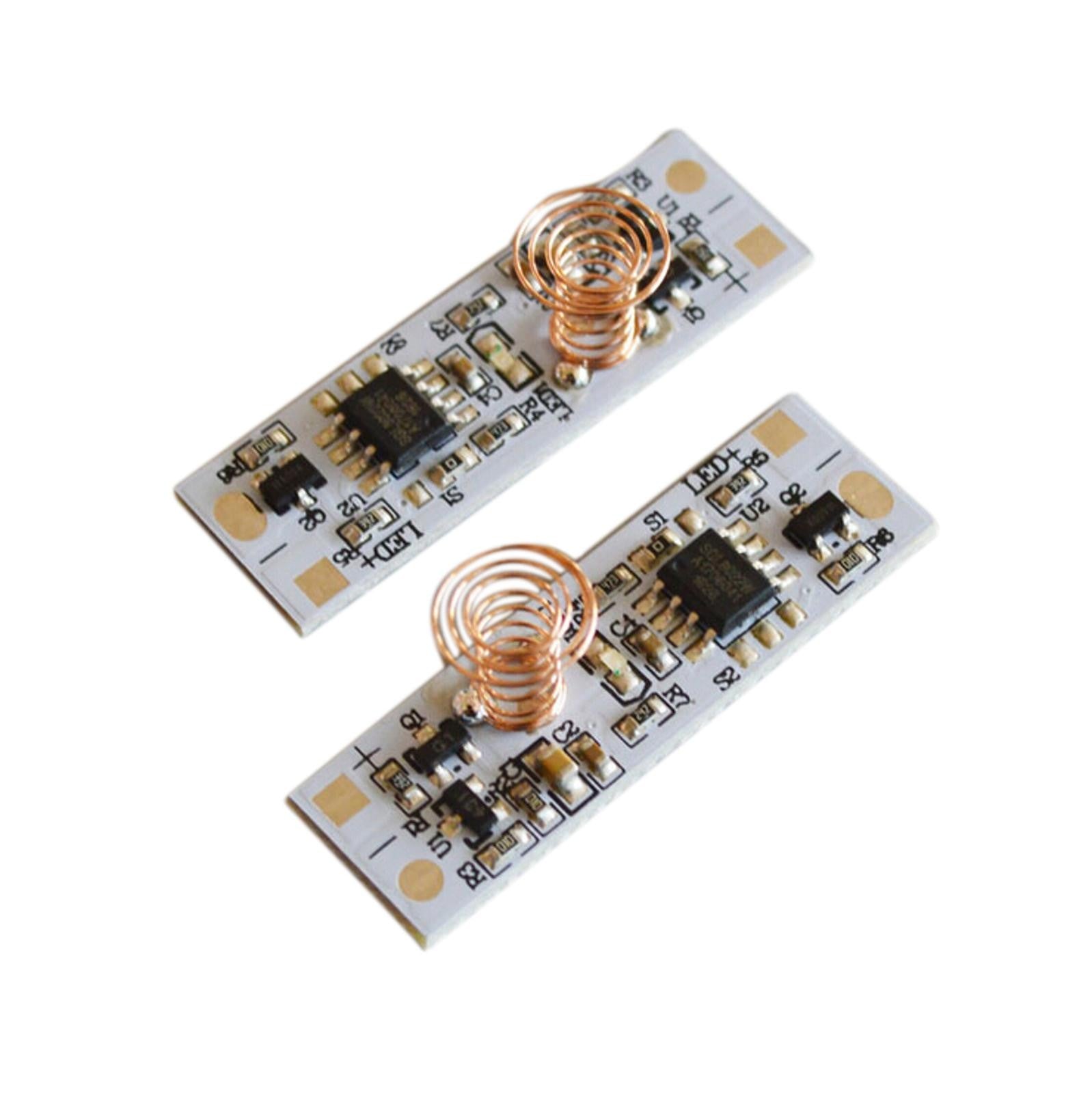

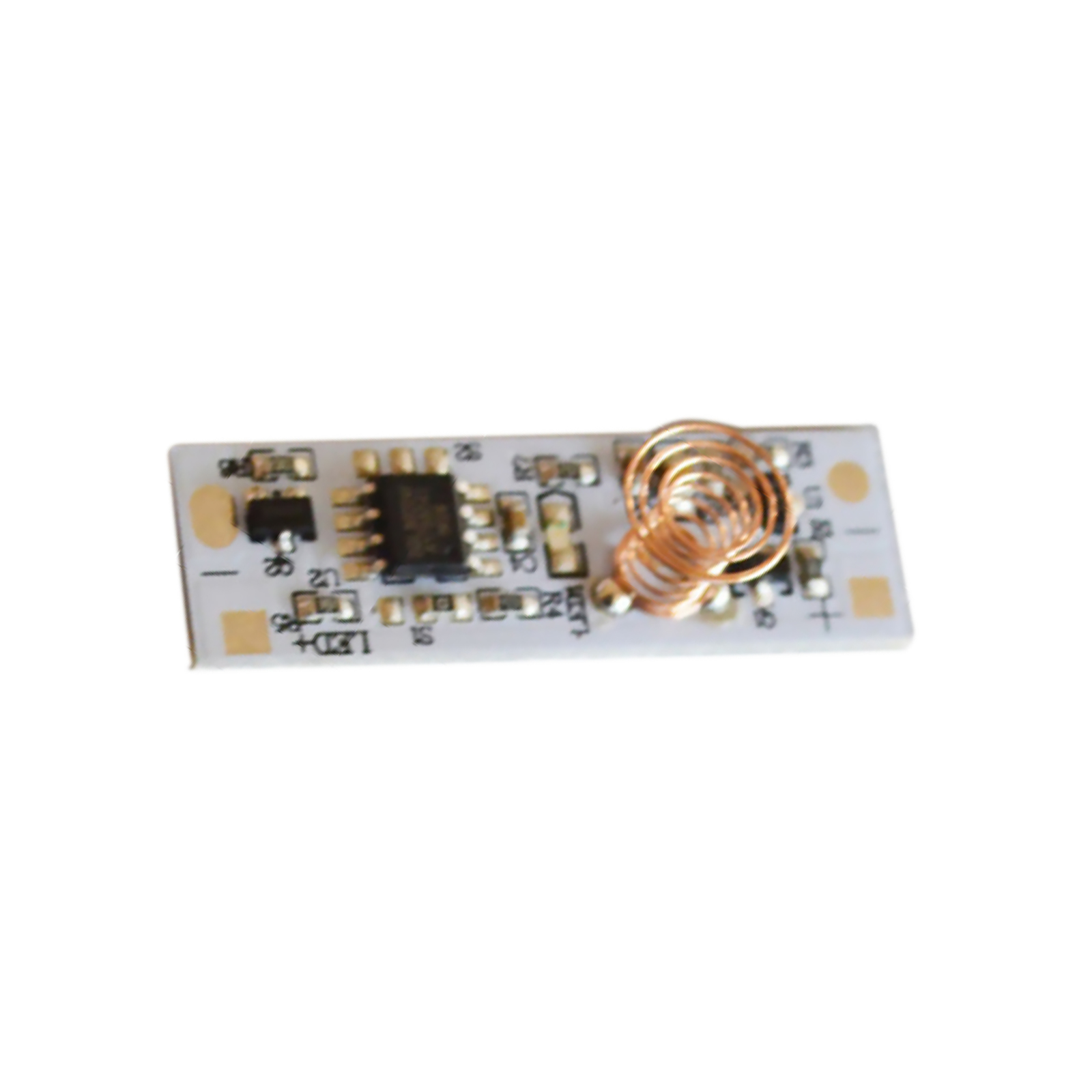

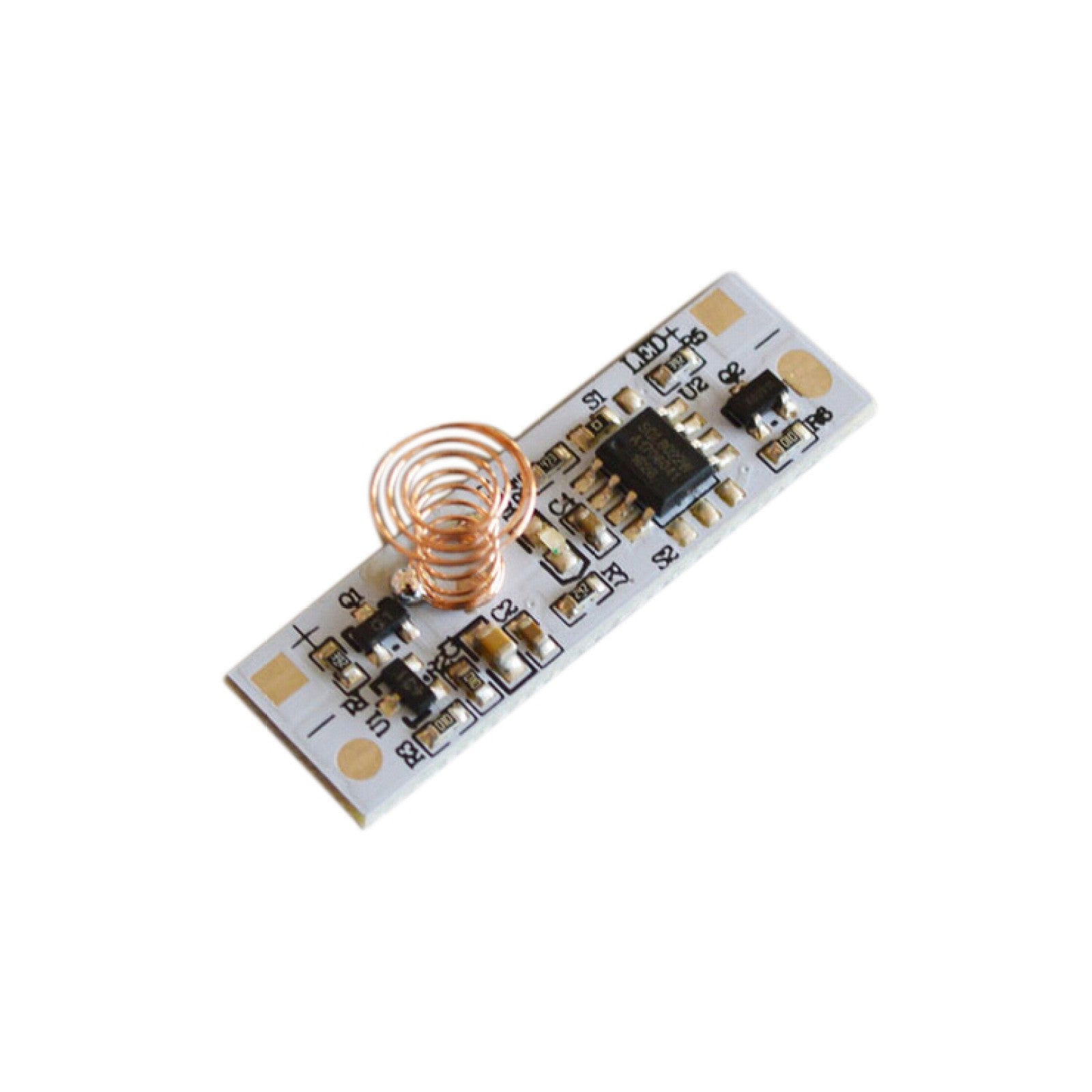

3-24V/36w Capacitive Touch Sensor Switch LED Strip Brightness Control Sensing

Features:
Model: XK-QM-1135
Size: 11*35mm
Sensing principle: Capacitive
Delay off: Not applicable
Input Voltage: 3-24V
Output Voltage: 3-24V
Sensing Distance: 3-10mm adjustable
Max Load Power: 36W
Apply to: DC only
Standby parameters:10mA VIN:12V

Instructions:
1. Light is off when the power is connected first
2. Touch the switch(<550ms), you can turn on/off the light by a single touch
3. Long touch the switch(>550ms), you can control the brightness of the light, stop at any time when the brightness is ok, and it takes 3 seconds to reach the maximum brightness.
4. Long touch the switch(>550ms) again, the same as step 3, takes 3 seconds to reach the minimum brightness.
5. Long touch and short touch can be used at any time you want, it does not conflict with each other

Package Includes:
1 * Sensing Switch
