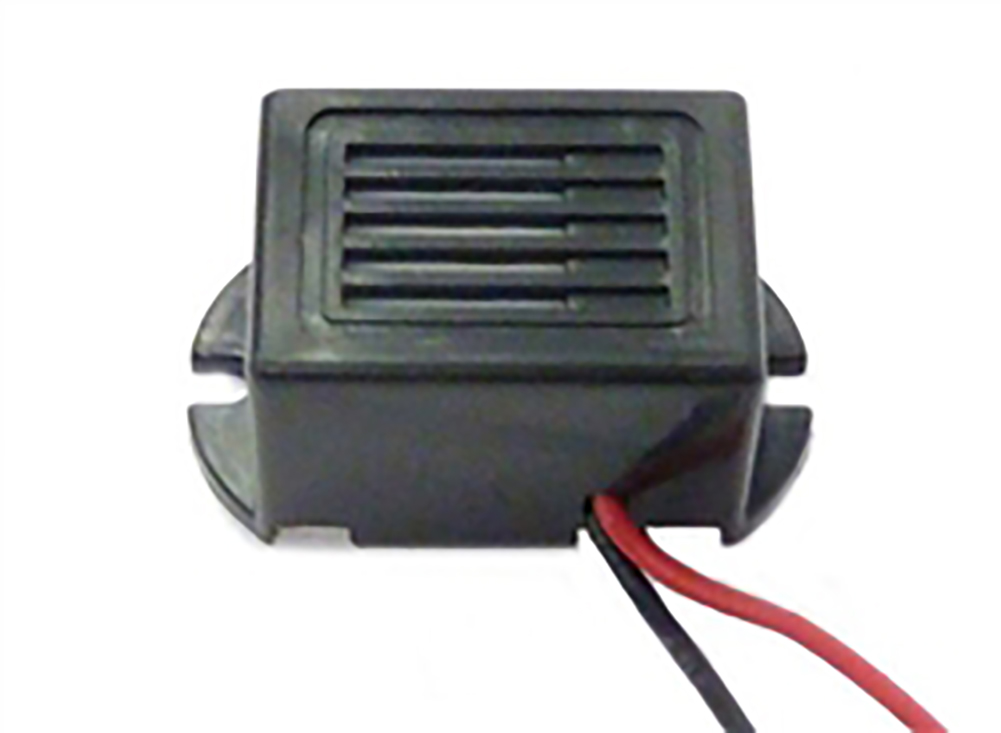

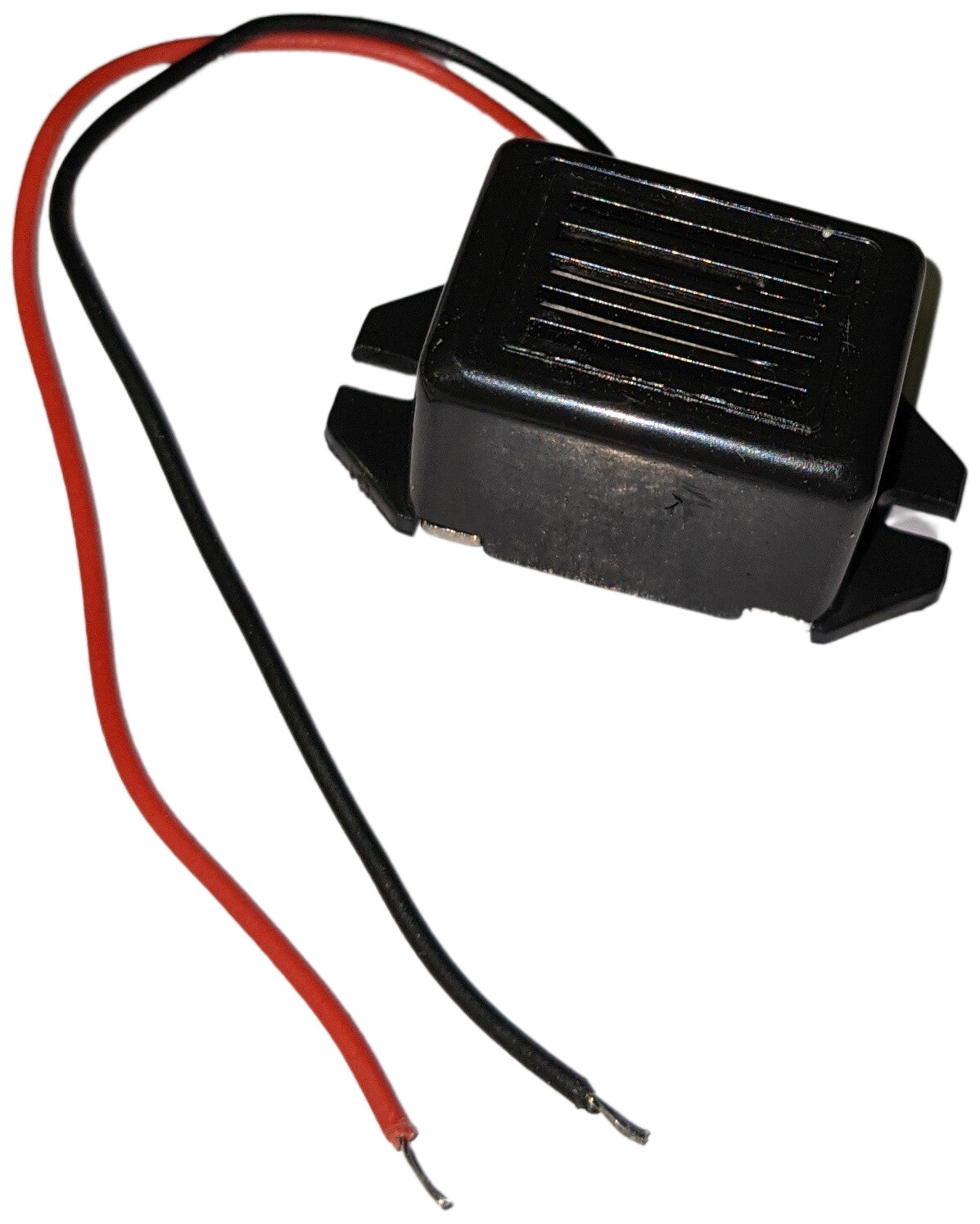

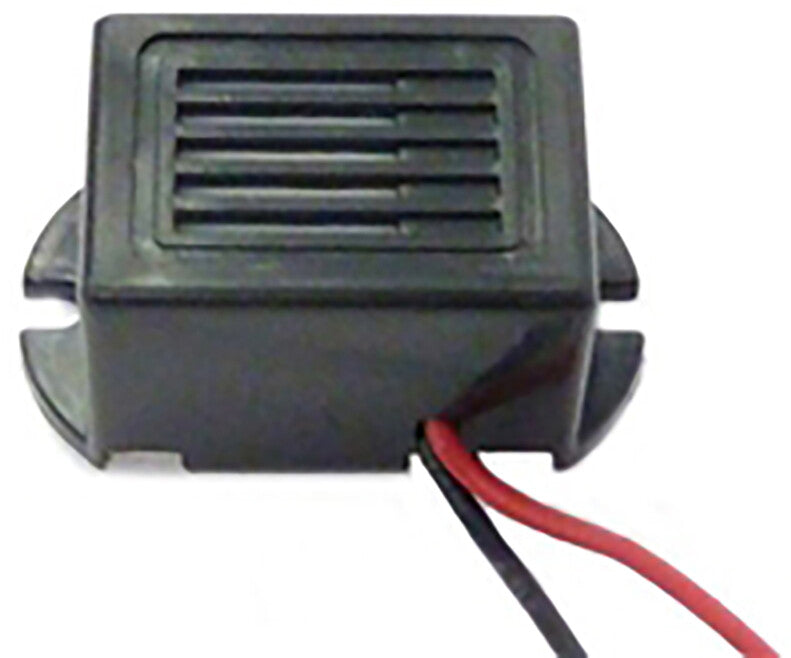

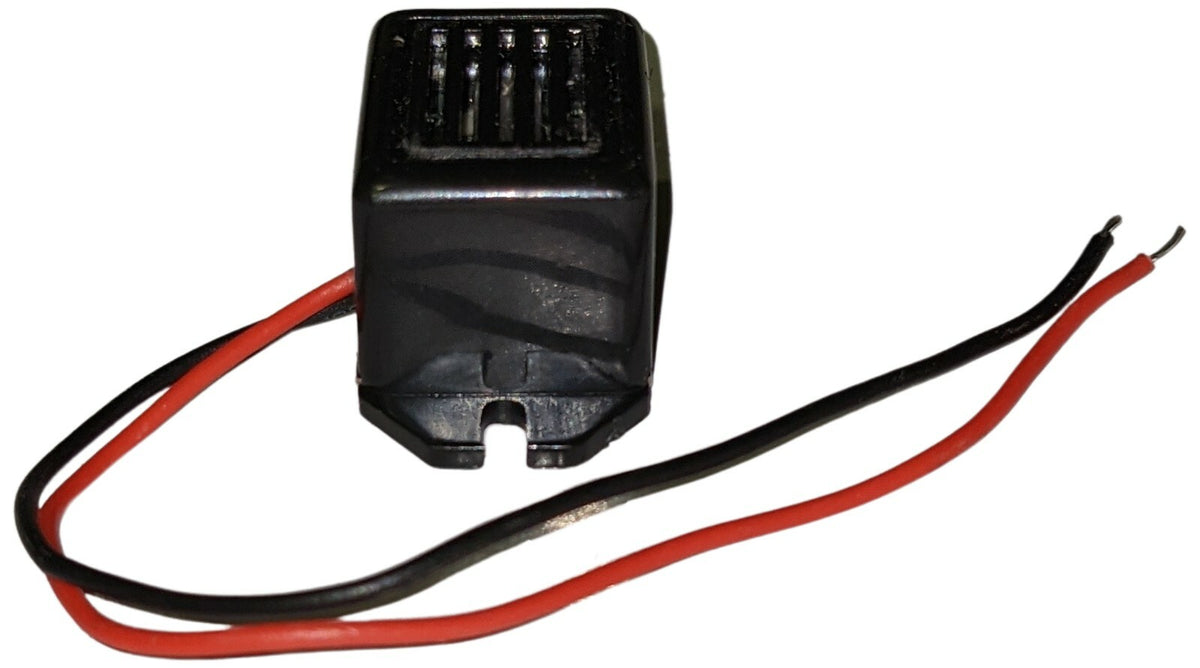

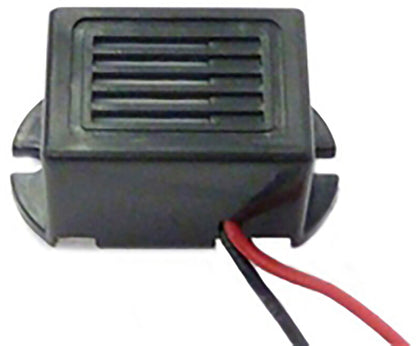

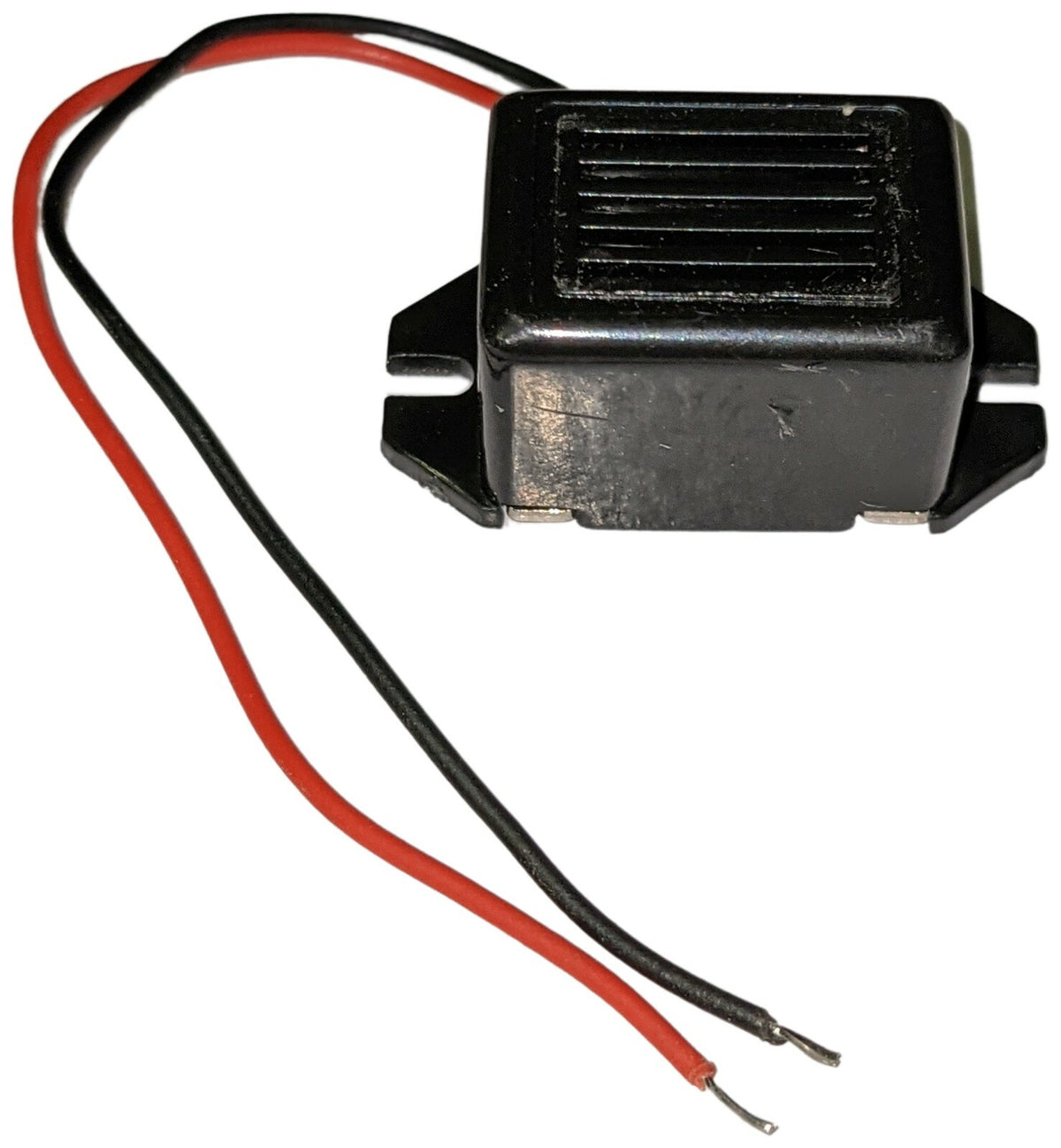

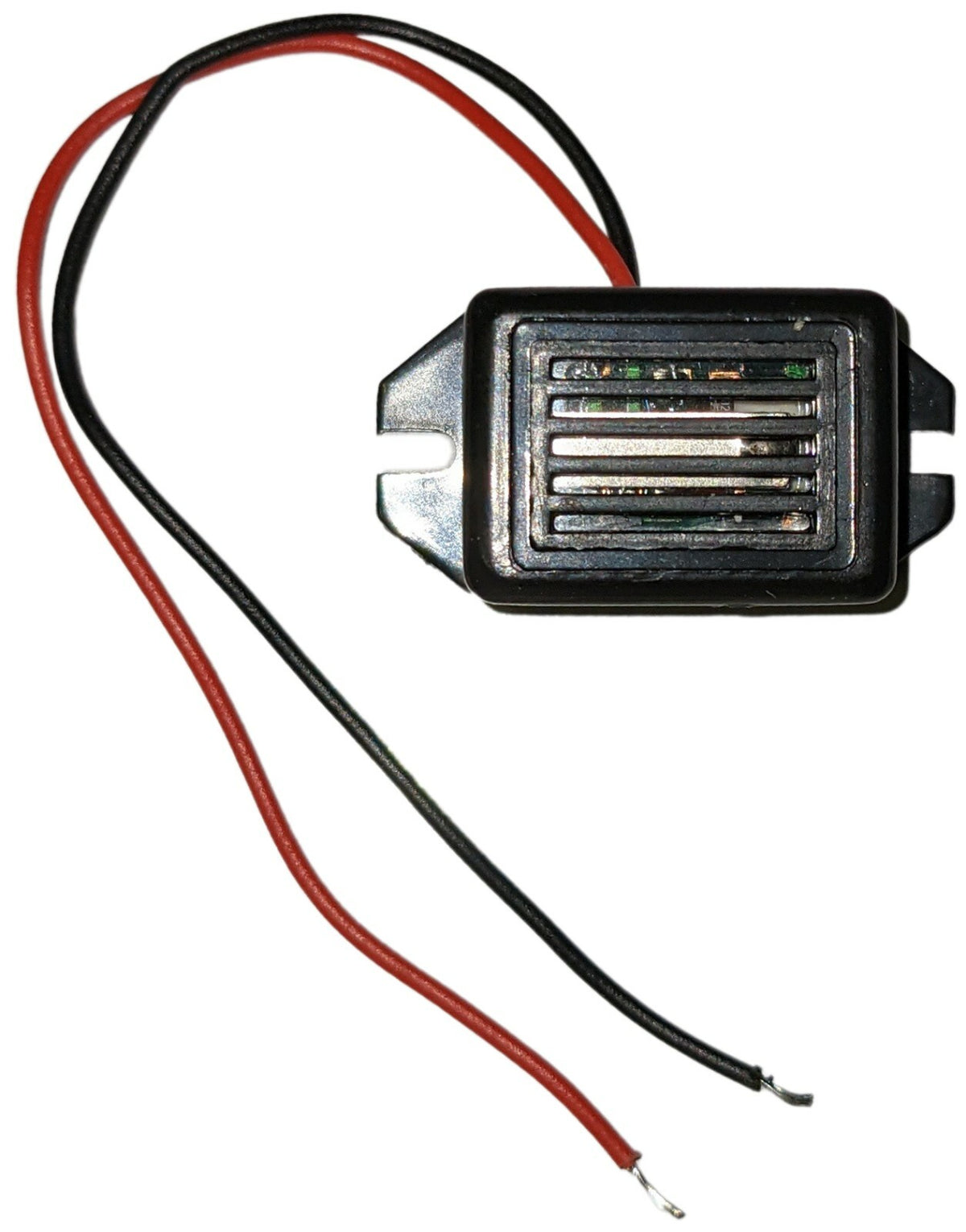

80dB Buzzer (3-6V DC)

3-6V DC Buzzer with wire leads for use in your custom built electronic projects. 80 decibels. Solid state.

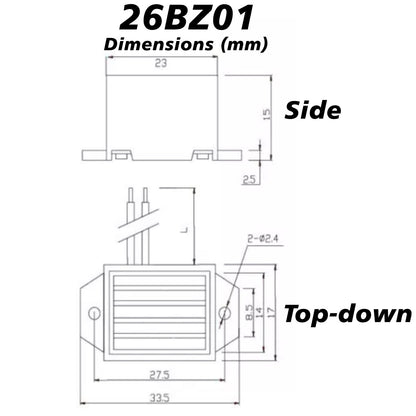

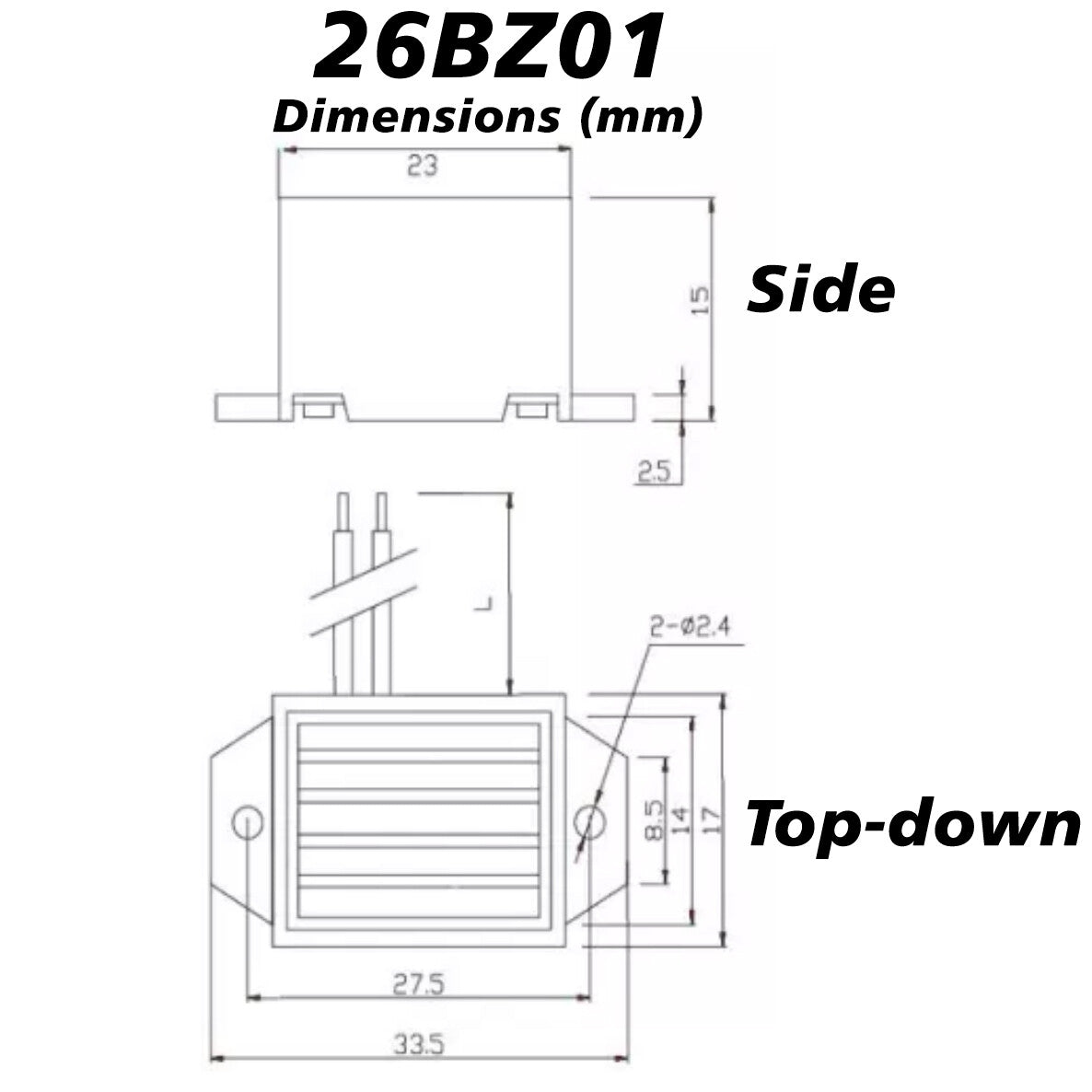

Measures 1.31" x 0.70" x 0.60" (33mm x 17mm x 15mm) including the base, with mounting slots approximately 1.13" (25mm) apart. Measures 0.90" (23mm) long not including the base. Leads are approximately 4.4" long. Weighs 0.28 ounce.

Note: Must be wired to a battery or other power source in order to operate.

Specifications:
Rated Voltage(VDC): 4.5
Operating Voltage(VDC): 3 ~ 6
Current Consumption Max (mA): 30 SPL Min. (dB) at 30cm: 80
Resonant Frequency(Hz): 400±100
Operating Temperature(℃): -20～+70
Storage Temperature(℃): -30～+85
Tone: Continuous Sound
Material: ABS

Note: Must be wired to a battery or other power source in order to operate.
