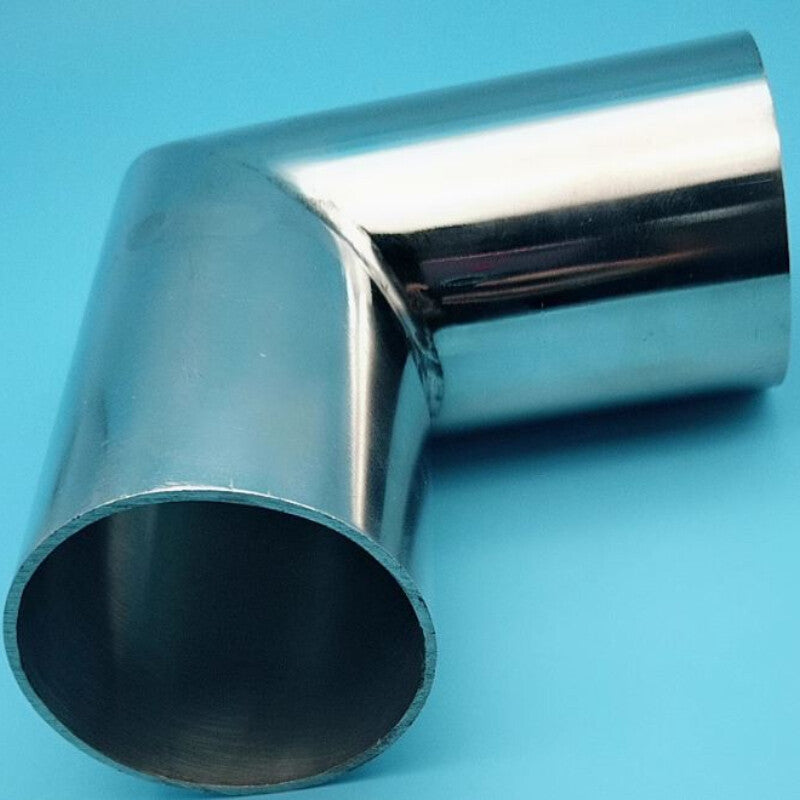

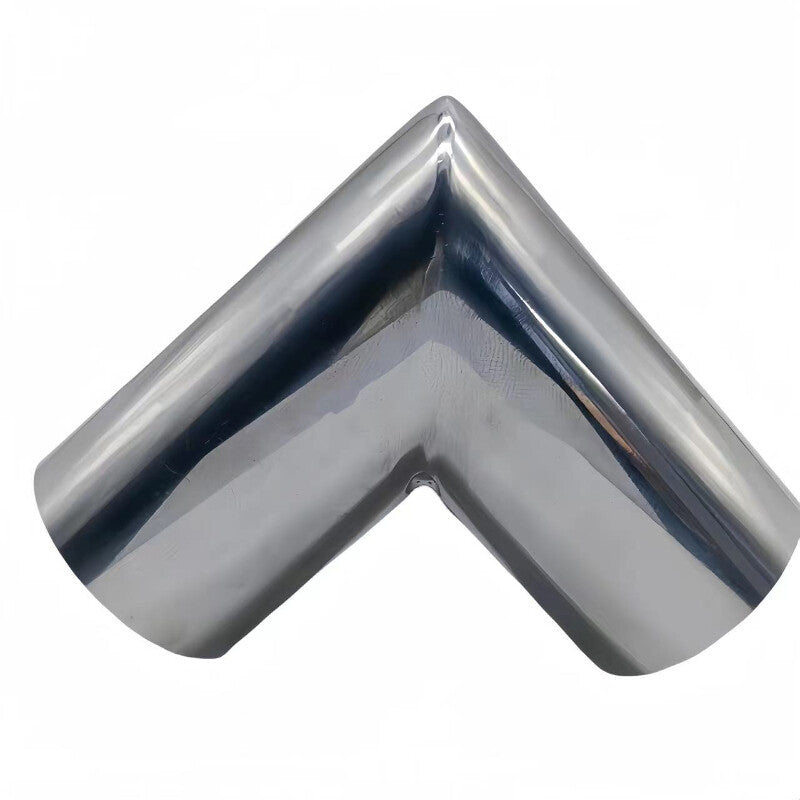

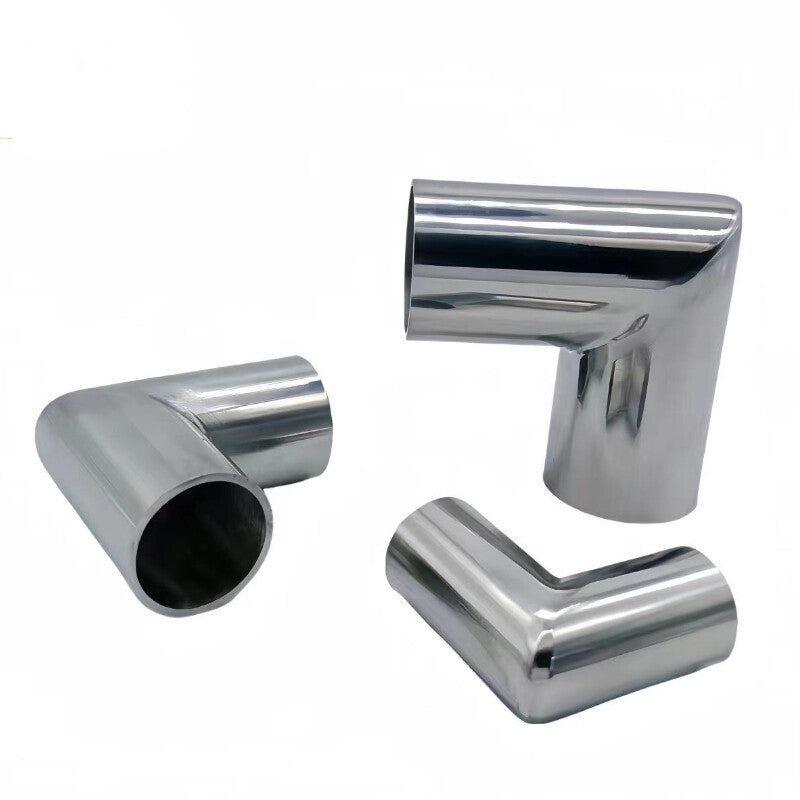

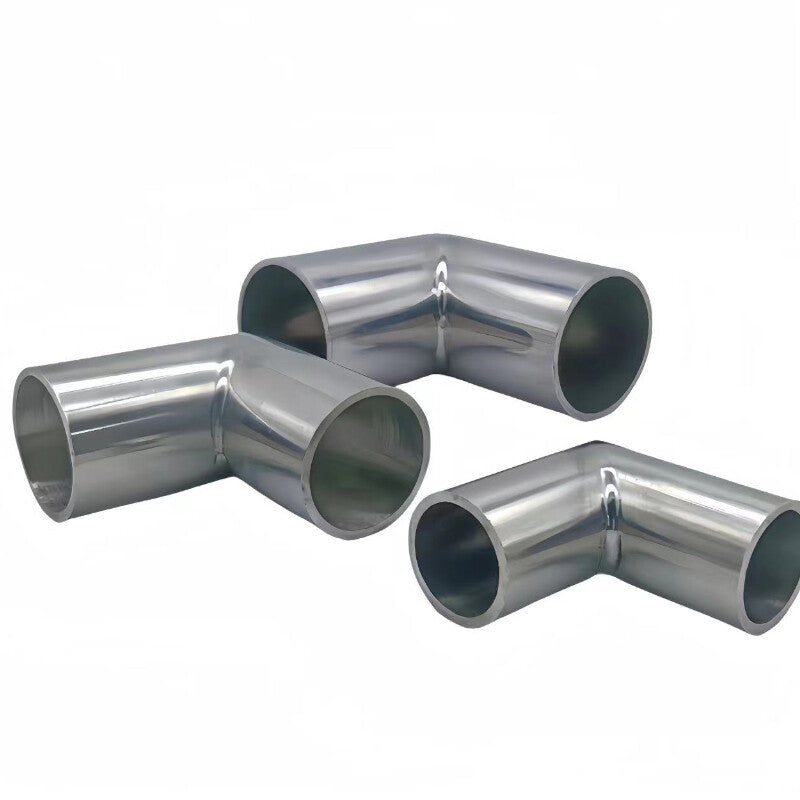

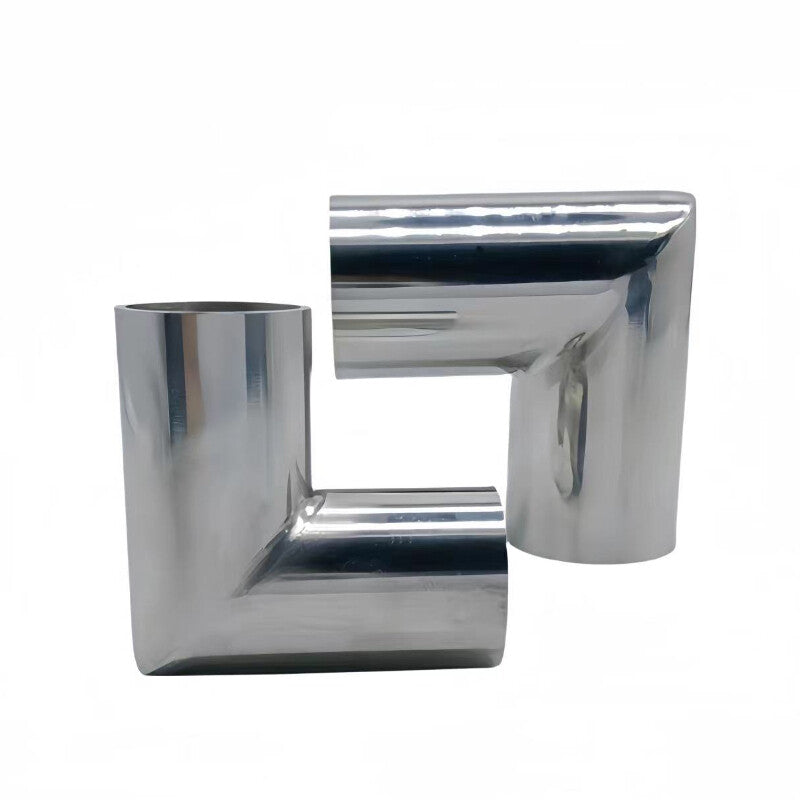

304 Stainless Steel Elbow 90 Degree Pipe Right Angle Exhaust Tube Polished Parts

This item is for 1 X stainless steel pipe

Please allow 0-1mm discrepancy due to different measurement method.

304 Stainless Steel Elbow 90 Degree Pipe Right Angle Exhaust Tube Polished Parts
Material: 304 stainless steel

Outer Diameter 19mm-51mm Wall Thickness: 1.5mm
Outer Diameter 57mm-76mm Wall Thickness: 2.0mm

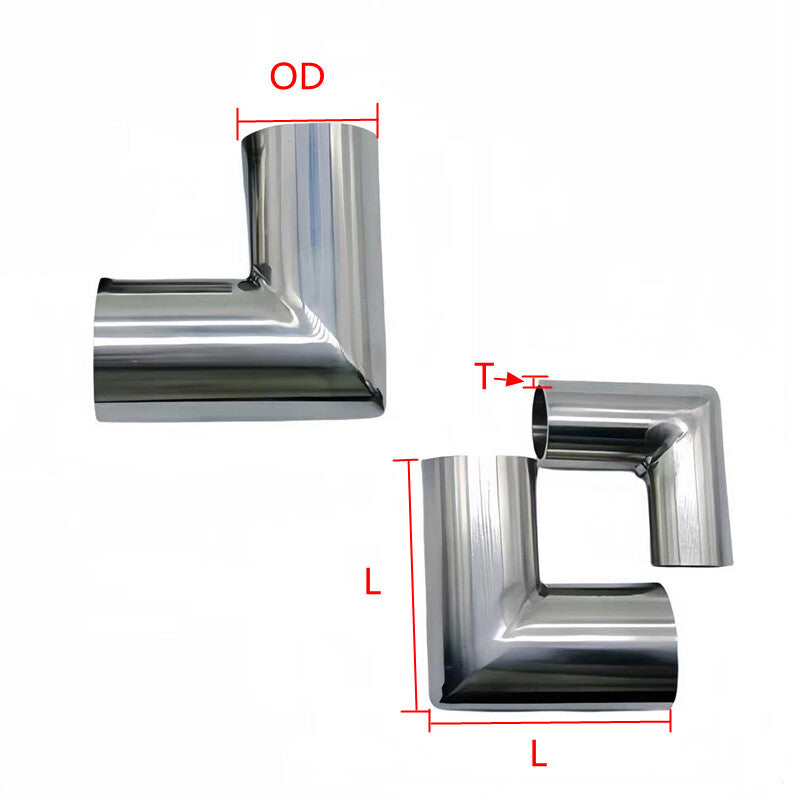

Size : OD(Outer Diameter)--L(Length)

OD=19mm/0.75 in--L=39mm/1.5 in
OD=25mm/1 in-----L=45mm/1.77 in
OD=32mm/1.25 in--L=57mm/2.25 in
OD=38mm/1.5 in---L=68mm/2.67 in
OD=45mm/1.77 in--L=75mm/2.95 in
OD=51mm/2 in-----L=81mm/3.2 in
OD=57mm/2.25 in--L=87mm/3.4 in
OD=63mm/2.5 in----L=103mm/4 in
OD=76mm/3 in------L=116mm/4.5 in
