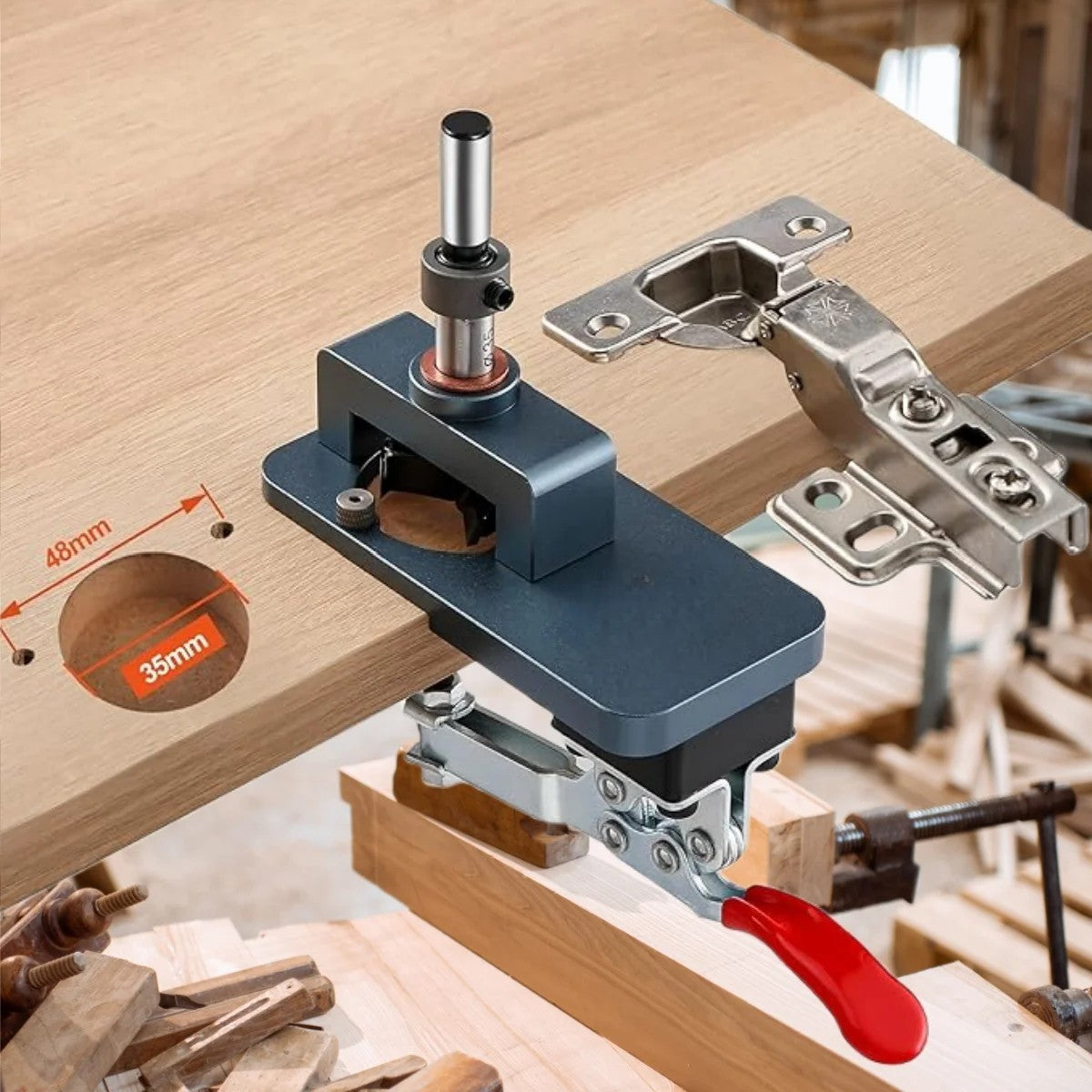

High Precision Cabinet Hinge Jig – Concealed Door Drilling Tool

Product Features

️ High Precision All-Metal Construction

Made from high-quality aluminum alloy with a flat, stable base for improved accuracy and durability compared to plastic jigs.

Built-in double bearings help reduce lateral movement, ensuring more stable and precise drilling results.

Stable & Accurate Drilling

Designed to provide continuous hinge hole drilling with improved stability, making cabinet hinge installation easier and more precise.

Easy & Fast Operation

Allows quick depth setting and positioning for drilling cabinet hinge holes.

Simply align the jig with the marking, lock the clamp, and begin drilling for efficient installation.

Strong Clamping System

Quick-lock clamp design securely holds the board in place, improving safety and accuracy during drilling operations.

Installation Steps

1️⃣ Adjust drilling depth limit ring (recommended 12–13mm)
2️⃣ Adjust clamp size to fit board thickness
3️⃣ Align jig with drilling mark and lock in position
4️⃣ Drill 35mm hinge hole and 2mm screw holes (left & right)
5️⃣ Install cabinet hinge

Suitable For

Cabinet Door Installation
Furniture Assembly
Woodworking Projects
Concealed Hinge Drilling
DIY Home Improvement
Kitchen Cabinet Repair

Specifications

Product Type: Cabinet Hinge Jig
Material: Aluminum Alloy (All-Metal Construction)
Function: Concealed Hinge Drilling Guide
Drill Size: 35mm Main Hole + 2mm Screw Holes
Design: Double Bearing Stability System
Application: Cabinet & Furniture Installation

Product Advantages

High precision metal construction
Stable double-bearing design
Fast and easy setup
Improved drilling accuracy
Suitable for professional and DIY use
