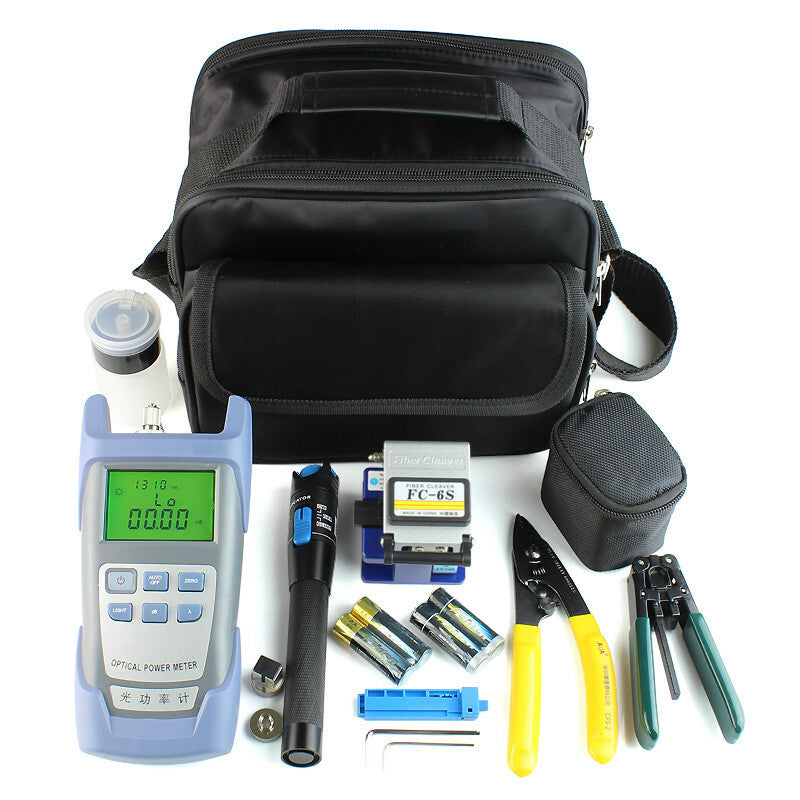

9 In 1 Fiber Optic FTTH Tool Kit with FC-6S Fiber Cleaver and Power Meter
Package List
1 x AUA-9 Optical Power Meter
1 x 1mw 5KM Visual Fault Locator

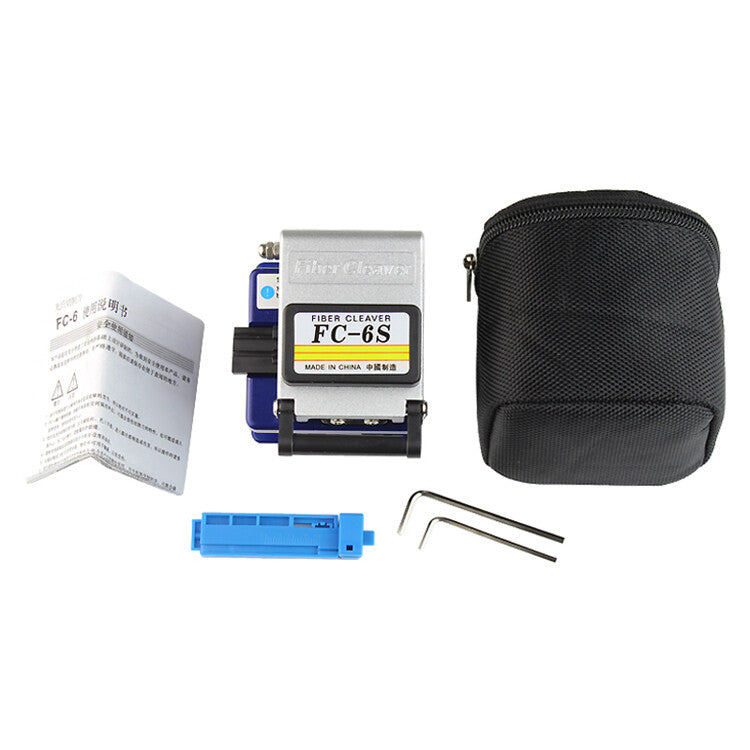

1 x Fiber Cleaver FC-6S

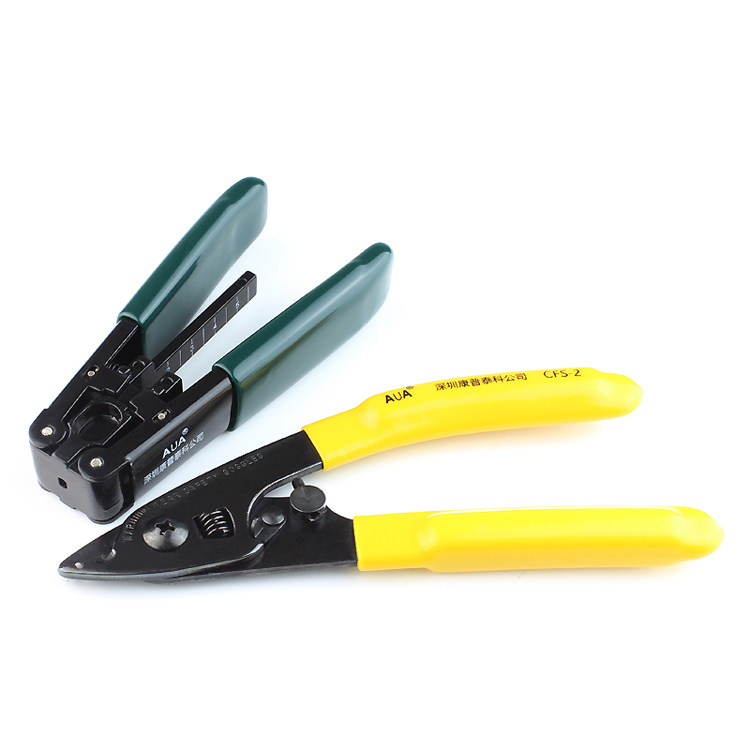

1 x CFS-2 Fiber Optic Stripper
1 x Fiber Optic Stripping Tool
1 x Black Carry Bag
1 x clean paper
1 x Alcohol bottle
1 x Fixed length rail
Please Note: battery not include.

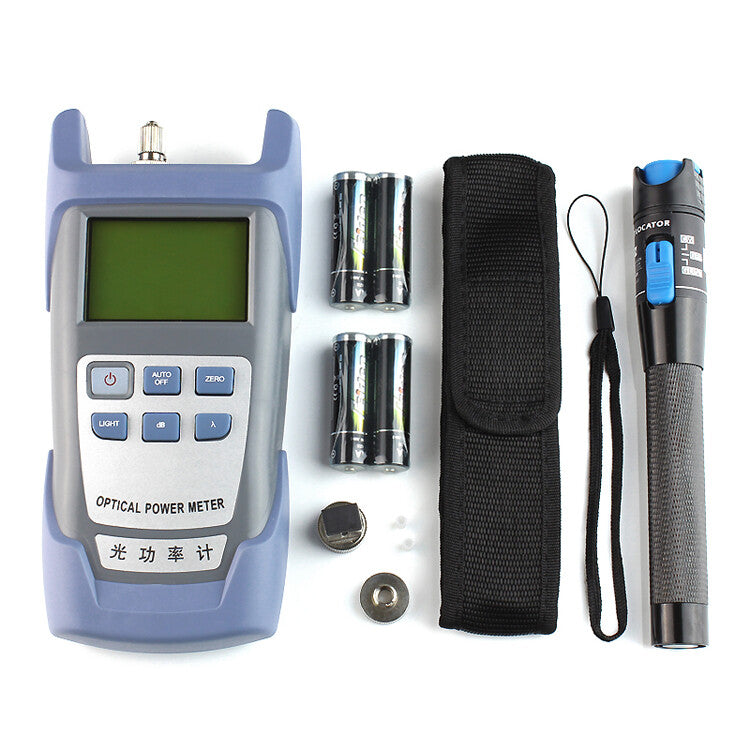

a) AUA-9 Power Meter
Features
- self calibration
- apply replaceable or rechargeable batteries
- more than 40 hours continuous working time
- Linear Display (mW) and Logarithmic display (dBm) show on the same screen
- support FC/SC/ST interface and quick switch
- Auto switch
- Backlight available
Specifictions:
Test Range: -70~+10dbm
Probe Type: InGaAs
Wavelength Range: 800~1700nm
Standard Wavelength(nn): 850/980/1300/1310/1490/1550/1625
Display Resolution: Linear Display 0.1%; Logarithmic display 0.01dBm
Working Temp(℃): -10~+60℃
Storage Temp(℃): -25~+70℃
Auto Switch-off Time(min): 10min
Battery working period: no less than 40hrs
Size(mm): 180x83x28
Power: 2x AA rechargeable lithium battery or Alkaline batteries (NOT included)
Package include:
1x optical power meter
1x FC adaptor (installed on the host)
1x SC adaptor
b) 1mw Visual Fault Locator
Introduction:
1. Central wavelength:650nm±10nm
2. Emitter type: LD
3. Output power: 1mW
4. Optical connector: 2.5mm universal connector
5. CW frequency: 2Hz
6. Power supply: 2 x AA Alkaline batteries(NOT included)
7. Operating temperature: -10~+60℃
8. Storage temperature: -20~+70℃
9. Dimension: 168mm*27mm
|
