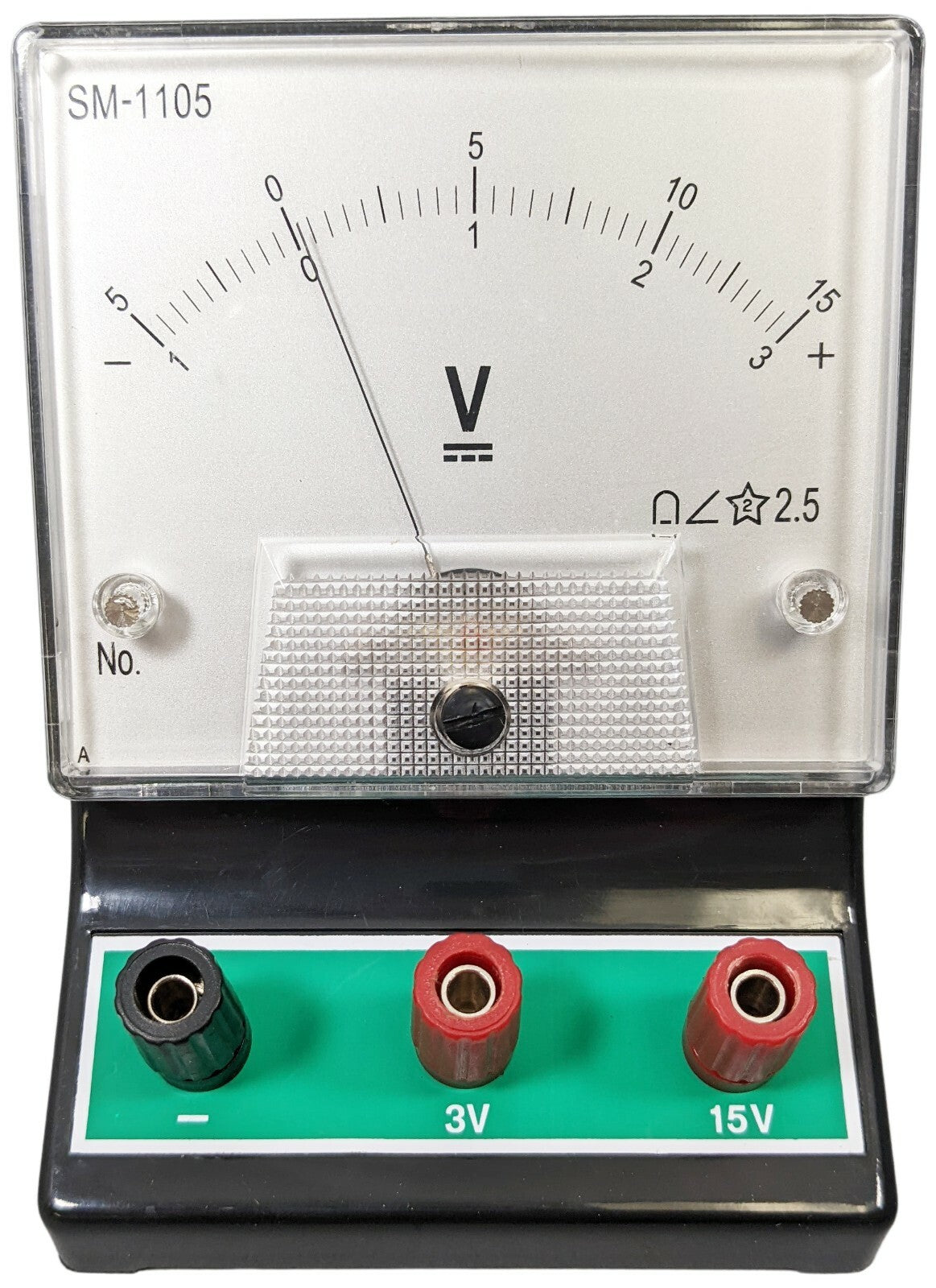

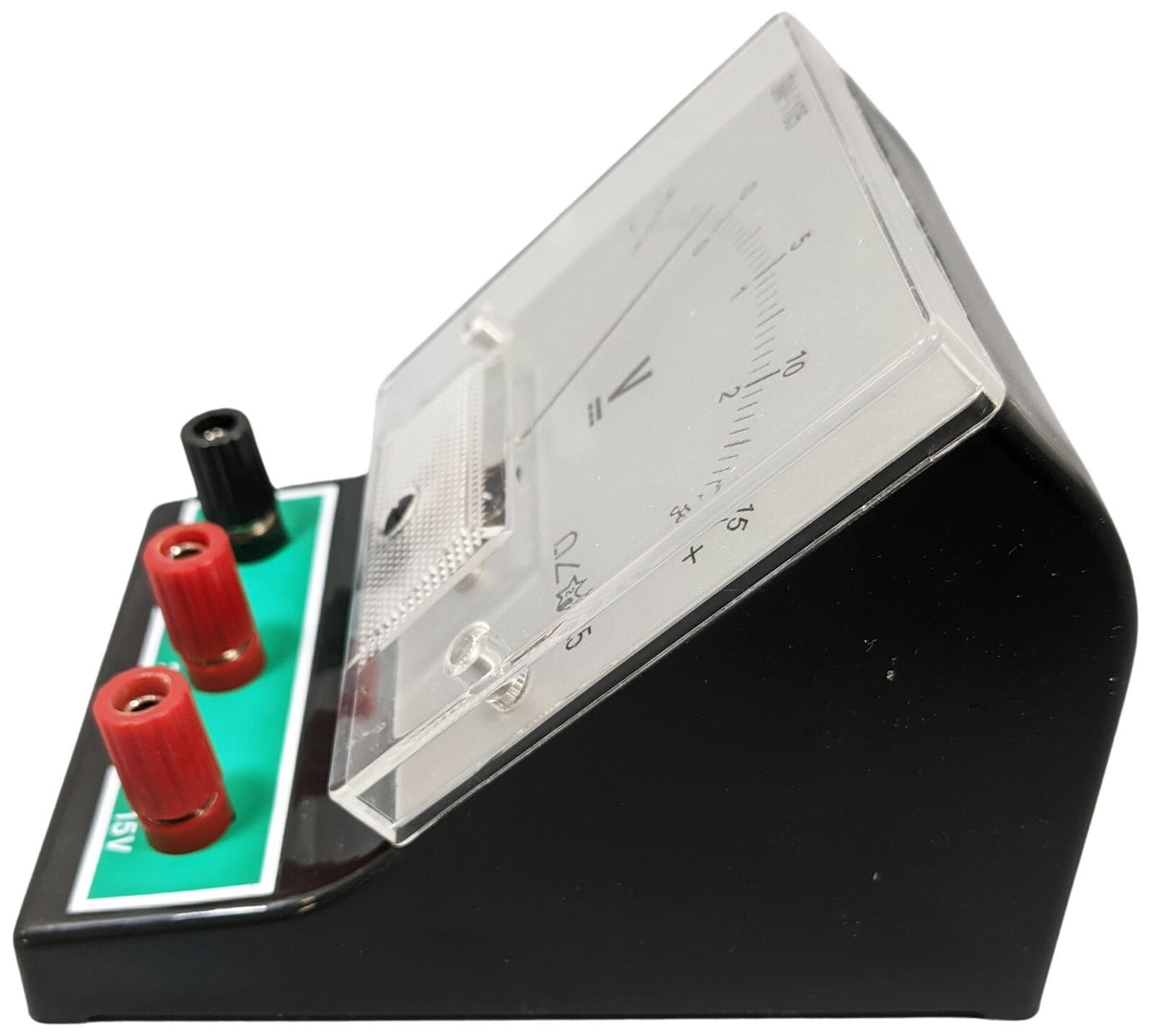

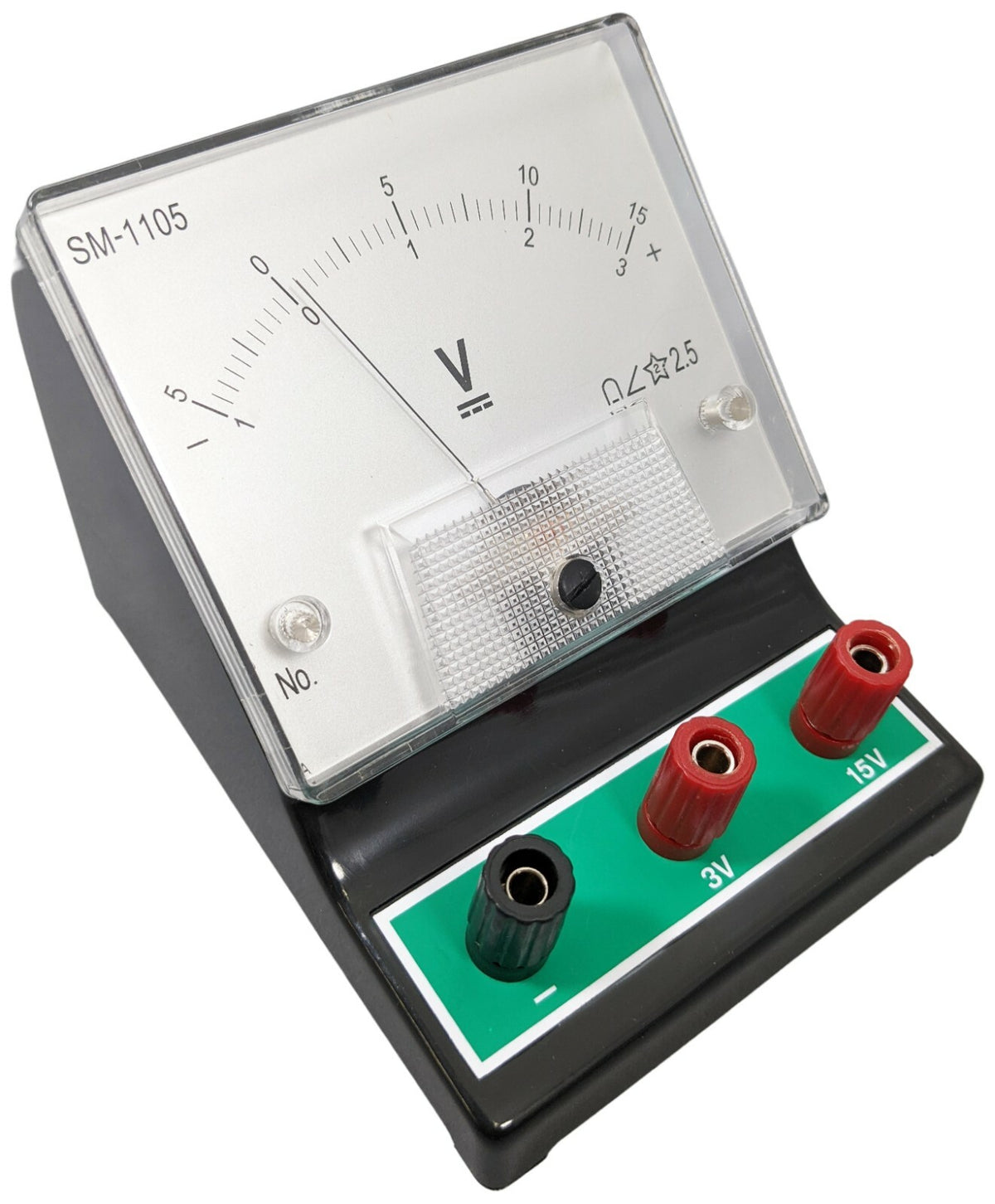

Analog Voltmeter –5 to +15V

• Meter Movement Voltmeter — Ideal for measuring DC voltage in a DC circuit
• Measuring Range: –1 to +3V or –5 to +15V
• Accuracy: +/- 2.5% full scale
• Features a zero adjustment screw
• Measures 100x133x97mm

Meter Movement Voltmeter for measuring DC voltage in a DC circuit. Voltage measurement is taken by connecting the instrument in parallel with the circuit being checked. To use the Voltmeter, connect the Red terminal to DC voltage Positive.

Specifications:
Measuring Range:
–1 ~ 0 ~ +3V
–5 ~ 0 ~ +15V
Accuracy: +/- 2.5% Full Scale
