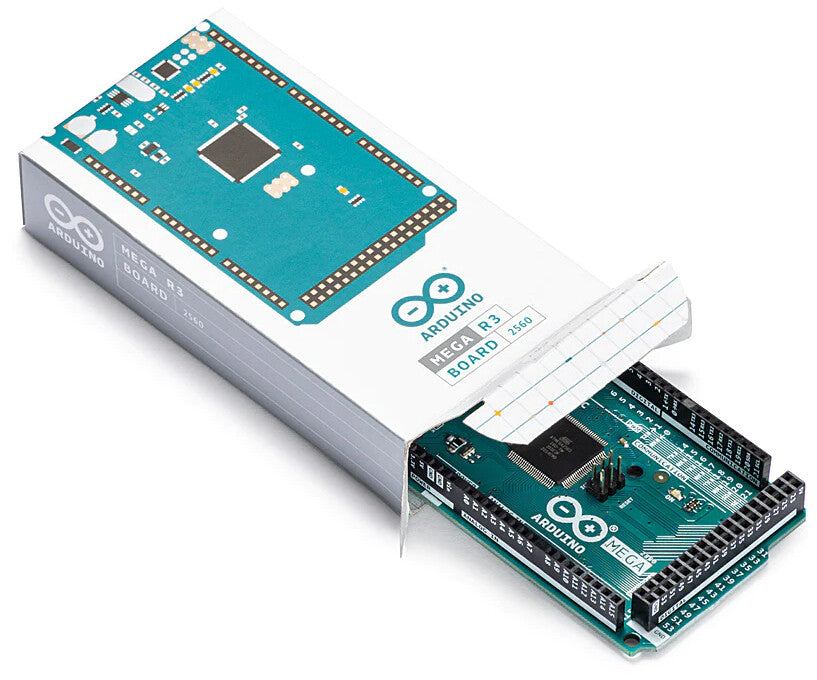

Arduino Mega 2560 Rev3

• Arduino Mega 2560 is designed for your most ambitious projects which require additional pins and extra memory
• Based on the 8-bit AVR microcontroller ATmega2560, it has 54 digital I/O pins, 16 analog inputs and a larger space for your sketches
• Ideal for: 3D printing, CNC robotics
• Compatible with most shields designed for the Arduino Uno
• Arduino is an open-source hardware, software, and content platform with a worldwide community of over 30 million active users.

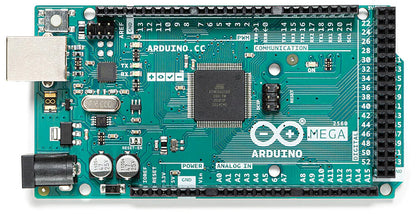

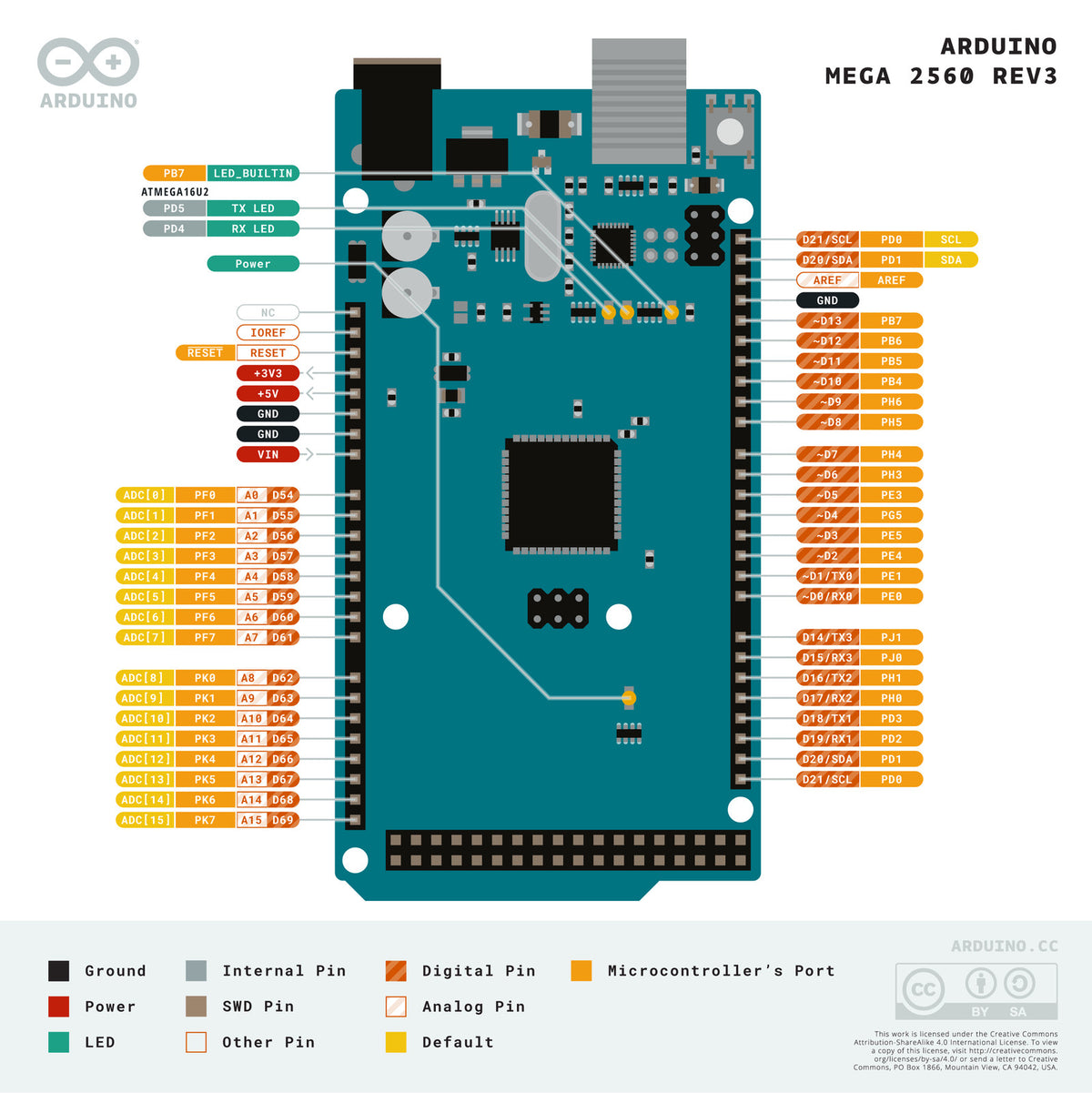

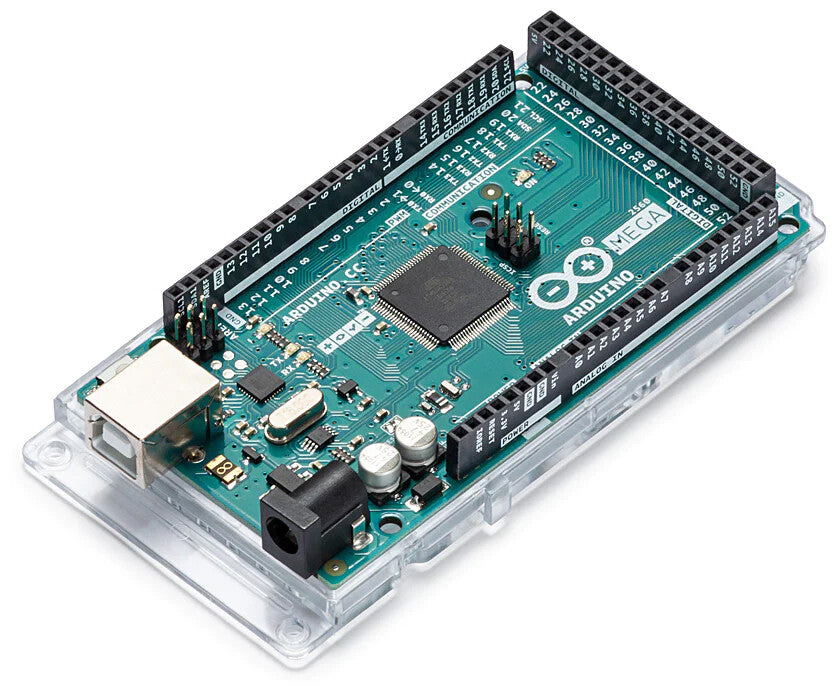

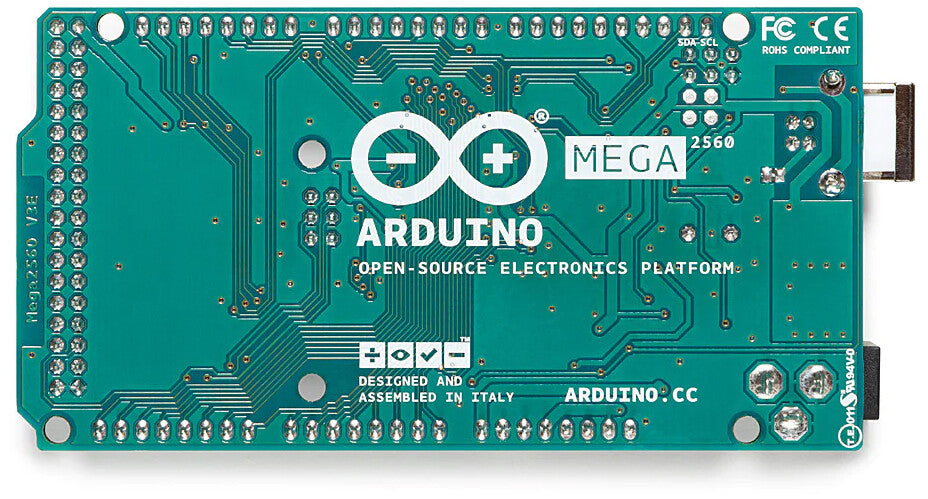

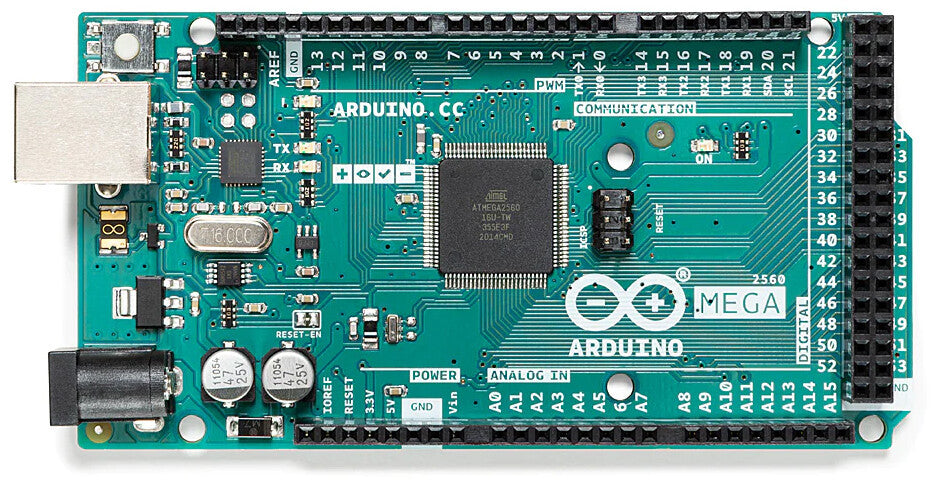

The Arduino Mega 2560 is a microcontroller board based on the ATmega2560. It has 54 digital input/output pins (of which 15 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started. The Mega 2560 board is compatible with most shields designed for the Uno and the former boards Duemilanove or Diecimila.

The Mega 2560 is an update to the Arduino Mega, which it replaces.

Tech specs
