Blue LED Light 3Pin Rocker Toggle ON/Off Switch 30A 12V for Car Boat M

Nilight Blue LED Toggle Switch

ON OFF Toggle Switch with LED Indicator

Easy Installation Toggle Switches:

Insert switches into 0.48" (12mm) mounting hole, and tighten the top hex nut
Adjust the bottom hex nut to leave ample space.
Connect load, power source, and ground to terminals.

SPST Toggle switch with LED Indicator

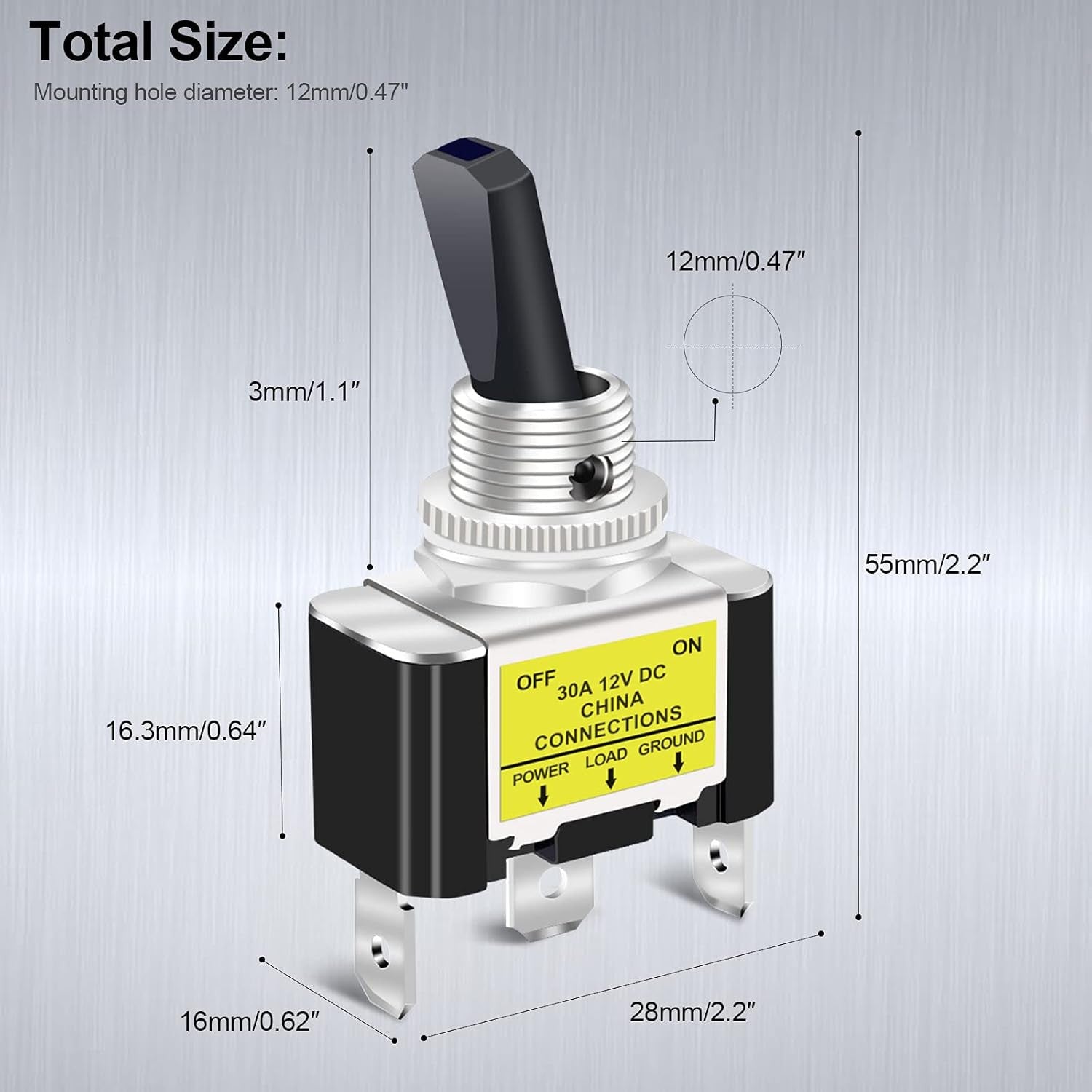

Size: 1.12*0.63*2.21 inches(28.3*16*56 MM)
Package includes:1~100 pcs toggle switch

Speciflcation:

Rating	30A 12VDC/ 15A 24VDC
Contact Resistance:	≤50mΩ
Insulated Resistance:	≥100MΩ
Operating Temperature:	-25℃~+85℃
Electrical Life:	≥10,000 Cycles

Panel Cut-Out Size:	12mm
Panel Thickness:	10mm Max
Waterpoof Degree:	IP40
LED Rating:	20mA
LED Endurance:	≥20,000 Hours

Product details

ON/OFF Toggle Switch

This 12v toggle switch is 3 Pin SPST ON-OFF design,the rating of this automotive toggle switch is 30A 12VDC/ 15A 24VDC.
Switch function: when you toggle the switch on, LEDs on and the accessory is on. When you flip the switch cover, LEDs off, accessory is off.

ON/OFF Toggle Switch

SPST 3 terminal PIN

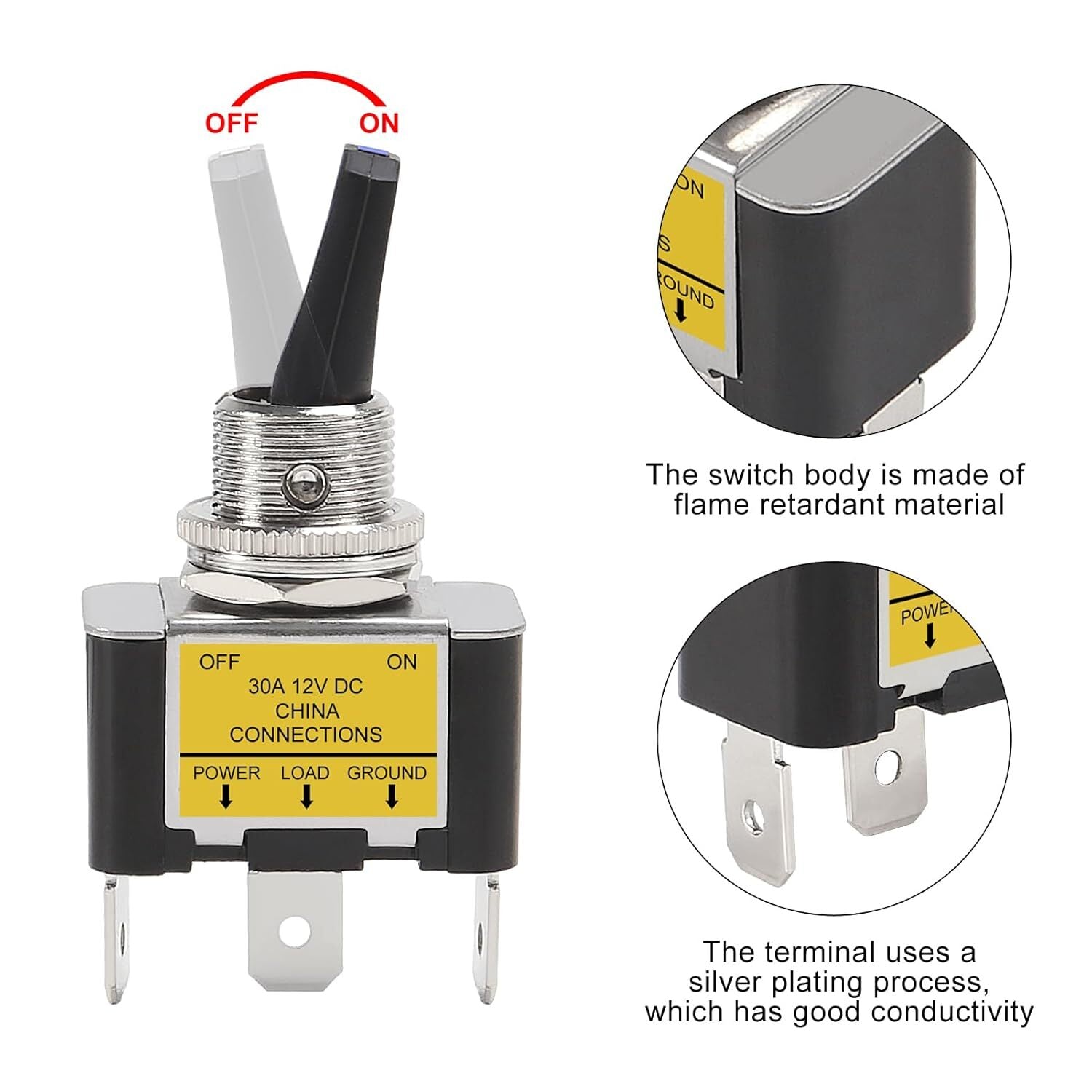

3 pin terminals i s made of brass copper, the blade type terminals for quick connections of plug and play.

ON/OFF Toggle Switch

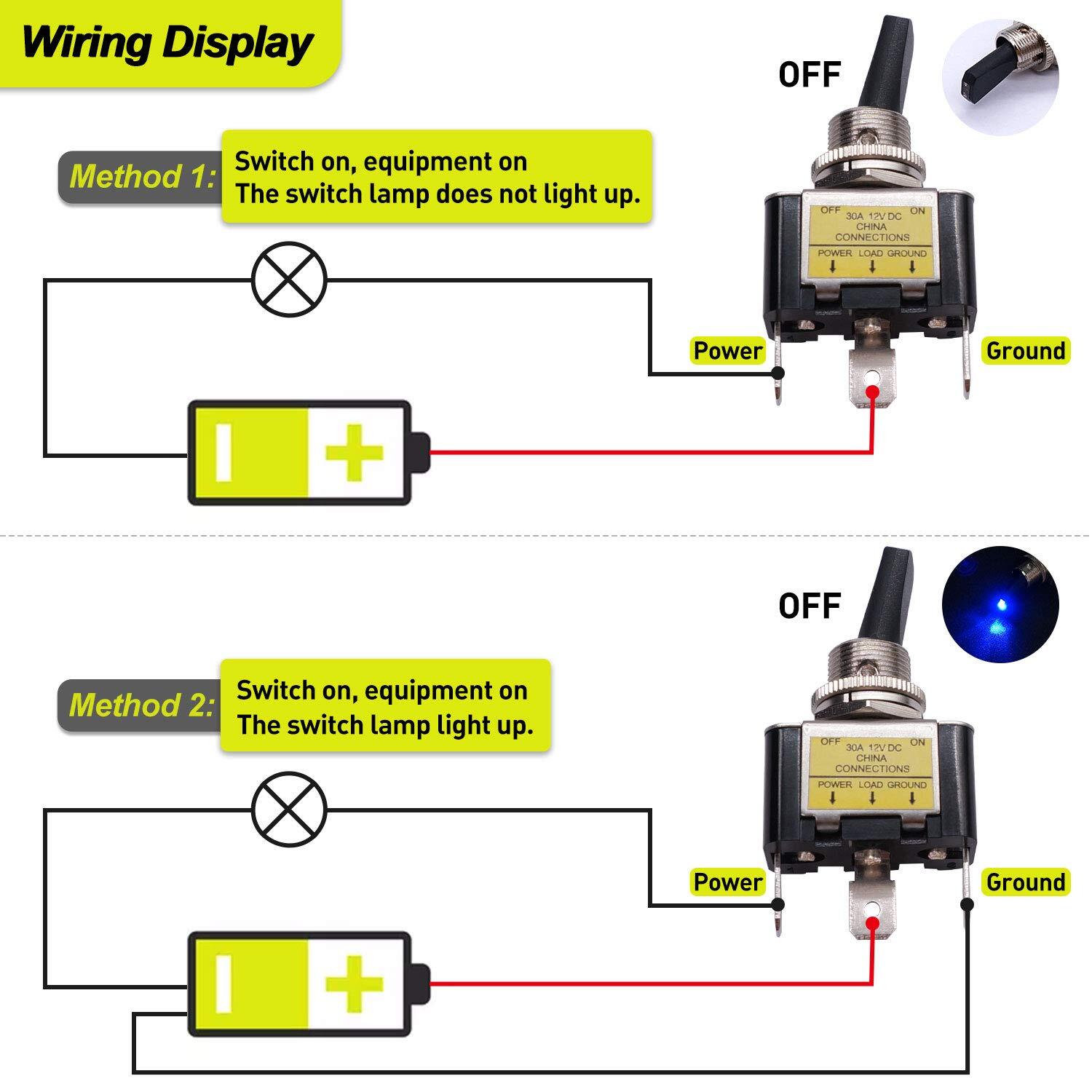

Wiring Method

"+1"Power, +12VDC To Power Supply Positive
"+2" Load , +12VDC To Load
"-" Power , To Power Supply Negative

ON/OFF Toggle Switch

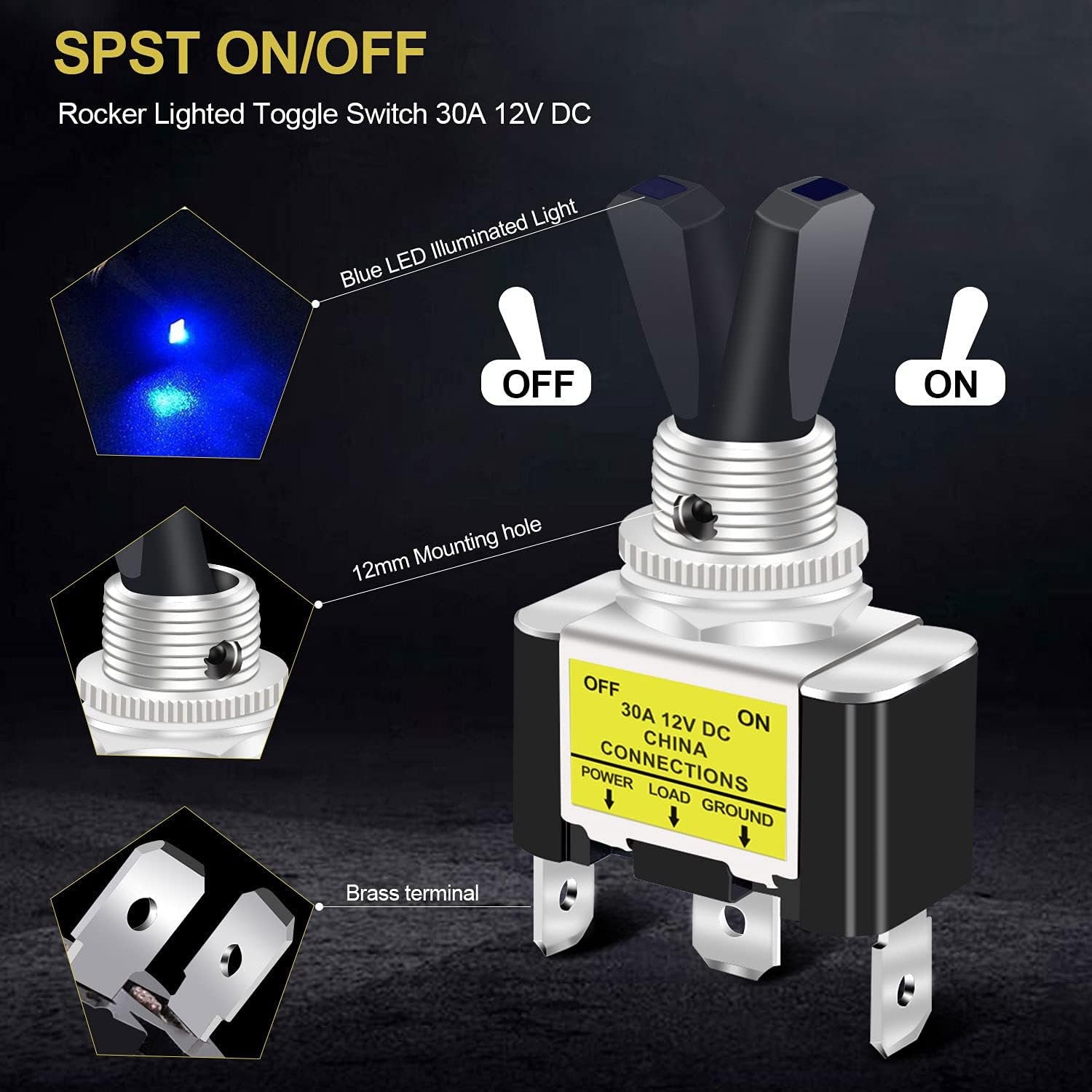

LED Indicator

The blue LED indicator will be illuminated when the switch is turned on. e.g. When the switch is turned on, the light is also turned on；Switch off, light off
