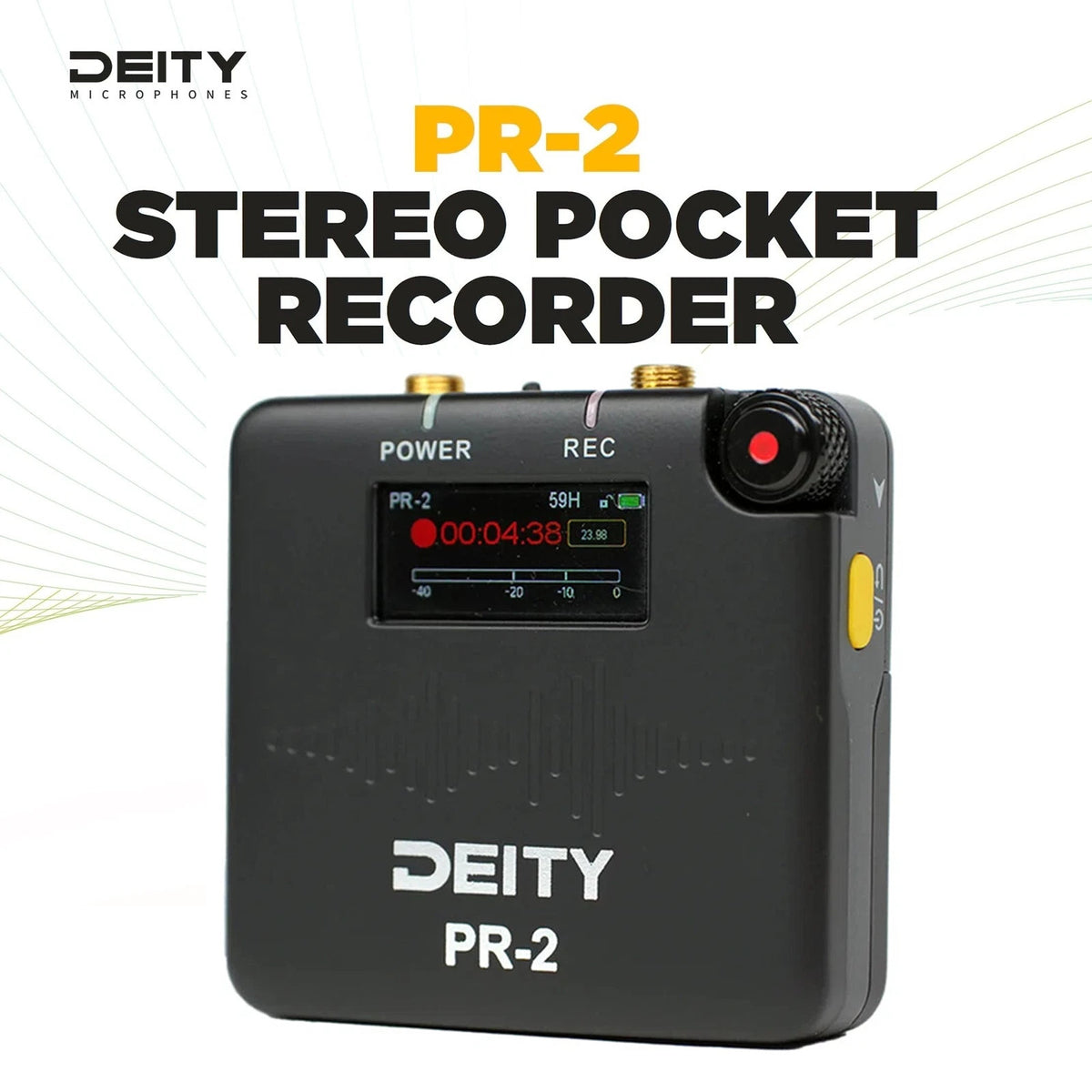

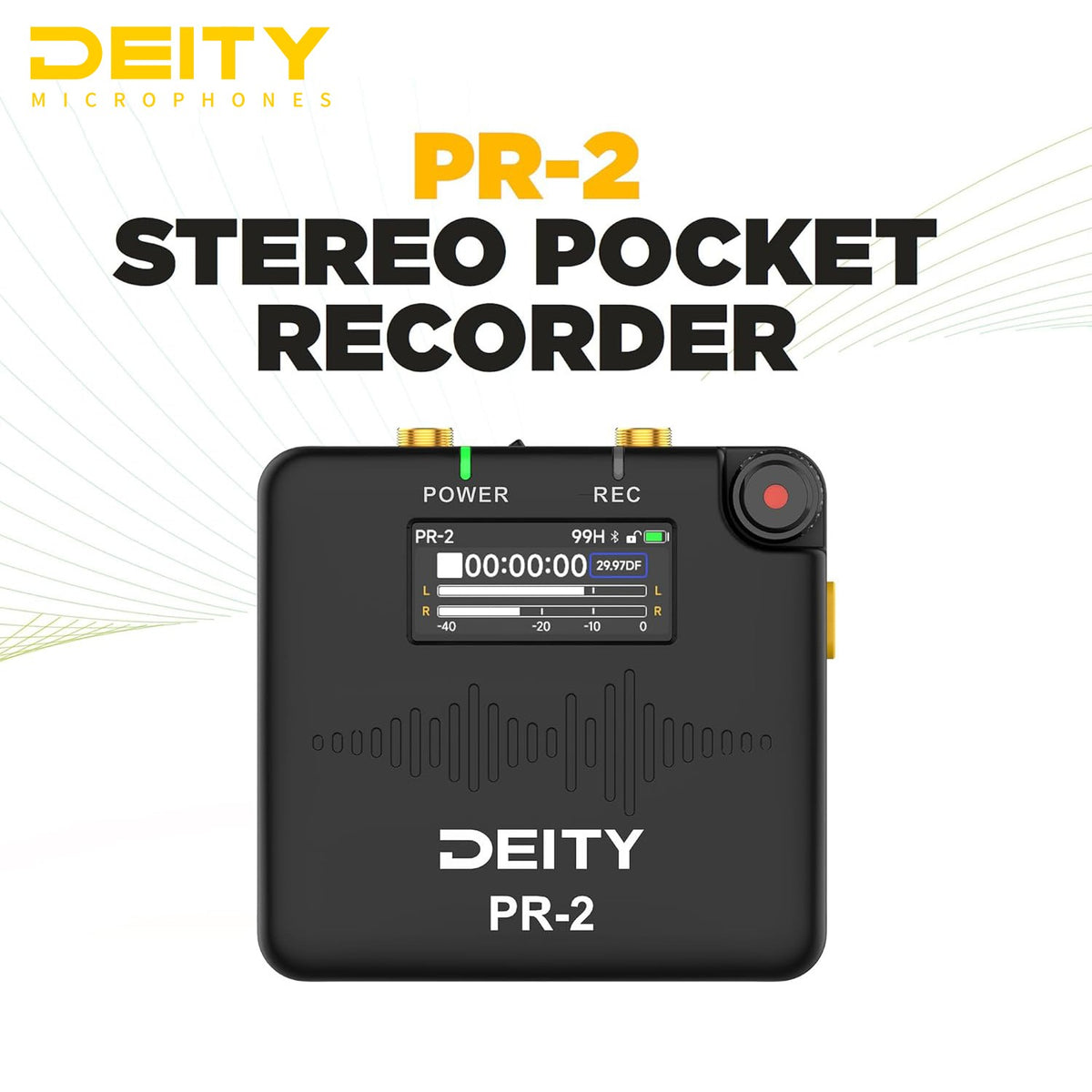

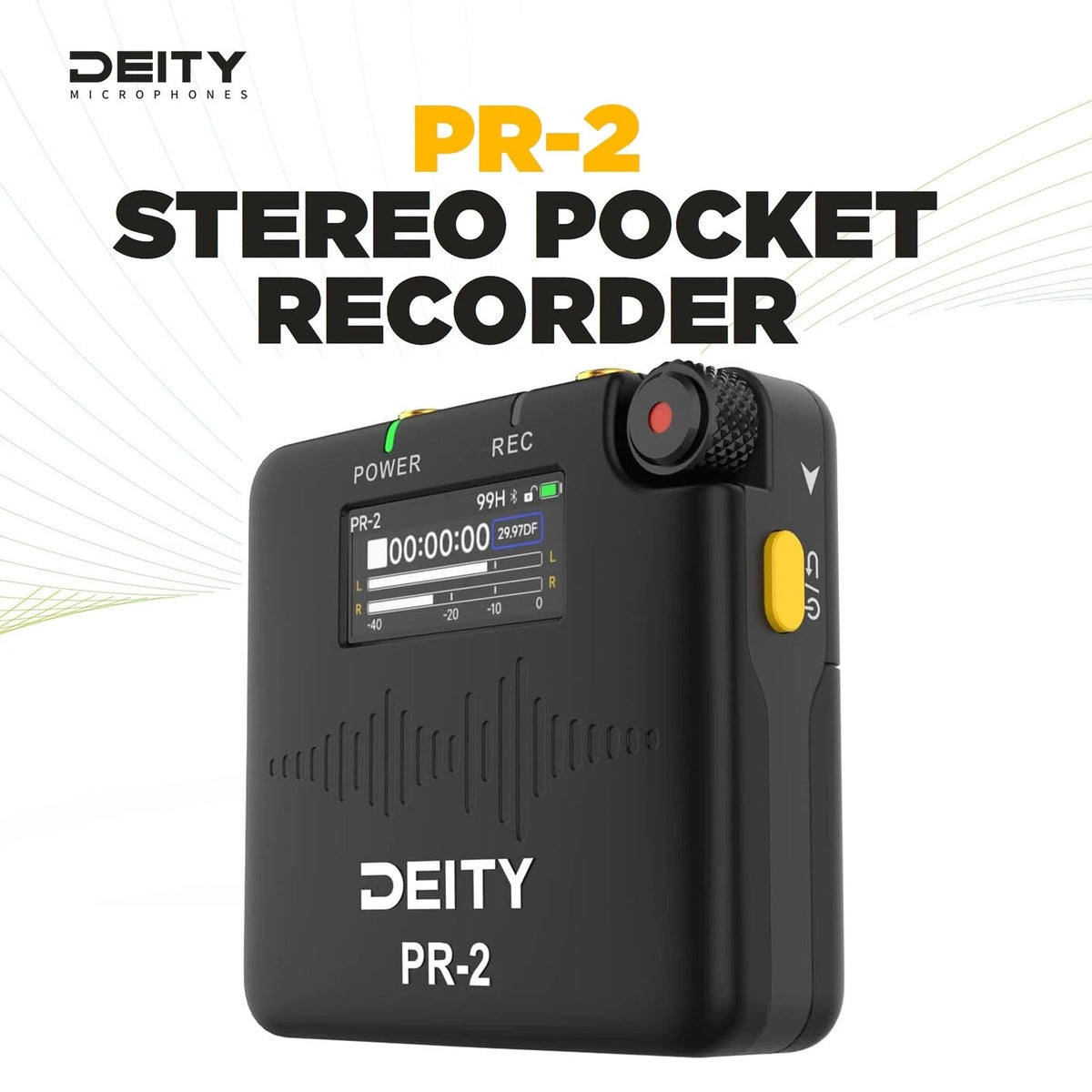

️ Deity PR-2 Pocket Audio Recorder with 32-Bit Float Recording & APP Control – Professional Portable Field Recorder

---

Package Contents

• 1 × PR-2 32-bit Audio Recorder (Main recording device with 32-bit float recording capability, USB-C connectivity, and integrated microphone input/output ports)

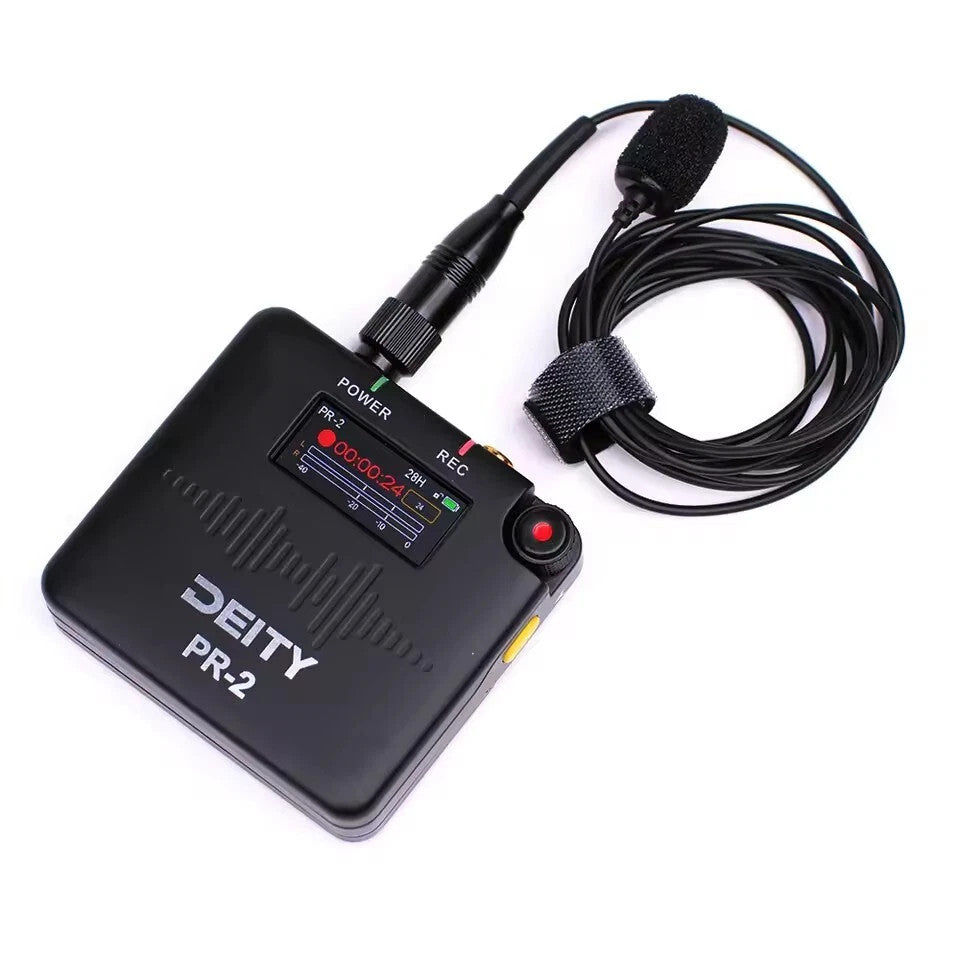

• 1 × W.Lav Pro Lavalier Microphone (3.5mm TRS Connector) (High-quality wired lavalier mic designed for clear voice capture; compatible with the PR-2’s 3.5mm mic input)

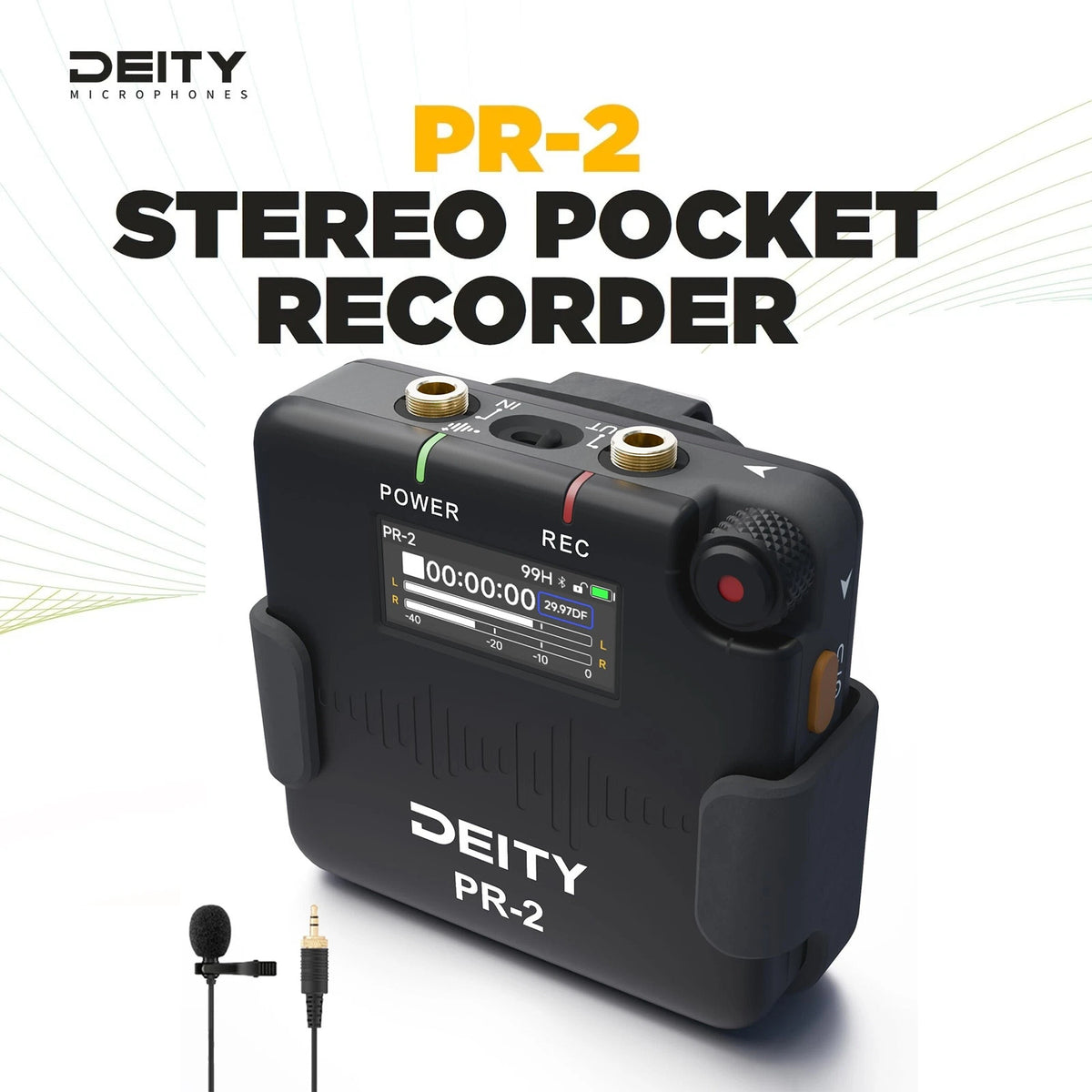

• 1 × Recorder Belt Buckle (Removable belt clip for secure attachment to belts, bags, or clothing during field use)

• 2 × Deity Lithium Disposable AA Batteries (3000mAh) (High-capacity power source providing up to 30 hours of operation with lithium AA batteries)

• 1 × Dual USB-C (Male) Plug Cable (For charging the PR-2 or connecting it to devices via USB-C; supports USB 2.0 data transfer)

• 1 × USB-C (Male) to USB-A (Female) Conversion Plug (Adapter for connecting the PR-2 to devices with only USB-A ports)

• 1 × 32GB Micro SD Card by Kingston (Pre-installed storage media with Class 10 performance, supporting up to 128GB microSDHC cards for extended recording time)

---

Product Overview

The Deity PR-2 Pocket Audio Recorder is a compact yet powerful field recording device engineered for professional-grade audio capture in demanding environments. Whether you're a videographer, podcaster, journalist, or sound engineer, the PR-2 delivers exceptional sound quality, versatile connectivity, and intuitive control via the Sidus Audio App (available for iOS, Android, and macOS). Its 32-bit float recording capability ensures ultra-low noise and maximum dynamic range, while features like Bluetooth remote control, timecode synchronization, and multi-format file support make it an indispensable tool for on-the-go recording.

Key Selling Points:

• 32-bit Float Recording: Captures audio with unparalleled dynamic range (123dB typical) and virtually no clipping, even in unpredictable sound environments.

• APP Remote Control: Wirelessly manage recordings, adjust settings, and monitor audio via the Sidus Audio App (iOS/Android/MacOS).

• Professional Inputs/Outputs: Includes a locking 3.5mm stereo mic/line input, locking 3.5mm headphone output, and LTC timecode input/output for syncing with cameras or other devices.

• Extended Battery Life: Powered by 2 × AA batteries (up to 30 hours with lithium AA batteries) or optional USB-C power (via USB-C port).

• Portable & Durable: Compact design with a removable belt clip for easy transport and hands-free operation.

---

️ Technical Specifications

Audio Performance

• Number of Tracks: 2 (Mono or Stereo) (Supports dual-mono or stereo recording configurations based on setup)

• Sampling Rate: 48 kHz (Standard for professional audio/video applications, ensuring natural sound reproduction)

• Recording Bit-Depth: 32-bit Float (Mono) / 24-bit (Mono or Stereo) (32-bit float mode captures ultra-wide dynamic range with minimal noise; 24-bit mode optimizes file size for stereo recordings)

• Recording File Formats: WAV (BWF - Broadcast Wave Format) (Industry-standard format with embedded metadata for professional workflows)

• Dynamic Range: 123dB (typical, 32-bit Float mode) (Captures subtle details and loud sounds without distortion)

• Total Harmonic Distortion + Noise (THD+N): ≤ -90 dB (0.05%) (Ensures clean, artifact-free audio output)

• Equivalent Input Noise (EIN): -130dBu (A-weighted +30dB @ 150Ω) (Extremely low self-noise for pristine recordings in quiet environments)

• Frequency Response: 20Hz – 20kHz (Full-range audio coverage for accurate reproduction of human hearing spectrum)

Inputs & Outputs

• Microphone Input: 3.5mm TRS (screw-lock connector) (Secure connection for external microphones; supports both mic-level and line-level signals)

• Mic Plug-In Power: 5V (switchable between mic and line input modes) (Provides power to compatible condenser microphones, such as the included W.Lav Pro lavalier mic)

• Line Input: Switchable via mic/line input selector (Accepts line-level signals from mixers, cameras, or other audio devices)

• Headphone Output: Locking 3.5mm TRS (Secure headphone connection for real-time audio monitoring; supports standard headphones or monitors)

• Timecode Input: LTC (Linear Timecode) via 3.5mm TRS mic/line input (Syncs recordings with external timecode generators or cameras for precise multi-device alignment)

• Timecode Output: LTC via 3.5mm TRS line output (Sends timecode to other devices for synchronized workflows)

• Frame Rates Supported: SMPTE 12M (23.98, 24, 25, 29.97, 29.97DF, 30, 50, 60 fps) (Covers all standard video frame rates for film, TV, and digital content production)

Signal Processing & Features

• Low Cut Filter: Reduces low-frequency rumble (e.g., wind noise, HVAC hum) for cleaner recordings (Exact frequency not specified; typically adjustable or fixed at ~80Hz/100Hz)

• Limiter: Prevents audio clipping by automatically reducing signal peaks (Protects recordings from unexpected loud sounds)

Connectivity & Power

• USB Connection: USB-C (USB 2.0) (Supports both charging and firmware updates; compatible with USB-C chargers, power banks, or computers)

• USB Modes: Card Reader (access recorded files on a computer), Firmware Update (install latest software updates)

• Bluetooth: 5.0 Low Energy (LE) (Enables wireless remote control via the Sidus Audio App for hands-free operation)

• Power Source: 2 × AA Batteries (3000mAh, recommended lithium for max runtime) (Alkaline or NiMH batteries also supported, but lithium offers longer life)

• Battery Operation Time: Up to 30 Hours with Lithium AA Batteries (Actual runtime varies based on recording mode, volume, and Bluetooth usage)

Storage & Media

• Storage Media: microSDHC Card (up to 128GB, recommended Class 10 for optimal write speeds) (Pre-installed 32GB Kingston microSD card included; supports higher capacities for extended recording)

Physical Design

• Mounting: Removable Belt Clip (Attaches to belts, bags, or clothing for hands-free portability)

• Dimensions & Weight: (Not explicitly stated, but designed for pocket-sized portability; lightweight for field use)

---

Key Features

1. 32-bit Float Recording Excellence

• Captures audio with 123dB dynamic range and zero risk of clipping, ensuring flawless recordings even in sudden loud environments (e.g., live events, explosions, or unexpected noise spikes).

1. Wireless APP Control

• Use the Sidus Audio App (iOS/Android/MacOS) to start/stop recordings, adjust gain (-12dB to +36dB), monitor levels, and manage settings remotely via Bluetooth 5.0 LE.

1. Professional Timecode Sync

• Synchronize with cameras or other recorders using LTC timecode input/output via 3.5mm TRS, supporting SMPTE 12M frame rates (23.98–60fps) for multi-camera or multi-device shoots.

1. Versatile Input Options

• Connect lavalier mics (e.g., included W.Lav Pro), shotgun mics, mixers, or line-level devices via the locking 3.5mm TRS mic/line input (switchable between mic and line modes).

1. Extended Recording Time

• With a 16GB microSD card, record up to 29 hours (24-bit mono) or 22 hours (32-bit float mono)—ideal for long interviews, events, or field sessions without frequent card swaps.

1. Durable & Portable

• Compact, lightweight design with a removable belt clip for easy transport; built to withstand the rigors of on-location shoots.

---

Usage Tips

1. Optimal Setup for Best Results

• Use a Class 10 or higher microSDHC card (up to 128GB) for reliable write speeds and sufficient storage.

• For 32-bit float recordings, prioritize mono mode to maximize dynamic range (22–29 hours on a 16GB card).

• Enable the low cut filter (if available) to reduce background noise in windy or echoey environments.

1. Battery Management

• Use lithium AA batteries (3000mAh) for up to 30 hours of operation; avoid mixing battery types.

• Monitor battery level during long recordings to prevent unexpected shutdowns.

1. Remote Control & Monitoring

• Pair the PR-2 with the Sidus Audio App via Bluetooth 5.0 LE to adjust gain, start/stop recordings, and check audio levels without touching the device.

1. Timecode Synchronization

• Connect an external timecode generator to the 3.5mm TRS timecode input (LTC) and link the 3.5mm TRS line output to other devices for frame-accurate sync.

1. File Management

• Transfer recordings via USB-C (card reader mode) to a computer for editing; the BWF format preserves metadata for professional post-production workflows.

---

️ Important Notes

• Compatibility: The PR-2 is designed for professional audio applications; ensure your devices (cameras, mixers, etc.) support 3.5mm TRS connections and LTC timecode if using advanced features.

• App Requirements: The Sidus Audio App requires iOS 12+/Android 8+/macOS 10.14+ for full functionality.

• Storage Expansion: While the package includes a 32GB microSD card, upgrading to a 64GB or 128GB Class 10 card is recommended for longer recording sessions.

• Bluetooth Range: Wireless control via the Sidus Audio App has a typical range of ~30 feet (10 meters); obstacles may reduce connectivity.
