Digital Display Spot Welder time Control Board 100A Updating Current Controller
Digital Display Spot Welder time Control Board 100A Updating Current Controller
Regular price
$33.08 USD
Regular price
$0.00 USD
Sale price
$33.08 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
|

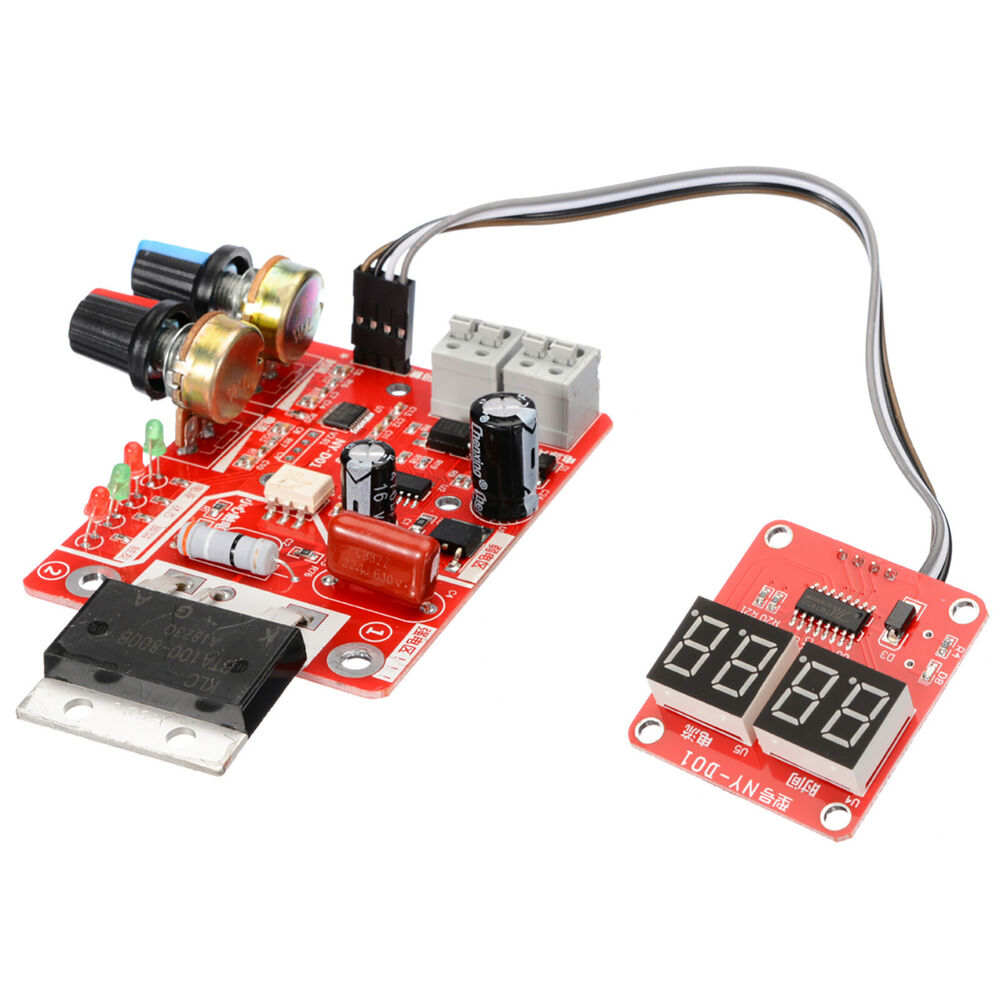

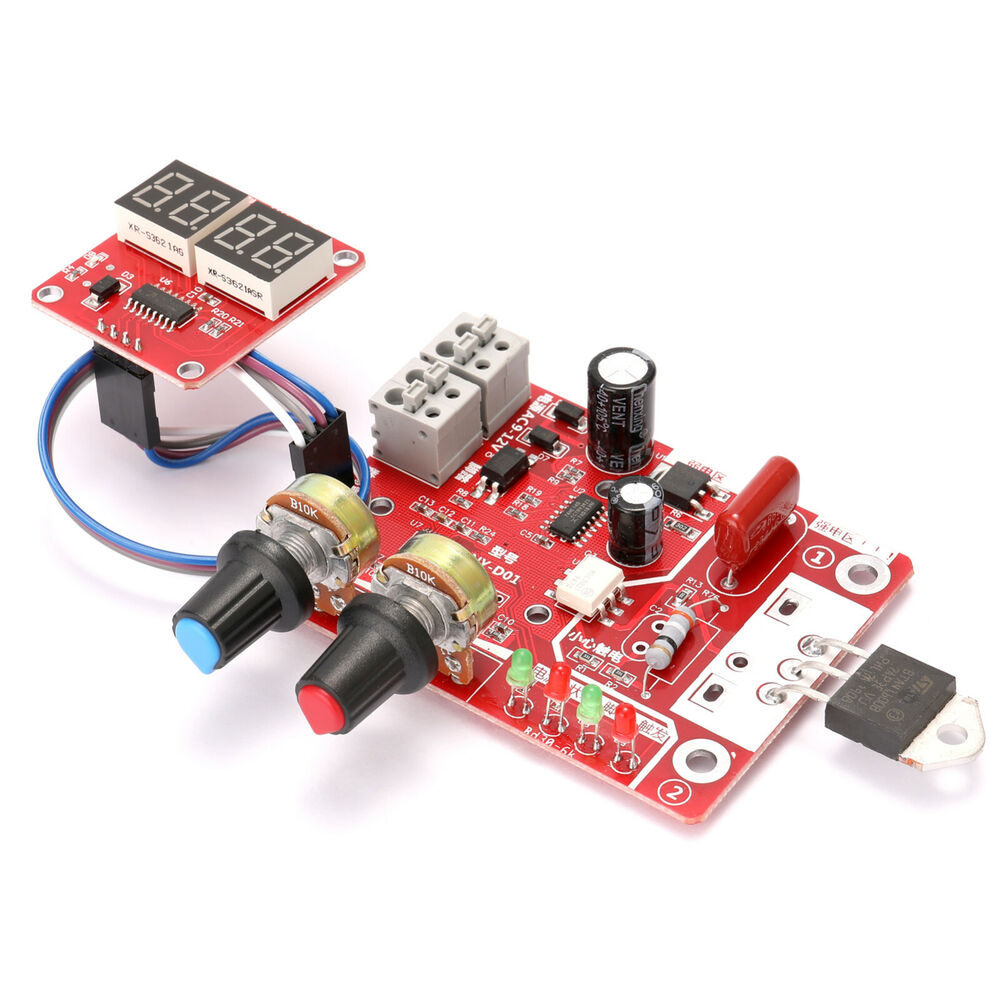

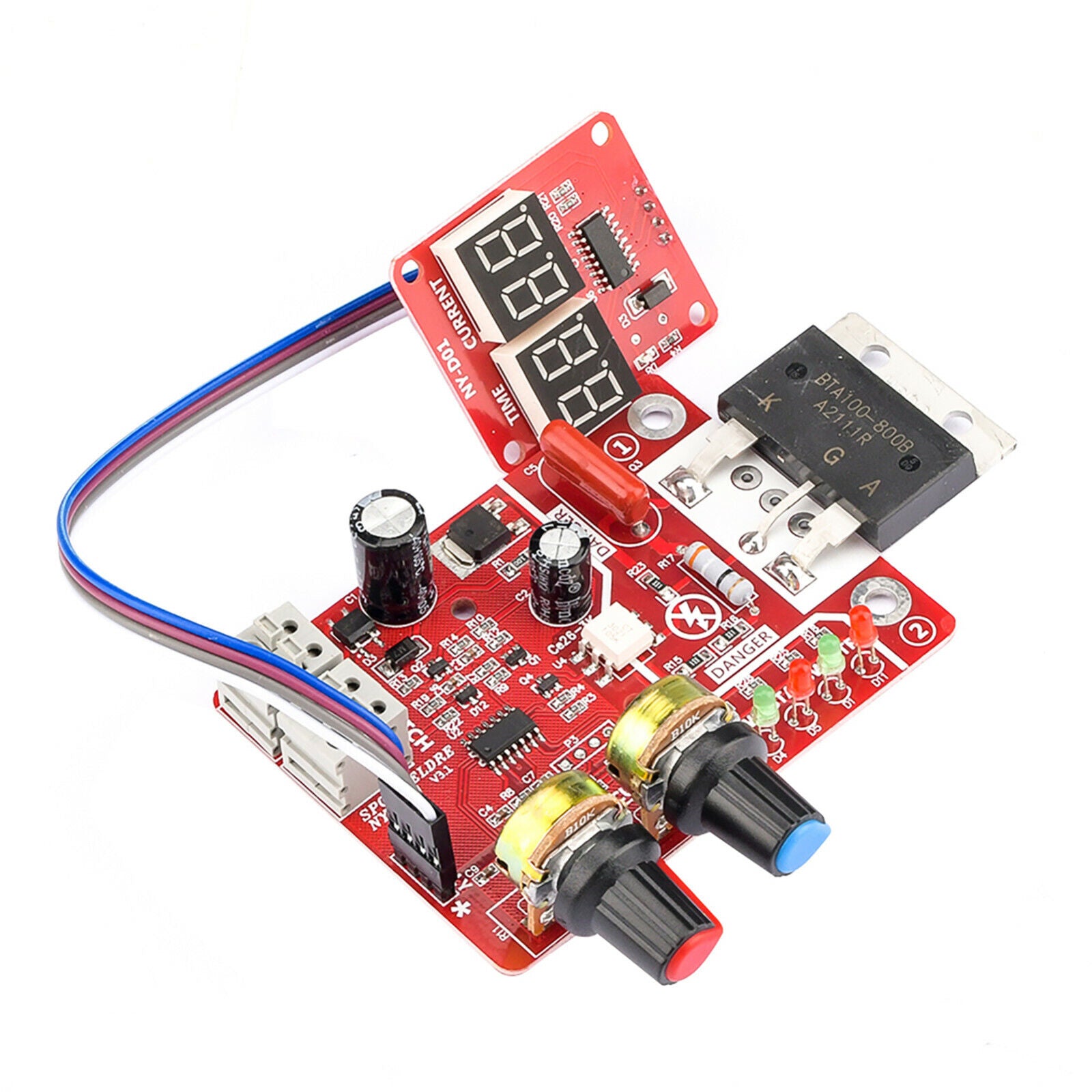

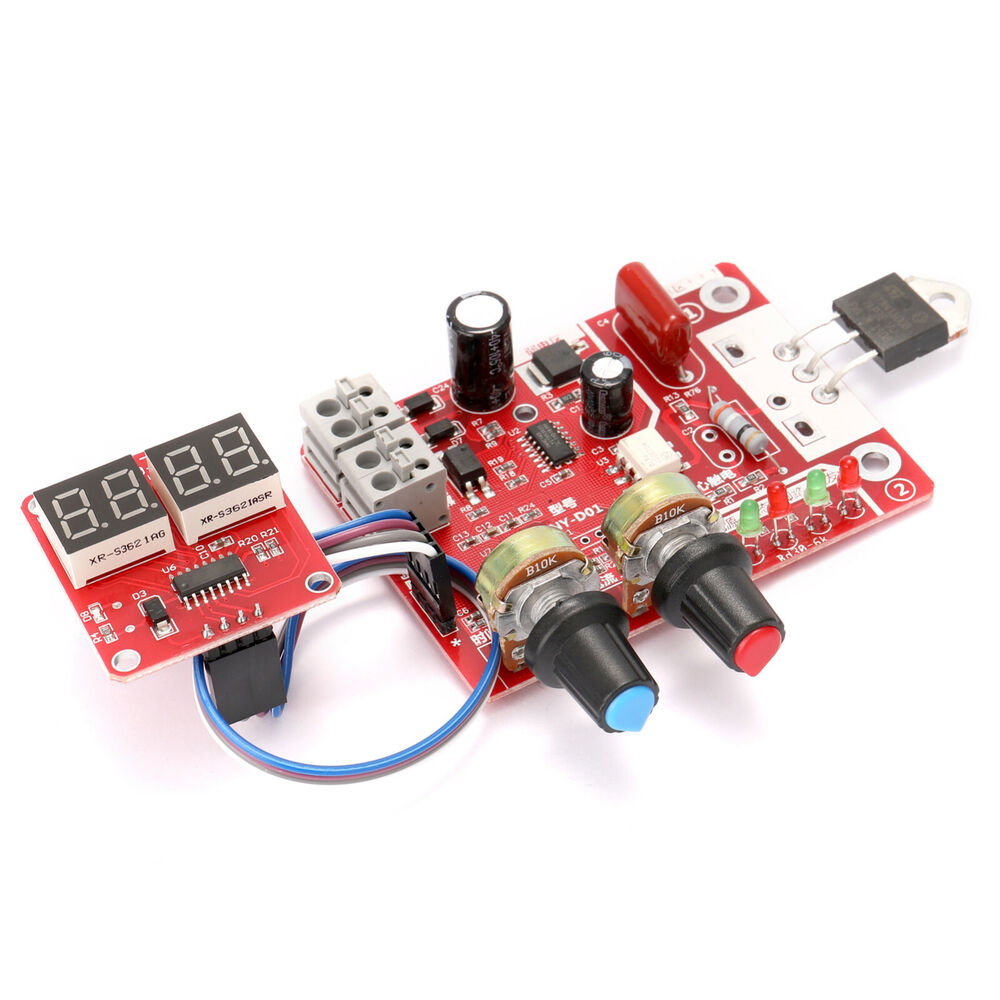

Digital Display Spot Welder time Control Board 100A Updating Current Controller This point of the welding machine control board is a DIY or simple resistance welding and independent development of the controller. Using SCR phase shift trigger principle, by adjusting the time, current size, to achieve the purpose of welding. Features: This control panel of the spot welding machine is independently developed for the DIY or the simple resistance welding.
Equipped with digital display, you can see the time and current directly, simple and easy to use.
Strong and weak electricity through optocoupler isolation, makes a safe operation.
The power line and the foot switch line are adopt screw free quick connection terminal, more convenient and reliable.
The input time and current are using high accuracy single-potentiometer to ensure reliable input.
Convenient on-board powersupply, state, foot, trigger indicator, working state clearly visible.

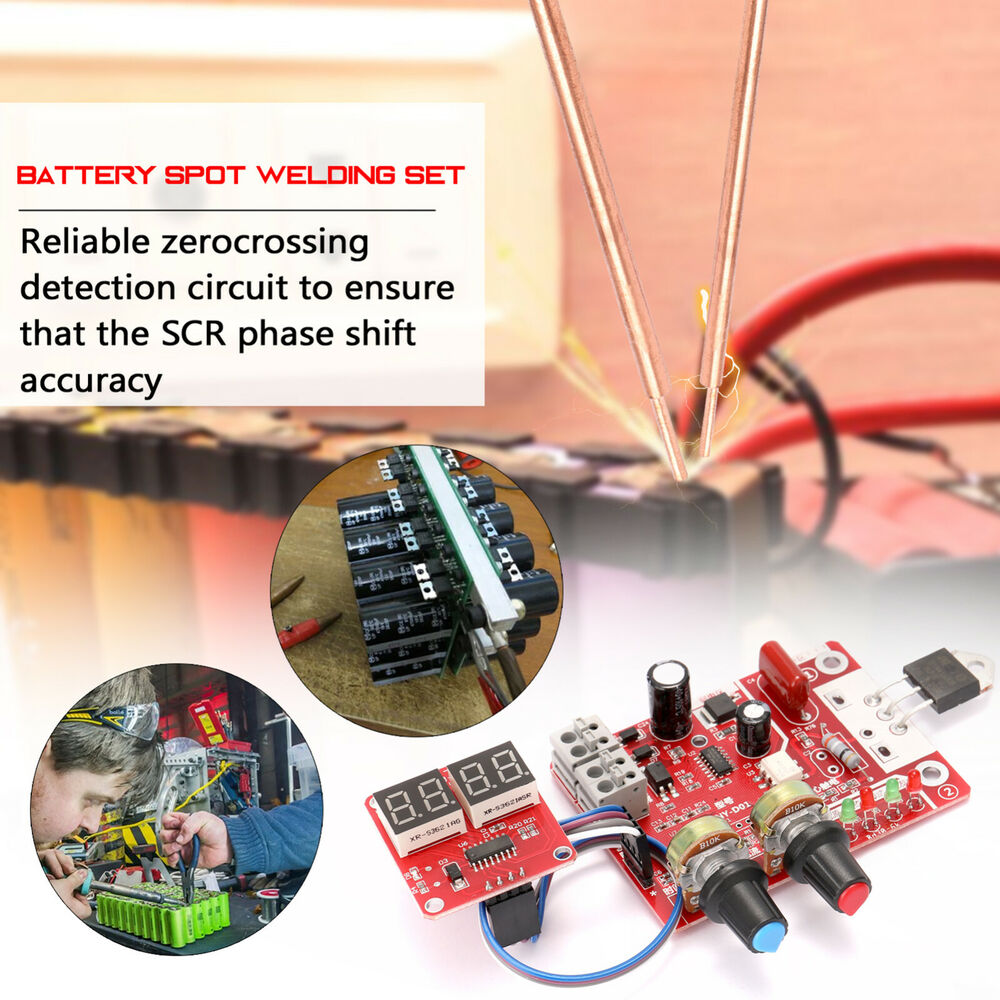

Reliable zerocrossing detection circuit to ensure that the SCR phase shift accuracy.
The controller is compatible with 100A SCR.
Digital control interface, you can display the current time and current settings.
Time input 1-50, unit cycle (1 cycles is 20ms), current input (30-99%).
Specifications: Type:100A Color: (As Pictures Show) power transformer: Just 1 AC 9V transformer 220V Welding Pin: 3 * 100 Welding Pin Alumina Foot Switch: EKW-5A-B Aluminum Foot Switch DKJ10-25 Connector: European Quick Fitting Cable Quick DKJ10-25 Connector Red Rocker Switch: Red Rocker Switch Fused Power Socket Package included: 1 x Spot Welding Machine Control Board
|
