LCD Digital Multimeter (AC/DC 600V)

• Display: 1999 counts, 15mm Digit Height
• DC Volts: 200m / 2V +/- .5%, 20/200/600V +/- .8%
• AC Volts: 200/600V +/- 1.5%
• DC Current: 200u/2m/20mA +/- 2%, 10A +/- 3%
• Resistance: 200/2K/20K/200K/2M +/- 1%
• HFE Transistor Test: 1 ~ 1,000
• Diode Test
• Continuity Test
• Data Hold

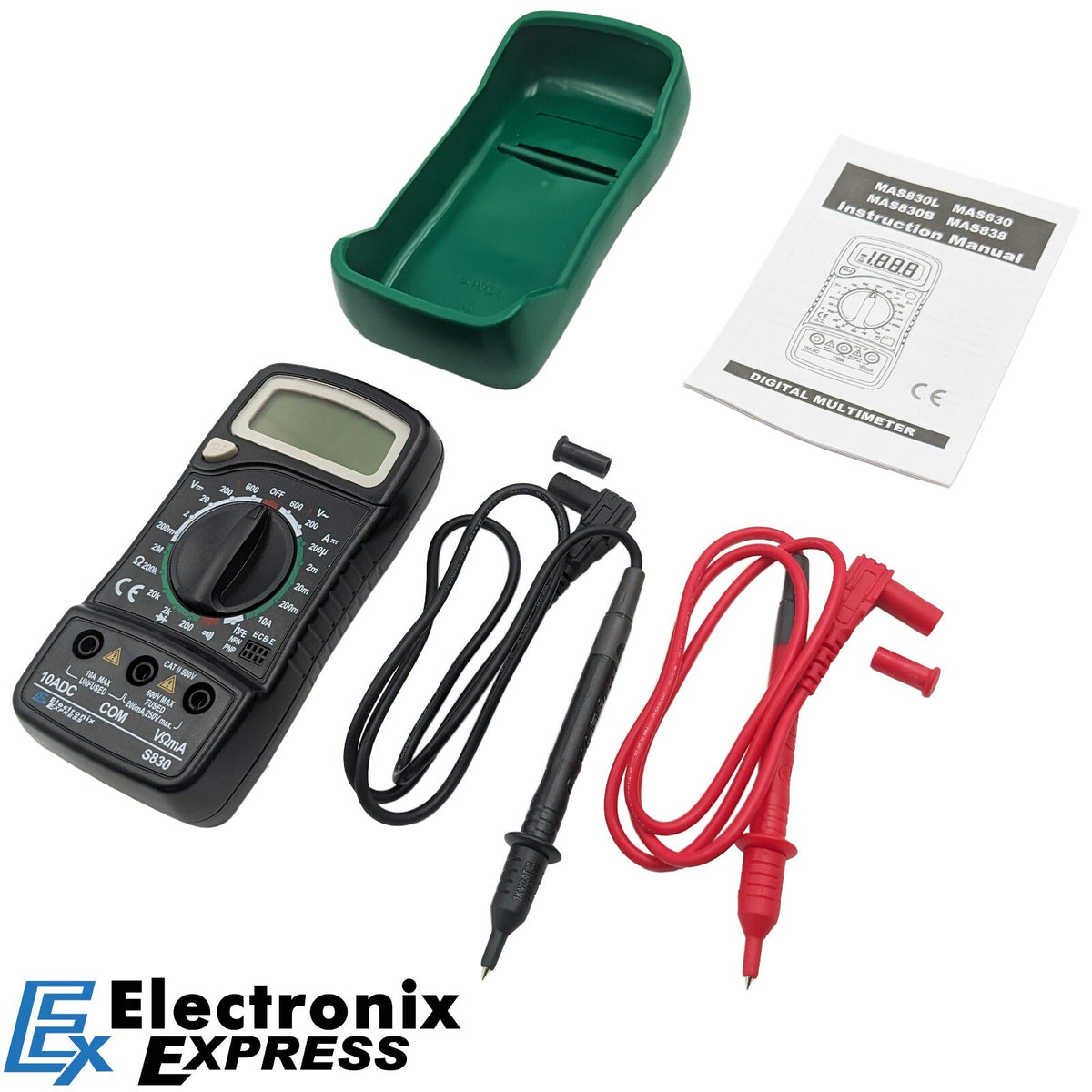

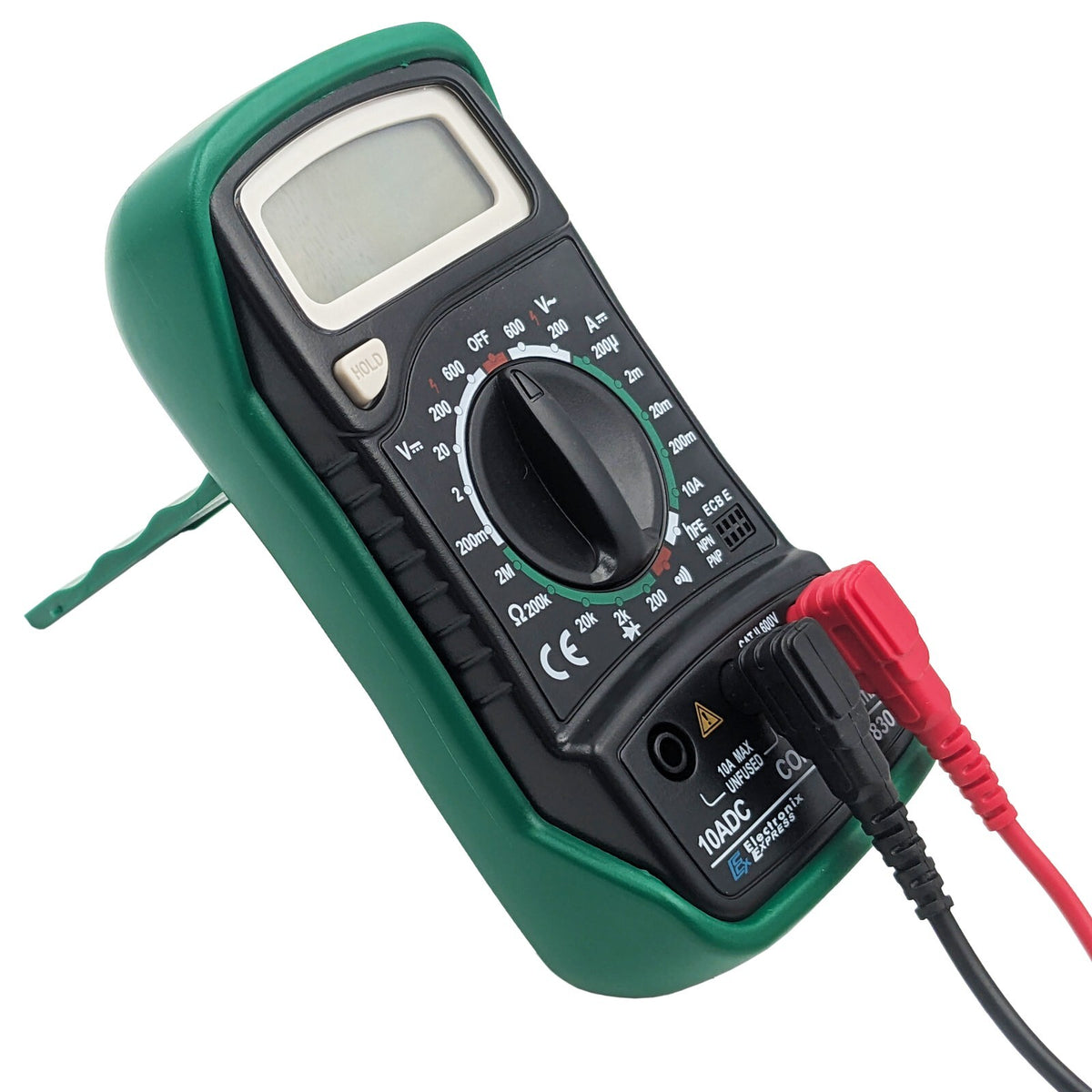

• Protective rubber boot with built-in collapsible stand included
• Dimensions (L x W x H): 2.72 x 1.22 x 5.43 inches (138 x 69 x 31 mm)
• Weight: 0.29 LB

The S30 is a small hand-held digital multimeter featuring stable, highly reliable performance. It's LCD display features 3½ digits and a maximum reading of 1999, with 15mm digit height for clear reading. The circuit design takes LSI double integral A/D converter as its core with an overload protection circuit, making it a superior and handy instrument. It can be used to measure or test DC and AC voltage, DC current, resistance, diodes, transistors, and in-circuit continuity (buzzer) test.
