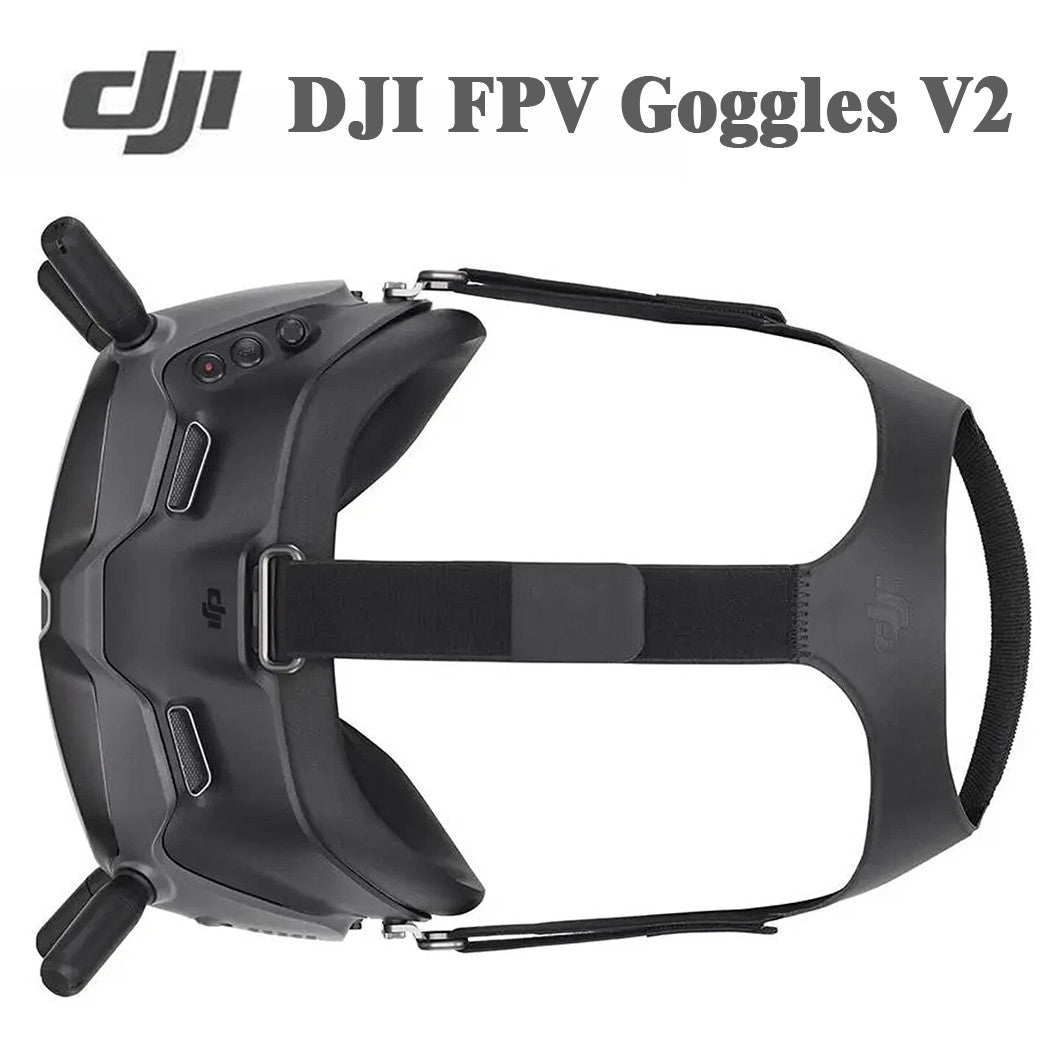

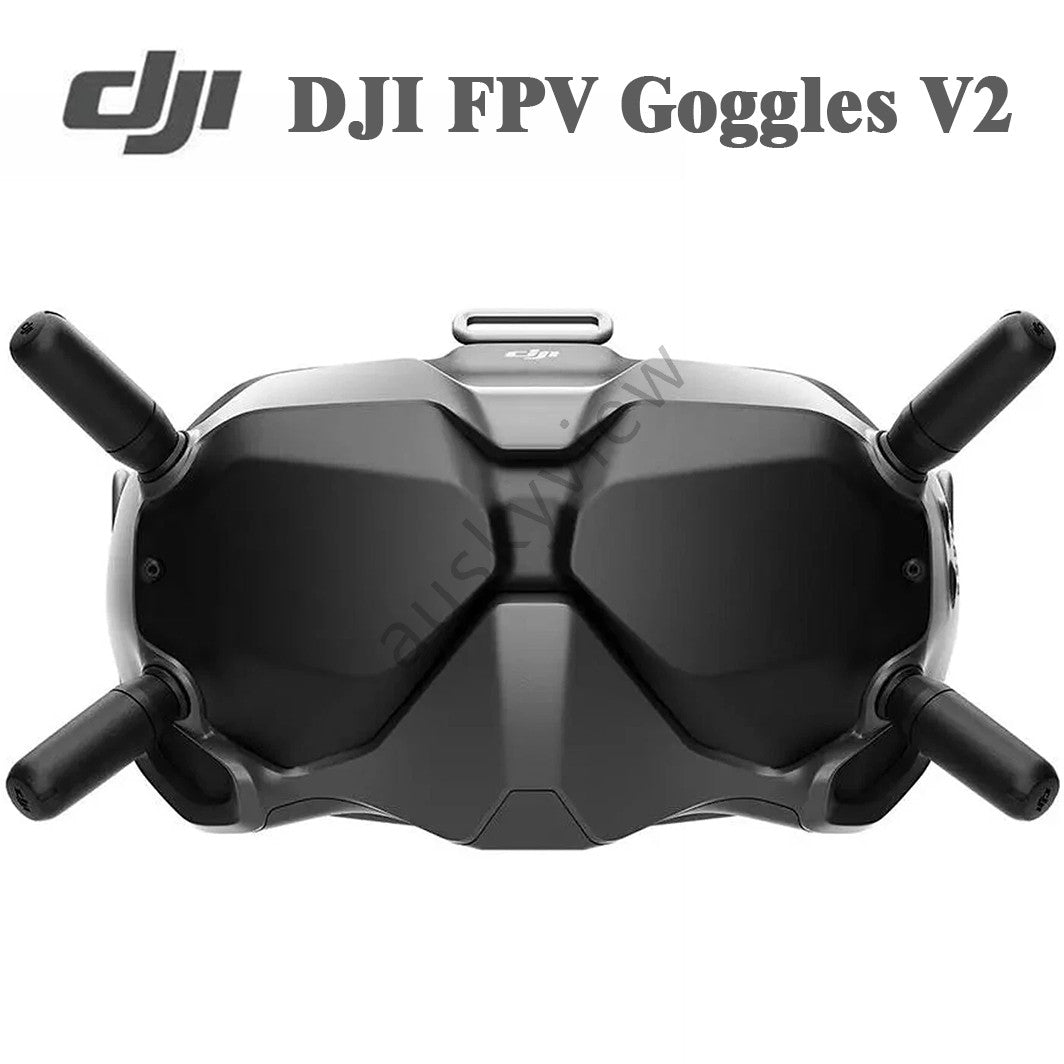

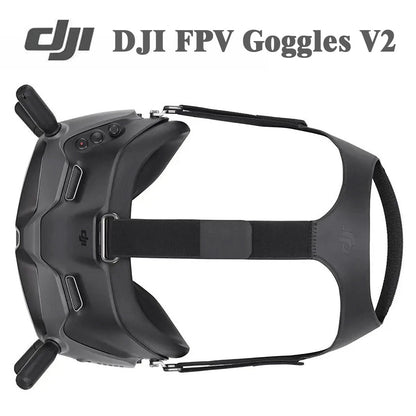

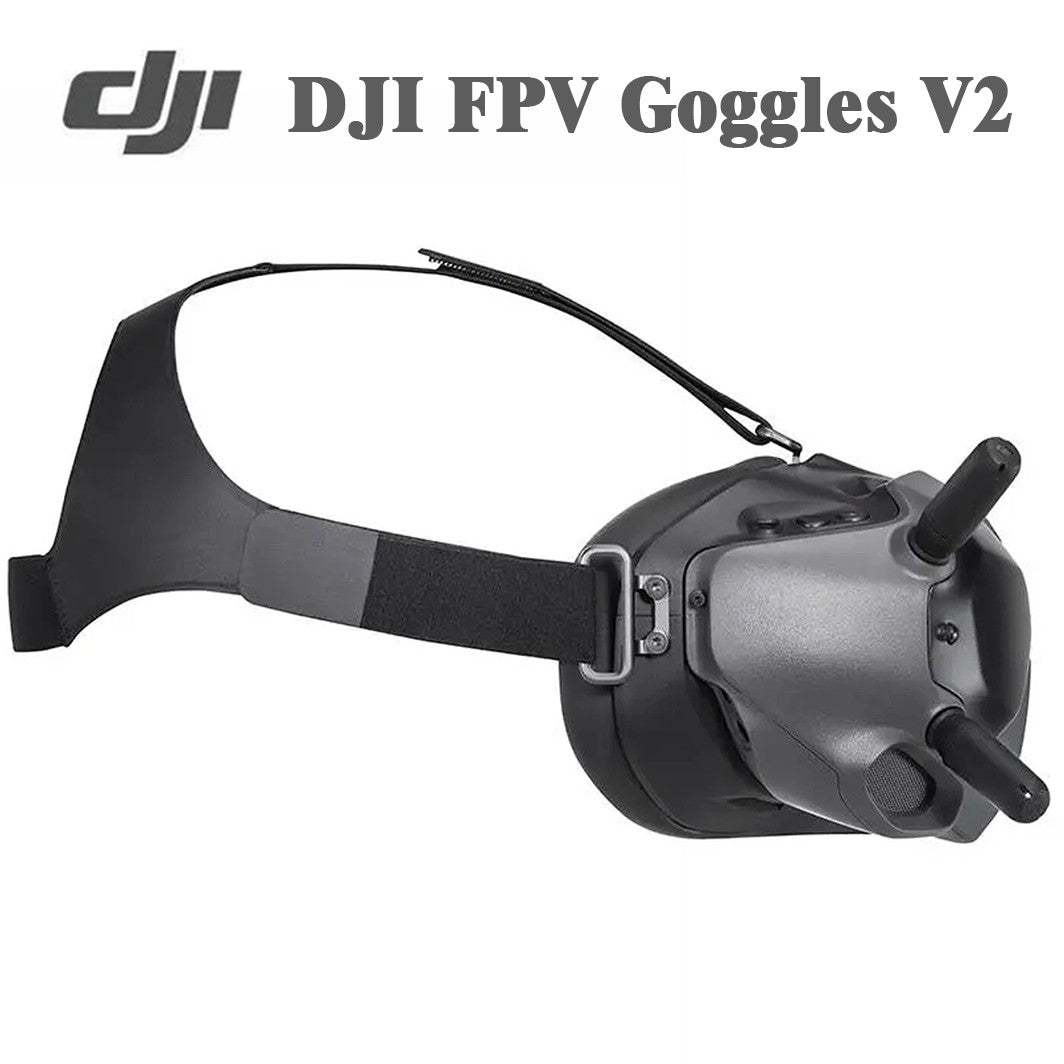

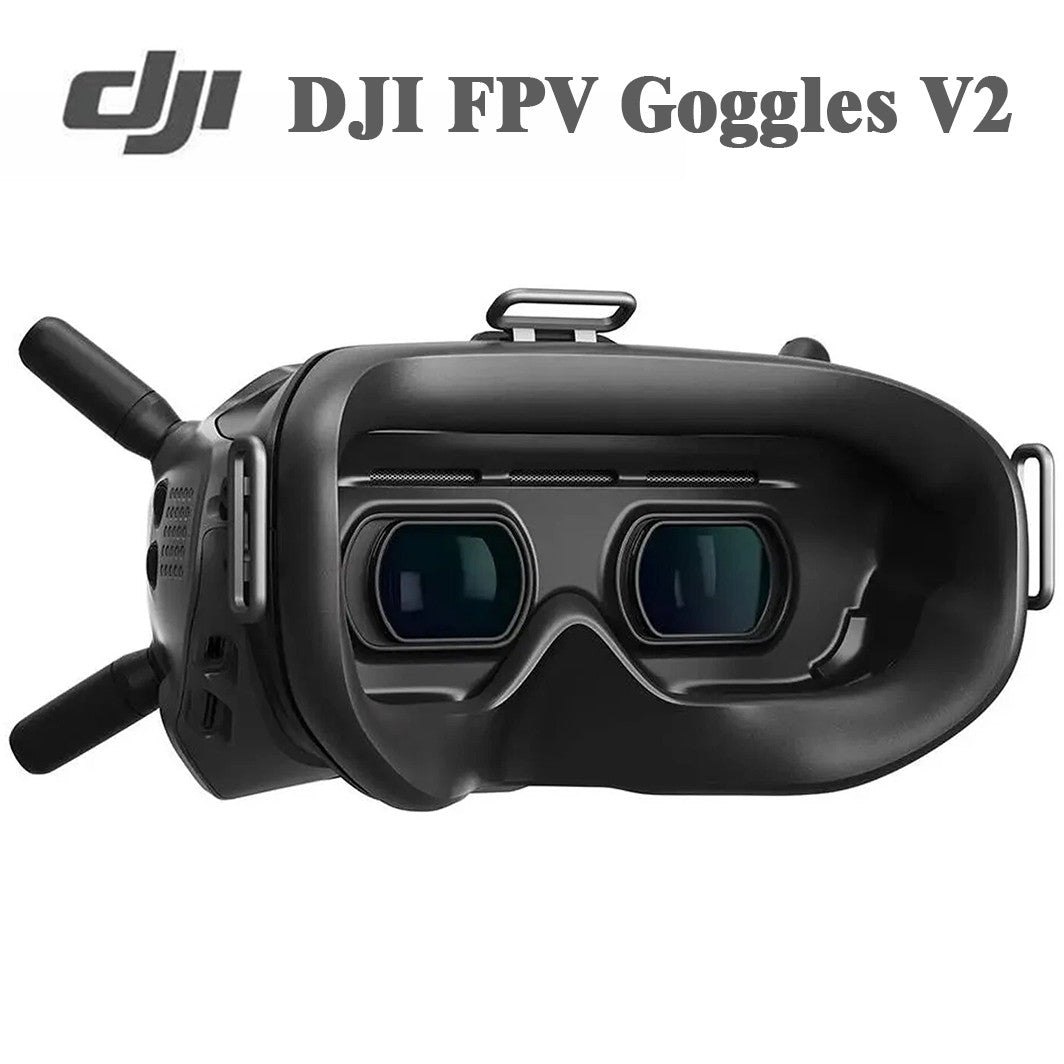

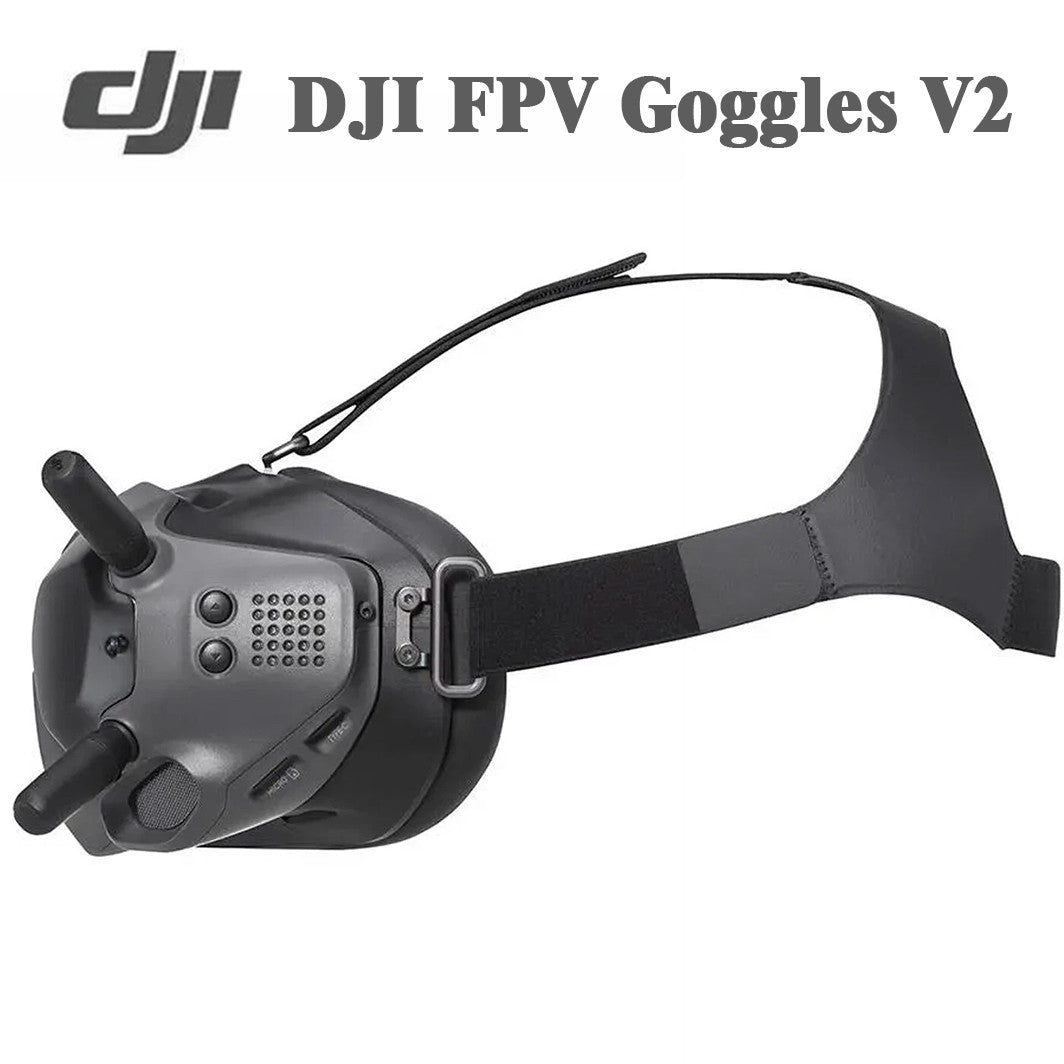

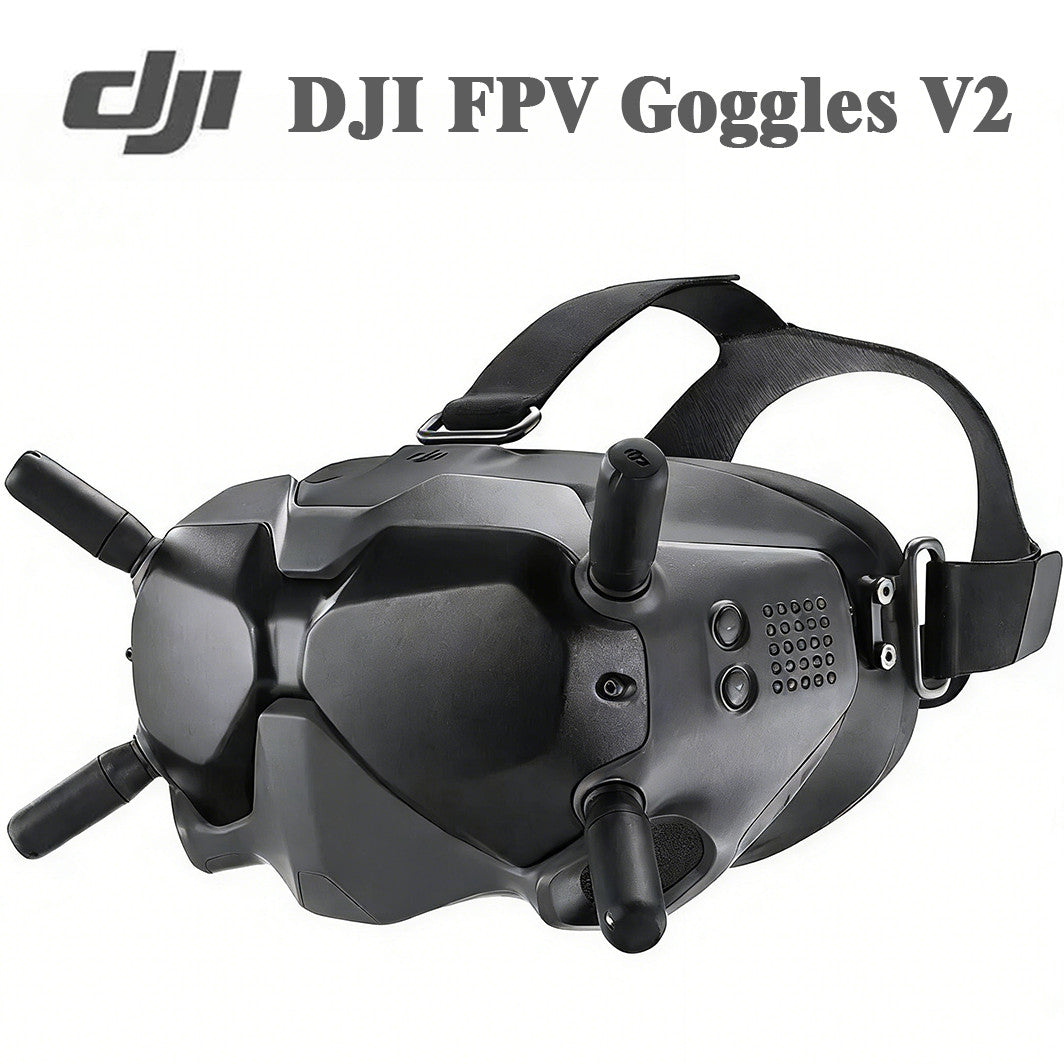

DJI FPV Goggles V2

Compatible Products

• DJI FPV Air Unit

• DJI FPV Remote Controller

• DJI Avata

In The Box

• 1 × DJI FPV Goggles V2

• 1 × DJI FPV Goggles Battery

• 1 × DJI FPV Goggles Power Cable (USB-C)

• 4 × DJI FPV Goggles Antenna (Dual Band)

• 1 × Headband

• 1 × USB-C Cable

Product Overview

The DJI FPV Goggles V2 delivers an immersive first-person view flying experience with high-definition visuals, ultra-low latency, and long-distance transmission. Whether you're piloting a DJI FPV drone, Avata, or using the FPV Air Unit, these goggles provide crystal-clear real-time video with minimal delay.

With a built-in battery offering up to 110 minutes of flight time on a full charge, the Goggles V2 are perfect for extended FPV sessions. The adjustable FOV (30°–54°) and interpupillary distance (58–70 mm) ensure comfort for a wide range of users.

Key Features

• HD Display – Dual 2-inch screens with 1440×810 resolution per screen and 144 Hz refresh rate for ultra-smooth video.

• Low Latency & Long Range – Real-time transmission with minimal lag; supports both 2.4GHz and 5.8GHz bands (5.8GHz only with DJI FPV Air Unit).

• Long Battery Life – Up to 110 minutes of continuous use (measured at 25°C, max brightness).

• Comfortable Fit – Adjustable headband, interpupillary distance, and FOV for personalized viewing.

• Multiple Live View Modes – Low-Latency Mode (810p 120fps) & High-Quality Mode (810p 60fps).

• Wide Storage Support – microSD cards up to 256GB for recording flights.

• Versatile Compatibility – Works with DJI FPV Air Unit, FPV Remote Controller, and DJI Avata.

️ Technical Specifications

DJI FPV Goggles V2

DJI FPV Goggles Battery

Usage Tips

• Sunlight Protection – Avoid direct sunlight entering the goggles’ lenses to prevent screen damage.

• Battery Care – Charge the battery within 0°C–45°C for optimal lifespan.

• Frequency Selection – Use 5.8GHz band only when paired with DJI FPV Air Unit for best performance.

• Fit Adjustment – Customize interpupillary distance and FOV for maximum comfort during long flights.

• Storage Card – Format microSD card in goggles before first use for compatibility.

️ Important Notes

• Frequency Restriction – 5.8GHz band is only available when using DJI FPV Air Unit.

• Temperature Limits – Do not operate or charge outside specified temperature ranges.

• Battery Safety – Use only DJI-approved chargers and avoid puncturing or crushing the battery.

• Warranty – Damage from sunlight exposure, overheating, or improper charging is not covered.
