DJI Power 140W GaN Charging Kit – PD 3.1, Dual USB‑C + USB‑A, 7A OLED Display Cable

Foldable Plug 100–240V, For Mavic 4 Pro / Air 3S / MacBook Pro / iPhone & More

Compatible Products

DJI Ecosystem (Priority Fast‑Charge with 7A Cable)

Laptops & Mobile (PD 3.1 / PD 3.0 / PPS / QC)

• MacBook Pro 16″ (M1/M2/M3/M4): Up to 140W (needs Apple USB‑C to MagSafe 3 cable)

• MacBook Air 13″/15″ (M2/M3/M4): Up to 70W

• Dell XPS, ThinkPad, HP Spectre, Huawei MateBook X Pro: Up to 100W

• iPad Pro / iPad Air (M‑series): Up to 40W

• iPhone 15/16/17 Pro Max, Samsung Galaxy S‑Series, Pixel, Xiaomi, OPPO (PD/PPS): Fast‑charge supported

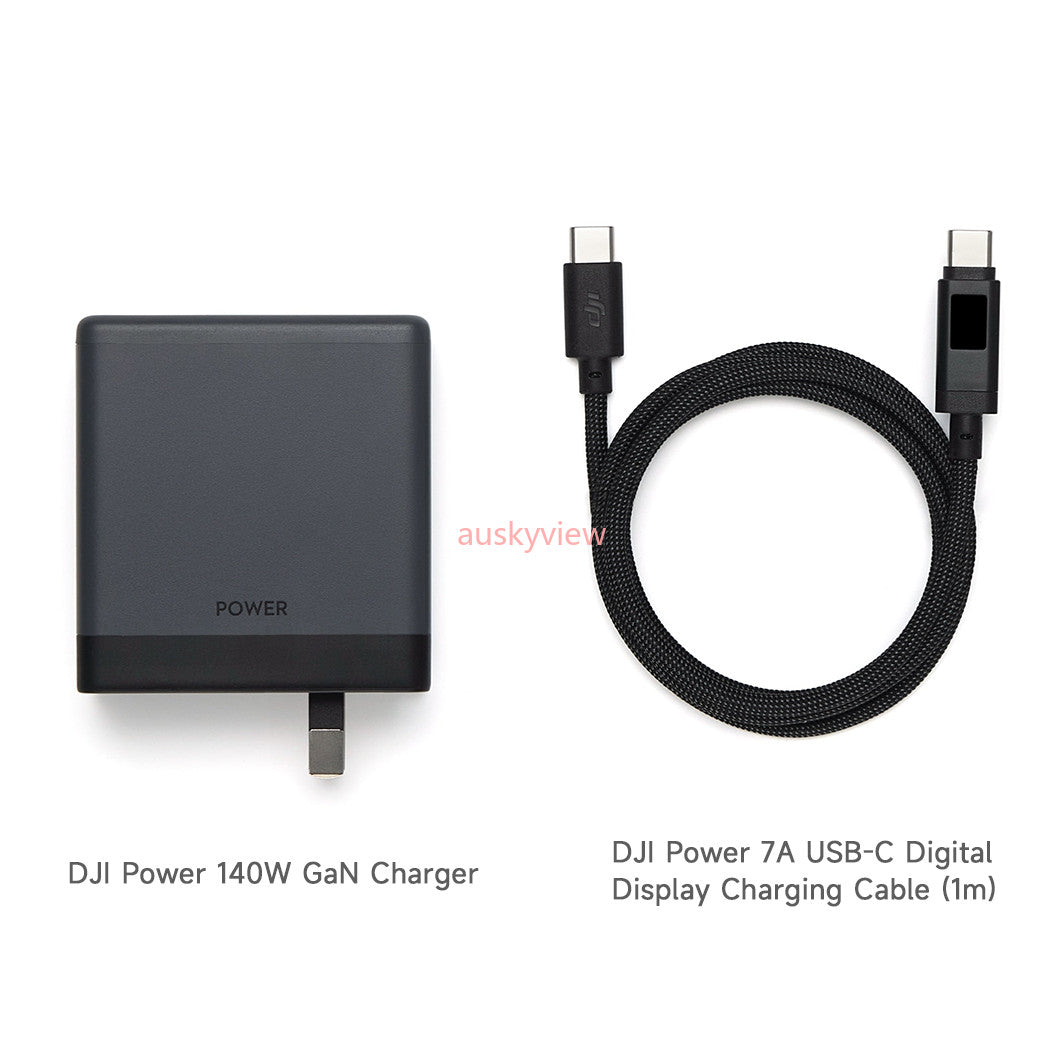

In The Box

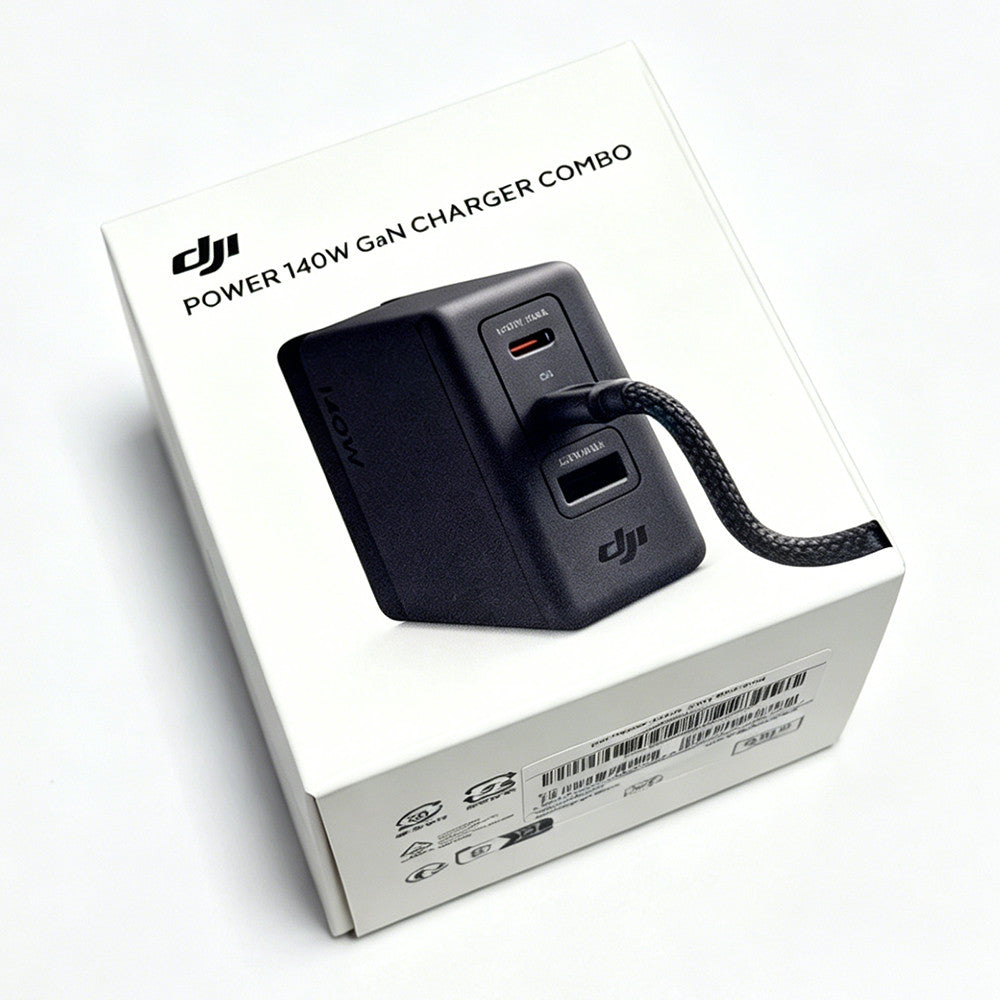

• 1 × DJI Power 140W GaN Desktop Charger (Foldable AC Prongs)

• 1 × DJI Power 7A USB‑C to USB‑C OLED Digital Display Cable (1 m)

Product Overview

The DJI Power 140W GaN Charging Kit packs lab‑grade power density into a palm‑sized travel brick.

Built with Gallium Nitride (GaN) semiconductors, it delivers a full 140W from either USB‑C port (PD 3.1) while intelligently distributing up to 140W total across dual USB‑C and one USB‑A port. The bundled 7A OLED Display Cable shows real‑time charging wattage on its integrated screen—no guesswork. Fold‑flat prongs and global 100–240V input make it the single charger you need for MacBook Pro, DJI drone batteries (via hub), phones, and tablets. A built‑in thermal sensor throttles output safely if overheating is detected.

Key Features

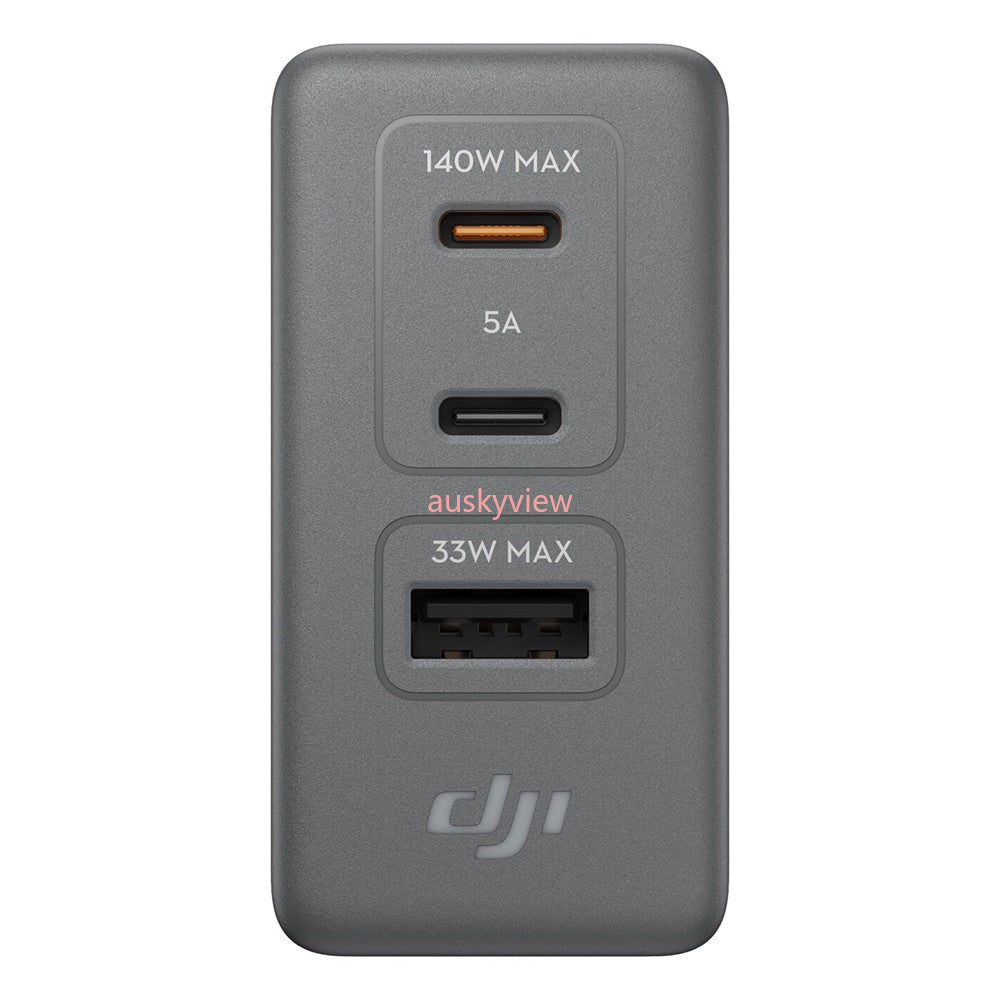

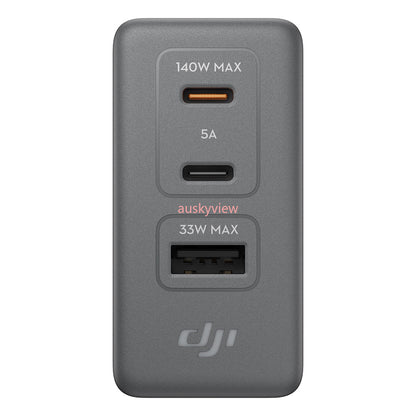

140W PD 3.1 Single‑Port / Smart Multi‑Port Distribution

• USB‑C₁ / C₂: Up to 140W alone (28V 5A PD 3.1).

• Dual USB‑C: 100W + 35W / 65W + 65W options.

• USB‑C + USB‑A: 100W + 33W.

• Three‑Port: Dynamic ≤140W total; e.g., 80W + 35W + 22W.

• DJI Priority Mode: When a supported DJI device is detected via 7A cable on C₁/C₂, that port gets power priority.

7A OLED Numeral Display Cable (Included)

• Real‑Time Wattage: OLED shows exact W being drawn.

• 7A / 240W Rated: Supports up to 240W pass‑through for future‑proofing.

• Reinforced Joints: Strain‑relieved ends for durability.

• Length: 1 m.

DJI Ecosystem Fast‑Charge Times (with Hub + 7A Cable)

• 3× Air 3S Intelligent Flight Batteries: ~180 min (0→full)

• 3× Mavic 4 Pro Intelligent Flight Batteries: ~240 min (0→full)

️ GaN Efficiency + Thermal Management

• High‑Efficiency Conversion: Less wasted heat than traditional Si chargers.

• Smart Fan‑Less Cooling + NTC: Monitors temp; auto‑reduces output if threshold exceeded.

️ Travel‑Ready Form Factor

• Foldable AC Prongs: Lays flat in bag; no bent pins.

• Palm‑Sized: 30–40% smaller than equivalent brick chargers.

• Worldwide Input: 100–240V AC, 50/60Hz.

️ Technical Specifications

Usage Tips

• Max Laptop Charge: Use C₁ or C₂ with the included 7A cable + Apple MagSafe 3 (for MacBook Pro 140W) or direct USB‑C (for 100W‑capable PCs).

• DJI Fast‑Charge: Connect drone charging hub to C₁ or C₂ with the 7A OLED cable for full 100W input.

• Read the Screen: The OLED cable shows actual negotiated wattage—if lower than expected, check if another port is drawing heavy load (multi‑port power sharing).

• Unused Ports: Disconnect idle cables if you need maximum single‑port output—some multi‑port detection holds back until load is sensed.

• Travel: Fold prongs before packing; use with DJI Power Travel Adapter Kit (EU/UK/AU heads sold separately where applicable).

️ Important Notes

• 140W Requires PD 3.1 Host: To reach 140W on a laptop, both the cable (provided 7A/240W) AND the device must support 28V 5A PD 3.1 (e.g., 16″ MacBook Pro M1–M4 with MagSafe 3 cable). Most phones cap at 18–27W.

• Multi‑Port Derating: Total ≤140W. High‑draw dual‑laptop scenario: 100W + 35W typical; simultaneous 140W + 140W not possible.

• DJI Priority Mode: Only works with listed DJI models + 7A cable on C₁/C₂; generic USB‑C cables won't trigger DJI‑first allocation.

• OLED Cable Fragility: Treat OLED head gently; don't bend sharply at the molded joint.

• Over‑Temp Throttle: In hot environments or enclosed spaces charger may reduce output to protect itself—this is normal protective behavior.
