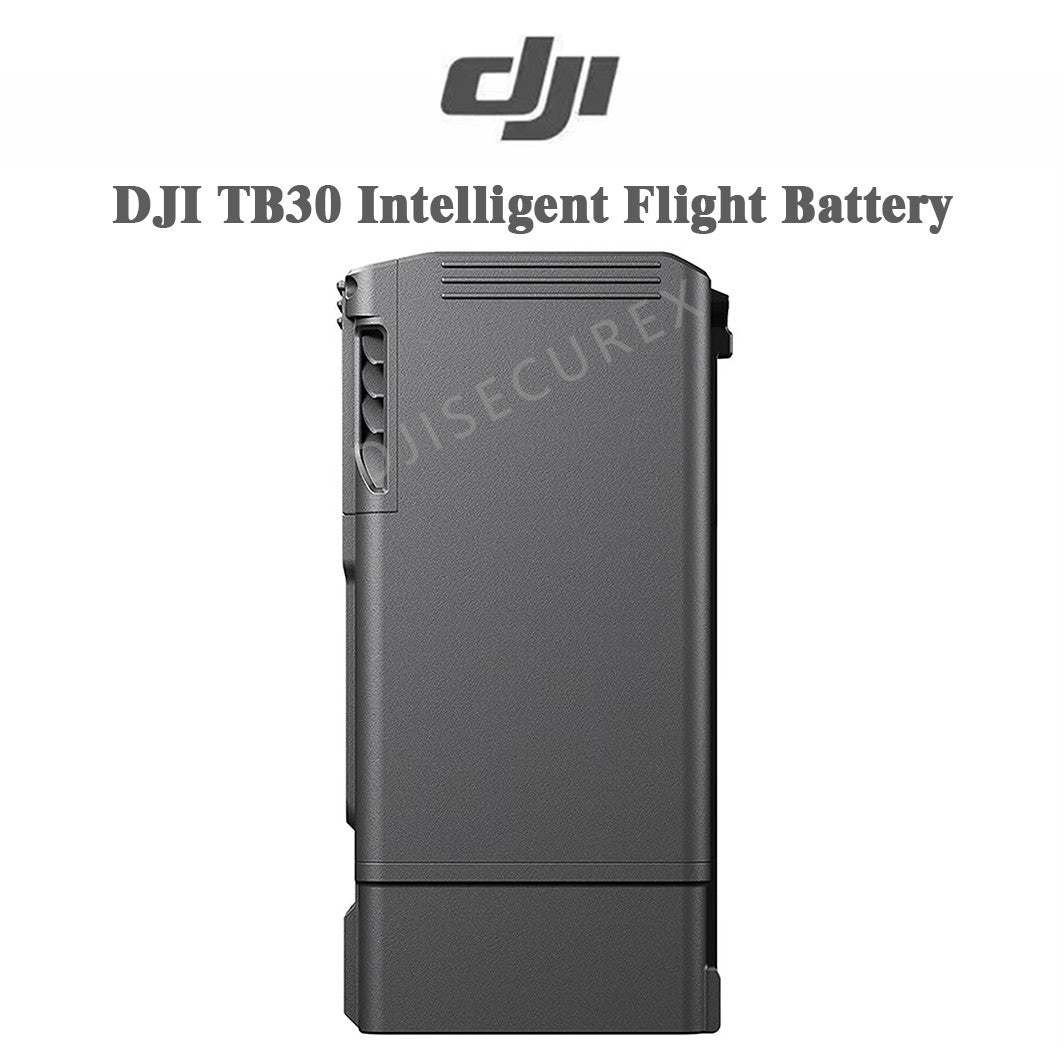

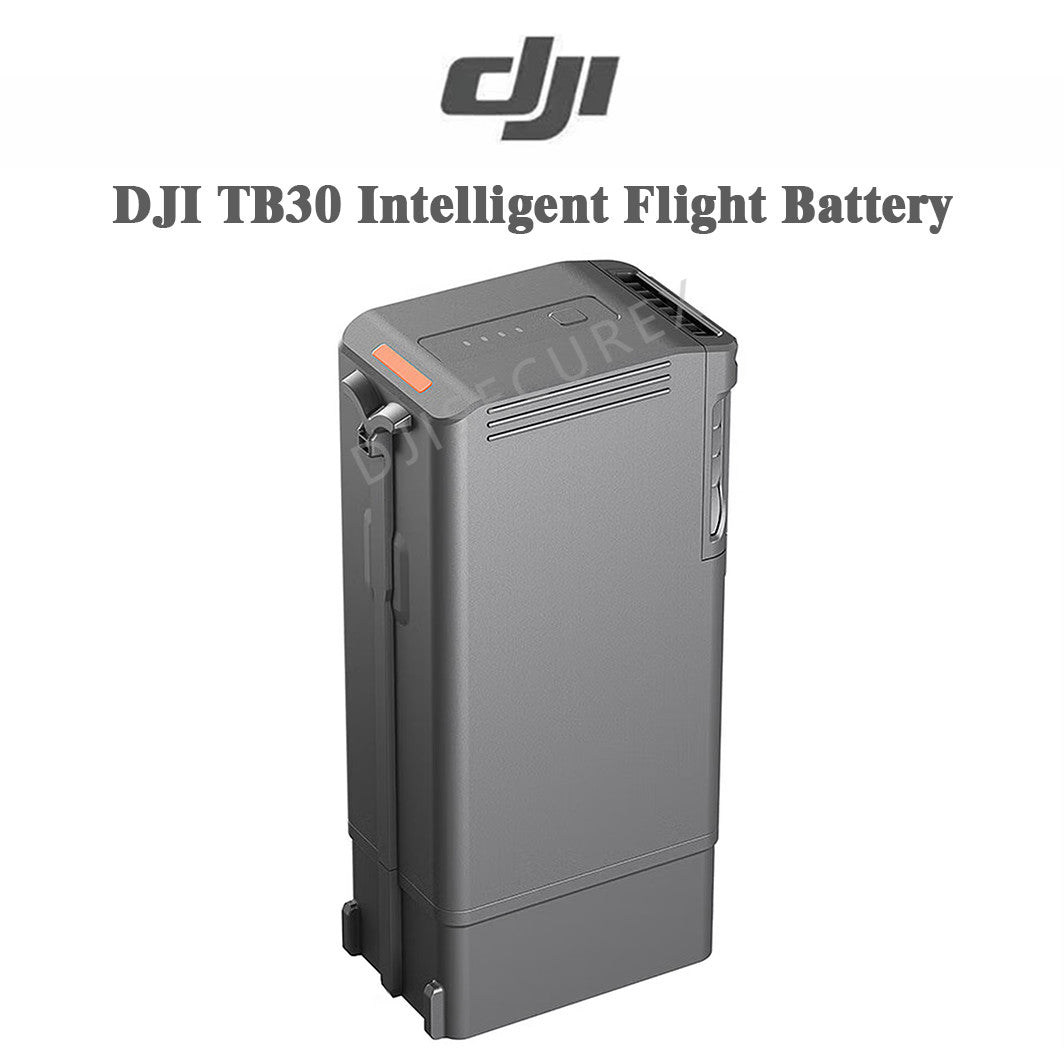

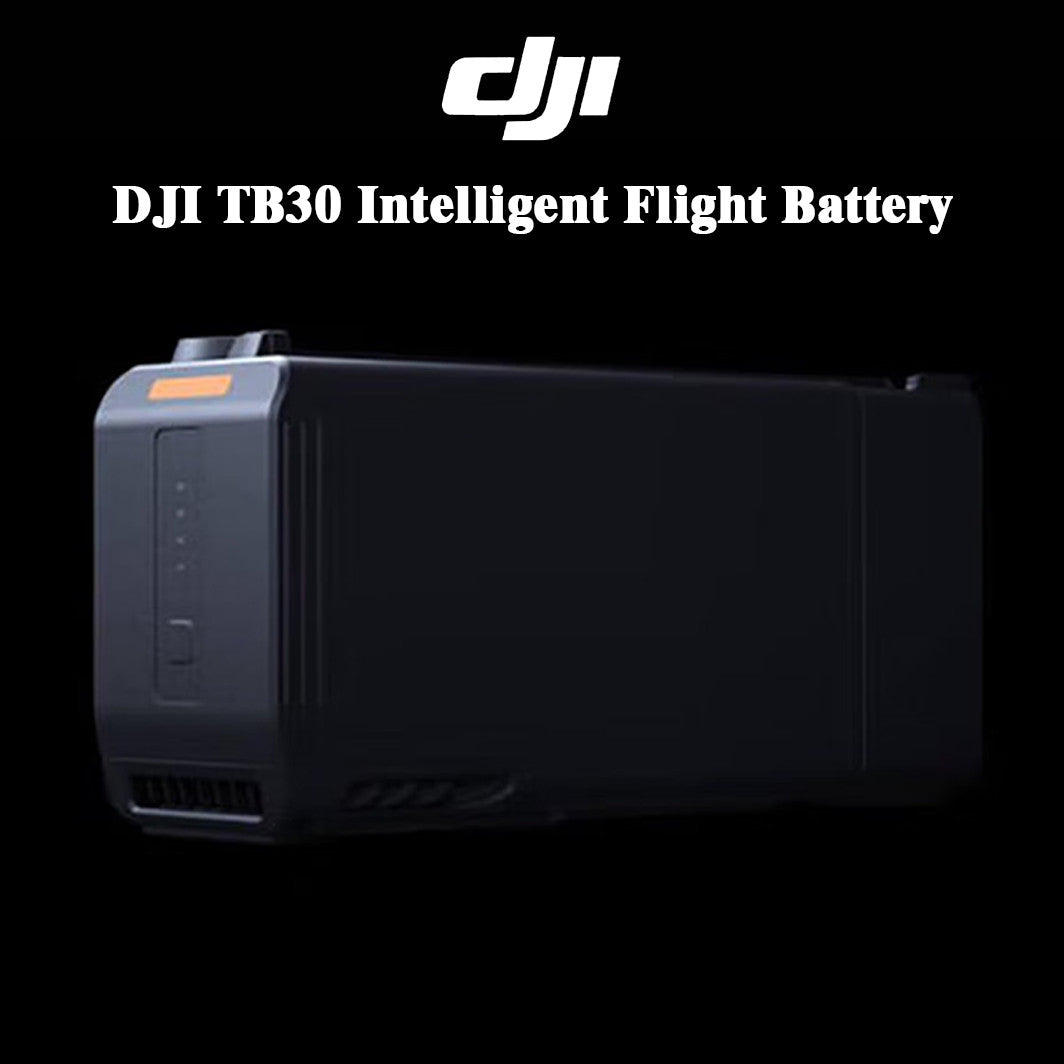

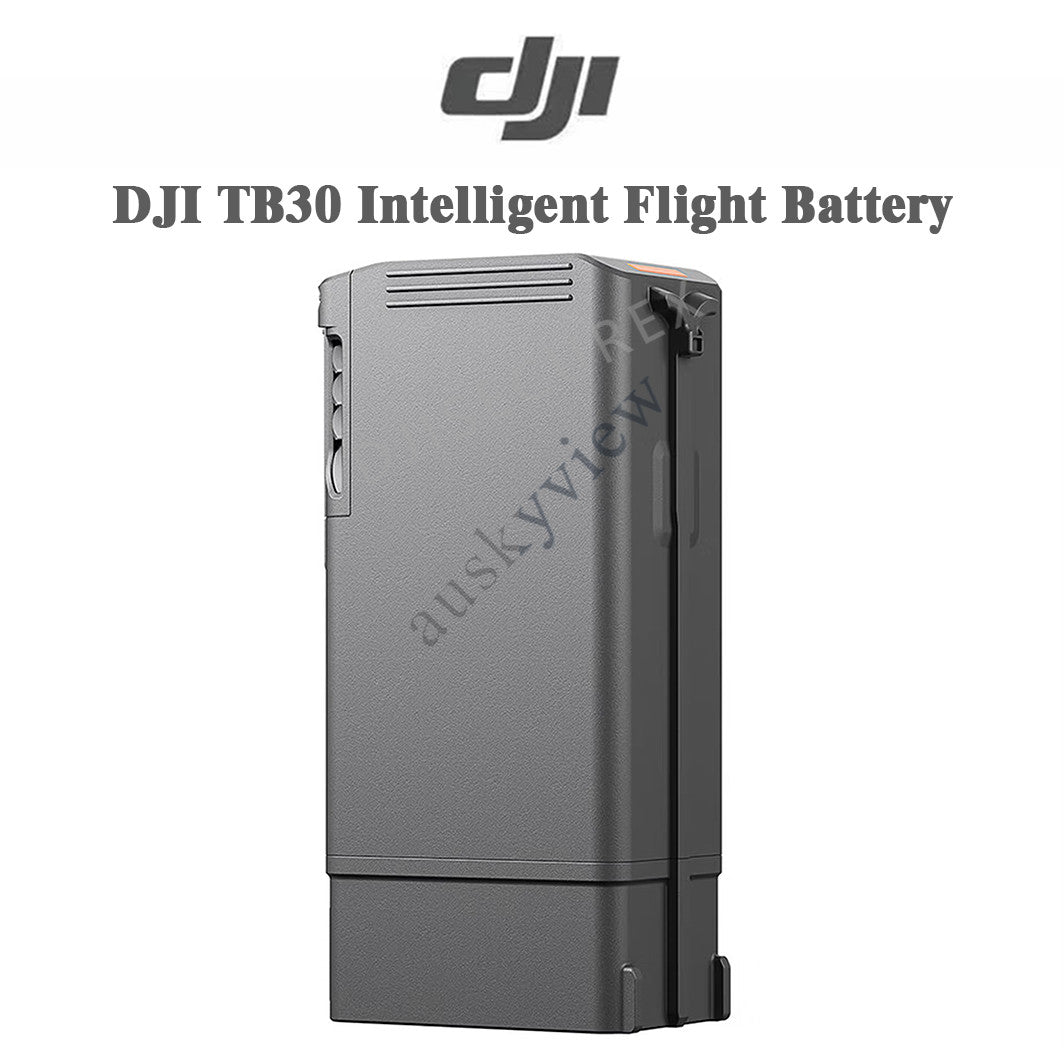

DJI TB30 Intelligent Flight Battery – Hot-Swap Power for Matrice 30 Series

Compatible Products

• DJI Matrice 30 Series – Fully compatible with Matrice 30, Matrice 30T, and Matrice 30T Enterprise drones. This battery is engineered to meet the high-power demands of these industrial-grade UAVs for applications such as aerial surveying, inspection, public safety, and search-and-rescue missions.

Package Contents

• TB30 Intelligent Flight Battery × 1

Product Overview

The DJI TB30 Intelligent Flight Battery is a high-performance, hot-swappable power source designed specifically for the DJI Matrice 30 series. With a robust capacity and intelligent power management, it supports up to 400 charge/discharge cycles, delivering reliable endurance for extended missions.

Its standout feature is hot-swapping capability, allowing operators to replace the battery mid-flight or during critical tasks without shutting down the drone. This minimizes downtime, boosts mission efficiency, and ensures continuous operation in time-sensitive scenarios such as emergency response or large-scale mapping.

Additionally, the TB30 features a self-heating function that maintains optimal performance in low-temperature environments, safeguarding flight stability even in harsh conditions.

Key Features

• High Cycle Life: Supports up to 400 charge/discharge cycles, providing long-term reliability and cost-effectiveness.

• Hot-Swapping Support: Enables instantaneous battery replacement during missions, ensuring uninterrupted workflow and reducing operational delays.

• Self-Heating Function: Automatically warms the battery in cold environments (down to –20 °C) to preserve performance and prevent voltage drops.

• Industrial-Grade Endurance: Large 5880 mAh capacity paired with 26.1 V output delivers extended flight times for Matrice 30 series drones.

• Rugged & Reliable: Built to withstand demanding professional use, with stable performance across a wide operating temperature range.

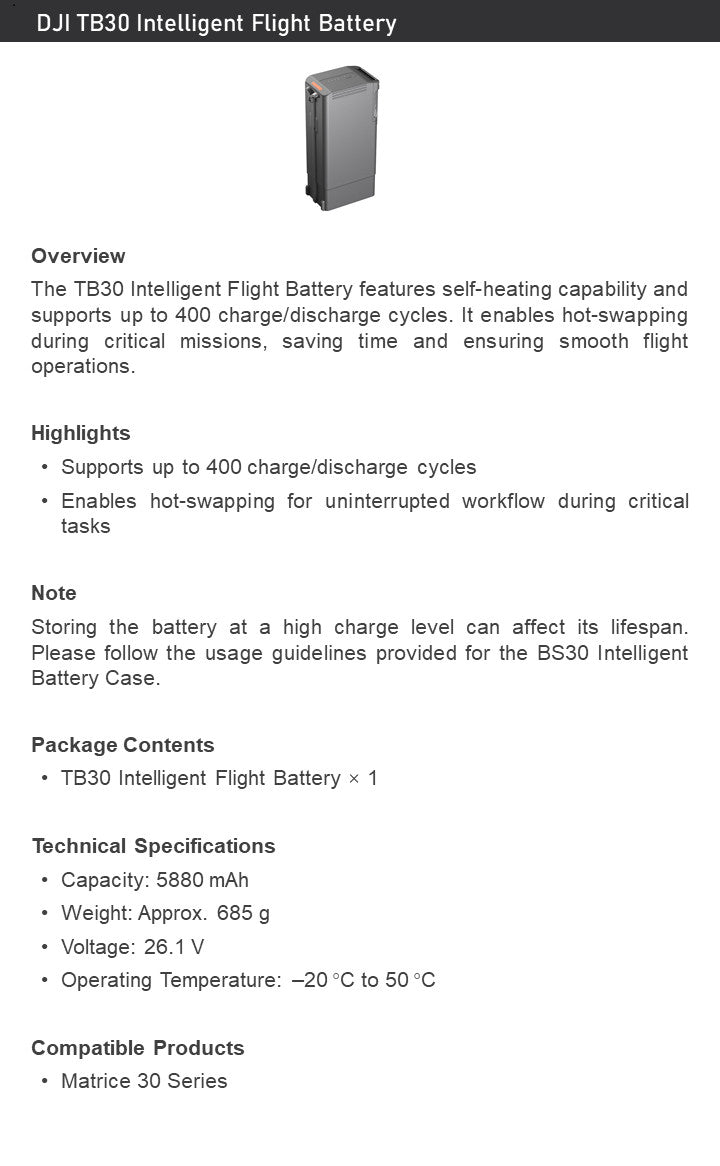

️ Technical Specifications

• Capacity: 5880 mAh

• Weight: Approx. 685 g

• Voltage: 26.1 V

• Operating Temperature: –20 °C to 50 °C

• Charge/Discharge Cycles: Up to 400 cycles

Usage Tips

• Preheat Before Use in Cold Weather: Allow the self-heating function to activate if operating in temperatures near –20 °C to ensure full performance.

• Balanced Charging: When charging multiple TB30 batteries, use a BS30 Intelligent Battery Case or DJI-approved charger to balance cell voltage and maximize lifespan.

• Hot-Swapping Procedure: Follow DJI’s official guidelines for safe battery removal and insertion to avoid electrical hazards or damage to the drone.

️ Important Notes

• Storage Charge Level: Avoid storing the battery at a high charge level for extended periods, as this can reduce lifespan. Refer to the BS30 Intelligent Battery Case usage guidelines for optimal storage recommendations.

• Cold Weather Handling: Although self-heating mitigates cold effects, extremely low temperatures may still impact initial startup time—plan missions accordingly.

• Cycle Limit: Once the battery reaches 400 charge/discharge cycles, performance may gradually decline; consider replacement to maintain mission reliability.
