Dual Band Intel 9560NGW 802.11ac Wireless Card NGFF 1730 Mbps WiFi Bluetooth 5.0
Dual Band Intel 9560NGW 802.11ac Wireless Card NGFF 1730 Mbps WiFi Bluetooth 5.0
Regular price
$23.00 USD
Regular price
$28.00 USD
Sale price
$23.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
|

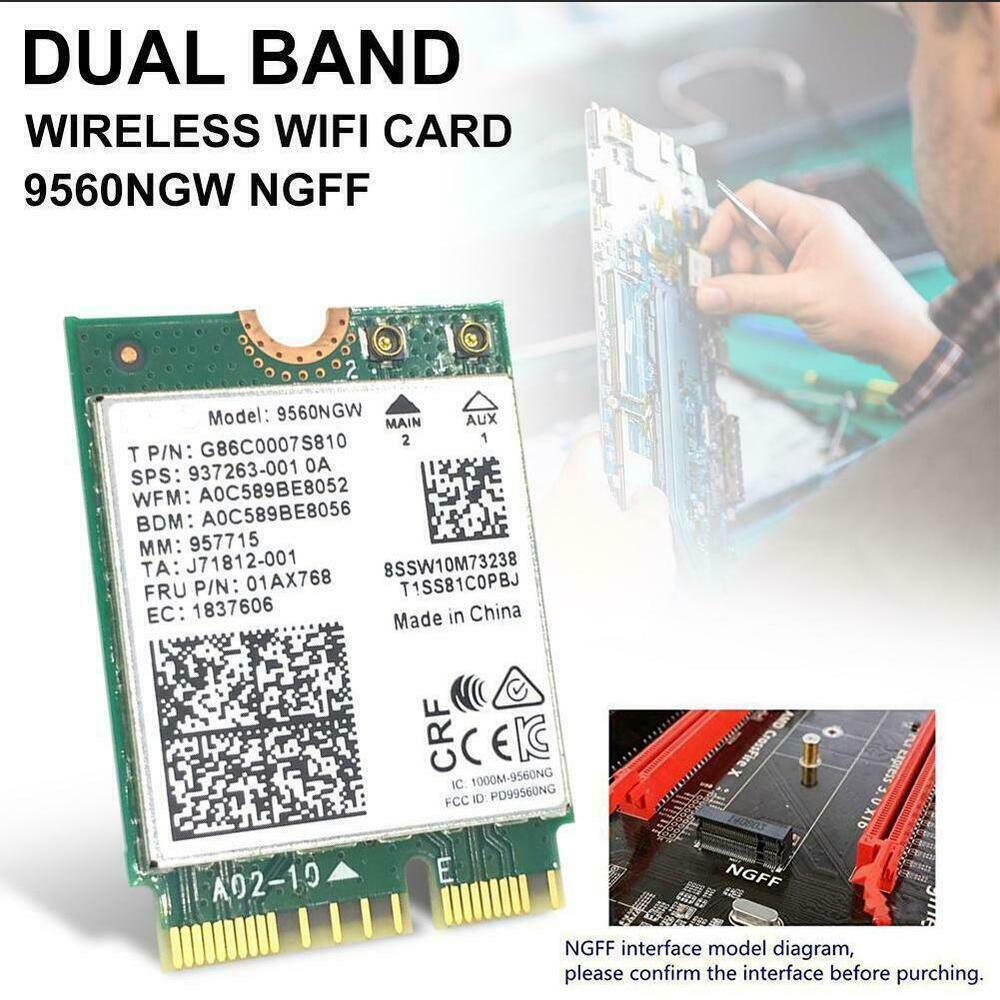

Dual Band Intel 9560NGW 802.11ac Wireless Card NGFF 1730 Mbps WiFi Bluetooth 5.0 Wireless-AC 9560 is the first wireless solution that provides Gigabit Wi-Fi speeds. When using 160MHz channels, it can deliver up to 1.73Gbps maximum theoretical throughput, nearly 12x faster than baseline 1x1 BGN (150Mbps) Wi-Fi used in todays PCs.1
Bluetooth 5 provides 4x2 the range over Bluetooth 4.2 Low Energy with the same power, doubles the transmit speed and improves the broadcasting functionality. This translates to better coverage, improved location-based services and simpler connectivity between devices.
Features: The Intel Wireless-AC 9560 adapter is a CRF2 (companion RF module) supporting the 1st generation integrated Intel wireless 802.11ac solution comprised of CNVi3 and a CRF. The solution provides Bluetooth+ 5 and 2x2 802.11ac Wi-Fi including wave 2 features such as 160MHz channels delivering up to 1.73Gbps4 and downlink MU-MIMO. These new features deliver a significant increase in user speeds in dense deployments, supporting fast downloads and long battery life compared to legacy 802.11ac devices. Combined with Intel Core processors and exceptional Intel wireless innovations, the Intel Wireless-AC 9560 can provide Gigabit wireless speed4 and dramatically improve your connected experience at home, work, or on the go. It currently only support certain processors: 8thGen For Intel® Core™ processors For Intel® Pentium® Silver processors based on Gemini Lake Celeron® processors based on Gemini Lake Note: Even though you can insert these CRF to a standard M.2 Key E socket, they are only compatible with a system designed with the CNVi. Contact your system or motherboard manufacturer to verify compatibility. Specifications: Condition: Brand New Model: 9560NGW Connector Interface: NGFF key E(M.2: CNVi) Network Standard : 802.11a/b/g/n,802.11ac Frequency band:2.4Ghz/5Ghz Bluetooth 5.0 2.4G Speed up to 300Mbps 5G Speed up to 1.3Gbps MAX Speed up to 1.73Gbps (The router must be on 160Mhz) Operating Systems: Only work with Microsoft Windows 10 Pls note:It cannot support Win 7/8. (DO NOT Support WinXP & Vista & Win7 & win8 & win8.1) Compatible with: Can work with almost all brand which has the same NGFF slot , such as Dell , Acer , Asus ... For HP SPS:937263-001 Lenovo FRU P/N:01AX768 But Don't work on Other IBM/Lenovo and HP Laptops Package Inclues: 1 x 9560NGW AC NGFF Card
|
