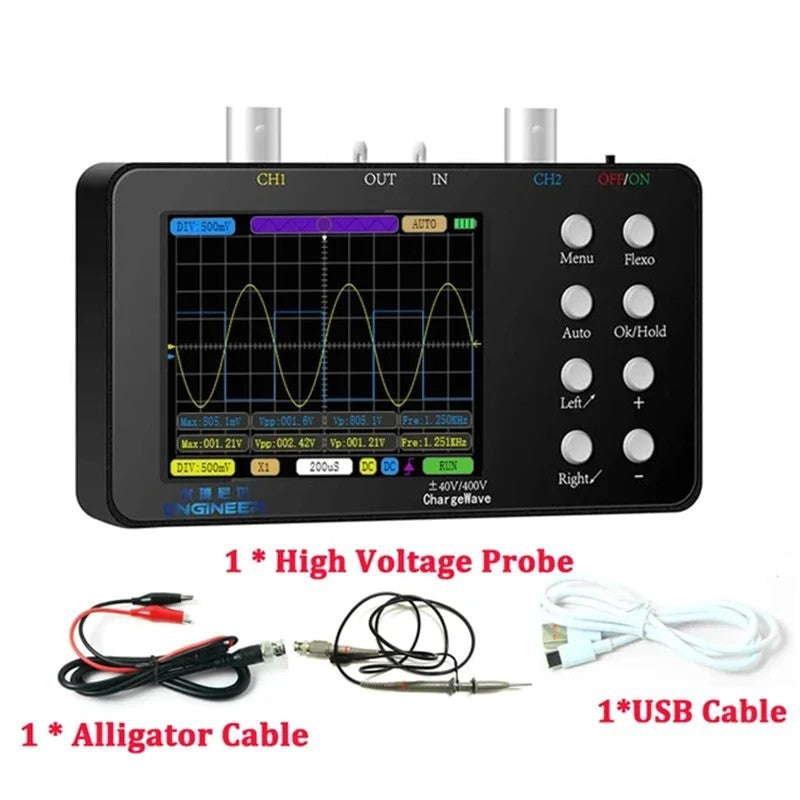

Dual Channels Digital Handheld Oscilloscope PWM 50M 10Mhz Sampling Rate 2.5KSa/S

SCO_2_10M Dual-Channel Digital Oscilloscope – 50MSa/s | 10MHz Bandwidth | 20K Storage Depth | 3.2" LCD Display

The SCO_2_10M Portable Digital Oscilloscope offers a balance of performance, portability, and ease of use, making it a perfect tool for electronics hobbyists, students, and professionals.
With a 50MSa/s sampling rate, 10MHz analog bandwidth, and dual-channel capability, this oscilloscope delivers reliable signal capture for both analog and digital waveforms.

Key Features:

• 20K Storage Depth – Capture and store detailed waveforms for later analysis.

• Waveform Compression & Expansion – Stepless compression up to 100×, allowing you to easily zoom in/out to analyze waveform changes.

• High Voltage Measurement – Supports signals up to ±400V (with X10 probe).

• Versatile Trigger Modes – Single, Normal, and Automatic triggers for both periodic analog and non-periodic digital signals.

• Lissajous & Current Waveform Display – Compare two signals’ amplitude, phase, and frequency with ease.

• High-Resolution Display – 3.2-inch LCD with 320×240 resolution for clear waveform viewing.

• Long Battery Life – 2500mAh rechargeable battery provides 4.5–6 hours of continuous operation.

• Dual-Channel Measurement – Monitor two signals simultaneously with precision.

Specifications:

️ Safety Precautions:

1. When measuring voltages above 40V, switch the probe to X10 mode.

2. Avoid touching metal parts (especially BNC interface) when measuring high voltages (above 36V AC).

3. Charging voltage must not exceed 6.8V to avoid damage.

4. When measuring mains power, do not connect to a computer to prevent short circuit risks.

Perfect For:

• Electronics troubleshooting

• Circuit design and testing

• Education & learning labs

• Hobbyist projects

• Automotive diagnostics
