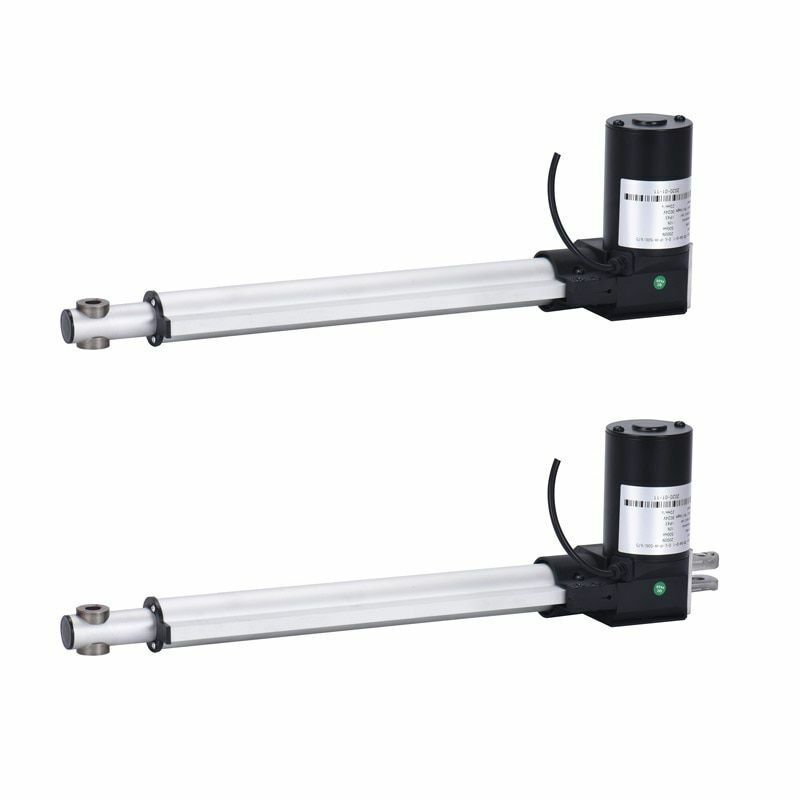

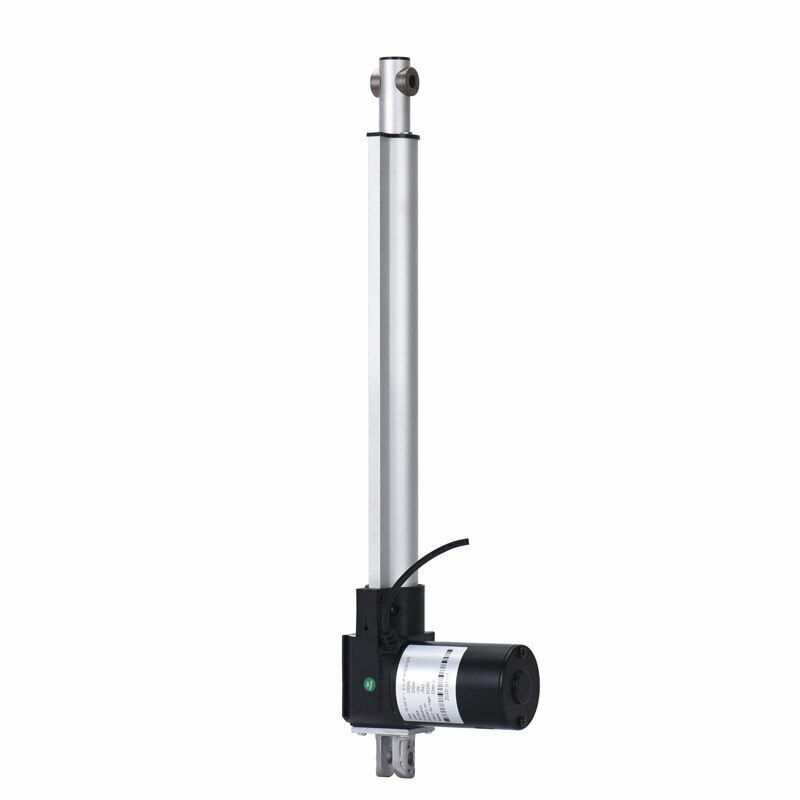

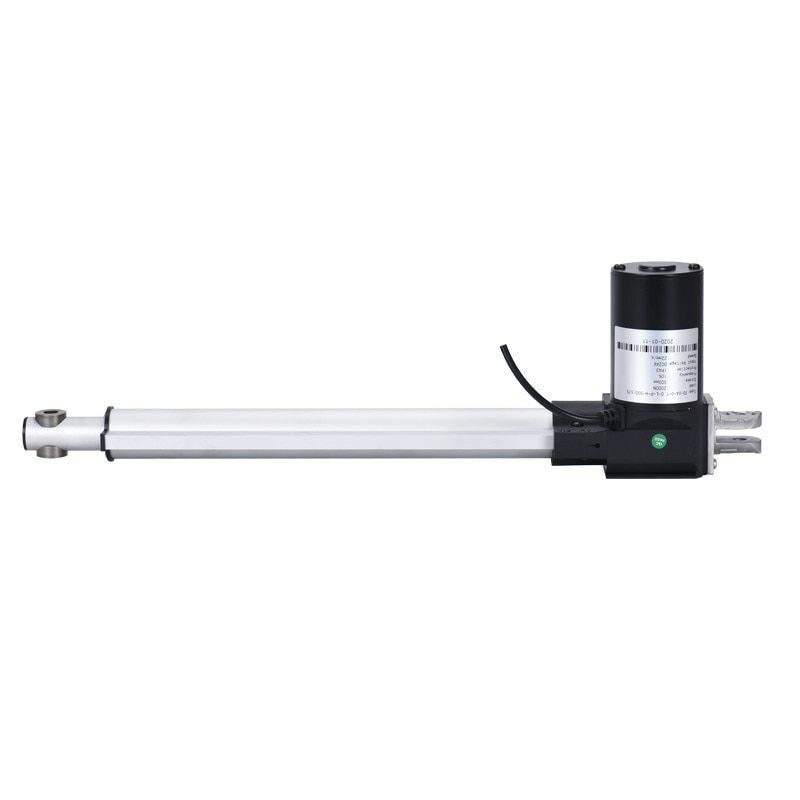

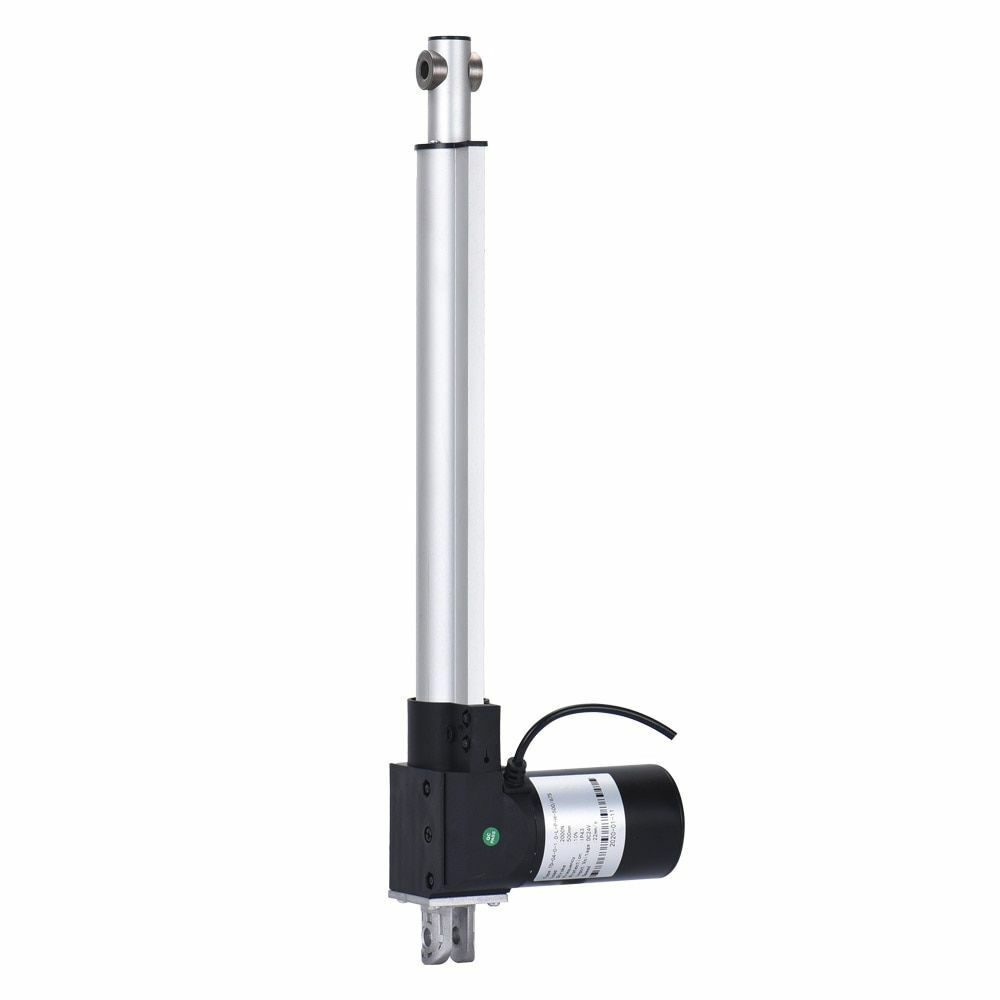

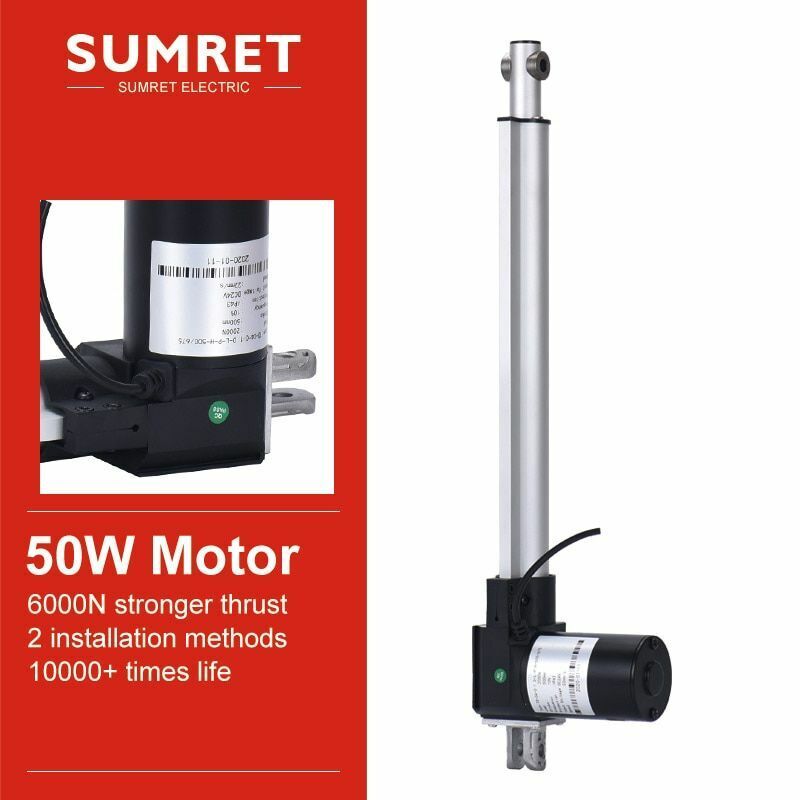

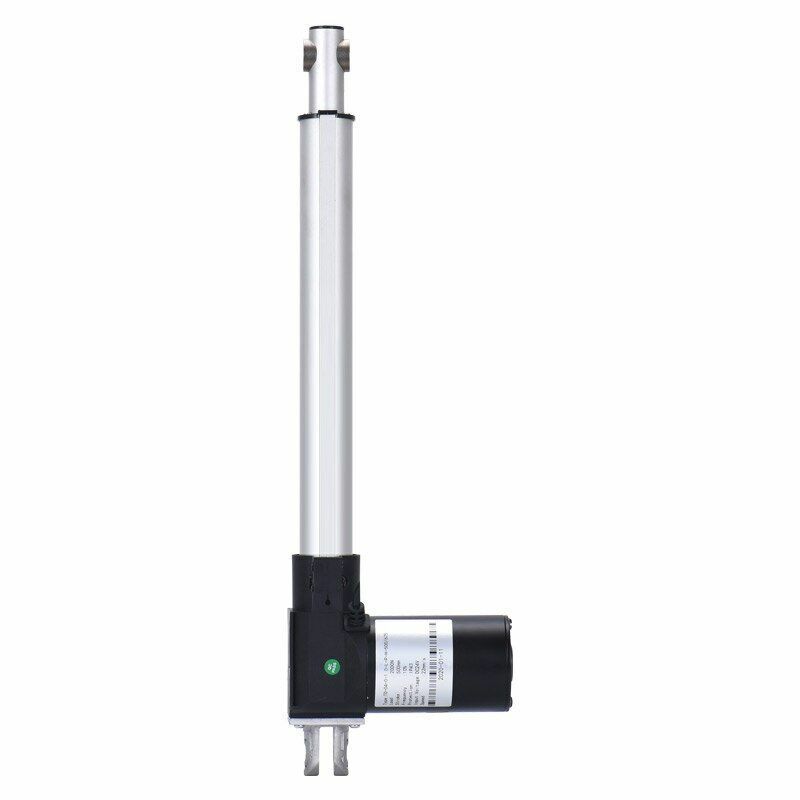

Electric Linear Actuator 6000N DC 12V14V Motor Controller 2000n 50mm 100mm 150mm

Electric Linear Actuator 6000N DC 12V14V Motor Controller 2000n 50mm 100mm 150mm

Material: Aluminum,Plastic

Power: 50W

Current: 2.5-4A

Voltage: 12V / 24V

Standard protection grade:IP54

Application:Television console.couch for massage.Electric bed.Medical chair.Electric equipment ....

Model IP6000

Input Voltage DC24V / DC12V

No-load speed(mm/s) 4.5 8 22 42

Dynamic load push(N) 6000 3000 2000 500

Stroke length(mm) 50-1300mm

Operation temperature 0℃ ~ +40℃

Limit switches Built-in

IP Grade IP43

Operating Frequency 10% max 2min. continuous use



Note:Part of the freight is hidden in the price of the product. Because the product is more than 2KG, we will transport it through special channels. Above 800mm stroke, it will be transported through UPS / TNT / DHL.

Advantages:

plastic gear

silent putter

30,000 to 60,000 times service life

32W motor

Market putter: 20W motor, normal thrust within 900N, AliExpress on 1500N are virtual standard, putter life is about 1W times, if you have problems with other putters, please use our products!

NOTE:the Stroke tolerance is about 2mm. When the speed is 66mm / s or more, there will 5mm stroke reduction and the tolerance will reach 3-7mm

Additional features

When you just purchase this product separately, there are have no additional features as below. When you want to add the following features to the product, you need to purchase the additional features below at the same time when you purchase this product. For example, you purchase the specifications A1 DC24V 1300N 5MM.S, 50mm stroke and Magnetic Induction Sensor, you will get A1 DC24V 1300N 5MM.S, 50mm stroke with Magnetic Induction Sensor function; also if you buy multiple products with multiple functions at the same time, you should Tell us about their matching relationship

The additional function is not a stand-alone product, it is a function added to this product and therefore cannot be purchased separately
