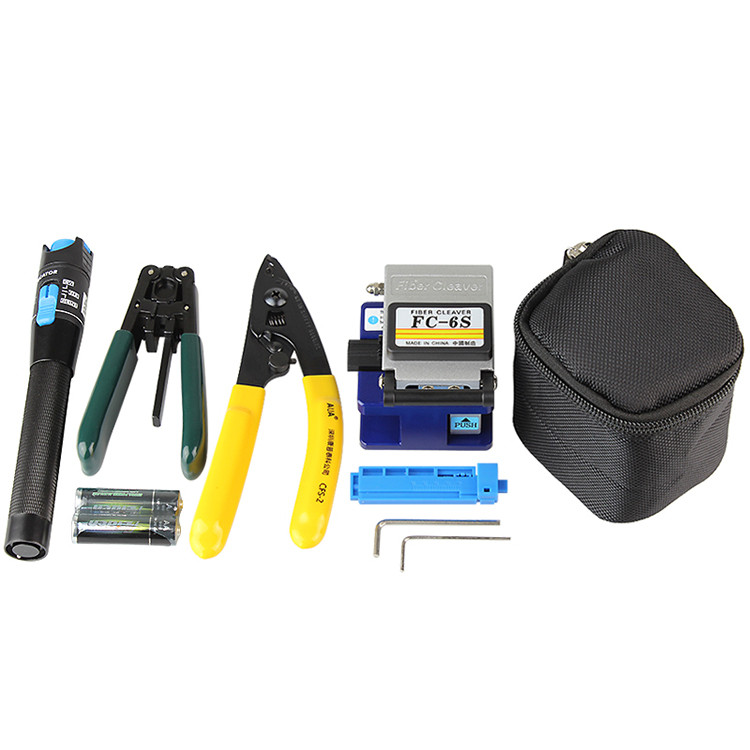

Package include
1 x 1-5KM Visual Fault Locator
1 x Fiber Cleaver FC-6S
1 x AUA Fiber Optic Stripper/Model: CFS-2
1 x Fiber Optic Stripping Tool
1 x Fixed length rail
Note : since the international air does not allow the hair contains flammable and explosive goods, so the unity does not contain the battery delivery, thank you for understanding!

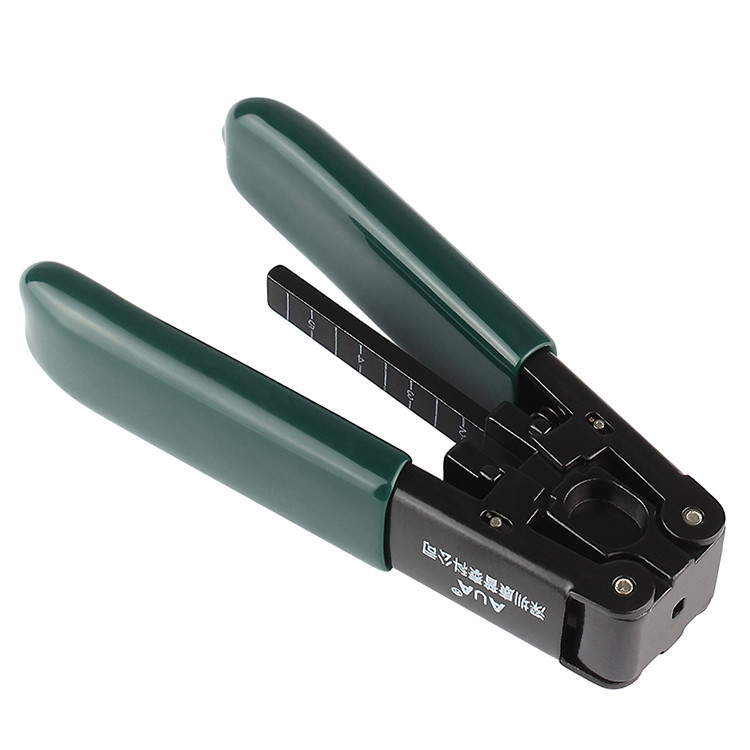

Optic Stripping Tool Features and Functions:
Compact design, durable, weight of about 0.2kg, smaller size, easy to carry, multi functional integration (stripping skin and fixed length stripping), depth adjustable, suitable for 3mm, 2mm indoor fiber optic cable stripping, not damage. With length positioning, easy to operate, can be horizontal and vertical operation. Applicable range of 3.0 x 2.0 mm flex cable, fiber diameter 125 m, tight package 250 microns in diameter, fiber cable core number 1-2, cut stiffener material (plastic reinforcing bar & wire), the use of temperature - 20 to + 45 degrees.

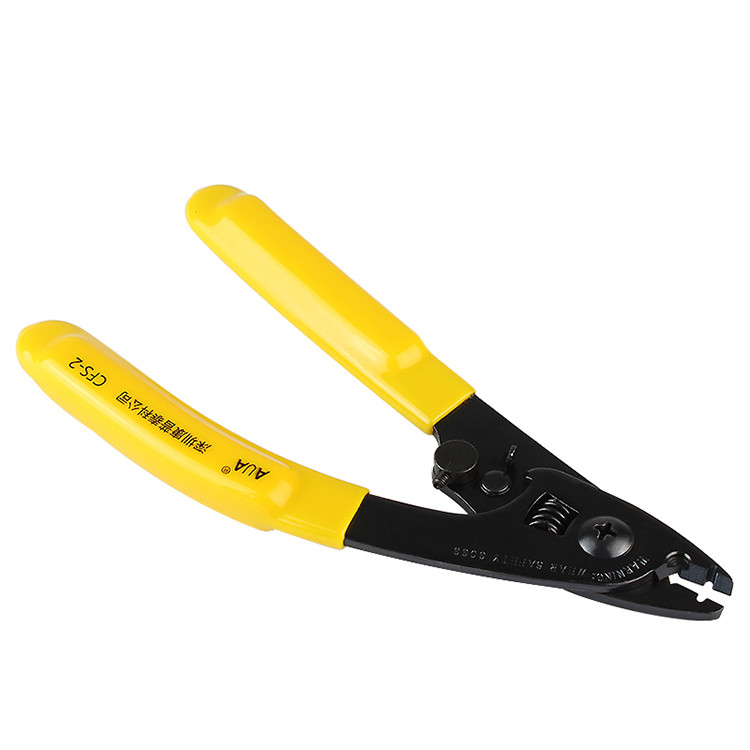

CFS-2 Fiber stripper product Features and Functions :
250 m coated layer of 125 m fiber with A.
Opening the top of the B. 1.98mm can be used for stripping fiber outer sheath
The open hole of the type V and 140 m on the edge of the C. clamp can be used to strip the 250 m layer of 125 m fiber.
D. jaw factory has been adjusted, shall not be adjusted
E. will not damage the fiber
F. all the cutting cross section has precise mechanical tolerances to ensure a clean and smooth operation.
According to the G. handle ergonomic design, comfort grip
H. does not use the knife, locked in a closed state
I. length: 165mm
J. weight: 0.15Kg

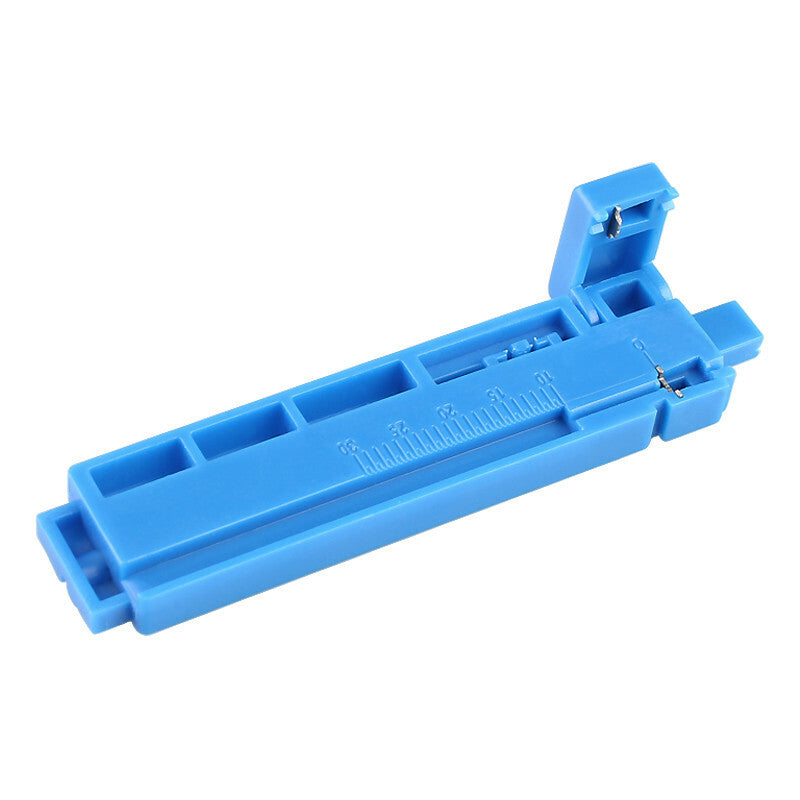

Fixed length guide rail groove 2 1:
Can be used for indoor cable stripping coating layer and positioning length
It can be used to locate the indoor cable into the optical fiber cutting knife

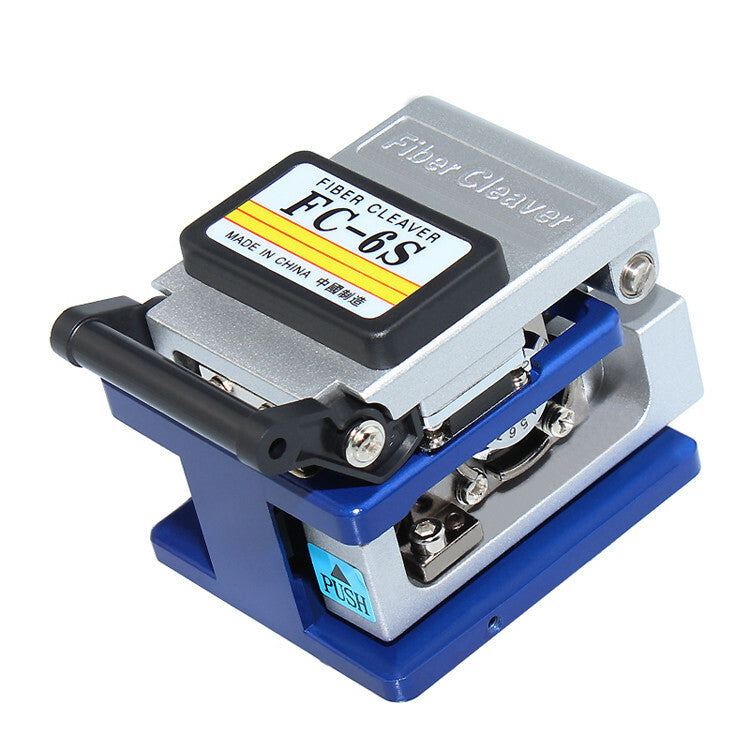

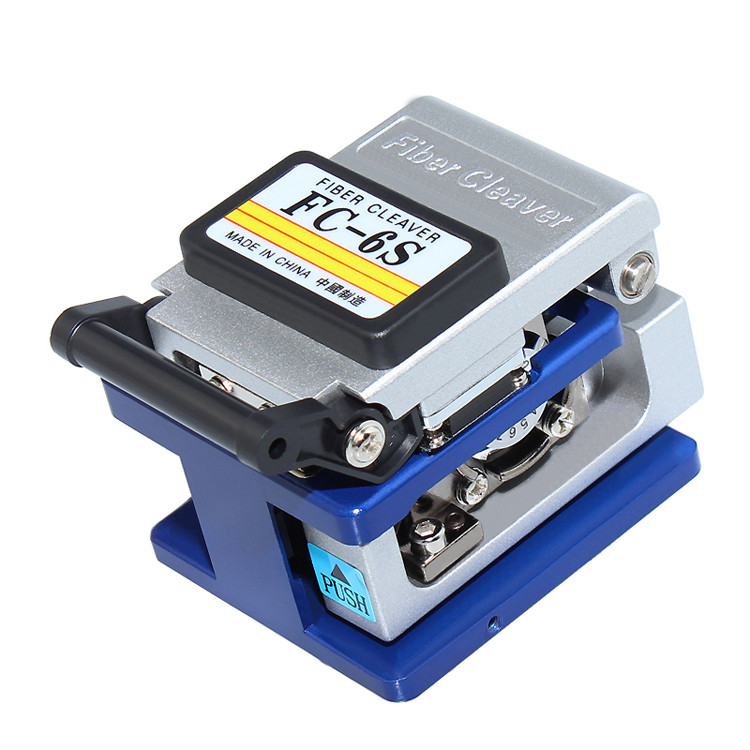

Fiber Cleaver FC-6S Features and Functions :
high quality fiber cutting knife (recommended for FTTH cold welding, hot melt connection is not recommended for the use of this paragraph). Simple operation; single core fiber for single mode or multimode cutting; 12 cutting end face; blade long life; adjust the peeling length is: 5~20mm; technical specifications: fiber size: 125um; skin diameter: 250~900um.

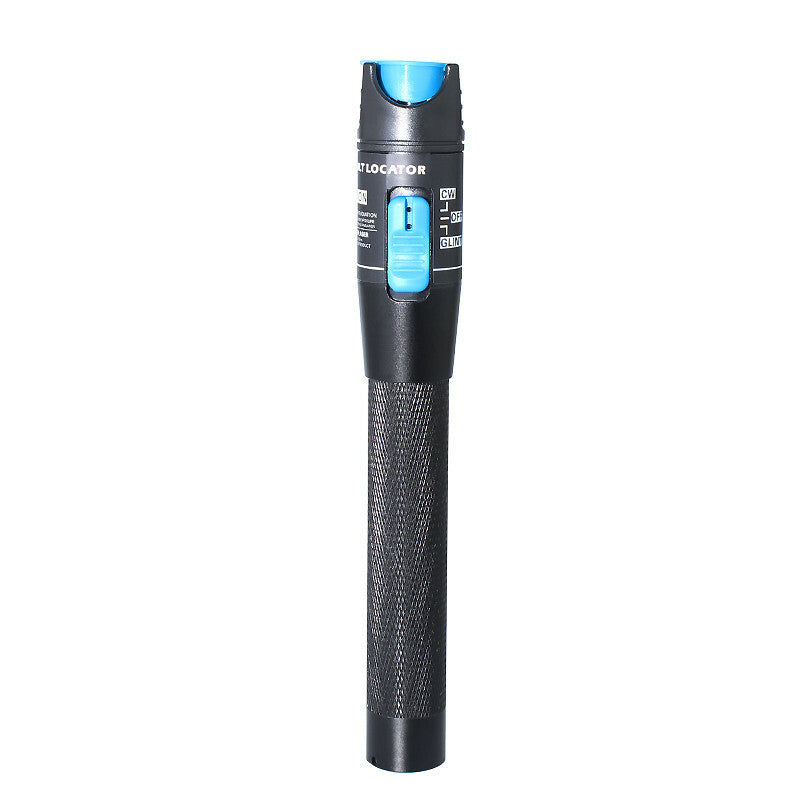

1MW visual fault locator Features and Functions :
Quantum well laser as light source, MOD and CW working mode, SC, ST, FC, 2.5mm universal interface, detection range, output power stability. For testing the position of the optical fiber, bending, etc., in the OTDR blind fault detection, and finally to the end of the optical fiber identification, mechanical connection point optimization. Widely used in telecommunications, cable television engineering and maintenance, integrated wiring, construction and maintenance, optical equipment, production and research, other fiber engineering. Light source wavelength: 650 + 10nm, model AUA-1, single mode output power: 1mw,power power: use 2 section 5 battery (Note: the product does not contain battery) detection range (SM): 1-3km, shell material: aluminum alloy material, size: about 26 x 175mm (no interface), weight: About 0.085kg (excluding battery).
