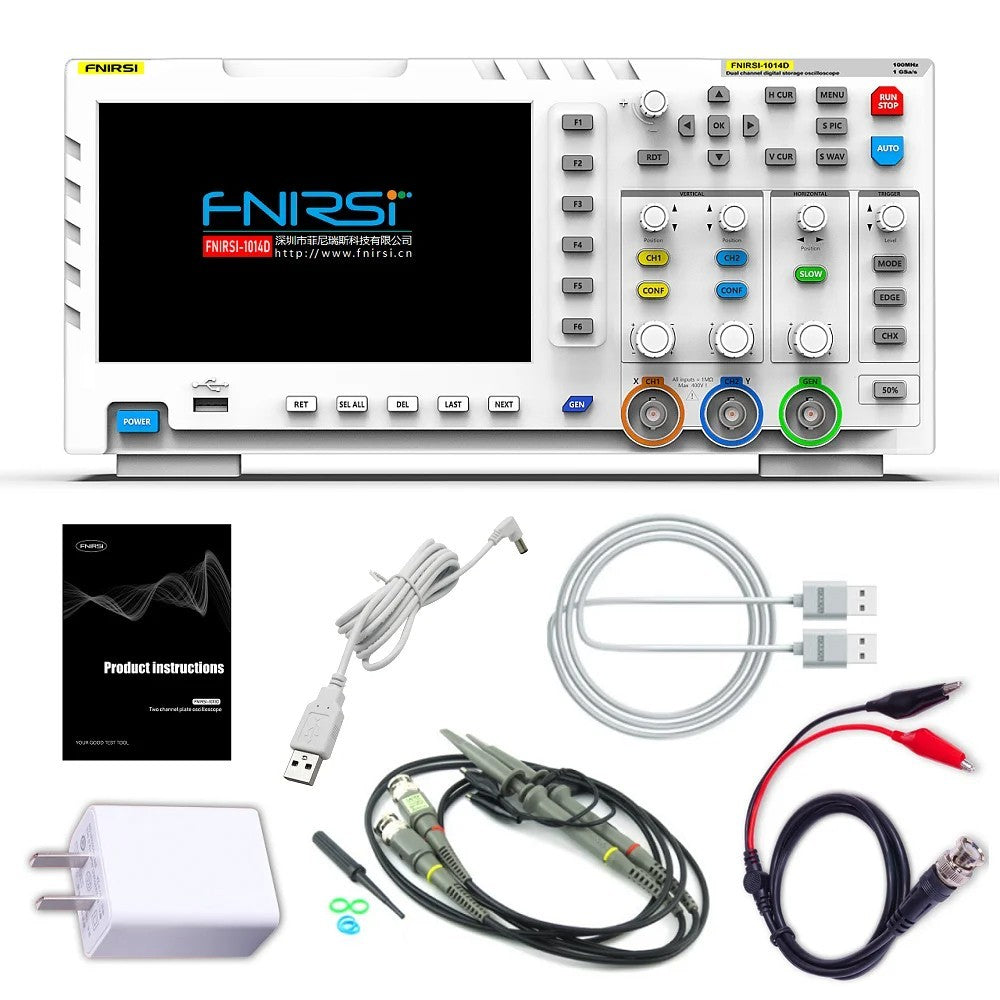

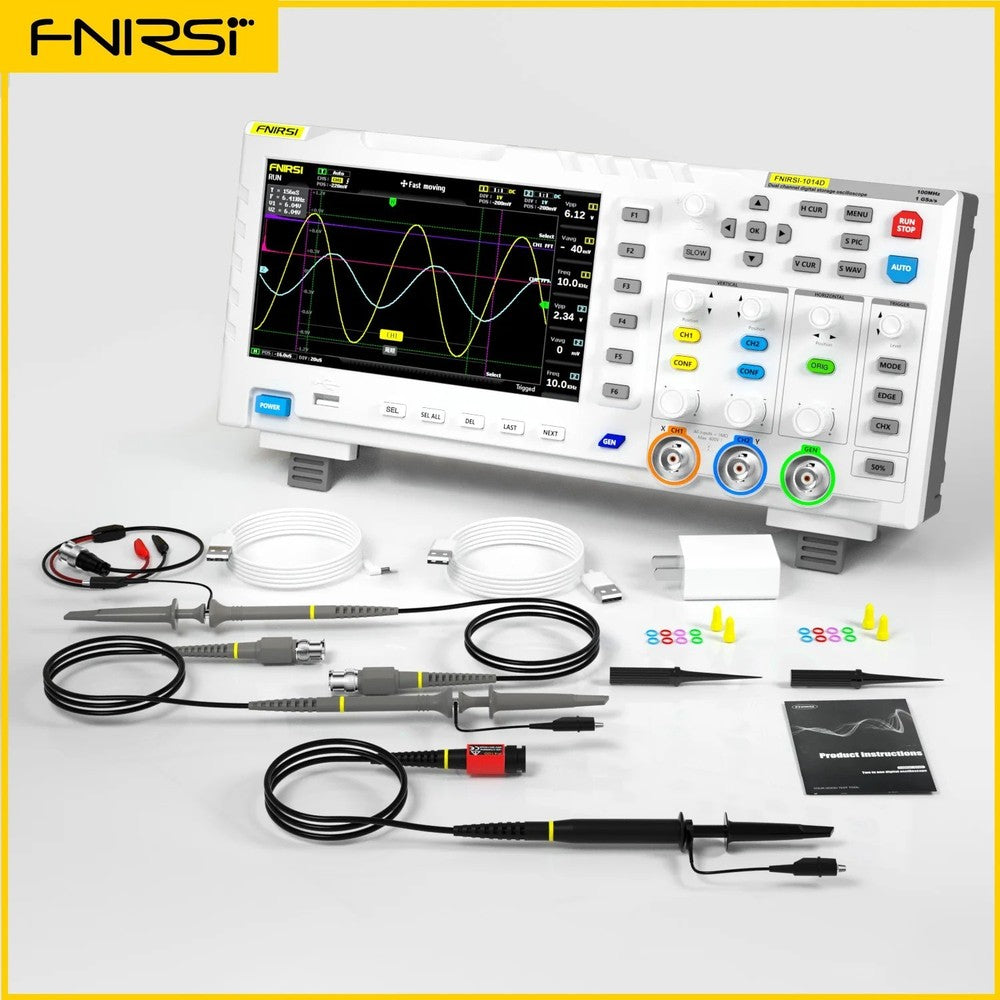

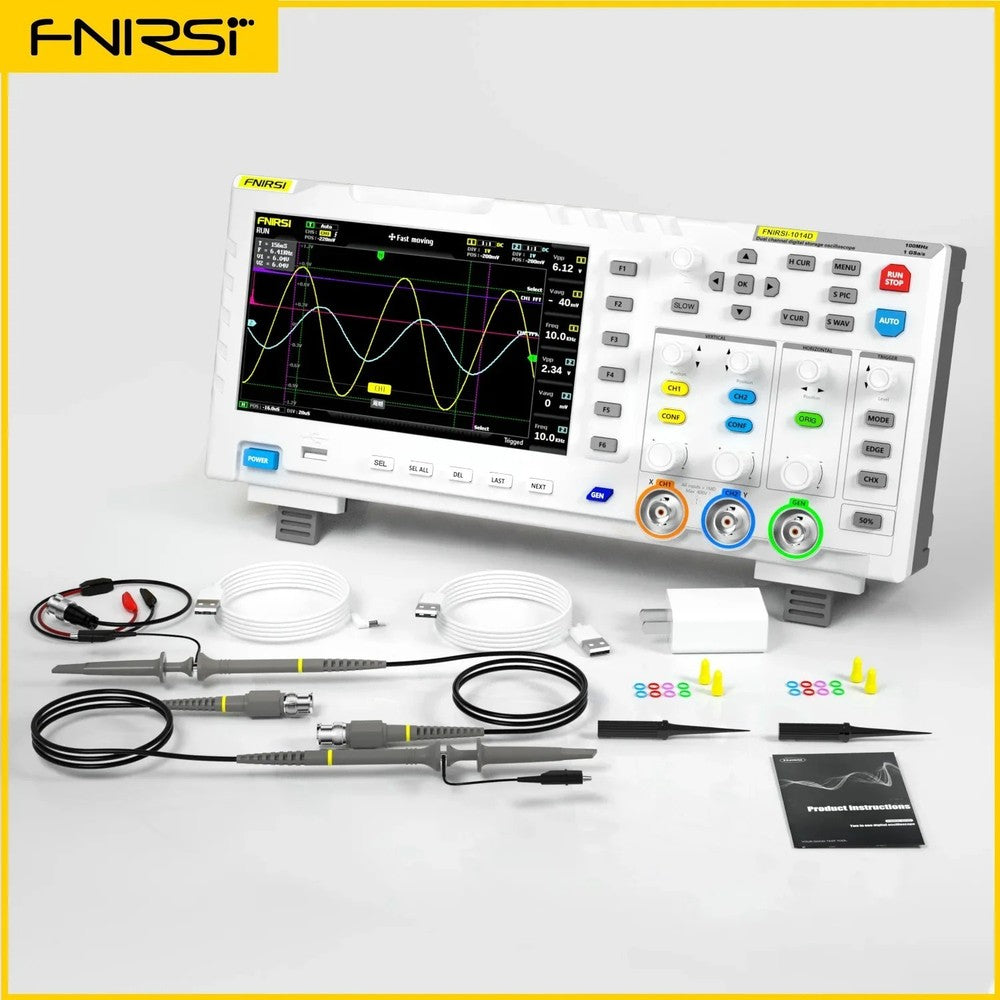

FNIRSI 1014D Digital Oscilloscope 2 In 1 Dual Channel Input Signal Generator 100

FNIRSI Digital Oscilloscope – 100MHz Bandwidth | 1GSa/s | Dual Channel with Built-in Signal Generator

Engineered for precision and ease of use, the FNIRSI Oscilloscope is a powerful, all-in-one diagnostic tool designed for both professionals and electronics enthusiasts. With high bandwidth, real-time sampling, and advanced signal generation capabilities, this oscilloscope offers unmatched performance in a compact and intuitive form factor.

Key Features & Benefits:

• High Performance:

  • Bandwidth: 100MHz × 2 channels

  • Sampling Rate: Real-time 1GSa/s for high-speed signal capture

  • Ideal for periodic analog & digital signal analysis

• Built-in DDS Signal Generator:

  • 14 built-in function signals

  • Supports 1Hz frequency step for precise signal control

  • Custom signal chopping (store up to 1000 user-defined signals)

  • Intercept complex signals from waveforms and reuse them

• Cursor Measurement Function:

  • Instantly display peak-to-peak values and frequency

  • No need for manual scale calculations—makes measurements faster and more accurate

• ️ Easy Viewing & Operation:

  • 7-inch HD LCD Display – 800×480 resolution

  • One-Touch AUTO Setup – Instantly auto-adjusts to display waveform clearly

  • Multiple adaptive trigger modes: 25%, 50%, 75%

• Advanced Analysis Functions:

  • Lissajous Figures – Compare amplitude, frequency & phase of two signals

  • FFT View – Analyze harmonic content and frequency spectrum

Ideal For:

• Electronics R&D & prototyping

• Education & lab environments

• Circuit testing and diagnostics

• Signal waveform monitoring

• Embedded system development

Specifications at a Glance:

Why Choose FNIRSI?

• All-in-one: Oscilloscope + Function Generator

• Compact, portable, and easy to use

• High accuracy and real-time response

• Suitable for beginners and professionals

• Excellent value with powerful features
