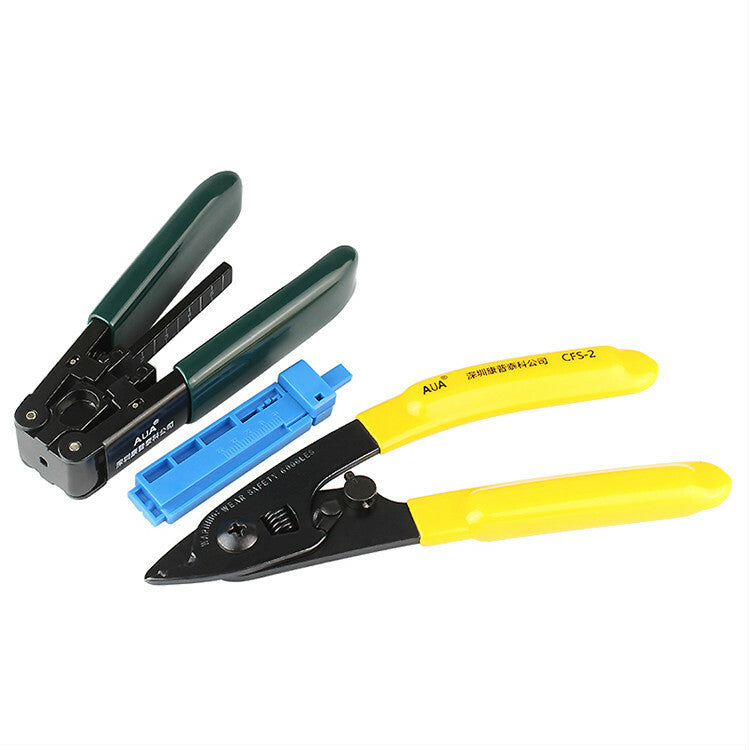

FTTH Splice Fiber Optic tool Kits CFS-2 Fibre Stripping Tool Fixedlength Rail

1 x AUA Fiber Optic Stripper/Model: CFS-2

1 x Fiber Optic Stripping Tool

1 x Fixedlength rail

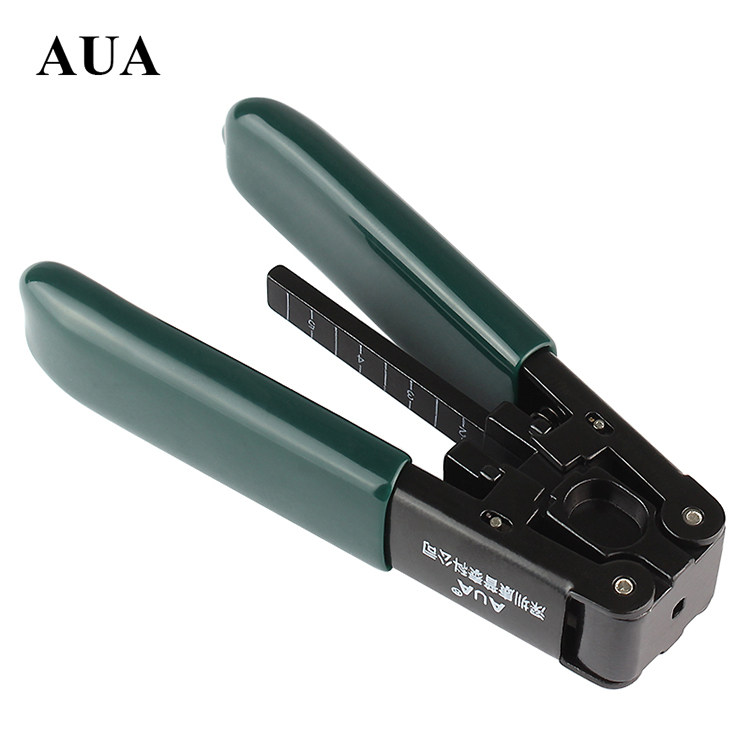

Optic Stripping Tool Features and Functions:

Compact design, durable, weight of about 0.2kg, smaller size, easy to carry, multi functional integration (stripping skin and fixed length stripping), depth adjustable, suitable for 3mm, 2mm indoor fiber optic cable stripping, not damage. With length positioning, easy to operate, can be horizontal and vertical operation. Applicable range of 3.0 x 2.0 mm flex cable, fiber diameter 125 m, tight package 250 microns in diameter, fiber cable core number 1-2, cut stiffener material (plastic reinforcing bar & wire), the use of temperature - 20 to + 45 degrees.

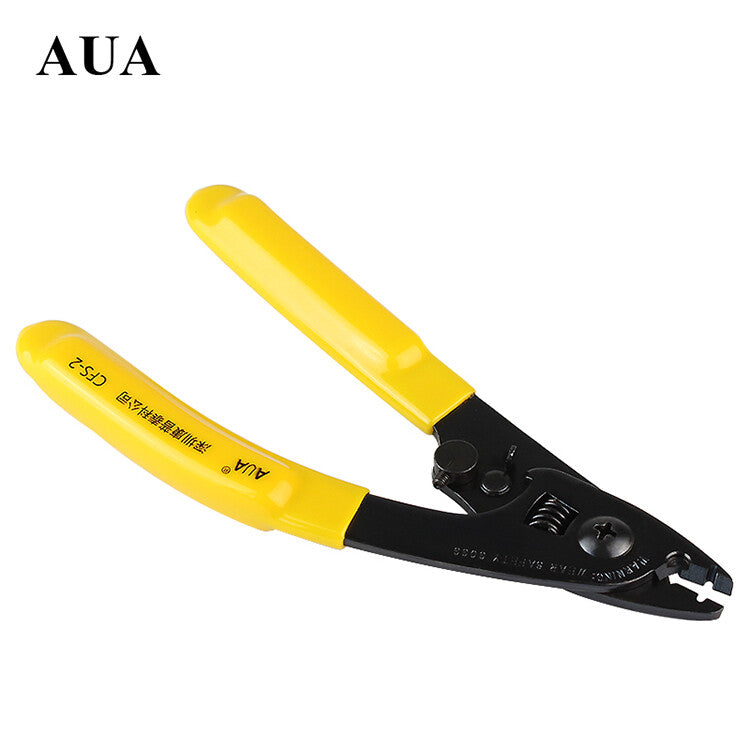

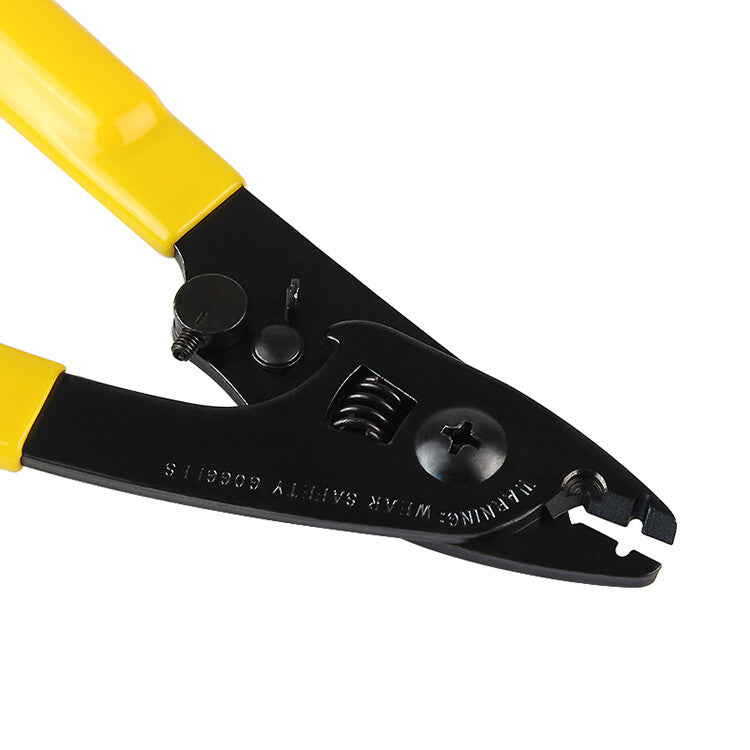

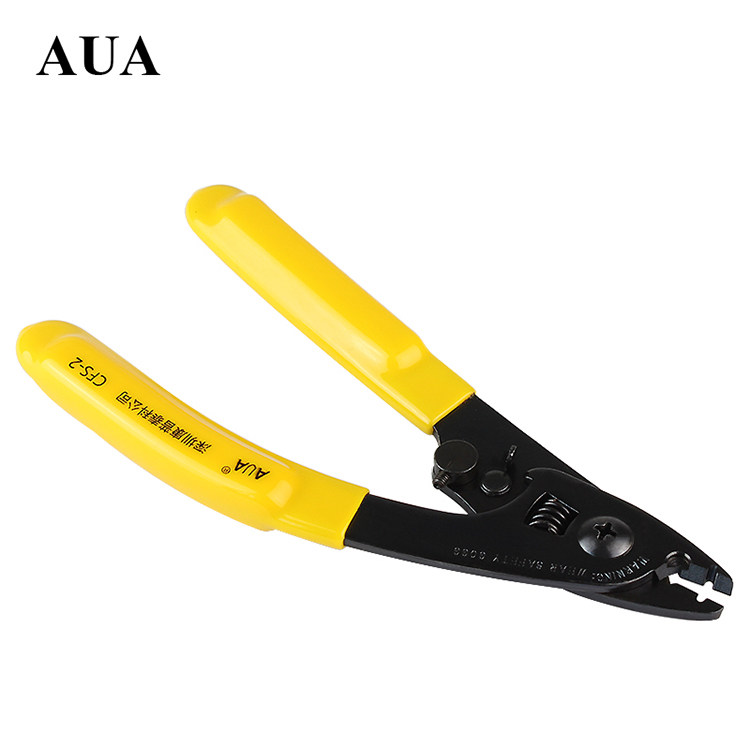

CFS-2 Fiber stripper product Features and Functions :

250 m coated layer of 125 m fiber with A.

Opening the top of the B. 1.98mm can be used for stripping fiber outer sheath

The open hole of the type V and 140 m on the edge of the C. clamp can be used to strip the 250 m layer of 125 m fiber.

D. jaw factory has been adjusted, shall not be adjusted

E. will not damage the fiber

F. all the cutting cross section has precise mechanical tolerances to ensure a clean and smooth operation.

According to the G. handle ergonomic design, comfort grip

H. does not use the knife, locked in a closed state

I. length: 165mm

J. weight: 0.15Kg

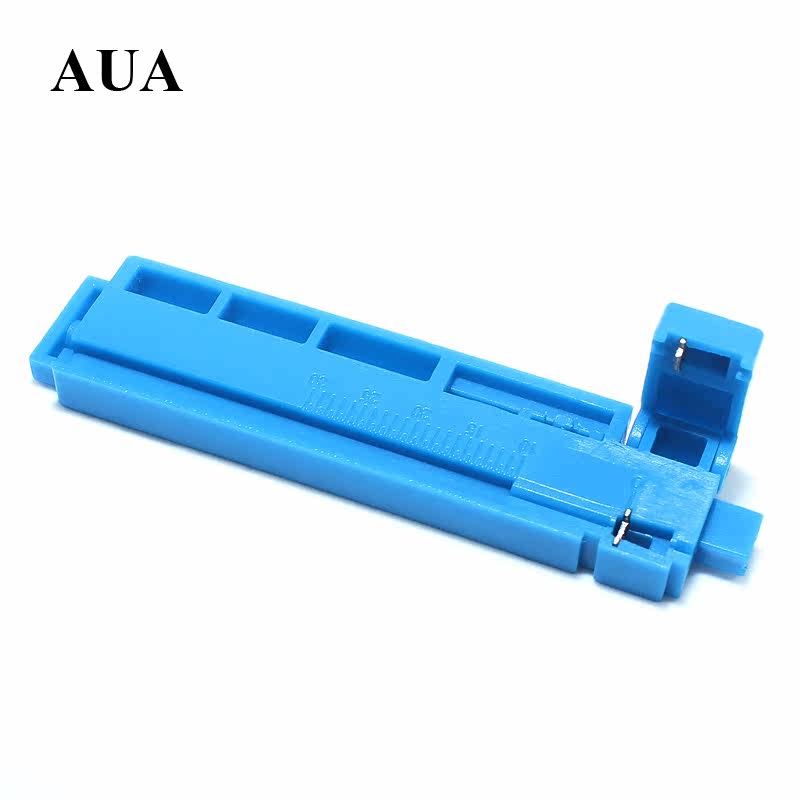

Fixed length guide rail groove 2 1:

Can be used for indoor cable stripping coating layer and positioning length

It can be used to locate the indoor cable into the optical fiber cutting knife
