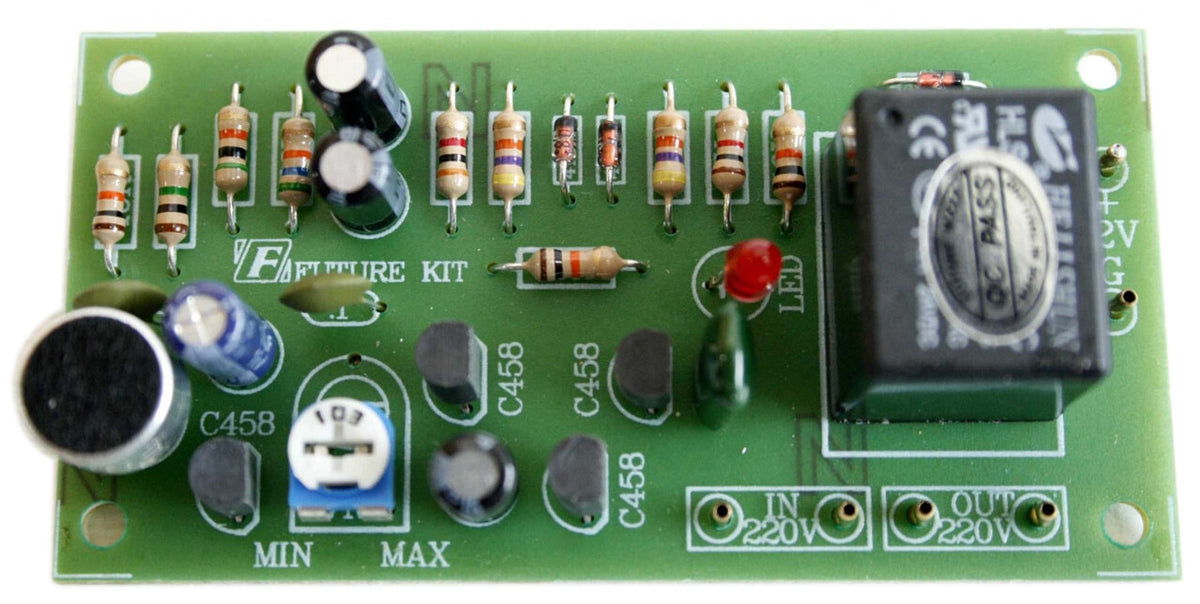

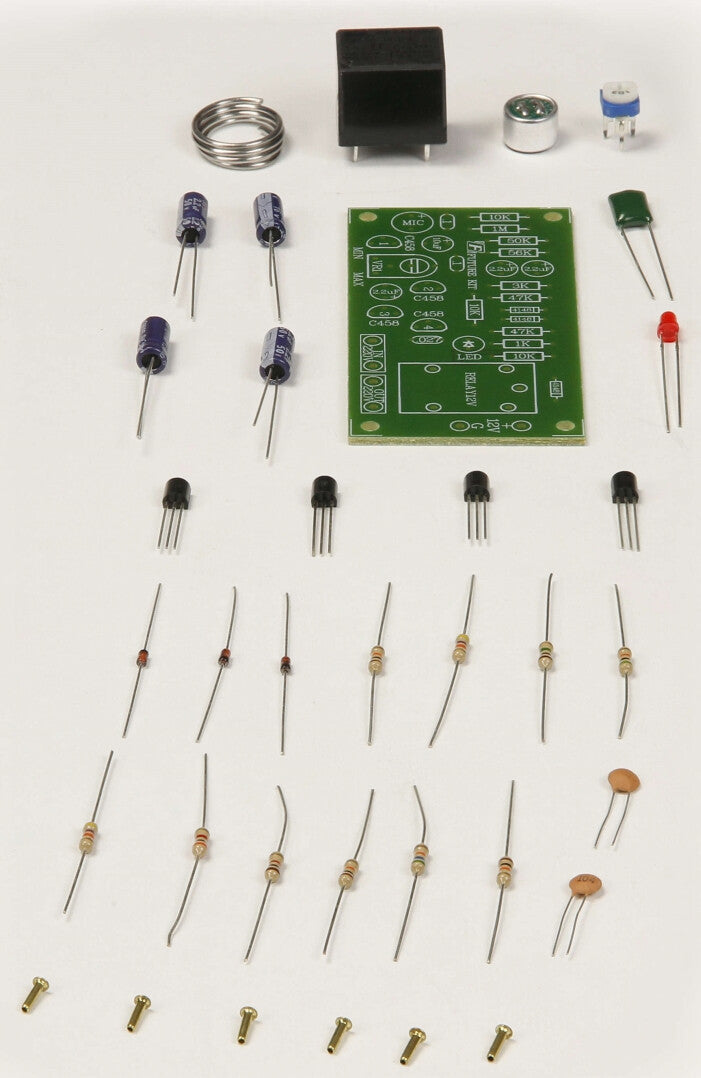

Global Specialties Audio Control Switch Kit (GSK-409)

Classified as a remote controlled circuit this product uses an audio signal (clap on) to activate the on/off function of the switch.

A sensitivity/volume controlled microphone picks up audio signal activating a relay generating an electrical signal to the switch.

Technical Specifications:

• Power Source: 12 VDC
• Power Consumption: 50 mA max.
• Sensitivity Adjustment: potentiometer
• Maximum Load: 10 A, 125 VAC or 5 A, 220 VAC
• PCB Dimensions: 2.92 x 1.49 inches

Operating Principles:

• This circuit utilizes a sensitivity microphone to obtain an audio signal and a flip-flop circuit to turn the switch to the on and off position.
• The audio signal enters from the microphone to transistor 1 through capacitor 2 entering variable resistor 1 allowing sensitivity adjustments.
• The collector of transistor 2 is connected through capacitor 3 and 4 creating a flip-flop sector comprising of transistor 3 and 4 both taking turn functioning to the signal transmitted by the microphone.
• The transmittal of an audio signal through transistor 1 and 2 causes the collector of transistor 2 to be amplified creating a momentary low voltage while current at the base of transistor 4 is drawn through diode 2 and capacitor 4 to ground at collector transistor 2 making transistor 4 stop inducing current.
• The higher voltage will cause transistor 3 to draw current through the base of transistor 4 and ground causing transistor 3 to work in place of transistor 4.
• At this point the relay will release the contact face so the LED will be turned off.
• Transistor 4 will be inactive until an audio signal is present to cause transistor 3 to stop induction and then transistor 4 will start functioning.
