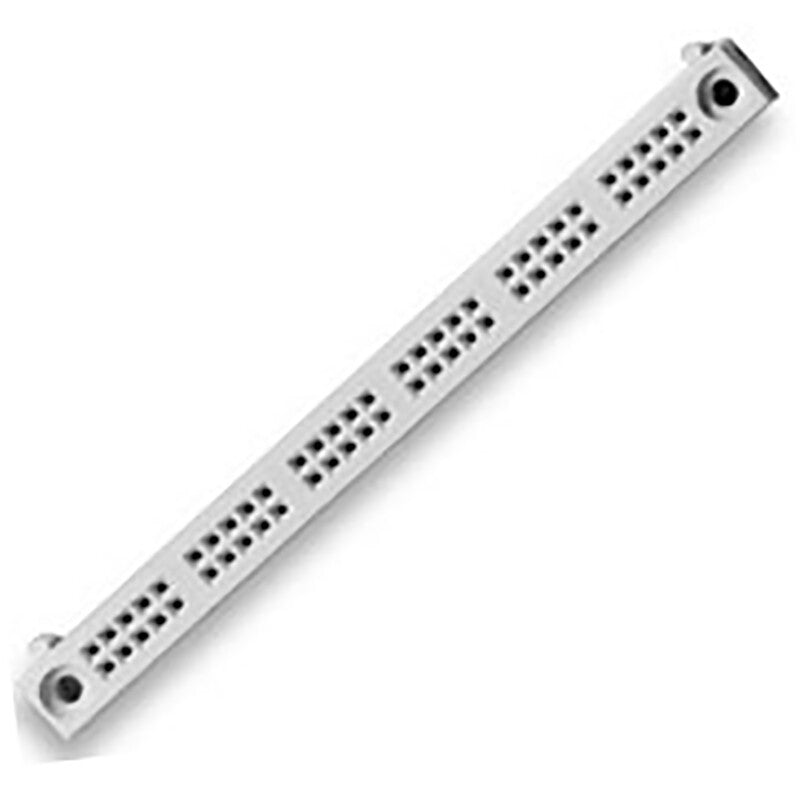

Global Specialties QT-35B Quick Test Socket Bus Strip, 60 Tie-points
Global Specialties QT-35B Quick Test Socket Bus Strip, 60 Tie-points
Regular price
$27.30 USD
Regular price
$33.08 USD
Sale price
$27.30 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Global Specialties QT-35B Quick Test Socket Bus Strip, 60 Tie-points
Molded tab/keyway feature interlocks adjoining elements into larger array.
Sockets provide twin columns of 5-point spring contact clips on each side of a 0.3-inch center channel.
Bus Strips provide twin rows of pre-connected 5-point contact clips.
MOUNTING Molded-in mounting holes; mount with 4-40 flat head screws from top or 6-32F self-tapping screws from behind
WIRE SIZE #22 AWG wire preferred; component leads with diameters .01-.033 inches (.25-.84mm) acceptable, .015-.032 inches (.38-.81mm) recommended; prepared wire kit WK-1 is available
HEIGHT All Quick Test breadboards are 0.33 inches (8mm) high
RESISTANCE Initial contact resistance is less than 0.5 milliohm, after multiple uses, this reduces to less than 0.4 milliohm
Molded tab/keyway feature interlocks adjoining elements into larger array.
Sockets provide twin columns of 5-point spring contact clips on each side of a 0.3-inch center channel.
Bus Strips provide twin rows of pre-connected 5-point contact clips.
MOUNTING Molded-in mounting holes; mount with 4-40 flat head screws from top or 6-32F self-tapping screws from behind
WIRE SIZE #22 AWG wire preferred; component leads with diameters .01-.033 inches (.25-.84mm) acceptable, .015-.032 inches (.38-.81mm) recommended; prepared wire kit WK-1 is available
HEIGHT All Quick Test breadboards are 0.33 inches (8mm) high
RESISTANCE Initial contact resistance is less than 0.5 milliohm, after multiple uses, this reduces to less than 0.4 milliohm
