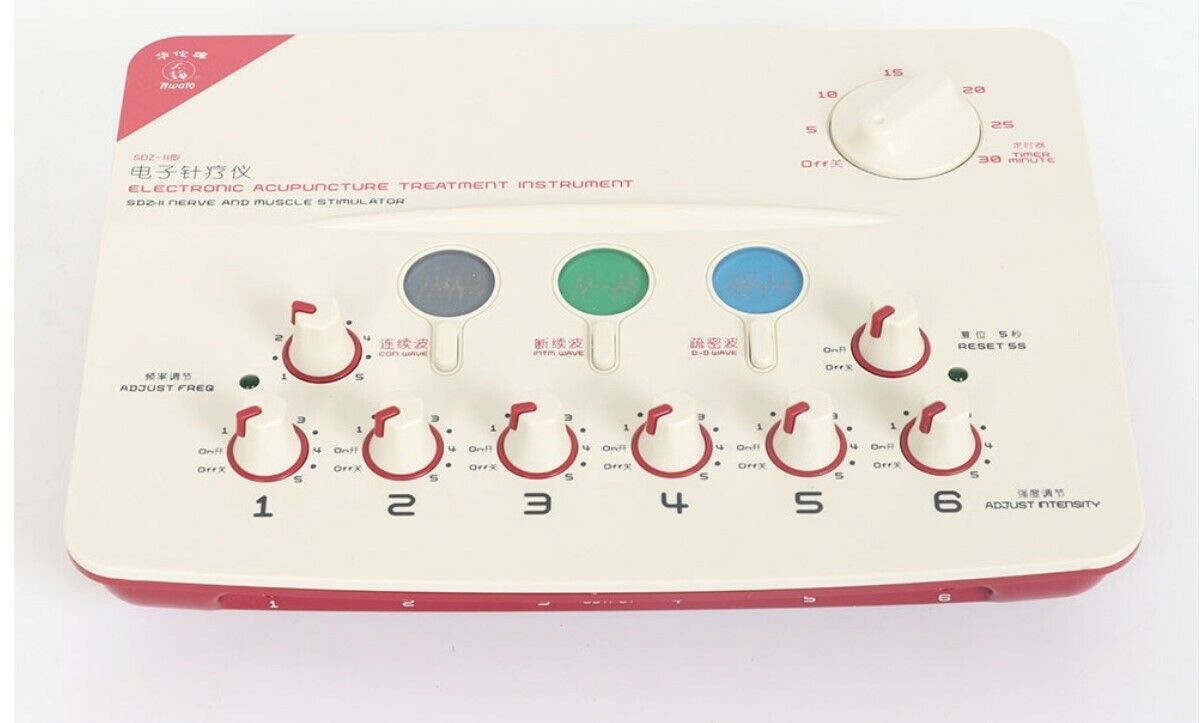

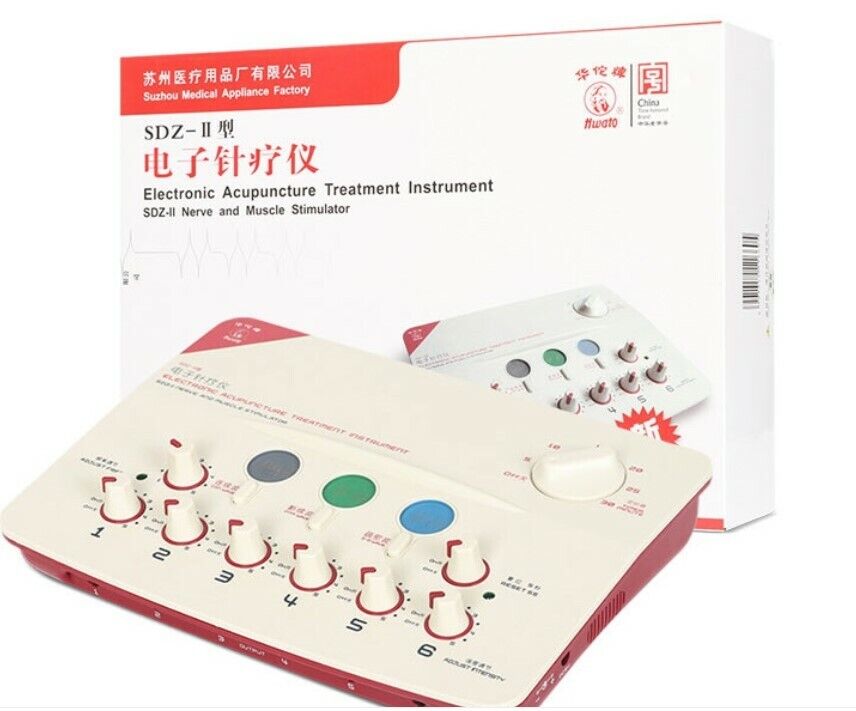

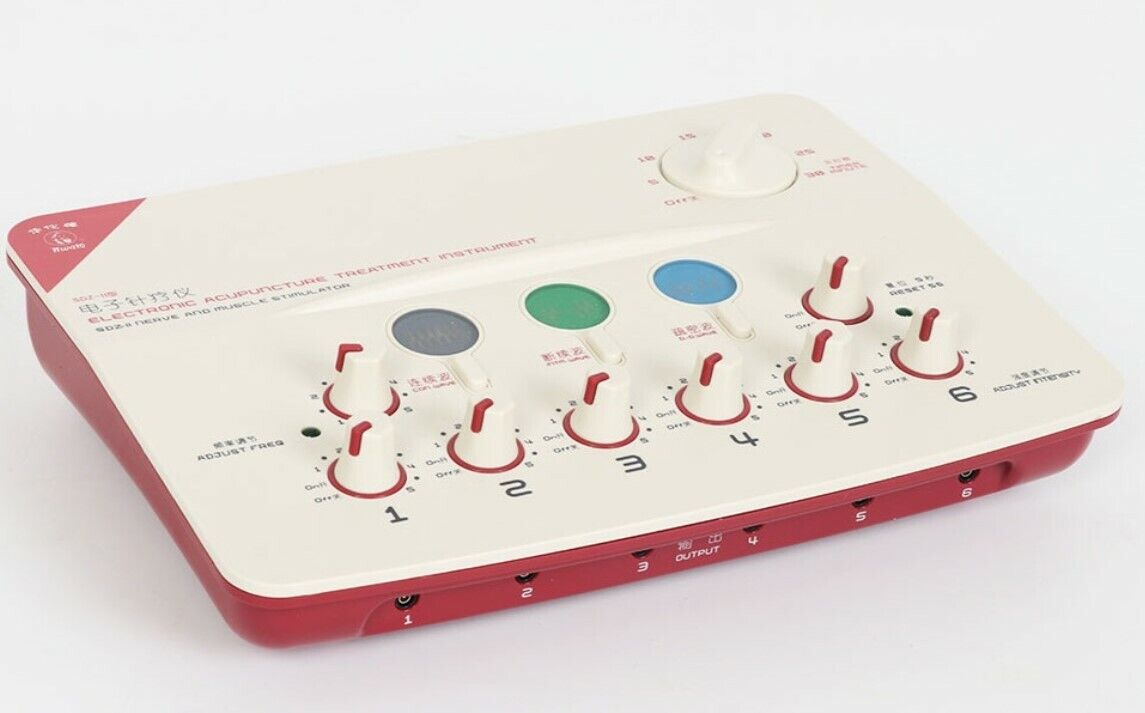

Hwato Nerve/ Muscle Stimulator SDZ-II electronic acupuncture massage pulse excite instrument one set




              Introductions:



              Electronic Acupuncture Treatment Instrument( Nerve and Muscle Stimulator) is combined modern micro computer technique with traditional Chinese Medicine Acupuncture ad meridian Theory, based on the traditional KDZ series of electronic acupuncture treatment instrument.



              The device is used for applying low frequency pulse to stimulate the points of human body, may be used to apply an electrical current to electrodes on a patient's skin to treat pain.



              This device doesn't include acupuncture needles, combining with acupuncture needles in use.



              Main Functions:



              Replacement of hand massage



              Acupuncture therapy



              Six route output



              Multi-pulse wave frequency LCD



              Auto-timing Switch



              Battery for operation



              Techinical Data:



              Nerve and Muscle Stimulator / Electronic Acupuncture Treatment Instrument



              1.Output Waveform: unsymmetrical dual directional pulse wave

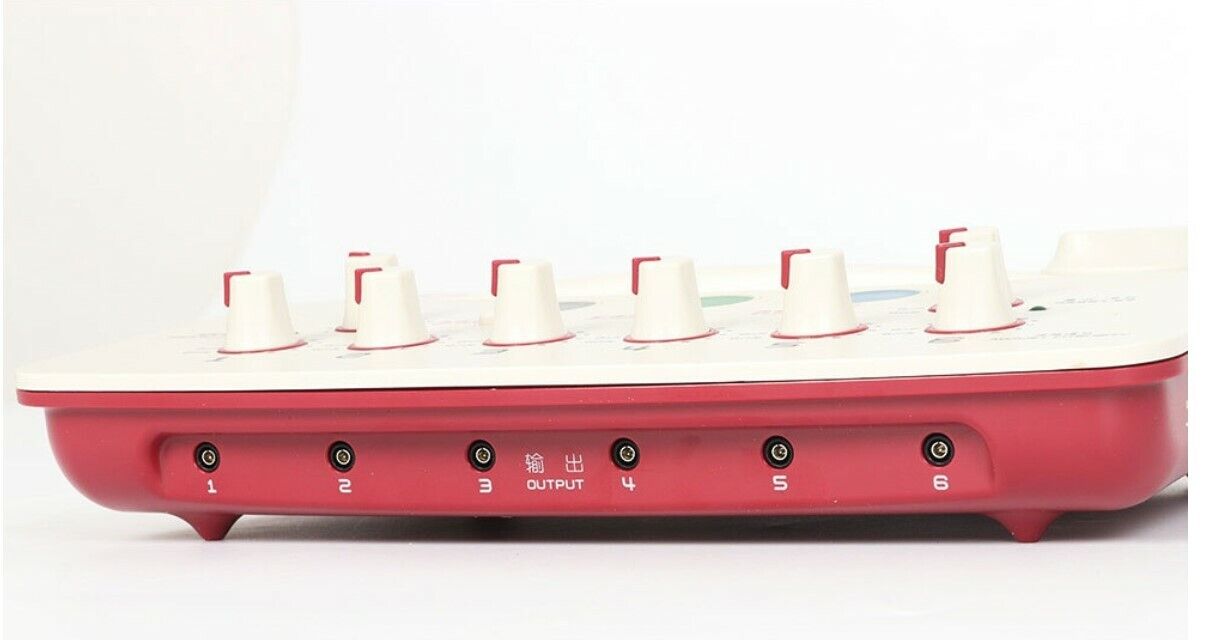

              2.Output Pulse Lines: 6 route



              3.Operating Mode:Continuous Wave



              4.Output Pulse width: 0.2ms



              5.Output Current: 50mA(load 500 Omega )



              6. Power: DC9V



              7. Volume: 35×23×10cm



              8. Weight: 1kg(Main machine)

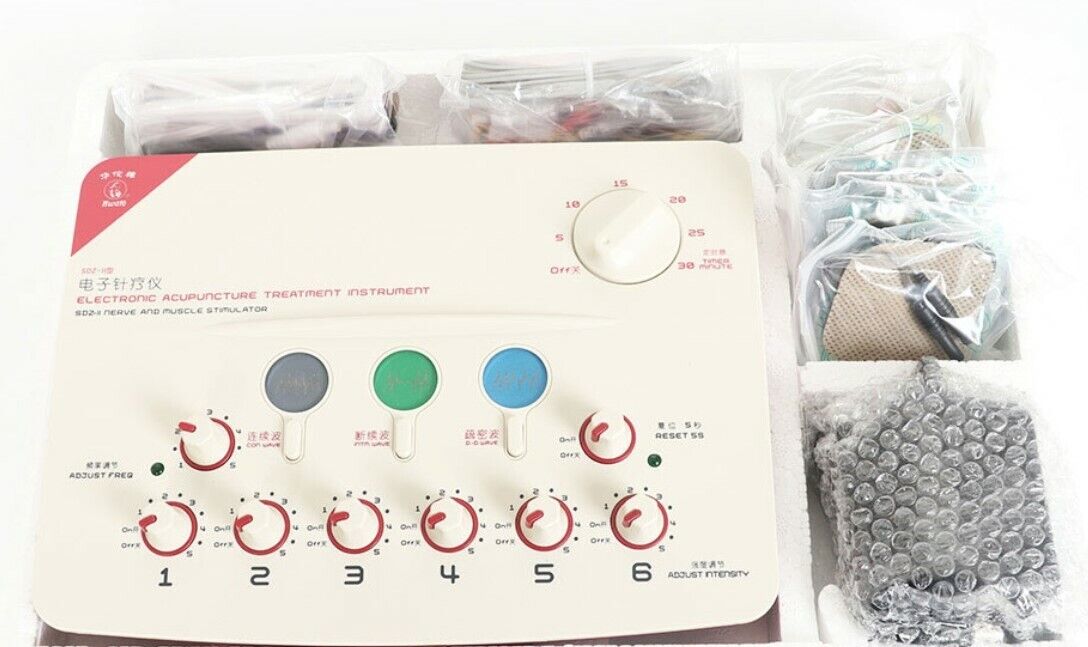

              Accessories:



              Six pieces of output electrode wires



              One user manual



              One certificate of product quality conformity



              One Shockproof foam box



              One AC adapter: Input: AC220V (Output:DC9V%)
