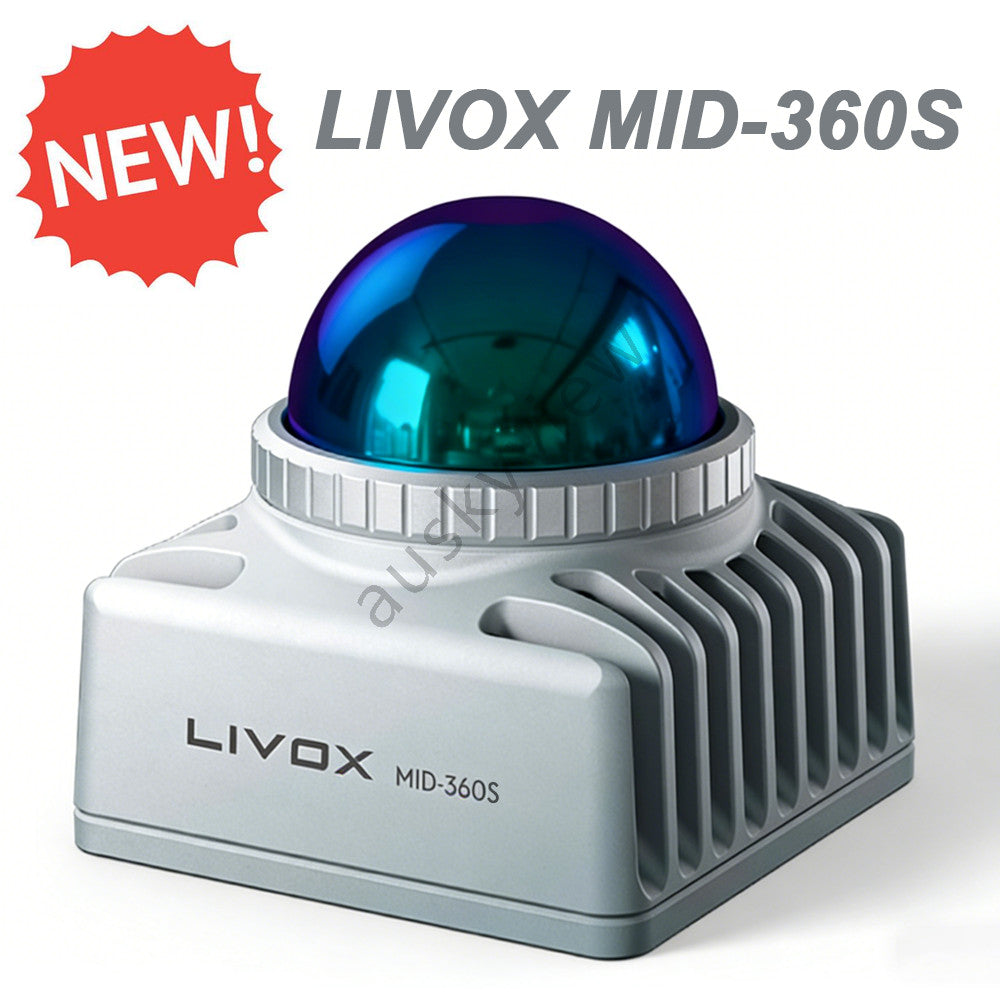

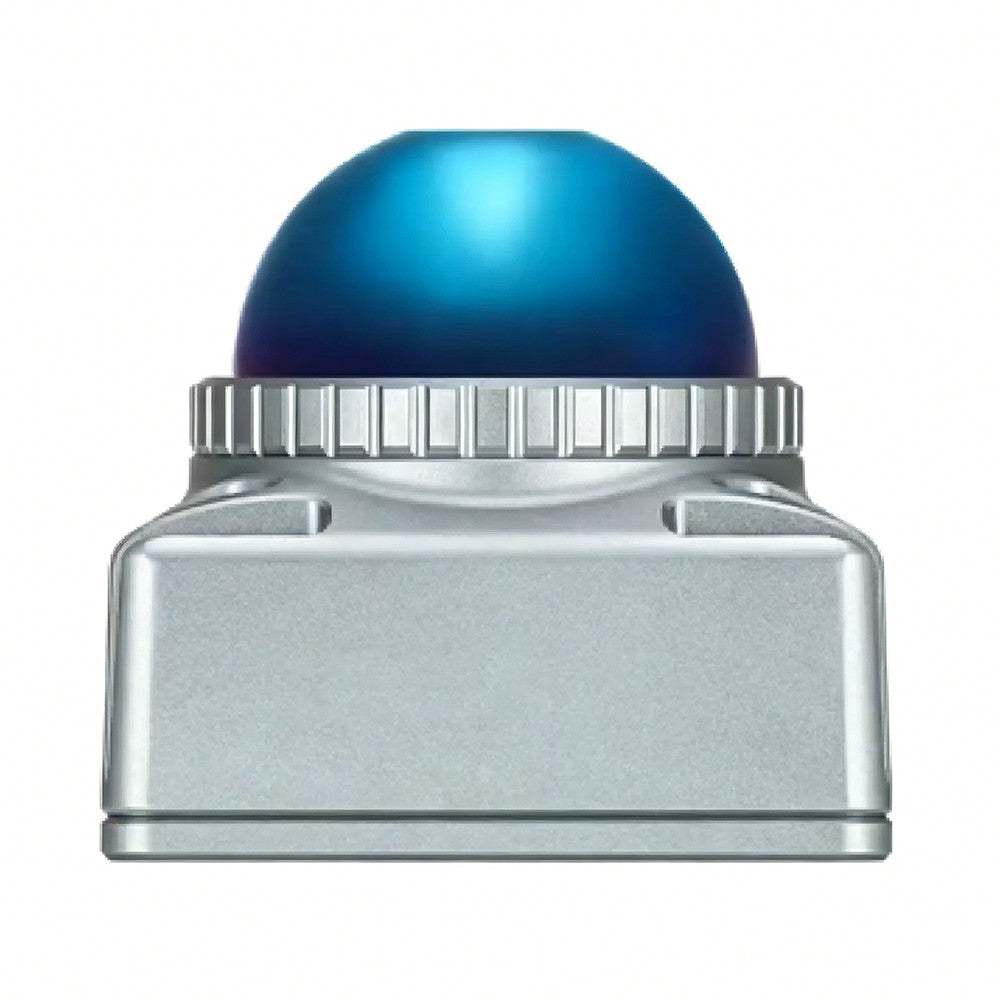

Livox Mid‑360S 3D LiDAR Sensor

360°×59° FOV, 10cm Min. Range, 100m Max. Range, Hybrid‑Solid Technology

Compatible Applications

• Mobile Robots: AGVs, AMRs, delivery robots, cleaning robots.

• Autonomous Vehicles: Perception layer for L4/L5 autonomous driving.

• Drones/UAVs: Aerial 3D mapping, terrain modeling, obstacle avoidance.

• Smart Infrastructure: Security surveillance, smart city perception nodes.

• Industrial Automation: Forklift navigation, warehouse inventory scanning.

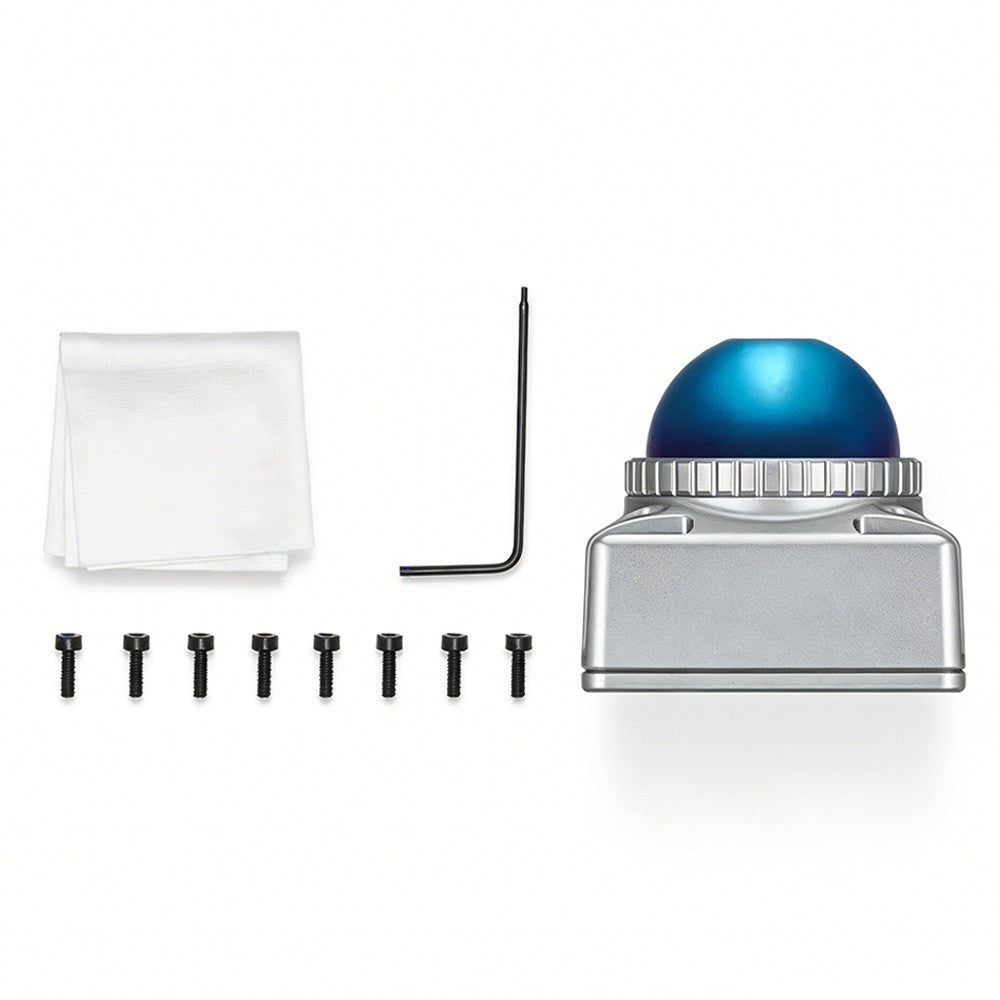

In The Box

• 1 × Livox Mid‑360S LiDAR Unit

• 1 × Lens Cleaning Cloth

• 1 × L‑shaped Hex Key

• 1 × Screw Pack

Product Overview

The Livox Mid‑360S is the latest generation 3D LiDAR sensor engineered for intelligent mobile robots and autonomous systems.

Built on Livox’s proprietary hybrid‑solid‑state technology, it delivers a massive 360°×59° FOV with a 10cm minimum detection range and 100m maximum range. Its compact, lightweight design (265g) enables seamless integration into space‑constrained platforms, providing reliable 3D perception for navigation, obstacle avoidance, and environmental mapping in both indoor and outdoor environments.

Key Features

360° Super‑Wide FOV

• Horizontal: 360° full surround coverage.

• Vertical: 59° wide elevation angle.

• Point Cloud Density: Up to 200,000 points/second for rich 3D data.

Exceptional Range Performance

• Min. Detection Range: 10cm (near‑zero blind spot).

• Max. Detection Range: 100m (cut‑off range).

• Reflectivity Performance: 40m @10% reflectivity (standard white wall).

️ Robust Environmental Adaptability

• Ambient Light Immunity: Unaffected by bright sunlight or low‑light conditions.

• Active Anti‑Interference: Suppresses crosstalk from multiple LiDAR units in dense deployments.

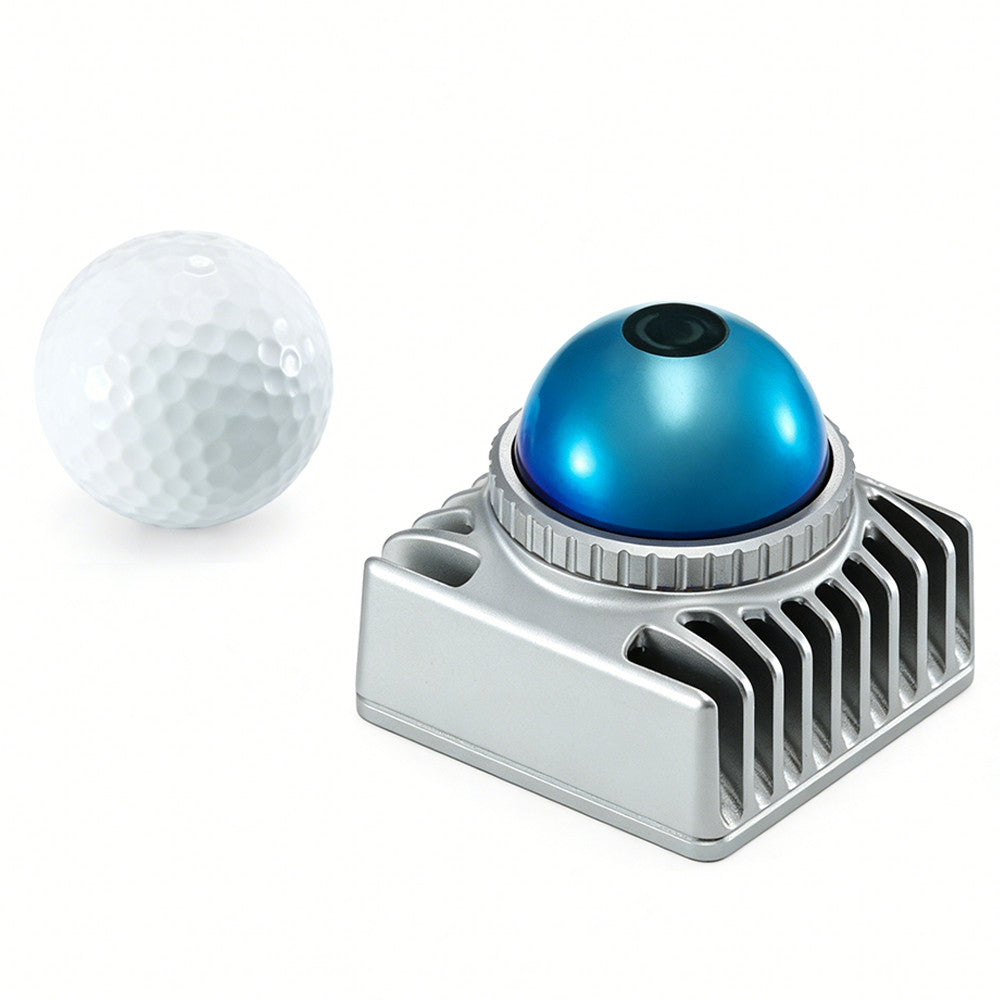

Compact & Lightweight

• Dimensions: 65×65×60 mm (L×W×H).

• Weight: 265g—ideal for drones, small robots, and concealed installations.

️ Hybrid‑Solid‑State Reliability

• No fragile spinning motors; higher durability and longer lifespan.

• Lower power consumption compared to mechanical LiDAR.

️ Technical Specifications

Usage Tips

• Mounting: Install on the robot’s highest flat surface for unobstructed 360° coverage.

• Calibration: Use the included hex key for precise alignment during installation.

• Anti‑Interference: Enable Livox SDK’s multi‑LiDAR synchronization in dense deployments.

• Cleaning: Use the lens cloth regularly to remove dust from the optical window.

• Data Integration: Compatible with ROS/ROS2 via Livox‑SDK for easy robotics integration.

️ Important Notes

• Cable Requirement: Data/power cables are sold separately—verify connector type before purchase.

• Reflectivity Impact: Range may decrease in heavy fog, rain, or on low‑reflectivity surfaces (e.g., black matte objects).

• Heat Dissipation: Ensure adequate ventilation; avoid enclosing the unit in airtight compartments.

• Safety: Class 1 laser product—safe for human exposure under normal operation.
