LKTOP Three-Channel Fast Charger for DJI Matrice 4 Series – 200W Rapid Battery & Device Charging

Compatible Products

• DJI Matrice 4 Series Drones

Package Contents (Other accessories not included)

• 1 × Three-Channel Charger

• 1 × Power Cord

• 3 × Battery Charging Cables

• 1 × Double USB-C Port Cable

• 1 × Instruction Manual

Product Overview

The LKTOP Three-Channel Fast Charger for DJI Matrice 4 Series is a high-performance charging solution engineered to keep your drone batteries and essential devices ready for action. With a powerful 200W max output, this charger supports simultaneous fast charging of up to three Matrice 4 series batteries and one additional device (via USB-C)—eliminating downtime and streamlining your workflow.

Designed for professional pilots and enthusiasts, it features an intuitive LCD screen, multiple charging modes, and active cooling to ensure safe, efficient, and reliable power replenishment for your drone ecosystem.

Key Features

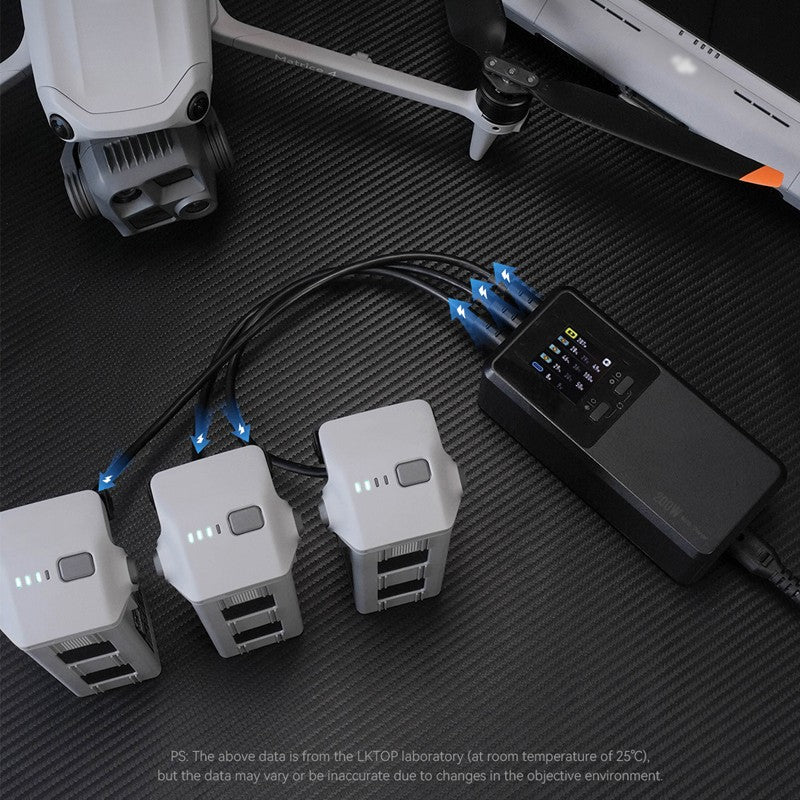

• Triple Battery Fast Charging: Charge 1, 2, or 3 Matrice 4 series batteries simultaneously—full charge in ~56 min (1 battery), ~95 min (2 batteries), or ~110 min (3 batteries).

• 200W High-Power Output: Delivers rapid charging to quickly replenish battery power, reducing wait time between flights.

• Smart LCD Display: 1.5-inch IPS wide-view screen shows real-time parameters (voltage, current, temperature), mode selection, battery status, and OTA update progress.

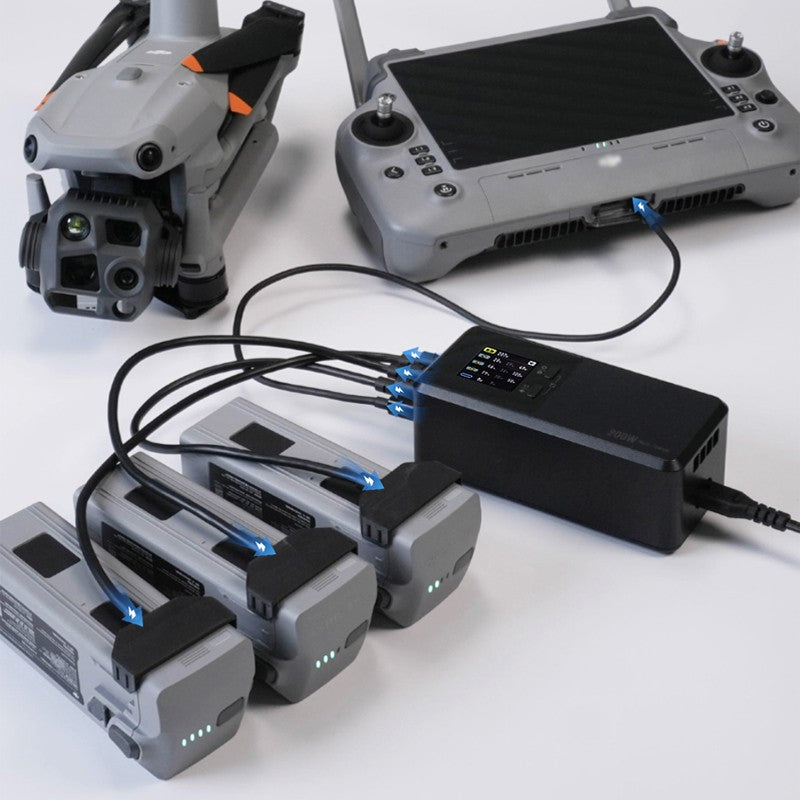

• Multi-Device Charging: 3 dedicated battery ports + 1 USB-C port (5V–20V, 36W max) for charging remotes, sports cameras, smartphones, or other electronics—no more queuing.

• Three Flexible Modes: Choose from 100% Full Charge Mode (max runtime), 100% Silent Mode (low-noise operation), or 60% Storage Mode (battery preservation for long-term storage).

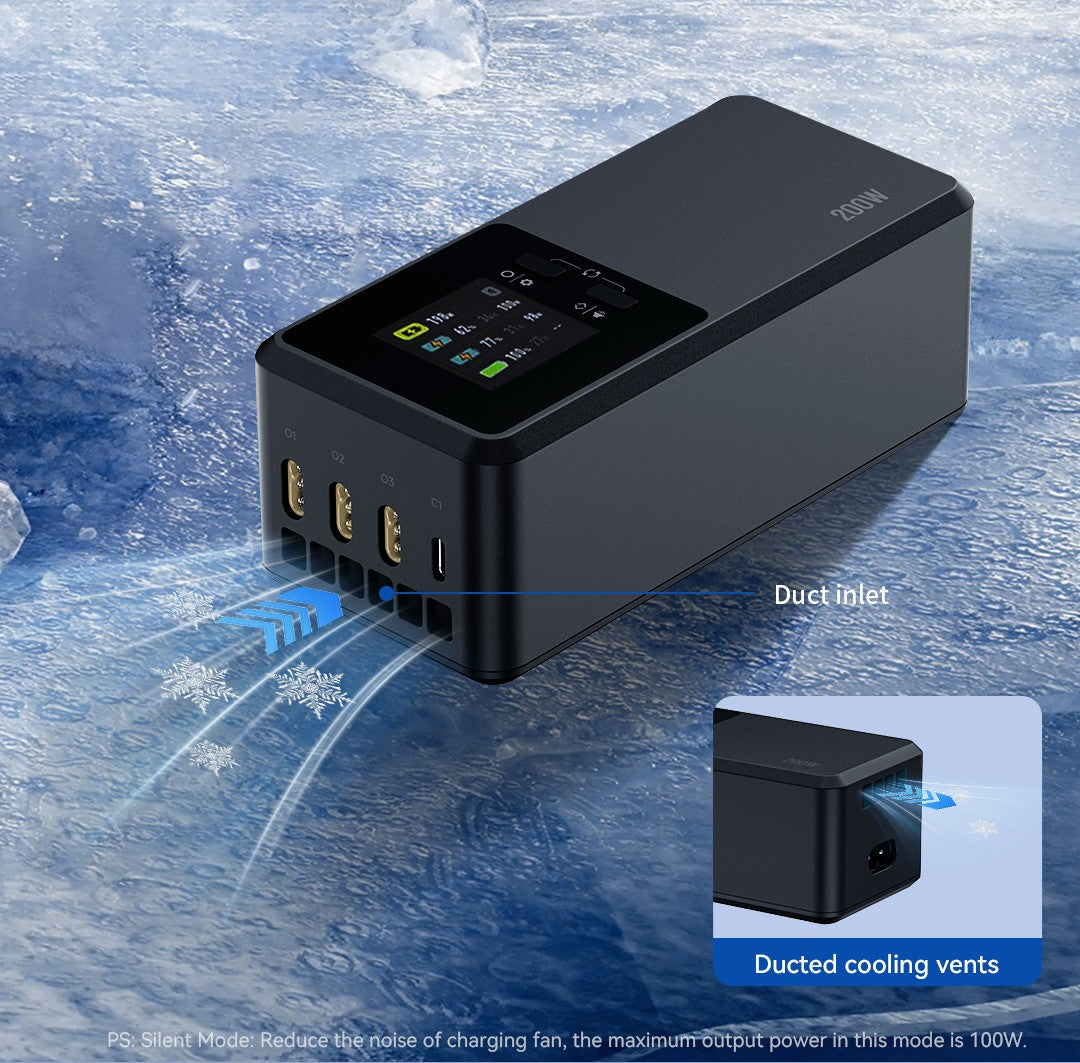

• Active Cooling System: Built-in high-efficiency silent fan with subtle airflow design dissipates heat during fast charging, ensuring safety even in high-temperature environments.

️ Technical Specifications

• Brand: LKTOP

• Model: Three-Channel Charger

• Material: ABS Plastic

• Color: Black

• Dimensions: 155 × 130 × 60 mm

• AC Input: 100V–240V~2.5A, 50Hz/60Hz, 230W Max

• USB-C Output: 5V--3A, 9V--3A, 12V--3A, 15V--2.4A, 20V--1.8A (36W Max)

• Charging Power: 180W Max (single battery) / 200W Max (multiple batteries)

Usage Tips

• Mode Selection: Use 100% Full Charge Mode for immediate flights, Silent Mode for noise-sensitive areas (e.g., residential zones), or Storage Mode to preserve battery health during long breaks.

• Simultaneous Charging: Connect up to 3 batteries and 1 USB-C device at once—ensure all cables are securely plugged in to avoid slowdowns.

• Cooling Maintenance: Keep the charger in a well-ventilated area; avoid blocking the fan vents to maintain optimal cooling performance.

️ Important Notes

• Model Compatibility: Only compatible with DJI Matrice 4 series batteries—do not use with other drone models to prevent damage.

• Accessory Requirements: Use only the included charging cables to ensure safe and efficient charging; third-party cables may void warranty or cause overheating.

• Overheat Protection: The charger automatically reduces power if temperatures exceed safe limits—allow it to cool before resuming charging if this occurs.
