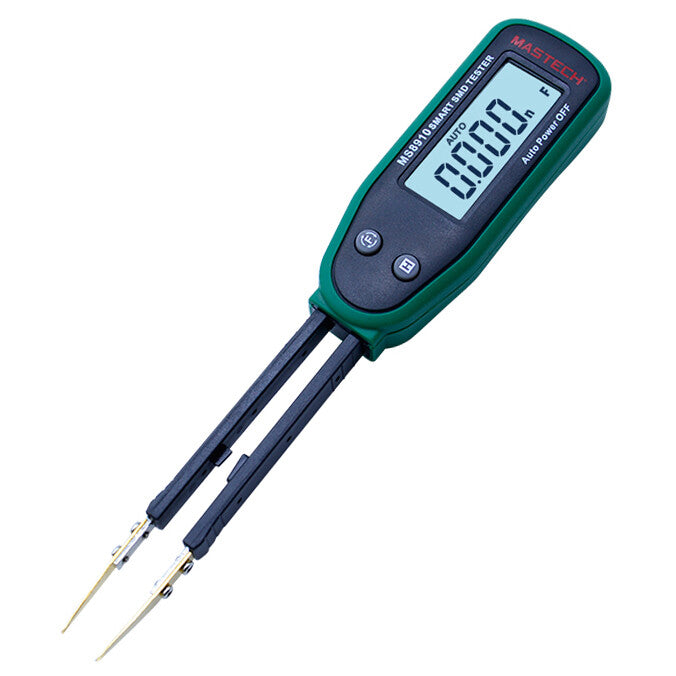

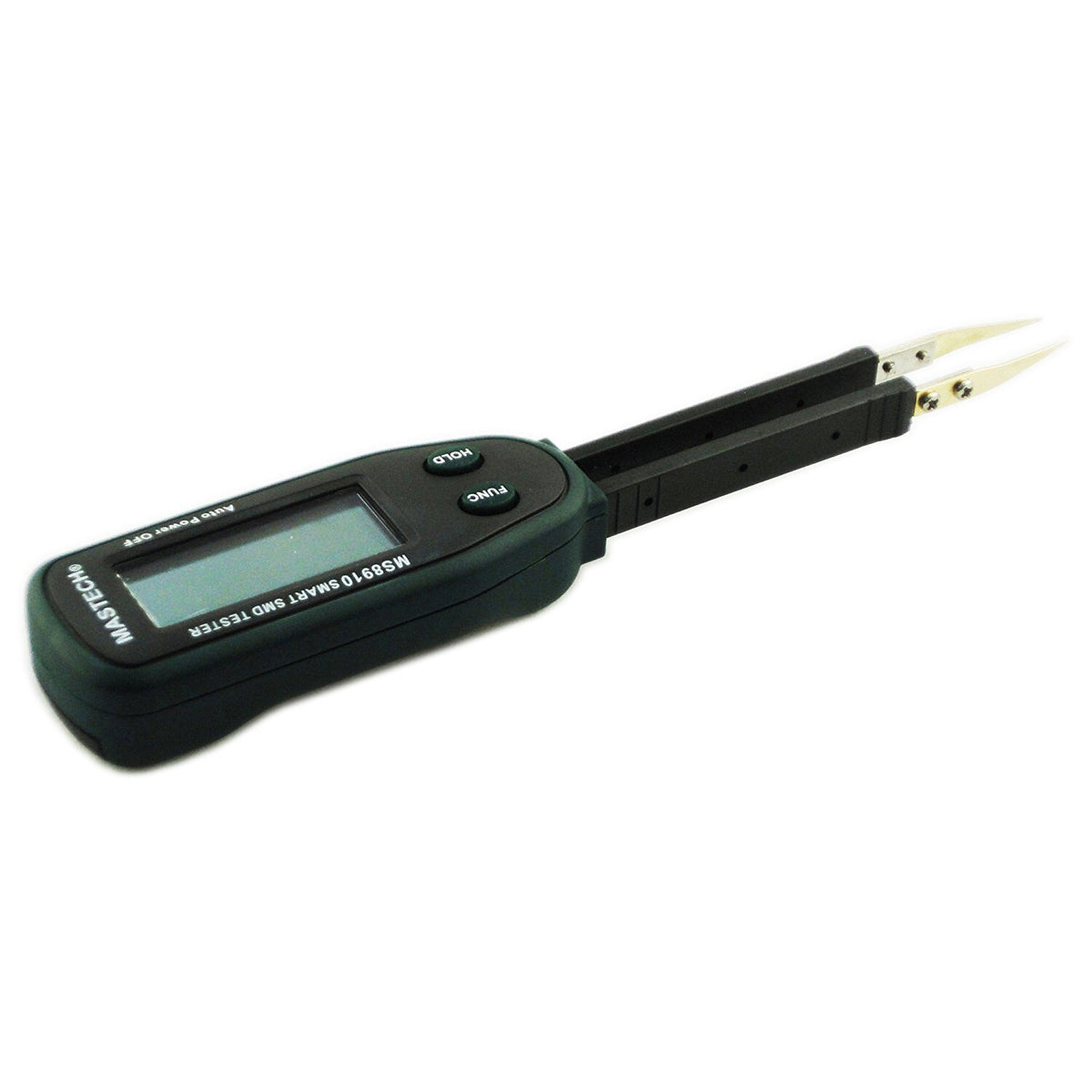

Mastech MS8910 SMD R/C Resistance Capacitance Meter Tester Auto Scan

• Specially designed for measuring SMDs (Surface Mount Devices)
• Diode check, Continuity test , 3000 counts LCD display
• 6-range Resistance measurement 0 to 300 ohms to the highest 0 to 30 Mohms
• 8-range capacitance measurement 0 to 3 nF to the highest 0 to 30 mF
• Auto Ranging, Auto Power Off, Data Hold, Low Battery Display

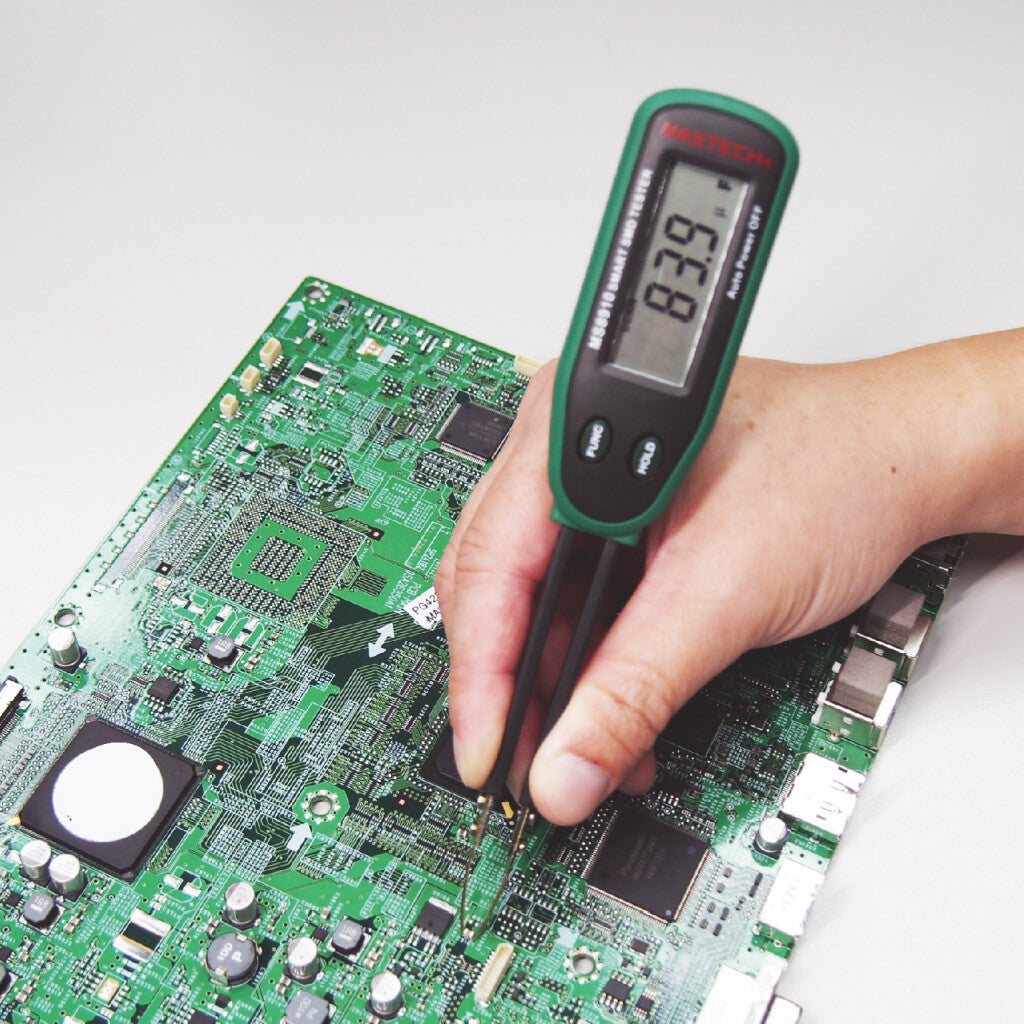

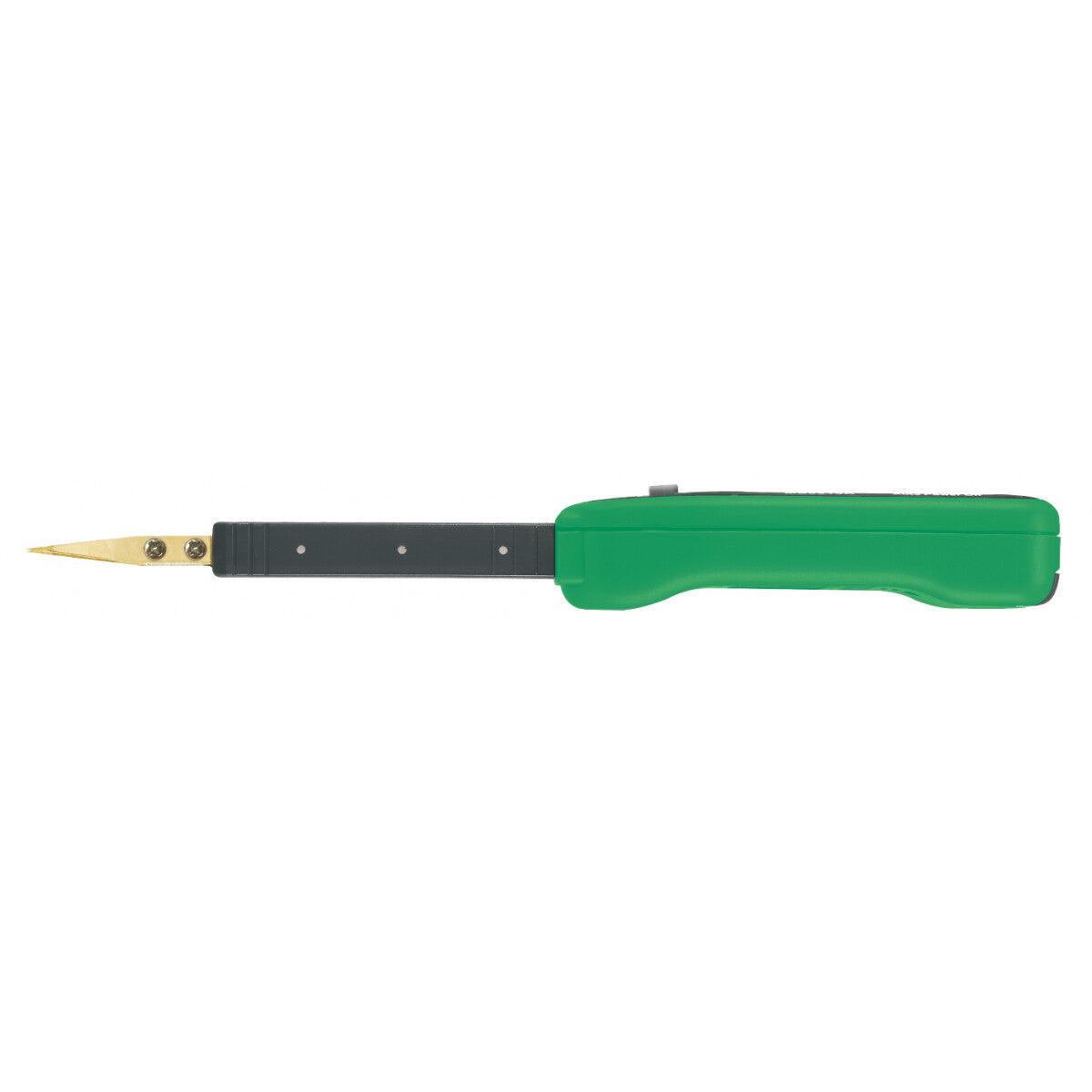

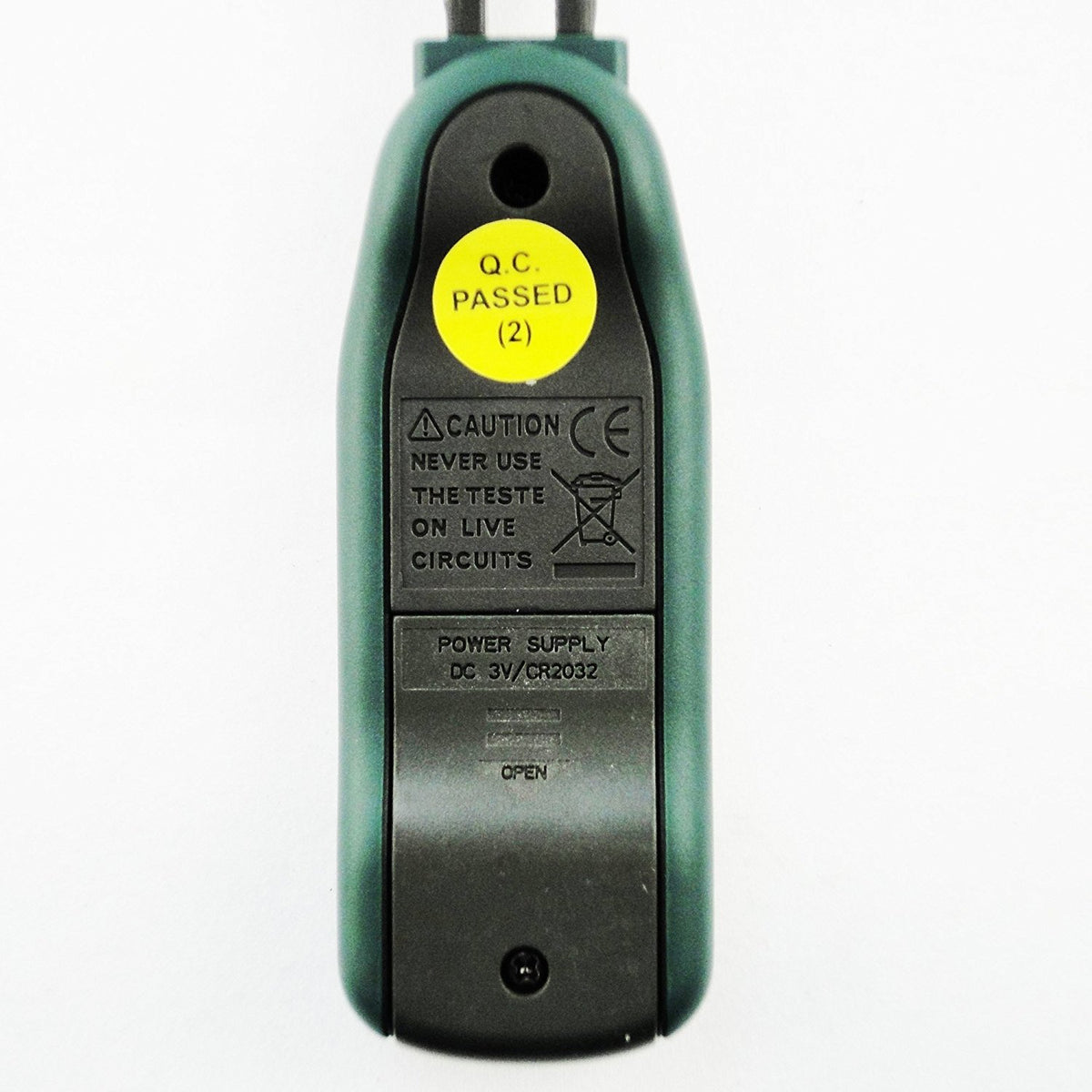

The MS8910 gives users an easy way to sort and evaluate loose components and to perform on-board measurements and debugging. This convenient, compact tool is handheld, battery operated, and is specially used to measure SMDs (Surface Mounting Devices) such as Chip type resistors, Chip type capacitors and diodes. Surface mount devices are usually tiny and without wire leads, making it much more difficult to test and identify SMD than conventional components. The precise tips of this tester are made of non-magnetic steel and are able to pick up and reliably contact even the smallest SMD components, or take measurements from the device already mounted on a board. The probe can also be used to test conventional components with wire leads too short to insert into the test terminals. Moreover, the tester features a continuity checking function. The tester automatically identifies the passive component as indicated above. Therefore, the measurement are allowed by fully automatic detection. The tester is designed to meet IEC1010-1 standard and Stipulation of 2-Population Grade. Conforms to the following European Union’s Requirement: CE regulation 89/336 (EMC Electromagnetic Compatibility). The entire outer surface of the Tester case has been with thermo plastic elastomer, and the two testing pins has been gold-plated, so that it is reduce pin contact resistance and prevent to get rusty. This operating instruction covers information on safety and caution, so please read relevant information carefully and observe all the warming and note strictly. An instruction manual is included. A digital version of the manual can be downloaded from the Mastech website. Specifications: Display 3000 counts, Auto Ranging, Auto Power Off, Data Hold, Low Battery Display, Auto Scanning, Diode Check Open Voltage 2.8V, Diode Testing Current 2mA, Continuity Buzzer <30Ω.



Capacitance

Range	Resolution	Accuracy
3nF	1pF	±(2.5% of reading + 3 digits)
30nF	10pF	±(2.5% of reading + 3 digits)
300nF	100pF	±(2.5% of reading + 3 digits)
3uF	1nF	±(2.5% of reading + 3 digits)
30uF	10nF	±(2.5% of reading + 3 digits)
300uF	100nF	±(3.0% of reading + 3 digits)
3mF	1uF	±(3.0% of reading + 3 digits)
30mF	10uF	±(3.0% of reading + 3 digits)



Continuity Test

	Function
Buzz	will sound if the resistance is lower than 30Ω



Diode Test

Resolution	Function
1mV	Displaying approximate forwarder voltage of diode

Forwarder DC Current: ~2mA
Open Circuit Voltage:~2.8V

                                                         Resistance

Range	Resolution	Accuracy
300Ω	0.1Ω	±(1.0% of reading + 2 digits)
3kΩ	1Ω	±(1.0% of reading + 2 digits)
30KΩ	10Ω	±(1.0% of reading + 2 digits)
300KΩ	100Ω	±(1.0% of reading + 2 digits)
3MΩ	1KΩ	±(1.0% of reading + 2 digits)
30MΩ	10KΩ	±(1.2% of reading + 3 digits)
