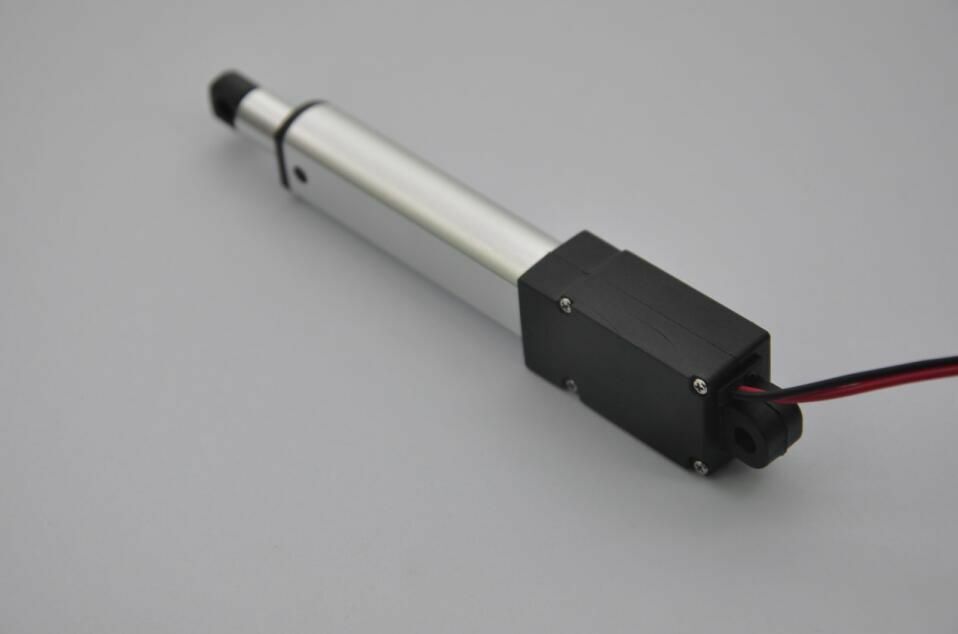

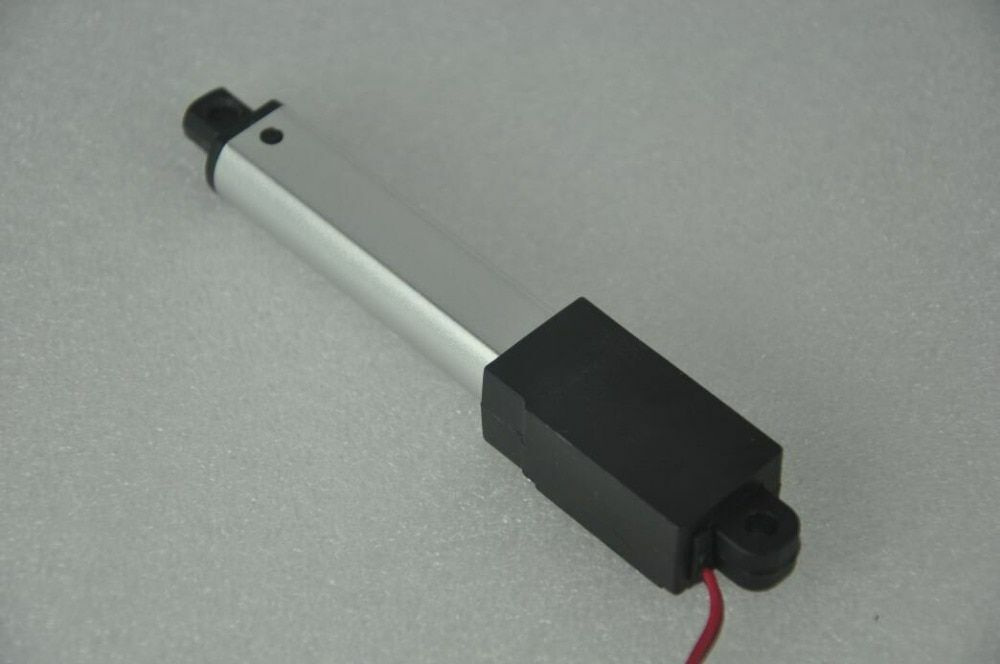

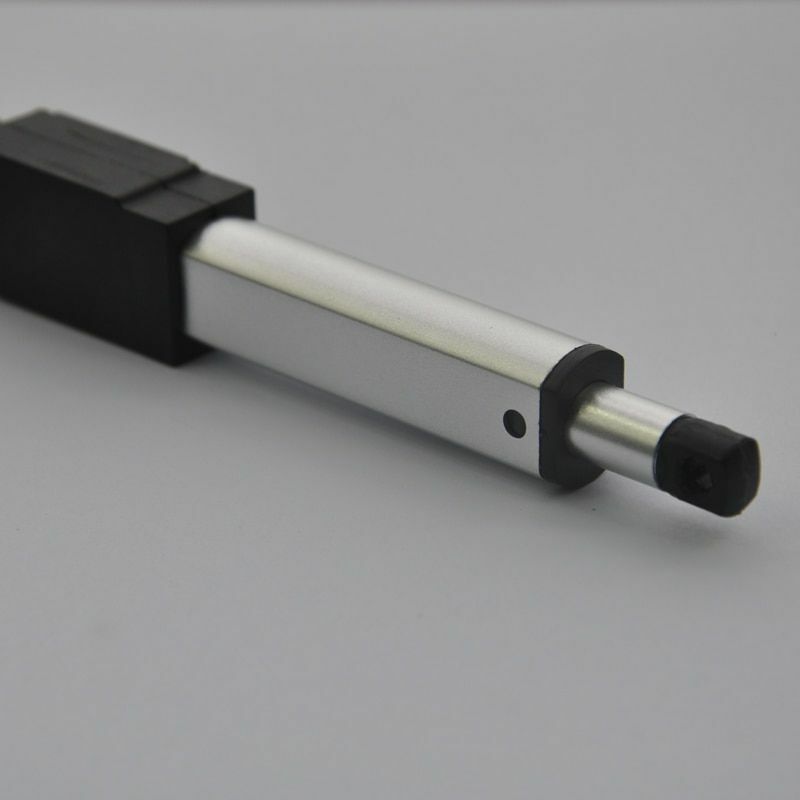

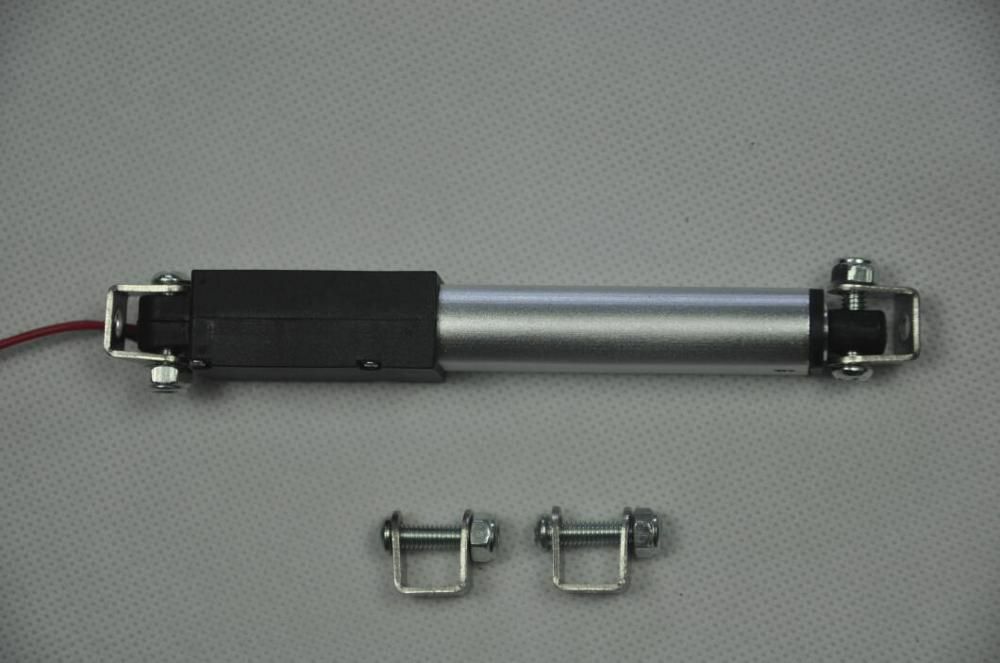

Mini linear actuator. Although it is smaller,great ideal for any project where space or weight is at a premium.

We produce linear actuator,tv lifts,control box,handset,lifting column,electric desk. The spare part suppliers work with us for many years,with rich experienced team and ISO good quality control system that is why our quality and service makes customer happy.

We deeply appreicate your interest to our company.

Linear actuator spec:

1 Type                                       linear actuator

2 Input                                      6V 12V DC

3 Max Load                                188N=18KG=44LBS

4 Max Speed                              150mm per second

5 Limited switch                         With

6 Duty cycle                               25%

7 Inner tube material                  Aluminum alloy

8 Stroke length                           Max 100mm

9 Lmin and Lmax                        Normal Lmin=Stroke+54.5

10 Color                                     Black

11 Operation temperature            -26 ~ +65 degree



1 Lmin=54.5mm+Stroke

For example. If Sroke is 50mm,the normal Lmin is 54.5+50=104.5mm.

Lmin means the length when linear actuator 100% fully closed, meanwhile,it will touch the tail limited switch and stop automatically.

2 Stroke means the movement length of linear actuator.

3 Lmax=Lmin+Stroke=54.5+2*Stroke

​For example. If Sroke is 50mm,the normal Lmin is 54.5+2*50=154.5mm.

Lmax means the length when linear actuator 100% fully open, meanwhile,it will touch the head limited switch and stop automatically.

​

Stroke 10MM Lmin=54.5+10=64.5MM,Lmax=64.5+10=74.5MM

Stroke 21MM Lmin=54.5+21=75.5MM,Lmax=75.5+21=96.5MM

Stroke 30MM Lmin=54.5+30=84.5MM,Lmax=84.5+30=114.5MM

Stroke 50MM Lmin=54.5+50=104.5MM,Lmax=104.5+50=154.5MM

Stroke 100MM Lmin=54.5+100=154.5MM,Lmax=154.5+100=254.5MM
