Mini Cargo Conveyor Belt Machine Vending Machine Grocery Pickup Contactless Top

Mini Cargo Conveyor Belt Machine Vending Machine Grocery Pickup Contactless Top

Specification

We provide customized service for customers. According to the available length, width and speed, we can produce customized products. The price is more favorable according to the quantity.

The package dont include the power supply , please contact us if you need.

Product Name: vending machine electric conveyor belt (single / double belt)

Voltage: DC 24V

Speed: 55mm/s

Length: 504mm/532mm/604mm/704mm

Material: plastic

Function: push goods, transport goods, contactless sampling

Specification: single belt 504mm, single belt 504mm, double belt 504mm, single belt 532mm, double belt 532mm, single belt 604mm, double belt 604mm, single belt 704mm, double belt 704mm, single belt 982, double belt 982, single belt 1036, double belt 1036

Load: 15kg for single belt / 30kg for double belt

Temperature resistance: - 25 ℃ - + 90 ℃

Crawler features: seamless integration, no connection port

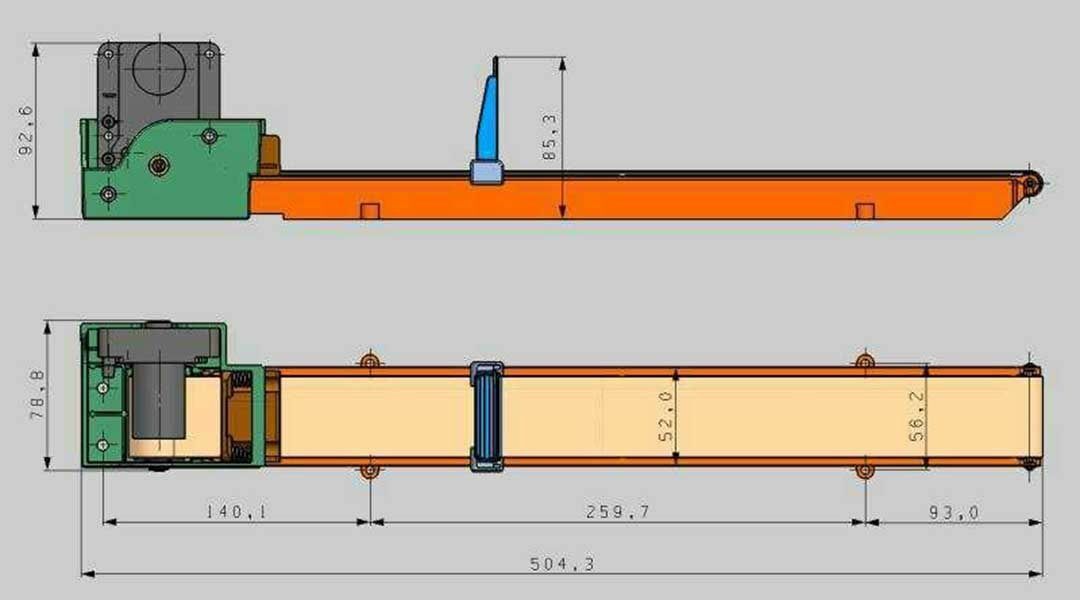

504mm Single Belt:

504mm Double Belt:

704mm Single Belt:

704mm Double Belt:

Product Features

This product is applicable to the vending machine with crawler function, conveying fast food, cold chain, vegetables, alcohol, electronics and other fragile products.

This product is applicable to the upgrade of spring vending machine. The original cargo way, control main board and wiring base do not need to be changed.

Main characteristics:

1) Push plate shipment, solve the problem of goods and track slipping out of the goods.

2) The automatic tension function of track solves the problem of looseness caused by long-time operation or hot expansion and cold contraction.

3) Solve the cost, do not need to use the traditional sheet metal drawer.

4) Good environmental adaptability, can work at higher temperature.

5) High quality transport belt material, good wear resistance, health and environmental protection, fire prevention, waterproof, antibacterial, mildew proof
