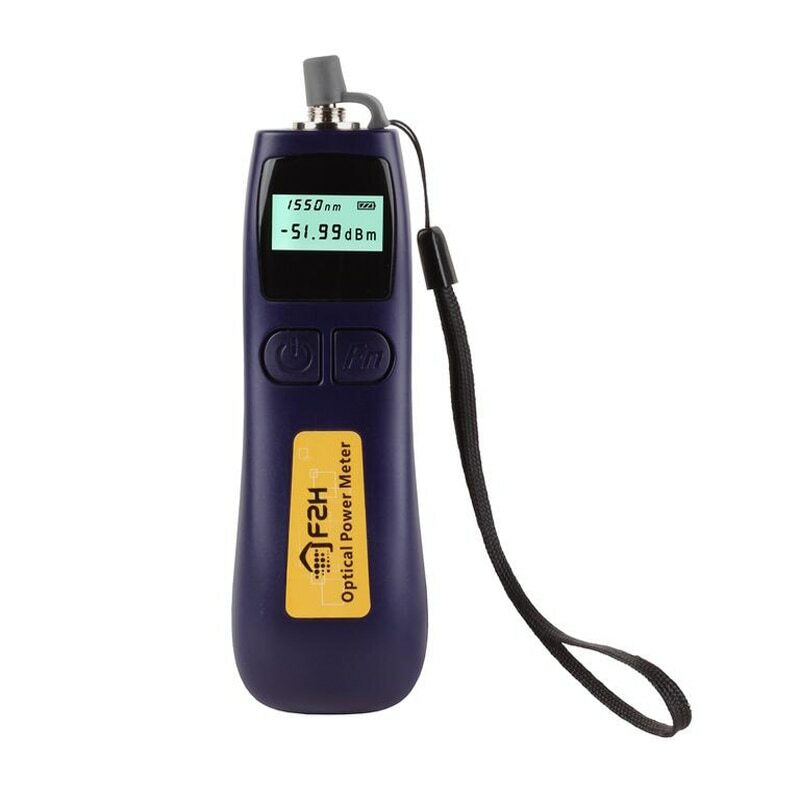

Mini FTTH Fiber Optic Optical Power Meter FHP12-A -70~+10dBm Support FC SC ST

Mini FTTH Fiber Optic Optical Power Meter FHP12-A -70~+10dBm Support FC SC ST

$80.85 USD
$101.85 USD $80.85 USD
Sale Sold out
Shipping calculated at checkout.
eBay
Mini FTTH Fiber Optic Optical Power Meter FHP12-A -70~+10dBm support FC SC ST

Product Description

Telecommuniation -70~+10dBm FHP12A Grandway Handheld Mini Fiber Optical Power Meter

Description

FHP12 Series Mini Optical Power Meter has compact structure and stable performance and ensures high measuring precision of 850nm, 1300nnm,
1310nm, 1490nm, 1550nm and 1625nm wavelengths. Used together with Optical Laser Source, it could accurately measure the loss of fiber, cable
and other passive optical devices.

Features

Imported sensor head

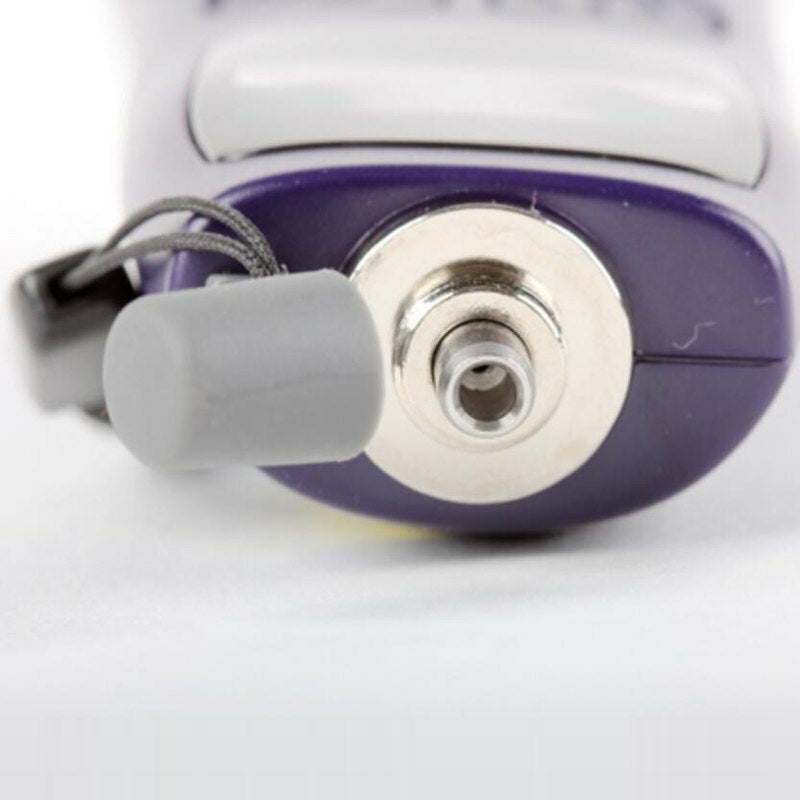

2.5mm universal interface(support FC/SC/ST connectors)
Low power consumption, continuous work more than 80 hours
Linear optical power and logarithmic power display
Automatic measuring range adjust and power remains indication
Relative value measurement function
Compact and portable design



Specification


Type FHP12-A FHP12-B
Display Range +10~-70dBm @1550nm +26~-50dBm @1550nm
Resolution 0.01
Calibrated Wavelength 850/1300/1310/1550/1490/1625
Sensor Type InGaAs
Accuracy 0.35dB ±1nW 0.35dB ±10nW
Working Wavelength 800~1700
Continuous Working Hours About 80 hours(stand-by time:About 1600hours)
Power Source 2*AAA dry batteries(not included)
Working Temp. -10~+50°C;<90%RH
Storage Temp. -20~+70°C;<90%RH
Dimension L120mm*W33mm*H30mm / About70g


HTB1gjsgGFXXXXcoaXXXq6xXFXXXtHTB10RQKHXXXXXcBXpXXq6xXFXXXI

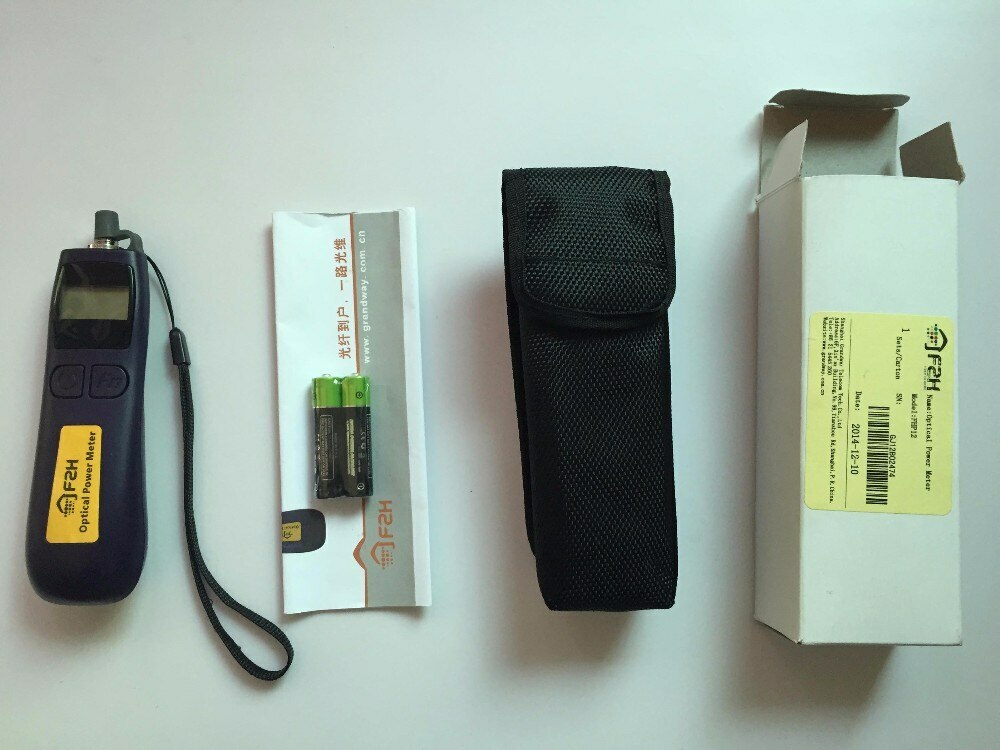

Package List:
1pc FHP12-A Fiber Optical Power meter(battery not include)
