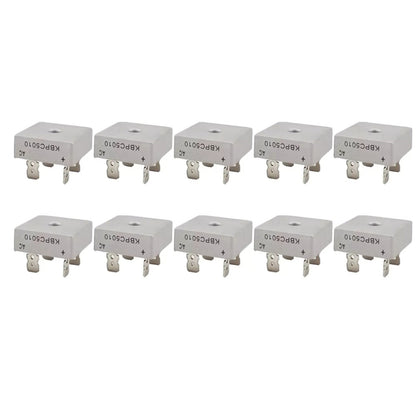

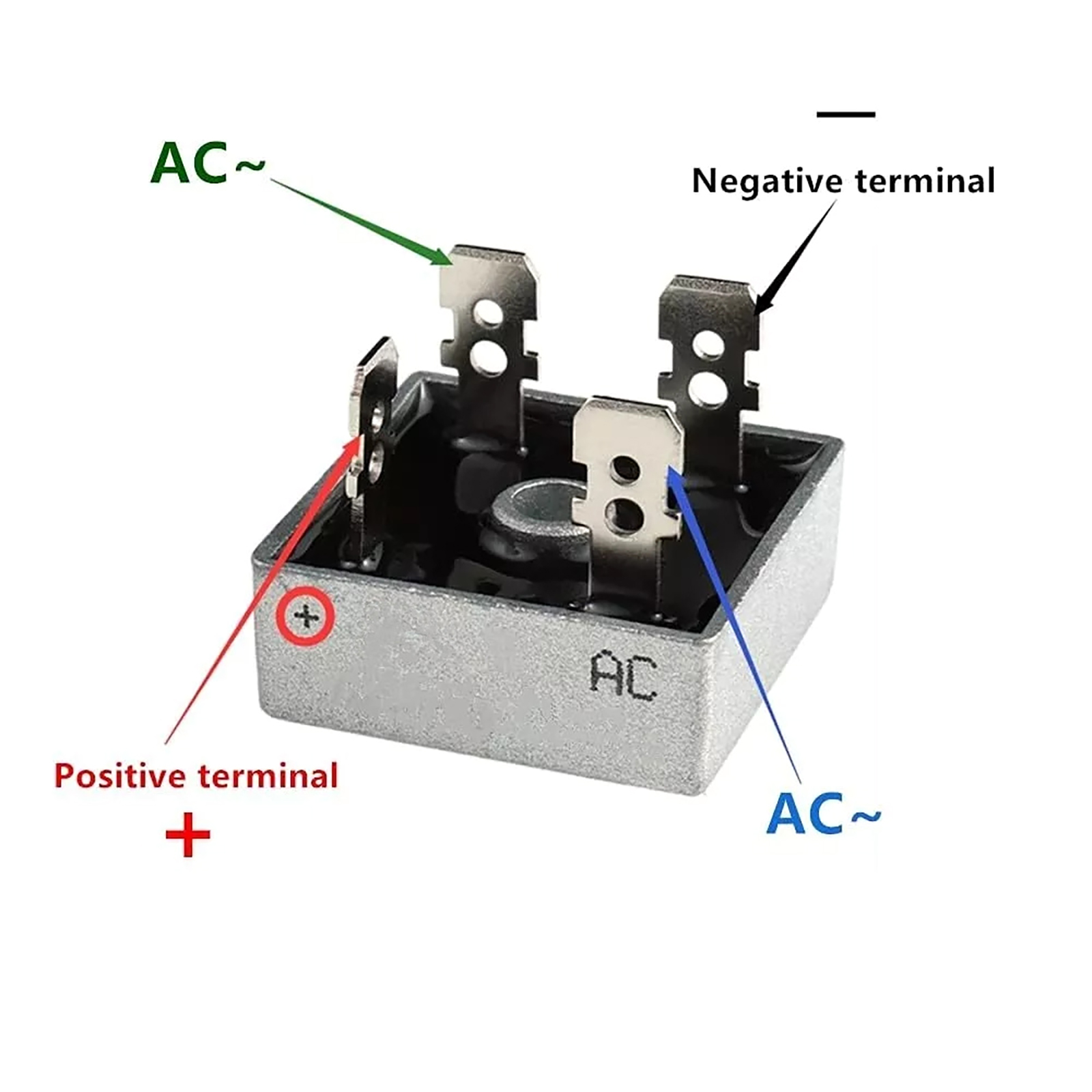

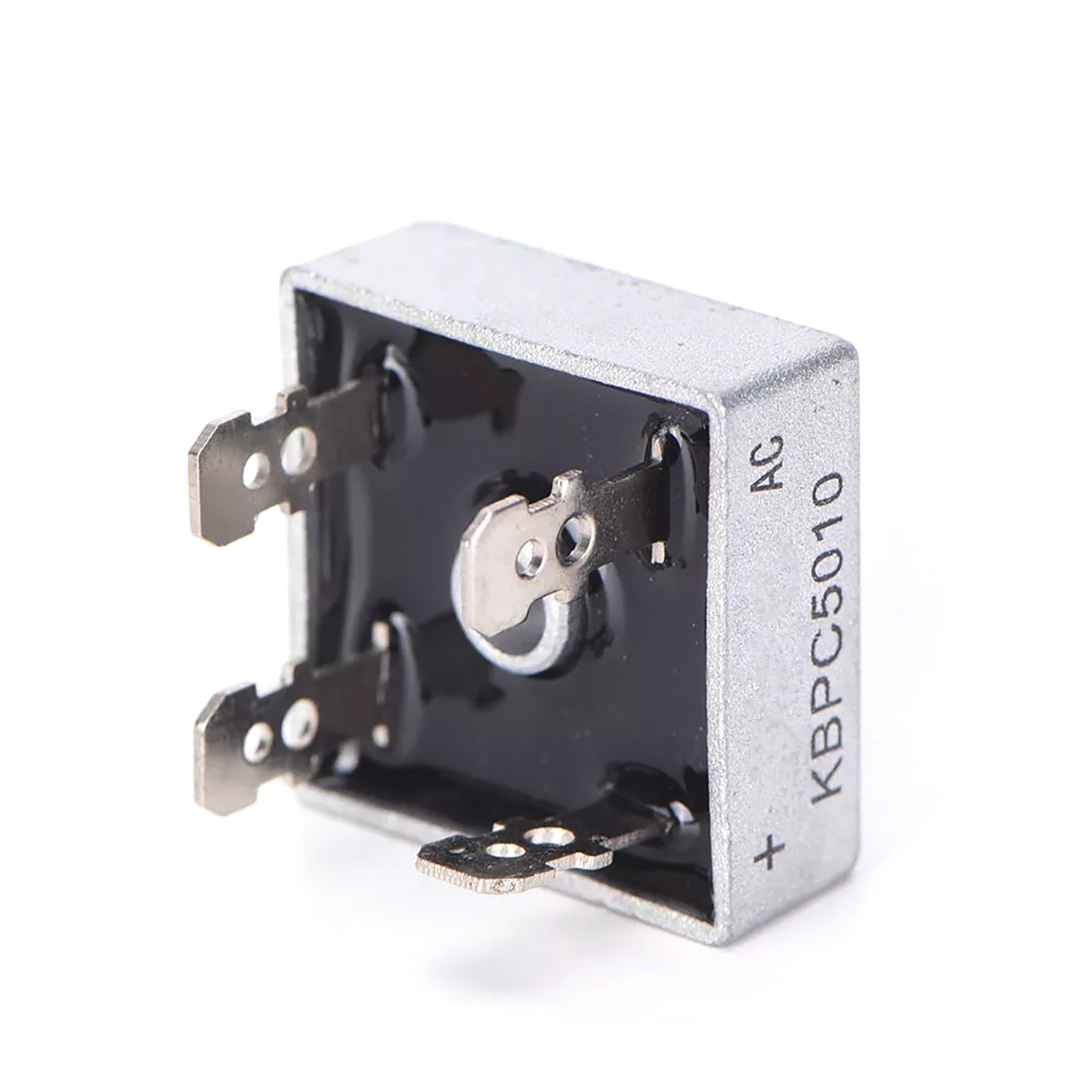

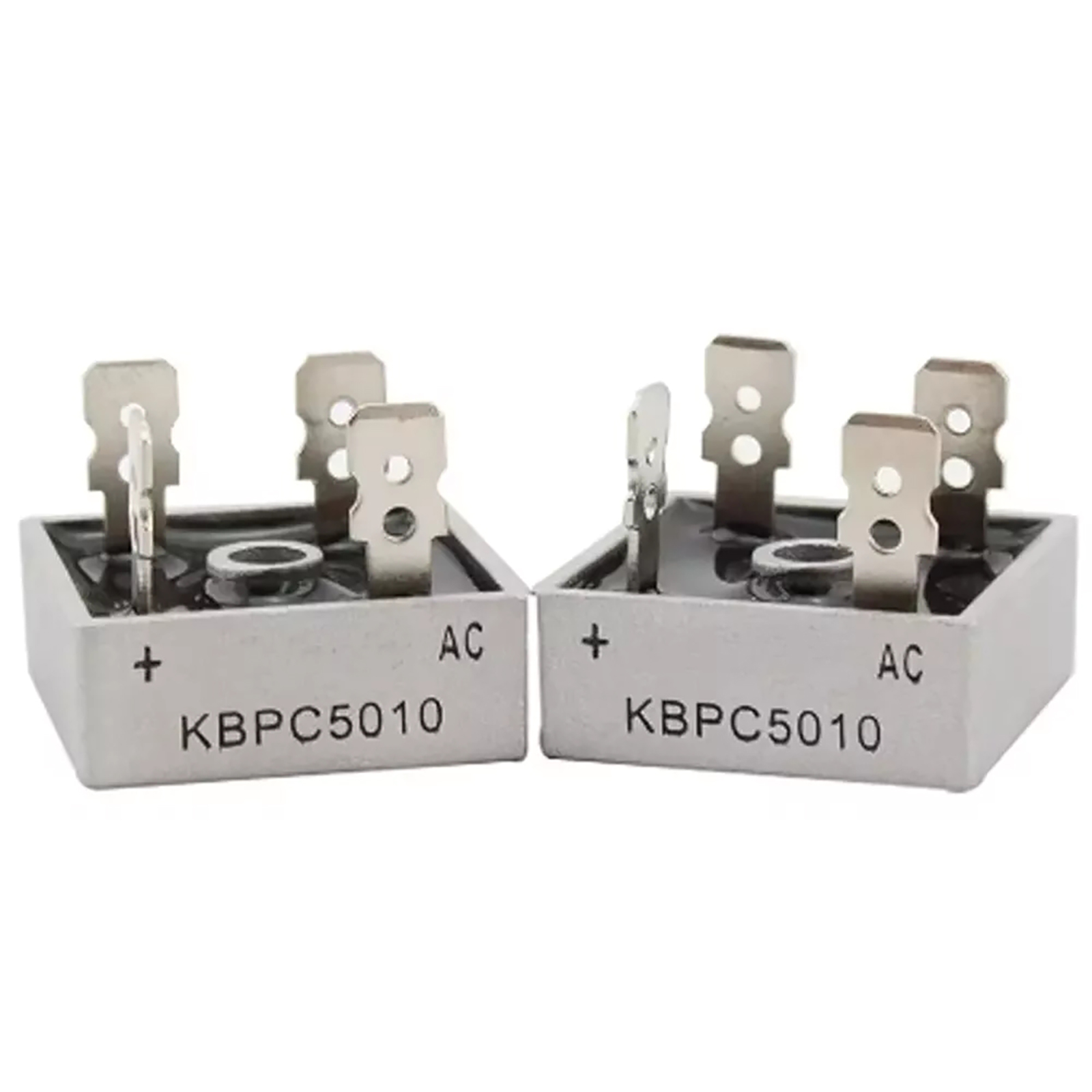

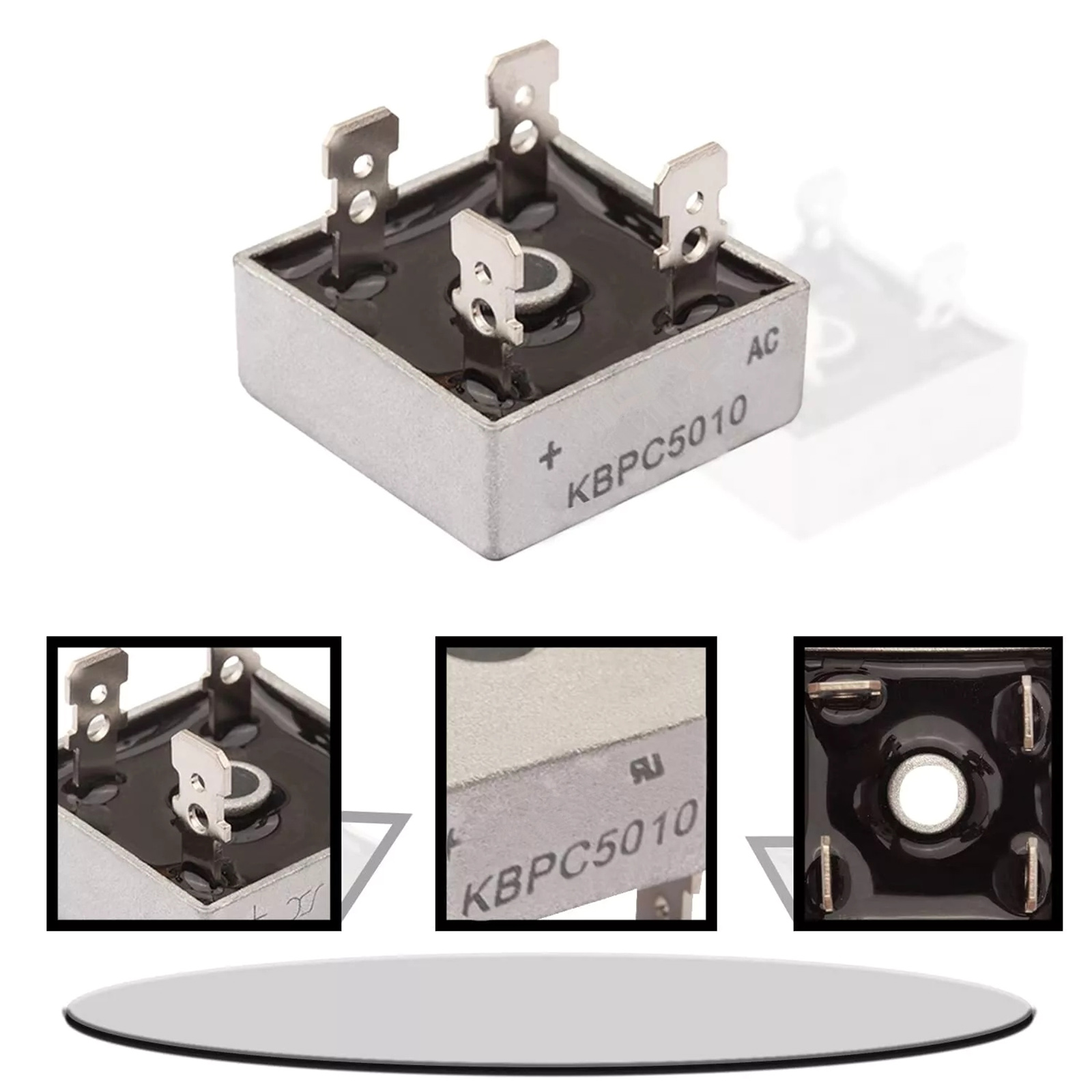

New 10X KBPC5010 -55~150°C 1000V Metal Case Single Phase Diode Bridge Rectifier

Features:
Surge overload ratings to 400 amperes

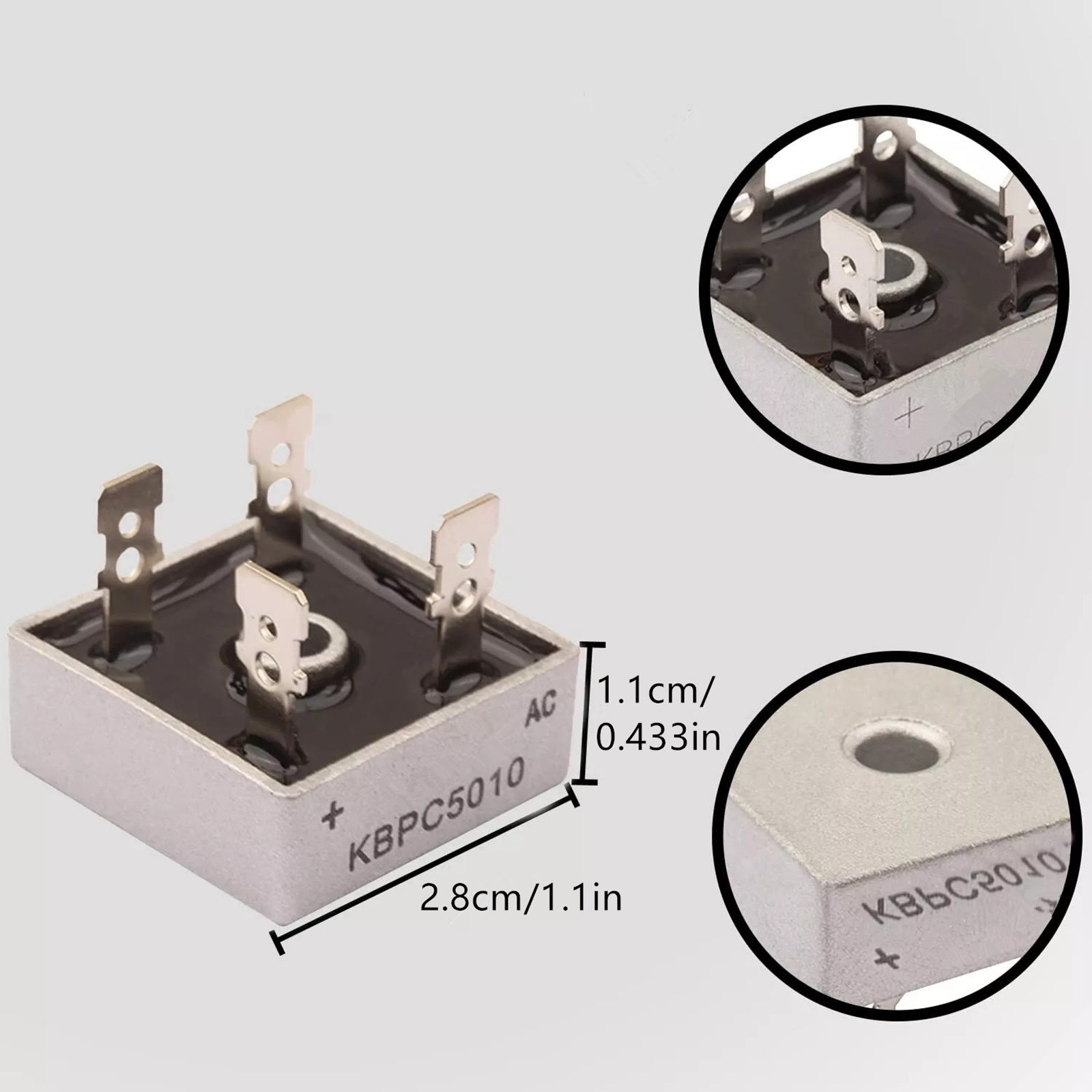

Electrically isolated metal case for maximum heat dissipation
Case to terminal isolation voltage 2500V

Specifications:
Maximum repetitive peak reverse voltage (VRRM): 1000V
Maximum RMS bridge input voltage (VRMS): 700V
Maximum DC blocking voltage (VDC): 1000V
Maximum average forward rectified output current at TA=40 C (IF(AV)): 50A
Peak forward surge current single sine-wave superimposed on rated load (JEDEC Method) (IFSM): 400A
Typical thermal resistance per element (ReJA): 2.5 degrees C/W
Operating junction and storage temperature range: -55°C~150°C
Maximum instantaneous forward voltage drop per leg at 25A (VF): 1.0V
Maximum DC reverse current at rated TA=25 C (IR): 10uA
DC blocking voltage per element TA=125 C (IR): 500uA

Package include:

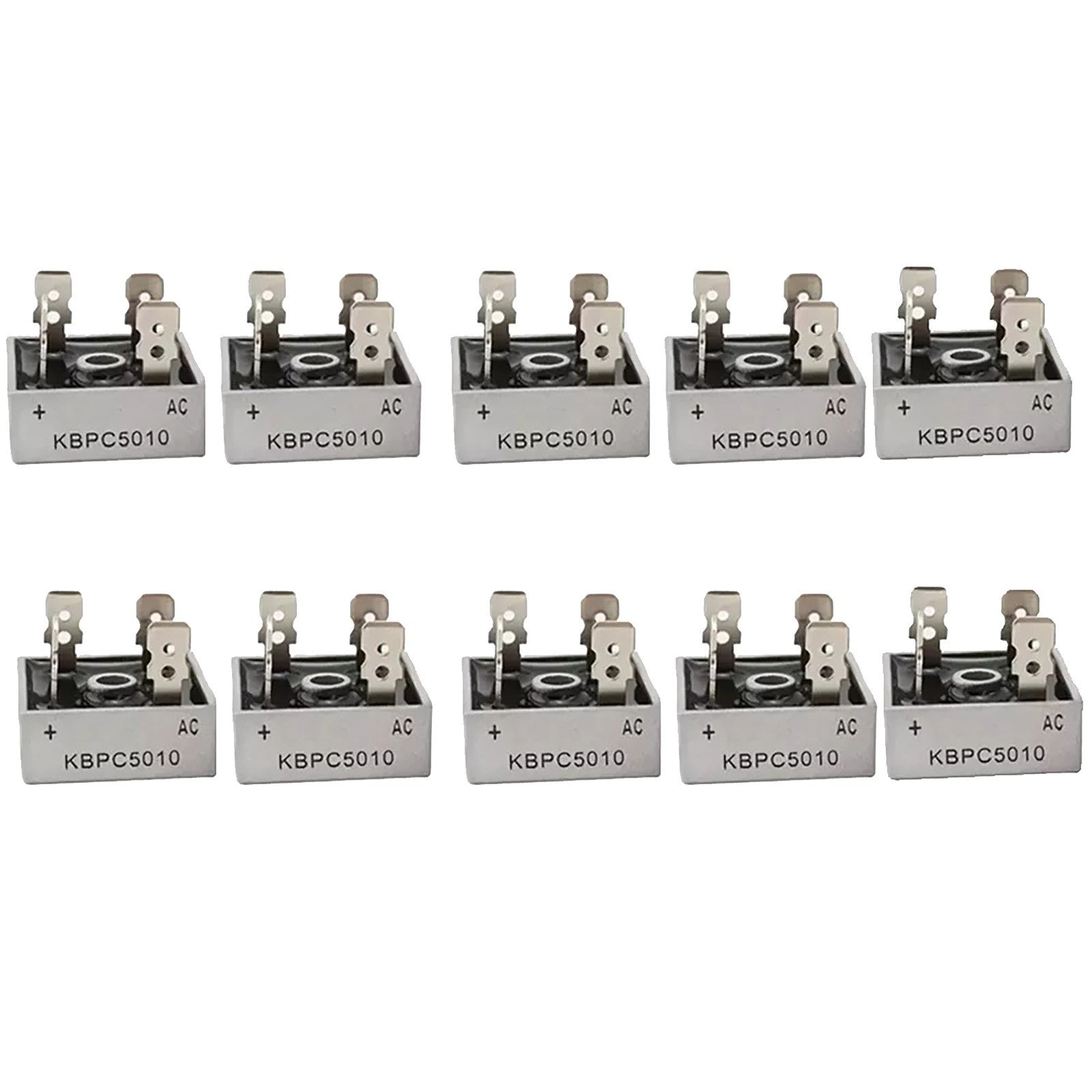

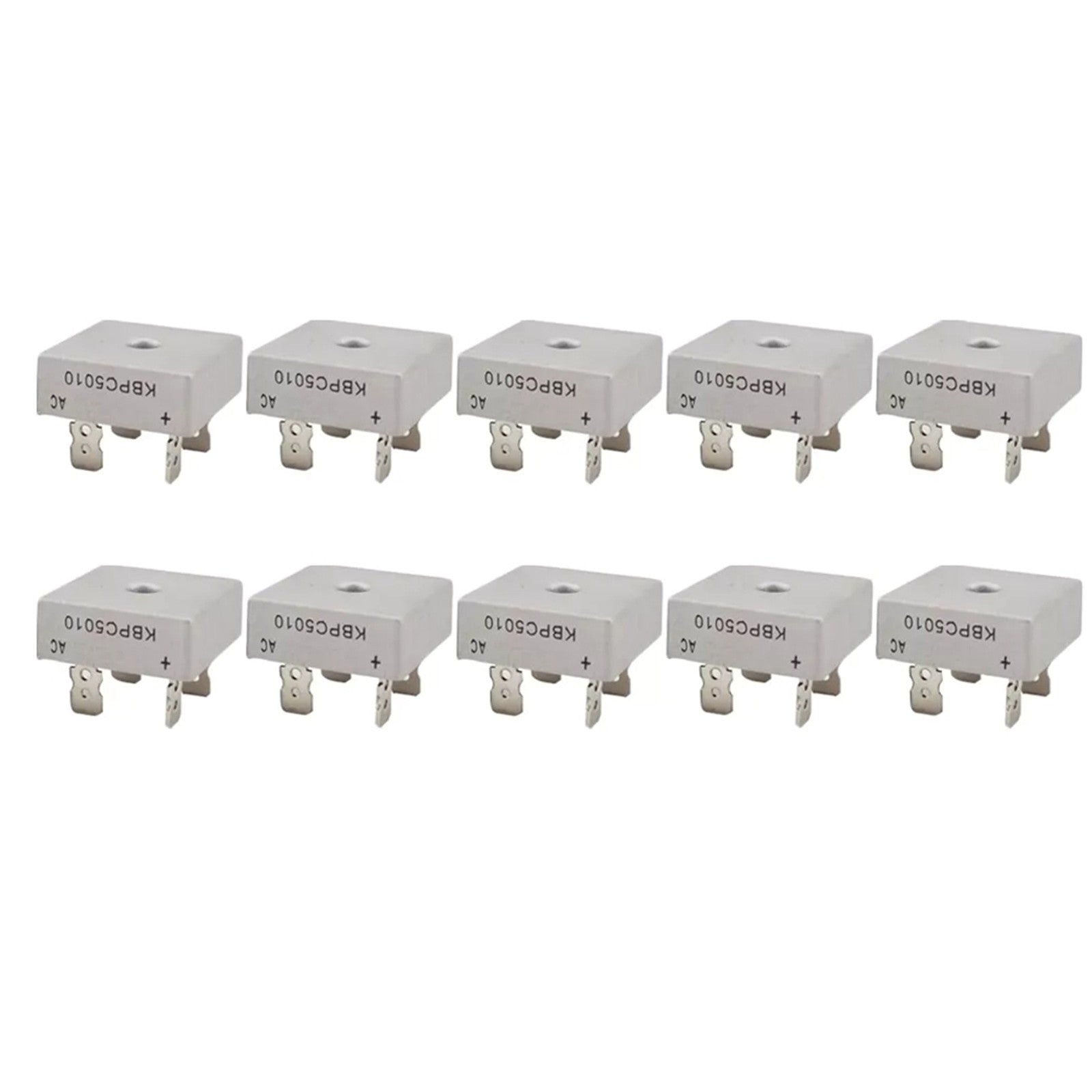

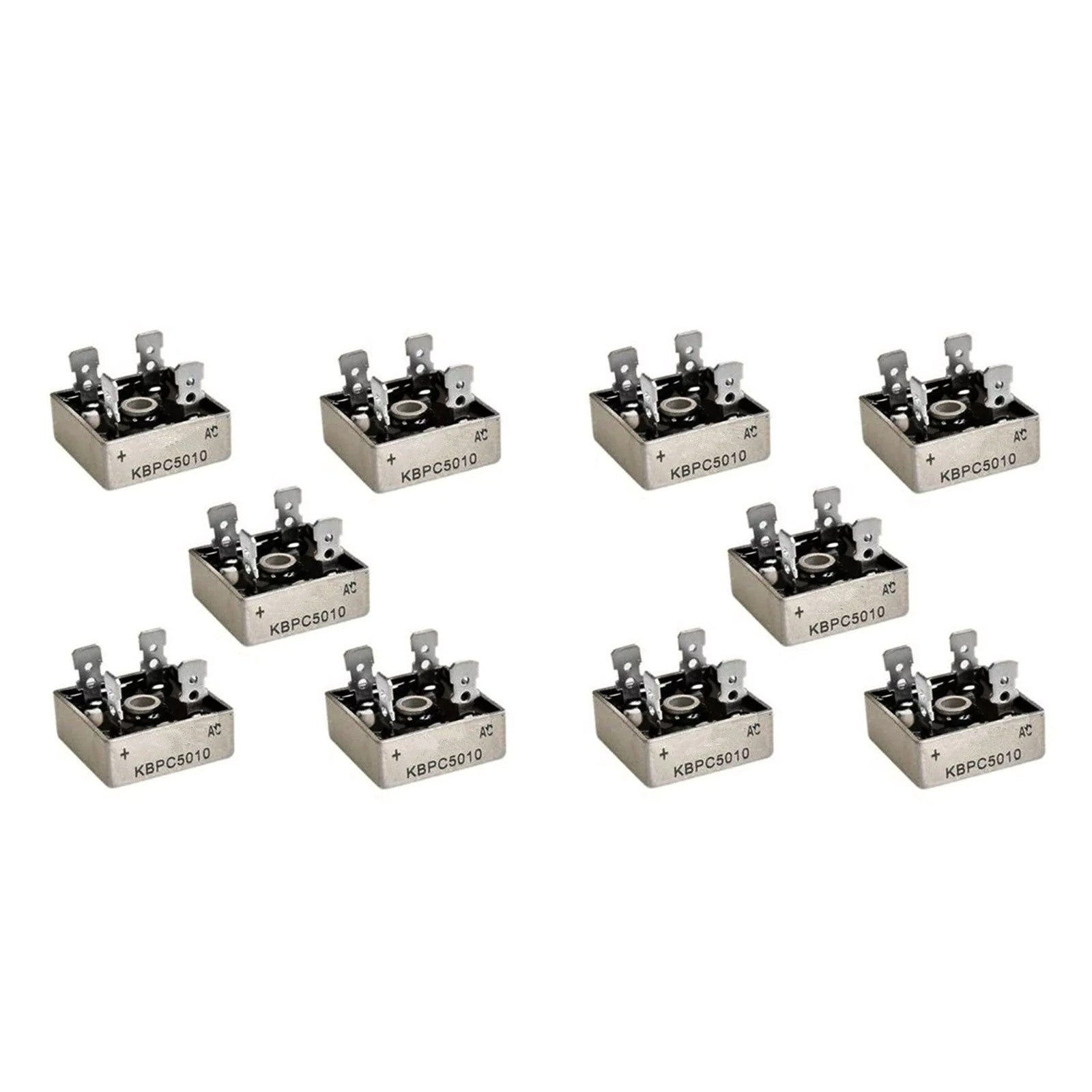

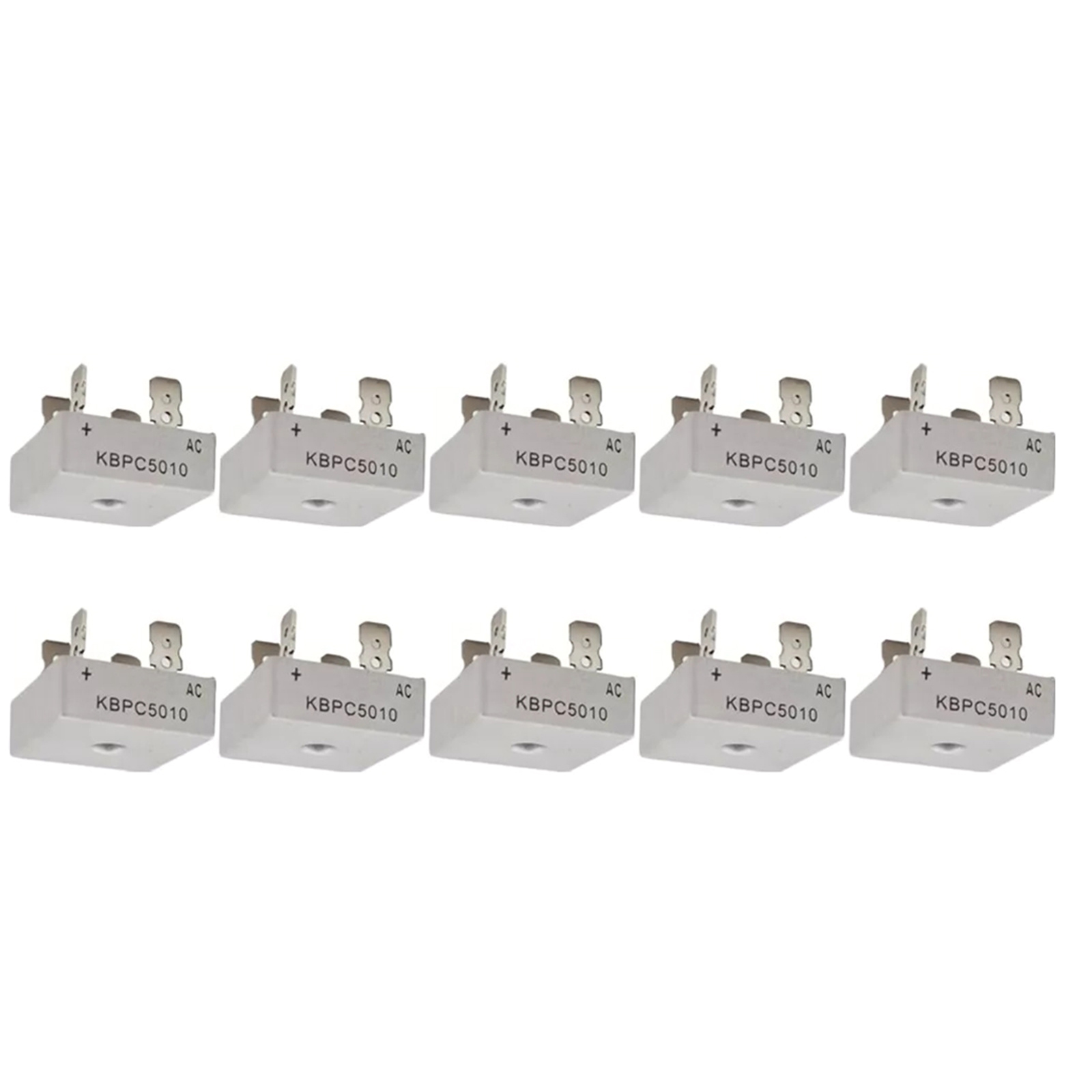

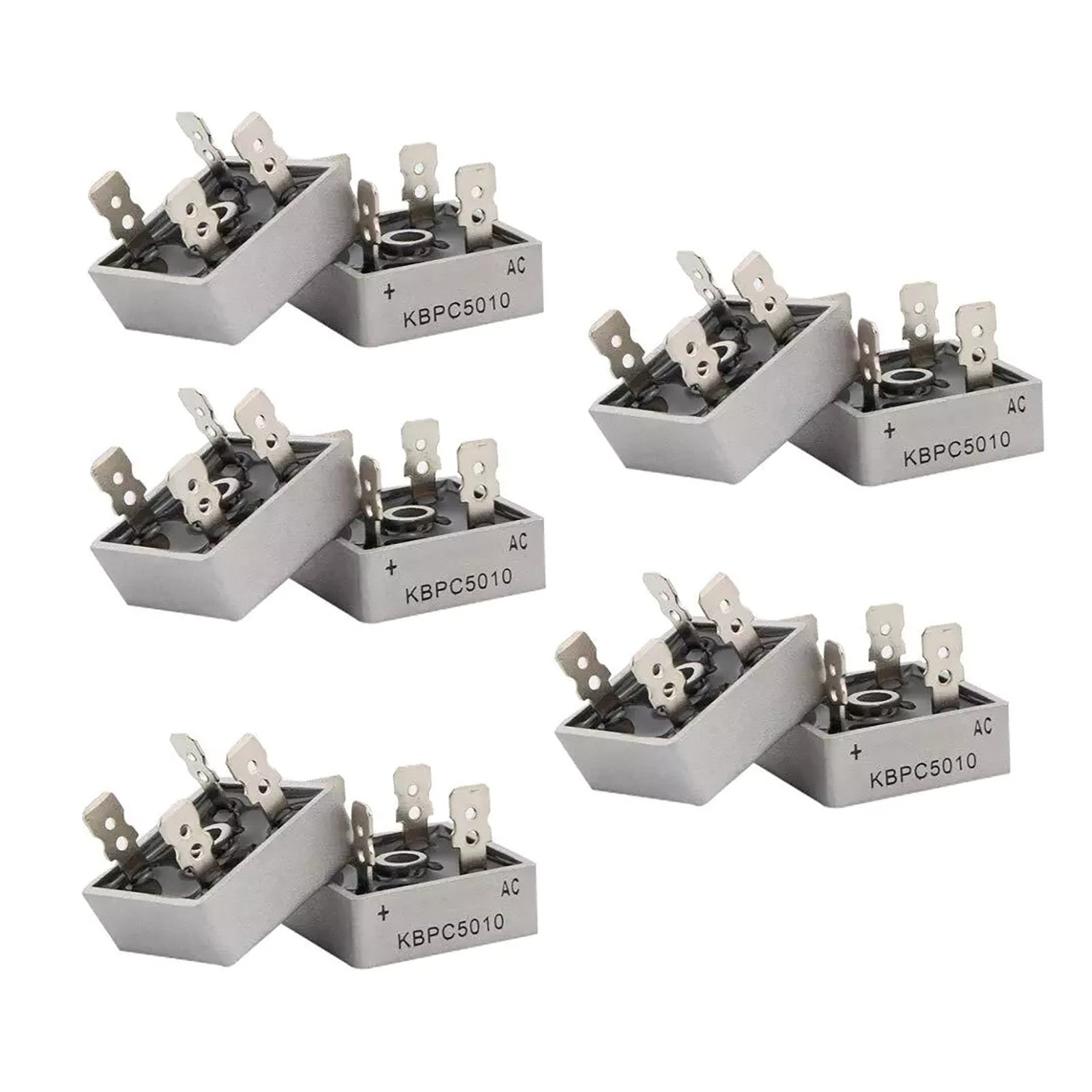

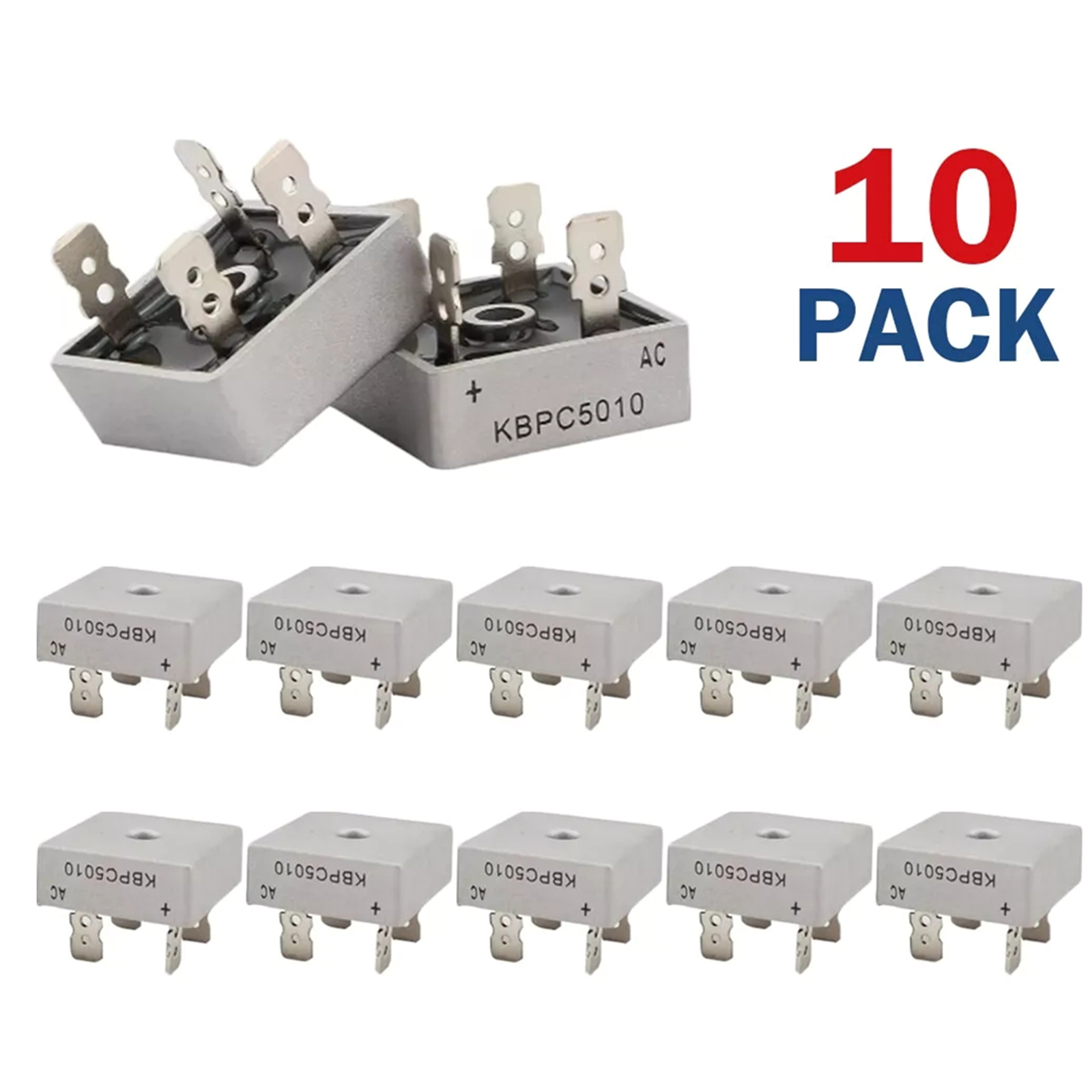

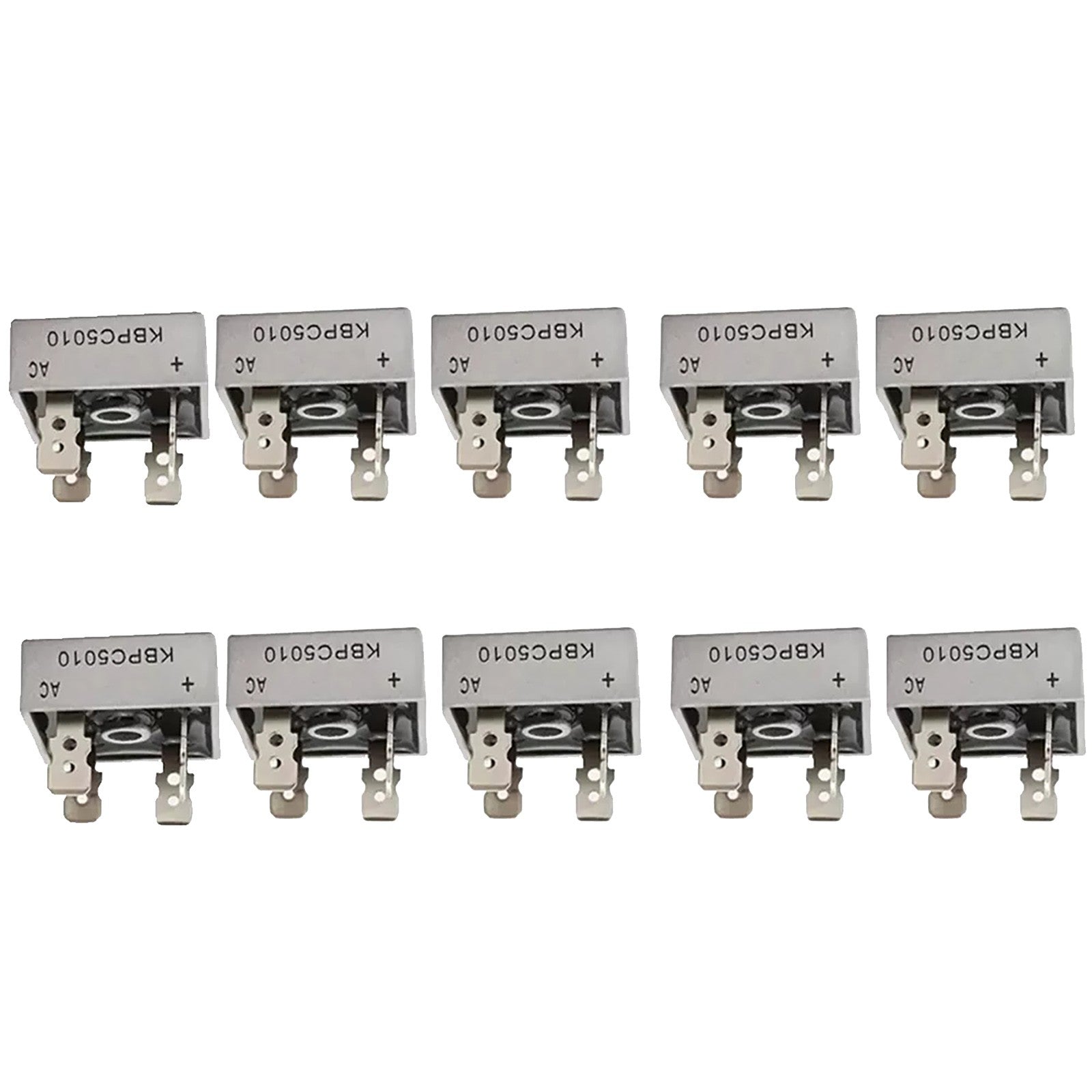

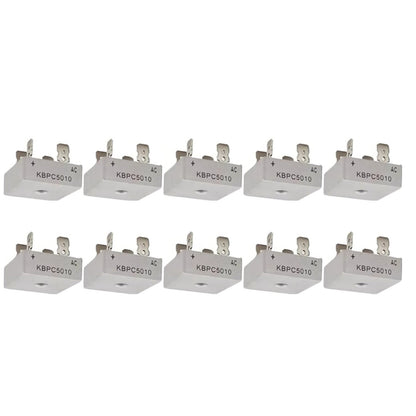

10PCS KBPC5010 50A 1000V Metal Case Single Phase Diode Bridge Rectifier
