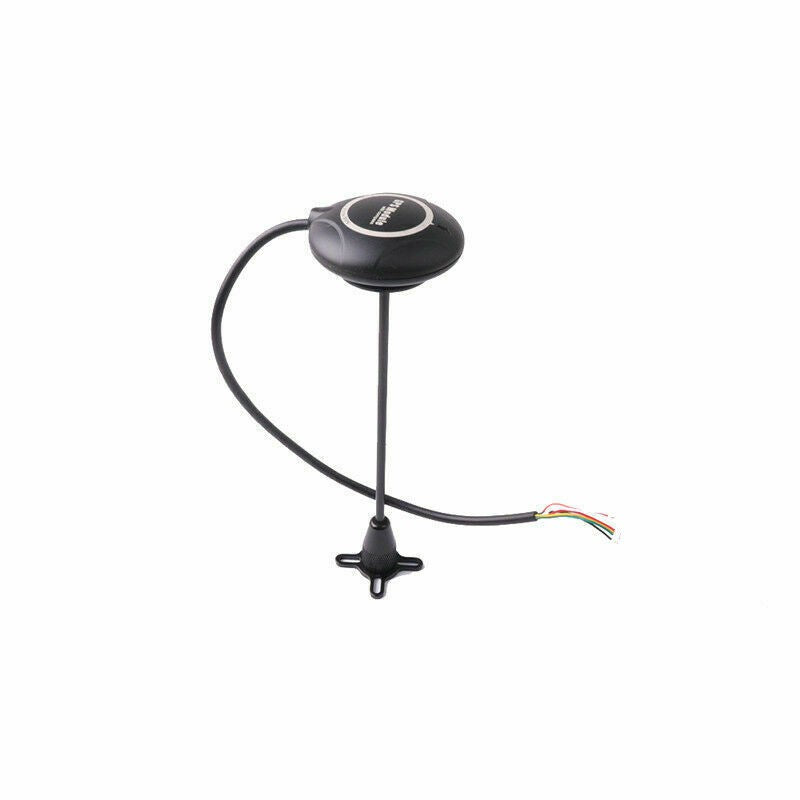

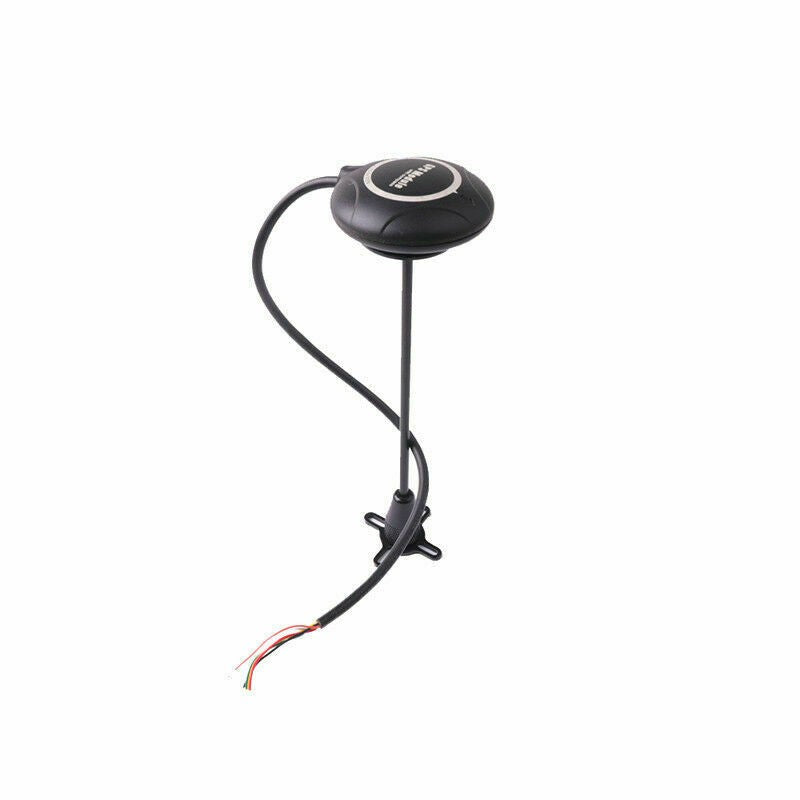

Ublox NEO-M8N Flight Controller GPS with Protective Shell for PIX PX4 Pixhawk
A new generation Ublox GPS NEO-M8N,with low power consumption and high precision, the ultimate accuracy is 0.6 meters, actually almost 0.9 meters, greater than the previous generation NEO-7N 1.4-1.6 meters accuracy,support GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1 protocol and mode or more.
GPS Model Features:
Quick satellite searching, only need 10s to find 6 satellite in open space
Built-in compass, refresh rate up to 10GHz
Support GPS+BD+SBAS, or GPS+GLONASS+SBAS
GPS Chip parameters:
Receiver type: 72-channel u-blox M8 engine
GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1
SBAS L1 C/A: WAAS, EGNOS, MSAS
Galileo-ready E1B/C (NEO-M8N)
Nav. update rate1 Single GNSS: up to 18 HZ
Concurrent GNSS: up to 10 Hz
Position accuracy: 2 2.0 m CEP
Acquisition2 Cold starts: 26 s
Aided starts: 2 s
Reacquisition: 1.5 s
Sensitivity2 Tracking & Nav: –167 dBm
Cold starts: –148 dBm
Hot starts: –156 dBm
Assistance AssistNow GNSS Online
AssistNow GNSS Offline (up to 35 days)3
AssistNow Autonomous (up to 6 days)
OMA SUPL & 3GPP compliant
Oscillator TCXO (NEO-M8N/Q),
Crystal (NEO-M8M)
RTC crystal Built-In
Noise figure On-chip LNA (NEO-M8M). Extra LNA for
lowest noise figure (NEO-M8N/Q)
Anti jamming Active CW detection and removal. Extra
onboard SAW band pass filter (NEO-M8N/Q)
Memory ROM (NEO-M8M/Q) or Flash (NEO-M8N)
Supported antennas Active and passive
Odometer Travelled distance
Data-logger For position, velocity, and time (NEO-M8N)
Operating temp. –40° C to 85° C
Storage temp. –40° C to 85° C (NEO-M8N/Q)
–40° C to 105° C (NEO-M8M)
RoHS compliant (lead-free)
Qualification according to ISO 16750
Manufactured and fully tested in ISO/TS 16949 certified production sites
Uses u-blox M8 chips qualified according to AEC-Q100
Supply voltage 1.65 V to 3.6 V (NEO-M8M)
2.7 V to 3.6 V (NEO-M8N/Q)
Power consumption4 23 mA @ 3.0 V (continuous)
5 mA @ 3.0 V Power Save Mode
(1 Hz, GPS mode only)
Backup Supply 1.4 to 3.6 V

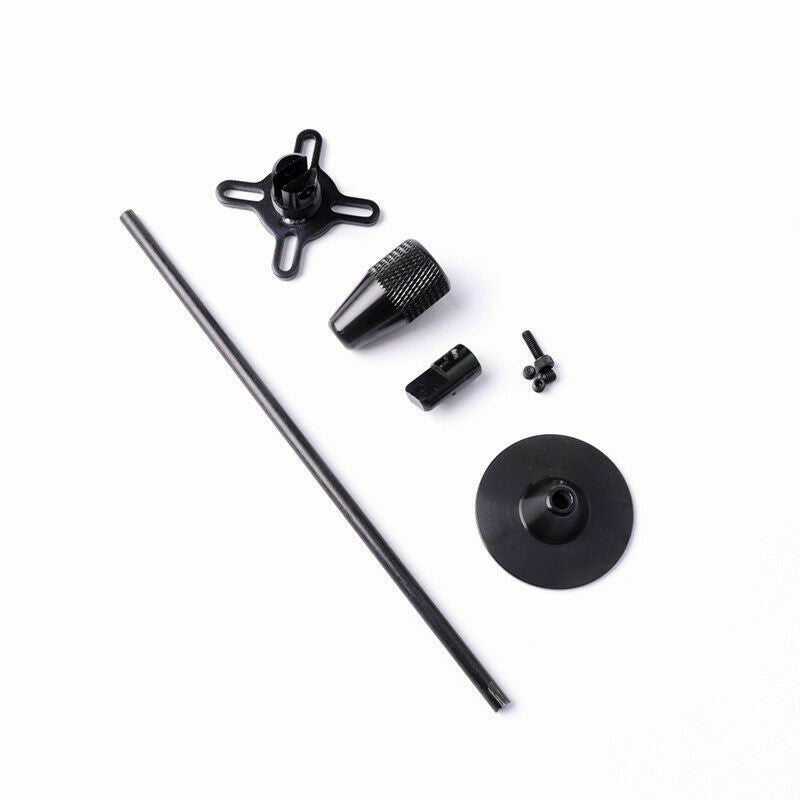

GPS Folding Antenna Mount Holder
Features:
GPS antenna base
Adopt 6061-T6 aluminum turning + CNC manufacturing
4 mm metal Rod, about 16.2cm Height

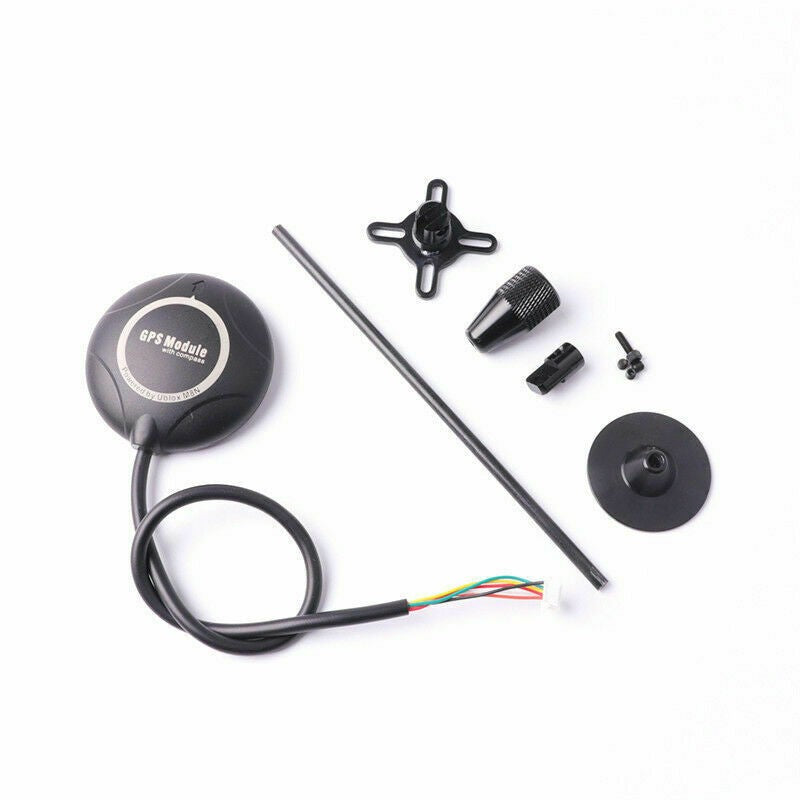

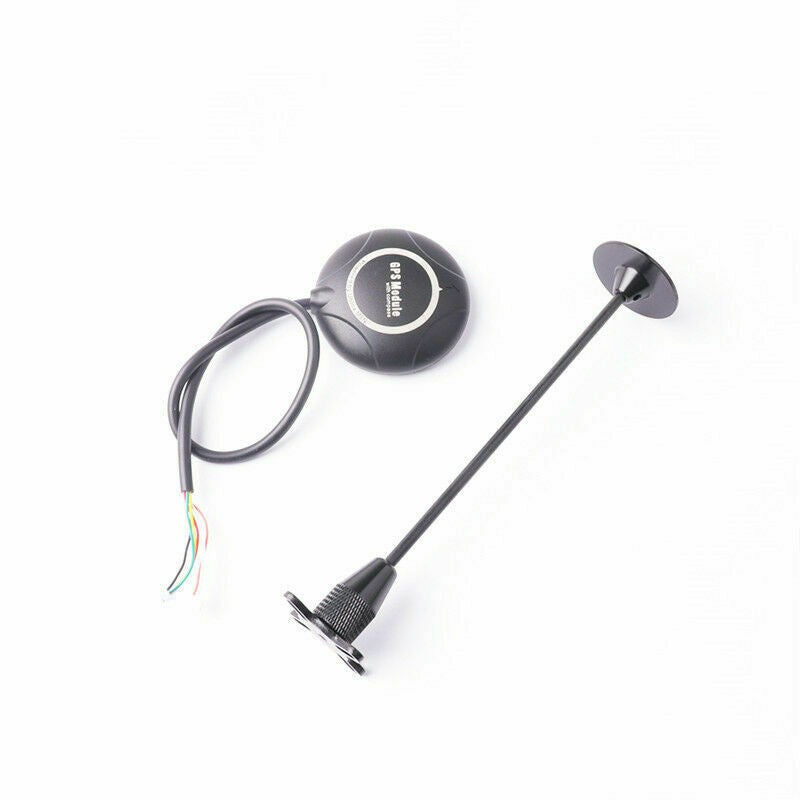

What's included:

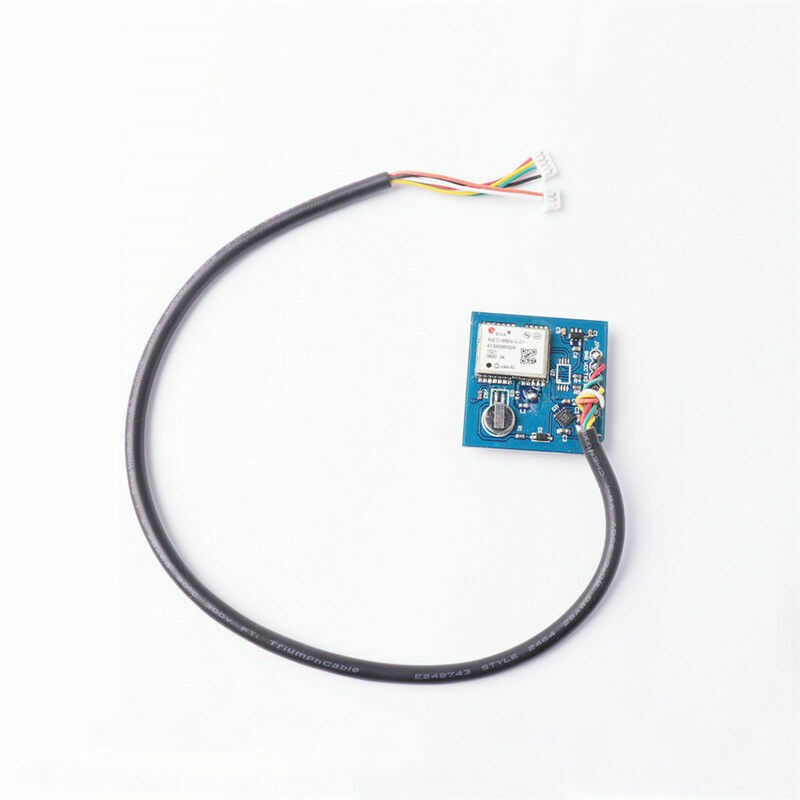

1 x M8N Module for APM
1 x GPS Folding Antenna Mount Holder
