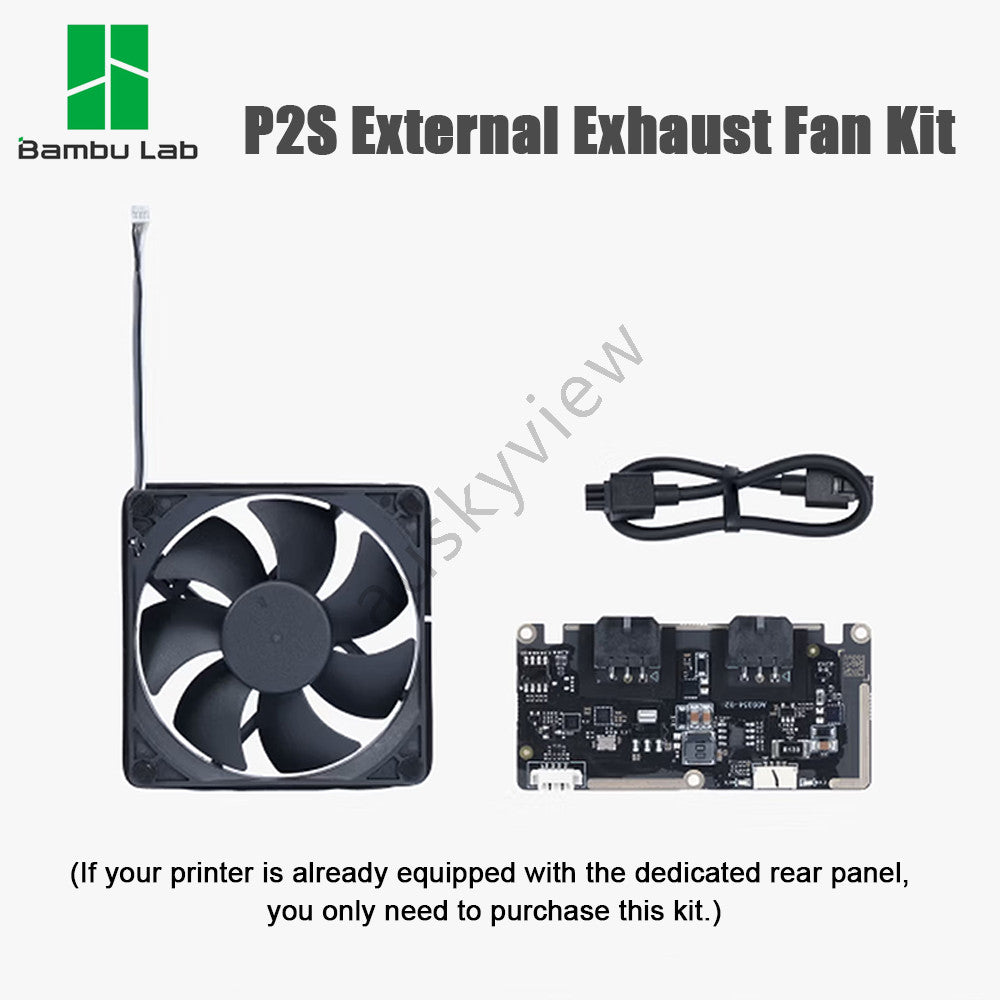

Bambu Lab External Exhaust Fan Kit

Active Ventilation & Air Purification for P2S 3D Printers

️ Important Notes

• If the user purchases the P2S standalone version, a damper must be added to use this kit.

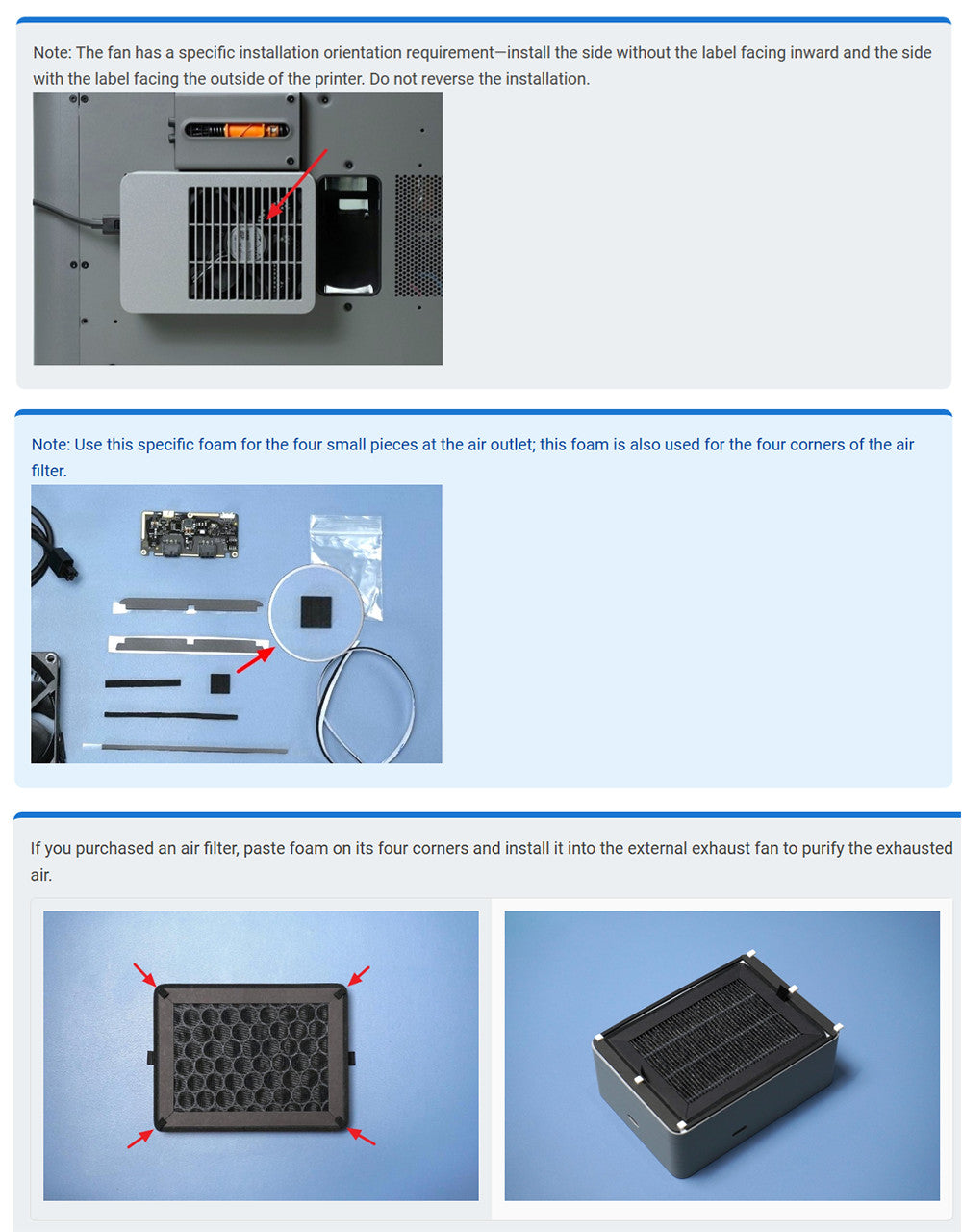

• For detailed installation steps, visit the the Bambu Lab Wiki.(search for the keyword)

• Before proceeding with the installation, please ensure the following software versions are updated to guarantee device compatibility:

• The printer firmware must be upgraded to version 01.01.01.00 or above.

• Bambu Studio must be updated to V2.4.1.80 or later.

• Bambu Handy must be updated to V3.11.0 or later.

Compatible Products

• Bambu Lab P2S 3D Printer

• Requires firmware update (see notes below).

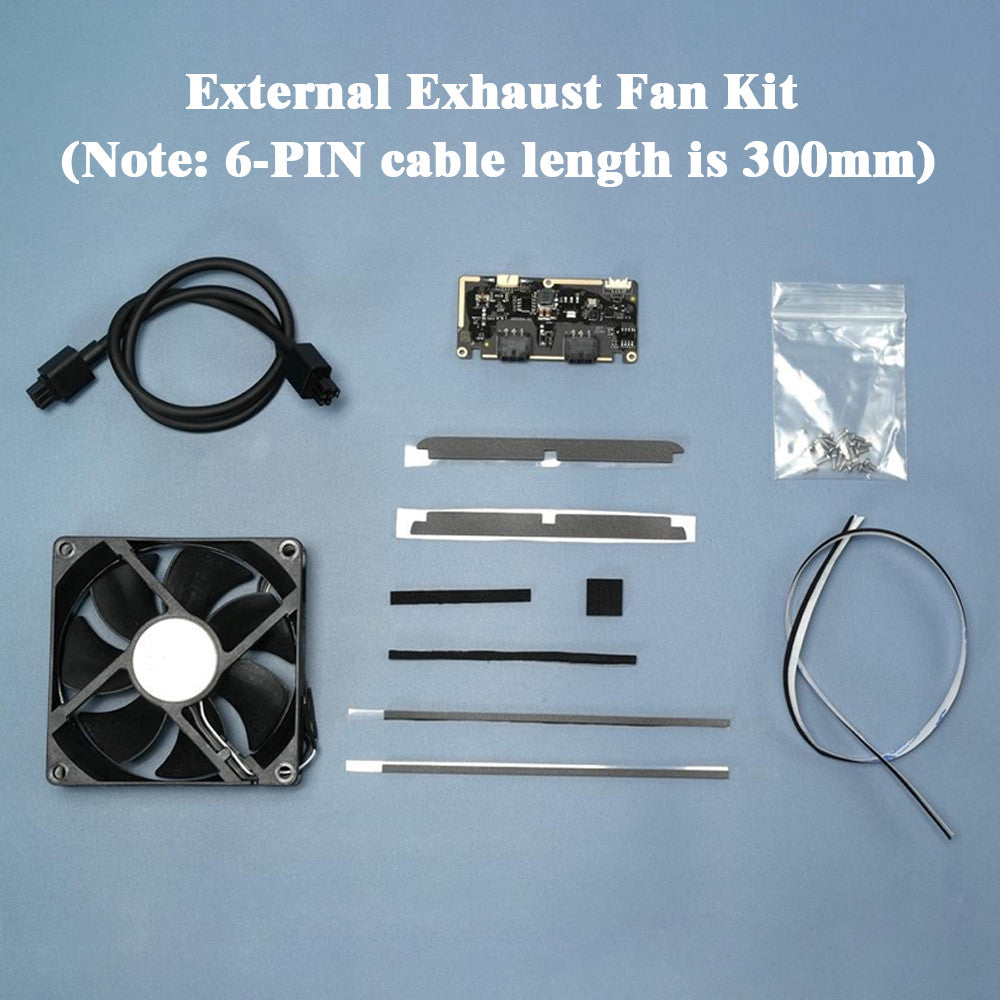

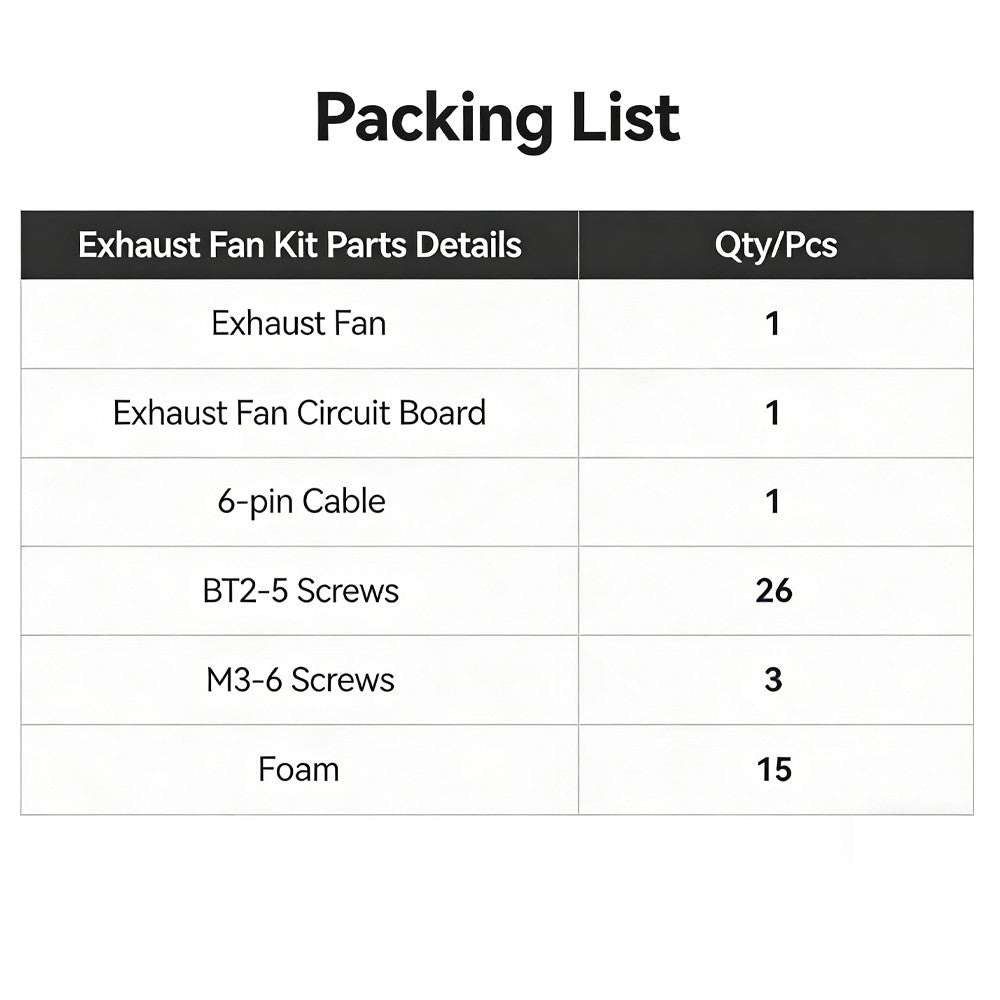

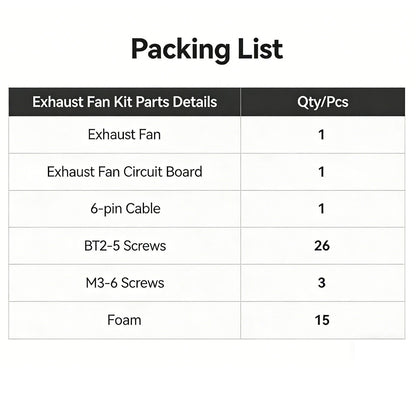

In The Box

• 1 × Exhaust Fan Unit

• 1 × Exhaust Fan Circuit Board

• 1 × 6-Pin Cable

• 26 × BT2-5 Screws

• 3 × M3-6 Screws

• 15 × Foam Pads

Product Overview

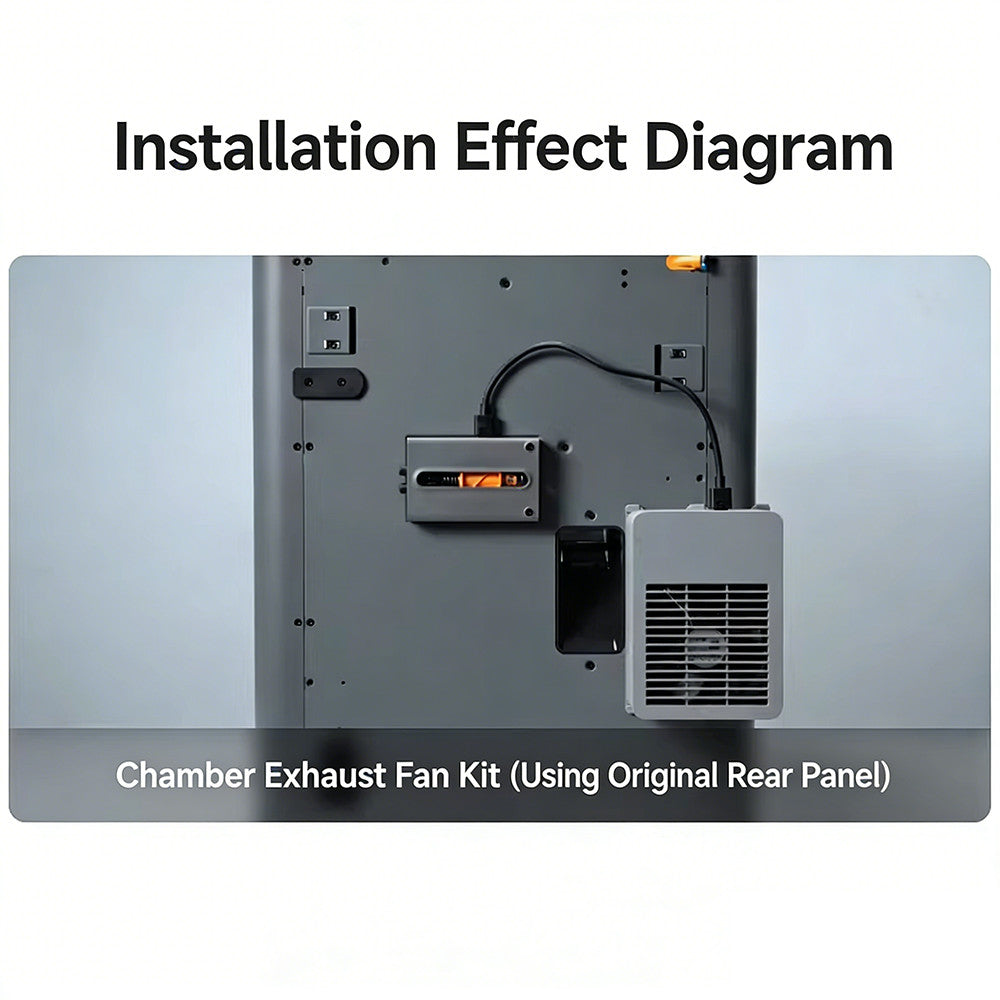

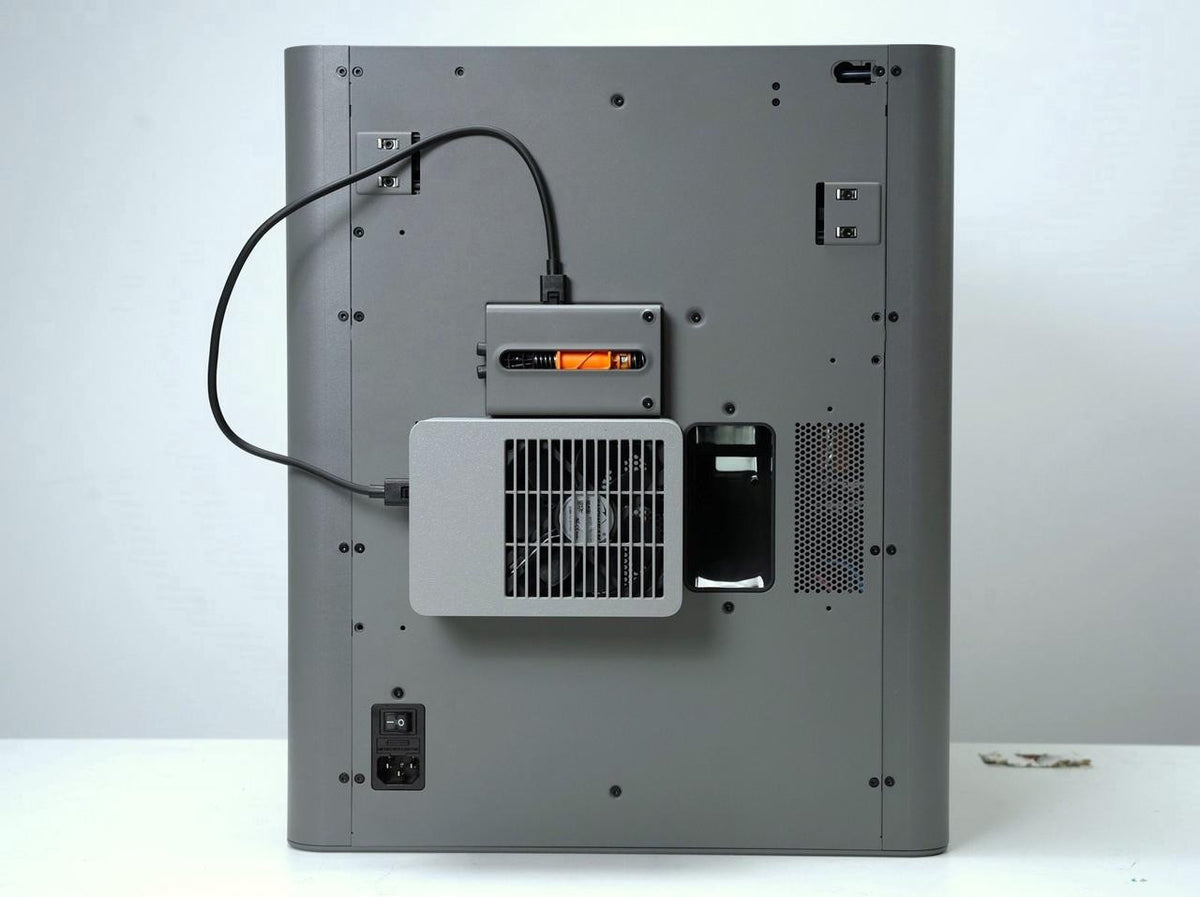

The Bambu Lab External Exhaust Fan Kit is an official upgrade for the P2S printer, designed for users with strict ventilation requirements. While the P2S defaults to an internal air recirculation system with an activated carbon filter, this kit adds active exhaust functionality.

It allows for the directional expulsion of fumes, making it safer and more efficient when printing engineering materials. The kit features a floating damping structure to isolate vibrations and a quick-release design for easy installation or removal.

Key Features

Active Exhaust & Purification

• Upgrades the P2S with active exhaust capabilities.

• Automatically expels residual gases after printing when "Purify Air at Print End" is enabled for materials like ABS and PA.

Smart Mode Switching

• The printer automatically switches operating modes based on the filament type.

• Manual override available via the printer screen, Bambu Studio, or Bambu Handy.

Vibration Isolation

• Floating damping structure effectively isolates fan vibrations, ensuring print quality remains unaffected.

Quick-Release Design

• Allows for easy and rapid installation or removal based on user scenario needs.

Expandable Filtration

• Supports expandable air filter cartridges (sold separately) for enhanced air purification.

️ Technical Specifications

Usage Tips

• Firmware Check: Before installation, ensure your printer firmware is 01.01.01.00 or above, Bambu Studio is V2.4.1.80 or later, and Bambu Handy is V3.11.0 or later.

• Scenario-Based Use: Install the kit when printing ABS, ASA, or PA to vent harmful fumes outside the enclosure. Remove it for PLA/PETG to maintain internal air quality.

• Damper Requirement: If you own the P2S Standalone Version, you must add a damper to use this kit.

• Wiki Reference: For detailed step-by-step installation instructions, search the Bambu Lab Wiki.

️ Notes

• Software Dependency: This kit requires specific software versions to function correctly. Failure to update may result in incompatibility.

• Model Specificity: Designed exclusively for the Bambu Lab P2S. It is not compatible with the X1 or A1 series.

• Ventilation: This kit expels air outside the printer chamber. Ensure proper venting path (e.g., window exhaust hose).
