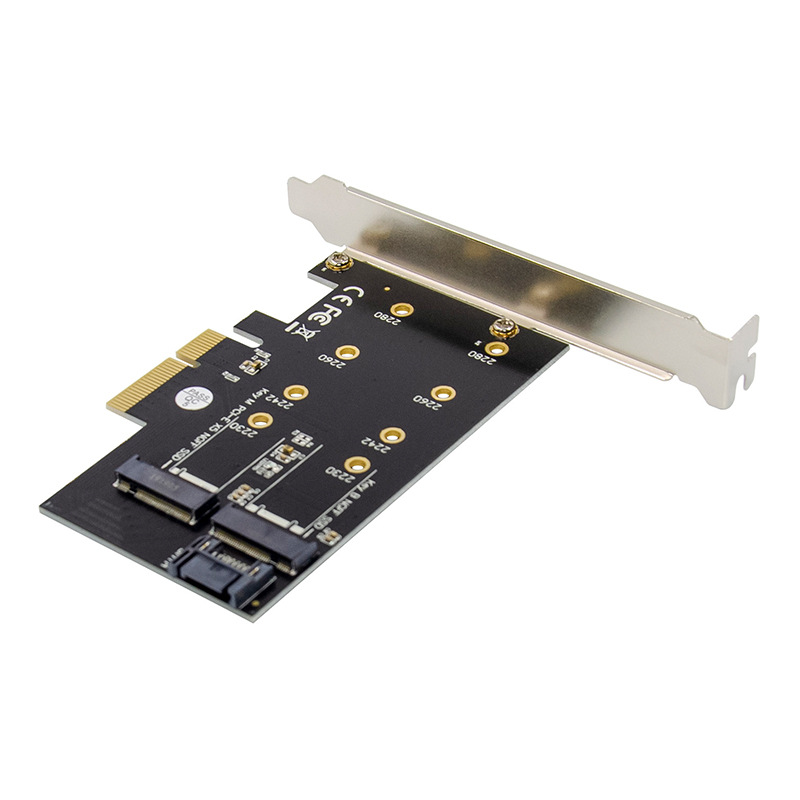

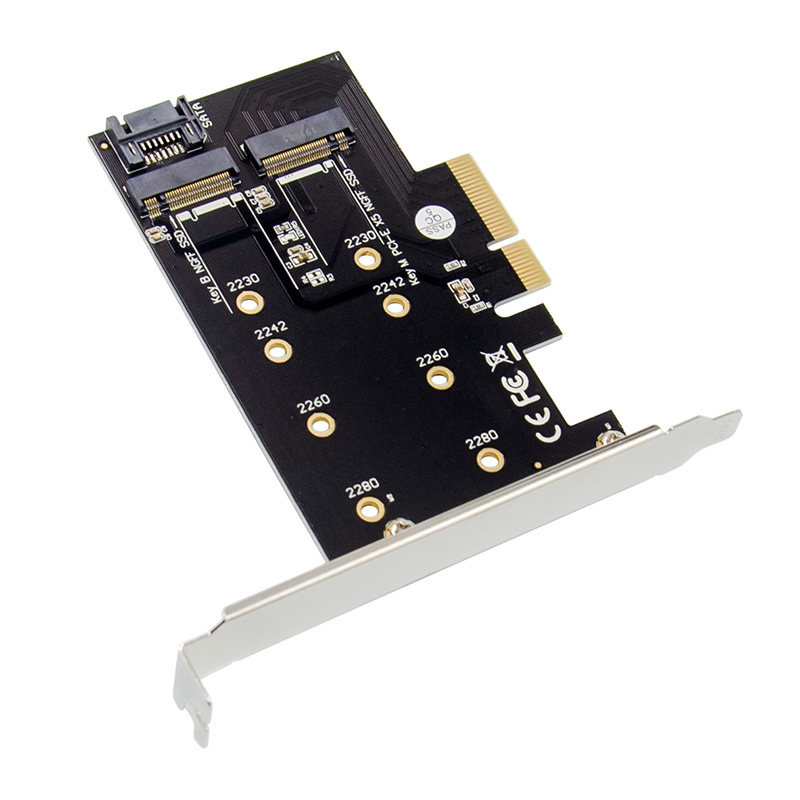

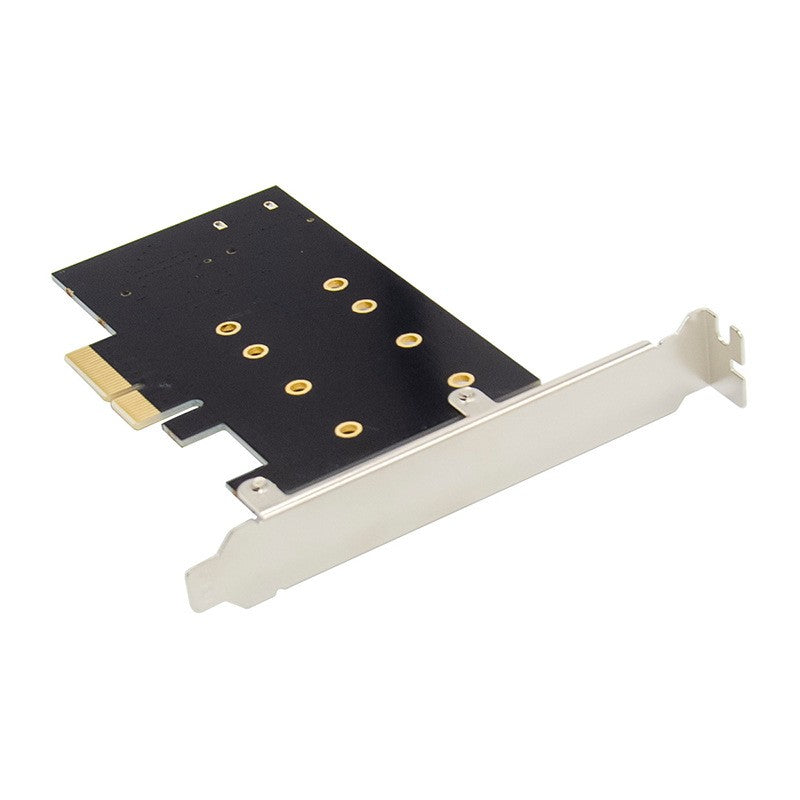

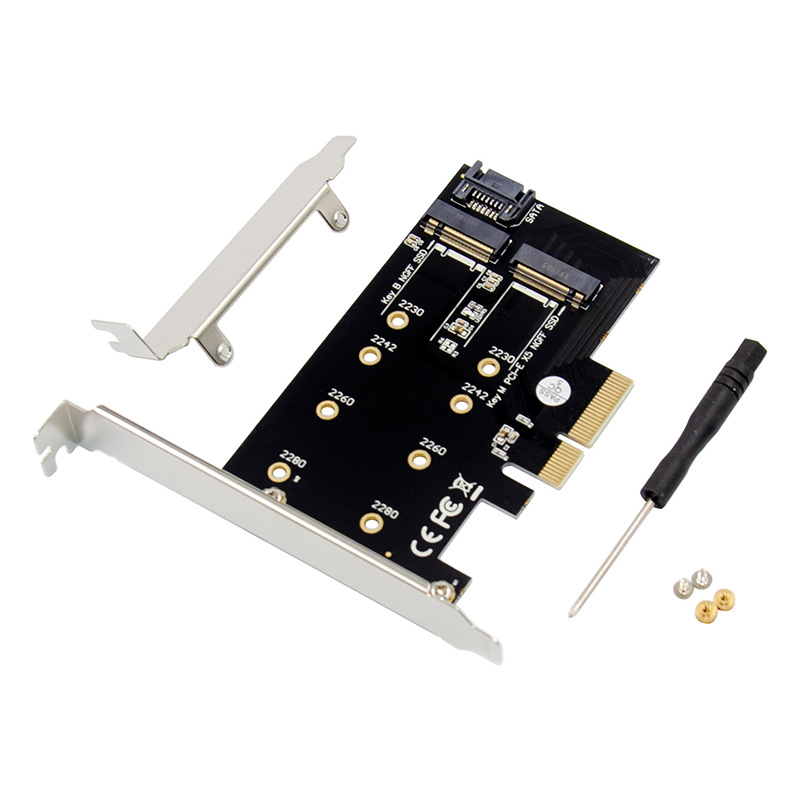

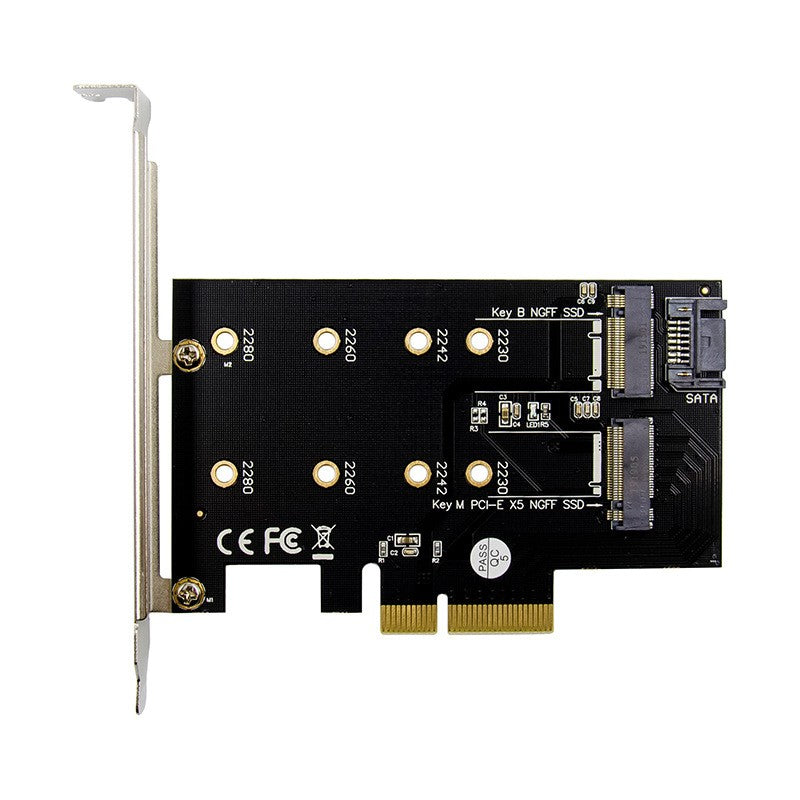

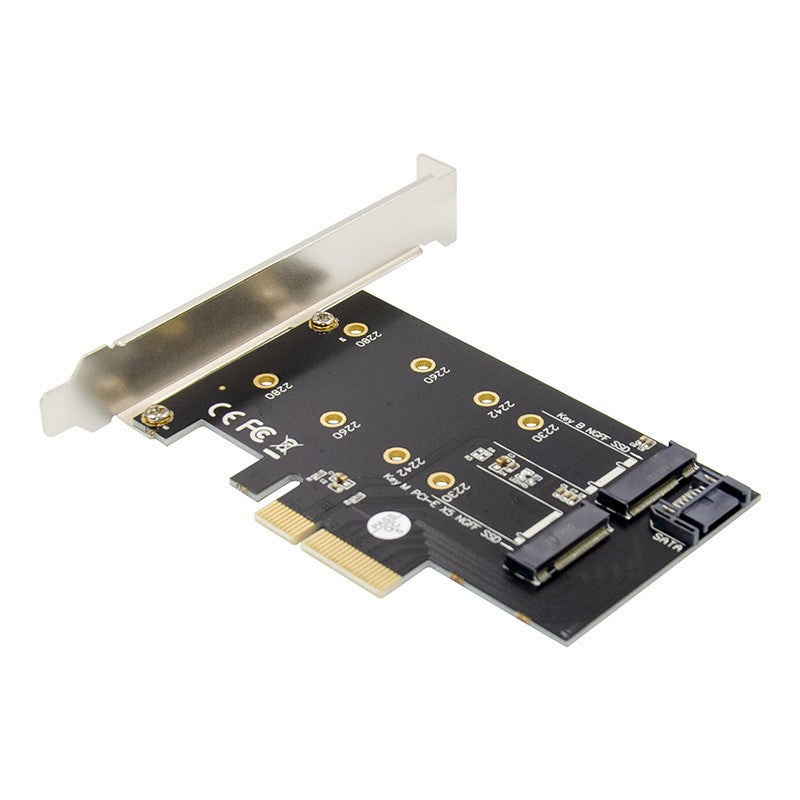

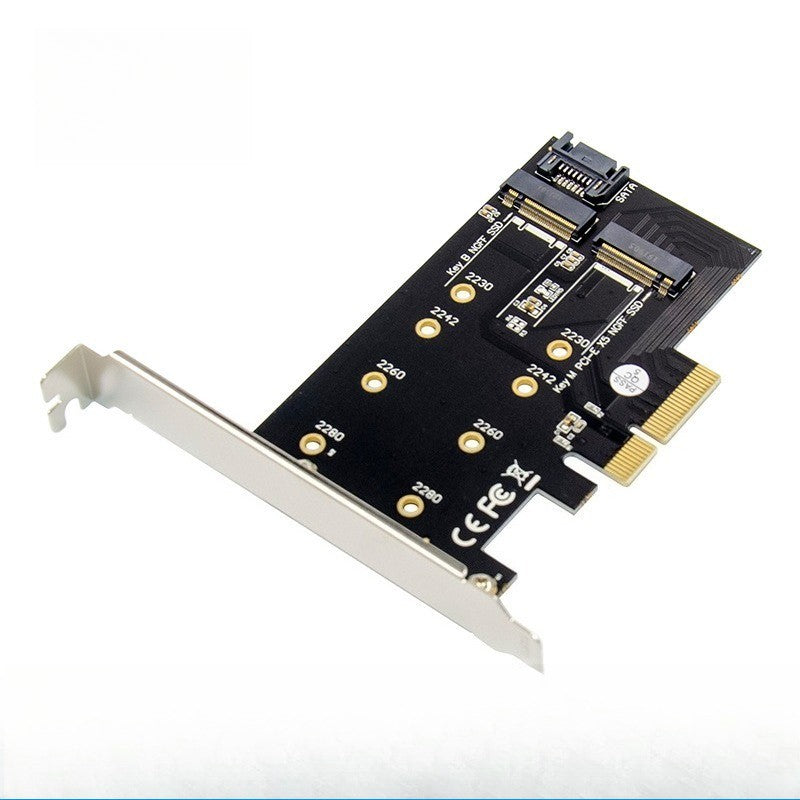

PCIE X4 M.2 B&M KEY NGFF Solid State Drive Adapter Conversion Card Drive Free

overview
This PCIe x4 M.2 NVMe SSD adapter is a multi-function NVMe conversion card, which can support PCIe protocol NVMe SSD directly connected to the main board, or support SATA protocol NVMe SSD connected to the main board SATA port through SATA cable. It supports ultra-high-speed PCI Express V3.0 X4 channel, transmission bandwidth up to 32GT/S, support Serial ATA V3.0, transmission speed up to 6Gbps. Through this adapter can improve the operating speed of the system, improve the efficiency of office and entertainment.

feature
- Complies with PCI Express version 3.0
- Compliant with Serial ATA specification version 3.0
- Supports NVMe key B/M.2 SSDs, including 223022422260 and 2280 drives
- Backwards compatible with PCIE V2.0 and V1.0 main boards
- Drive sizes are 80, 60, 42 and 30mm
- Support any "M" key M.2 SSD, "B" key and "B + M" key M.2 SSD
-B-Key interface can be plugged into the solid state drive of the M.2NGFF STAR protocol, and then plugged into the STAR cable to connect to the main board, powered by PCI-E, no external power supply is required
-M-Key interface can be plugged into the solid state drive of the M.2NGFF PCI-E protocol, PCI-E transfers data without access to the SATA cable connected to the main board
-M.2 PCIe SSD gets power from main board PCIe bus slot 3.3v

No driver is required because the driver is transparent to the operating system
