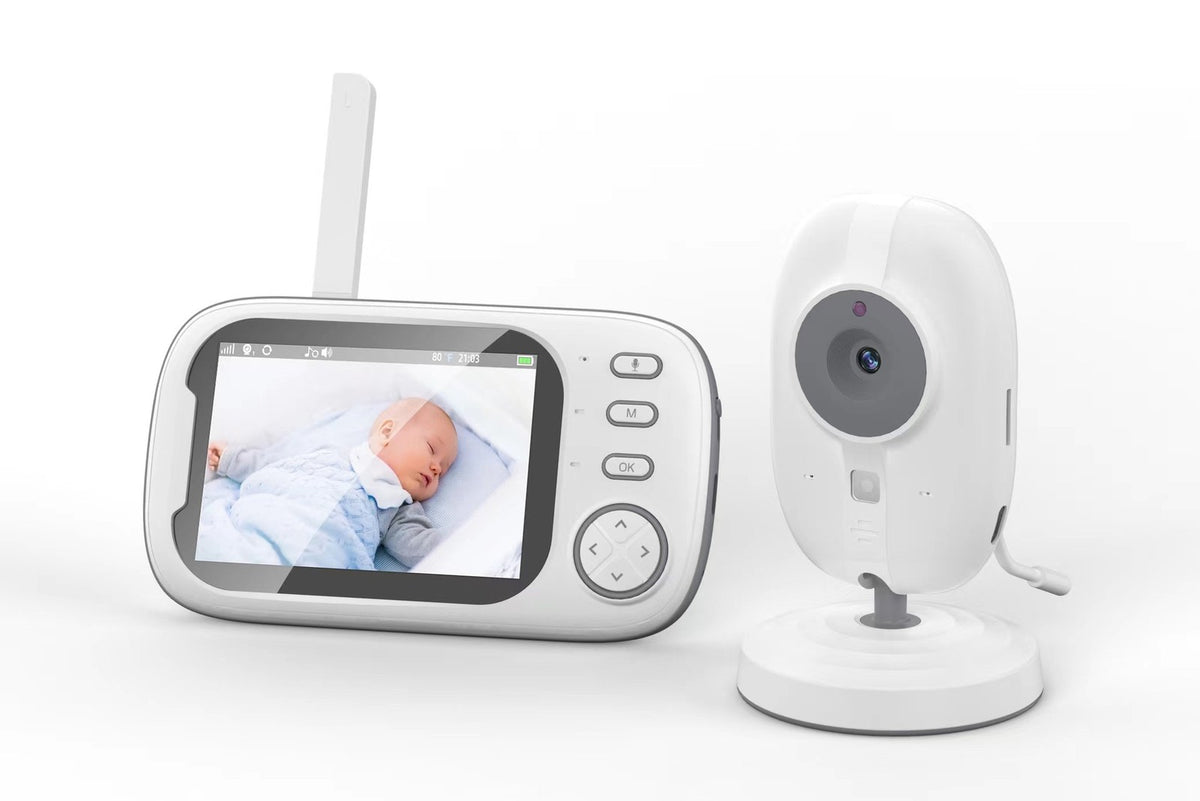

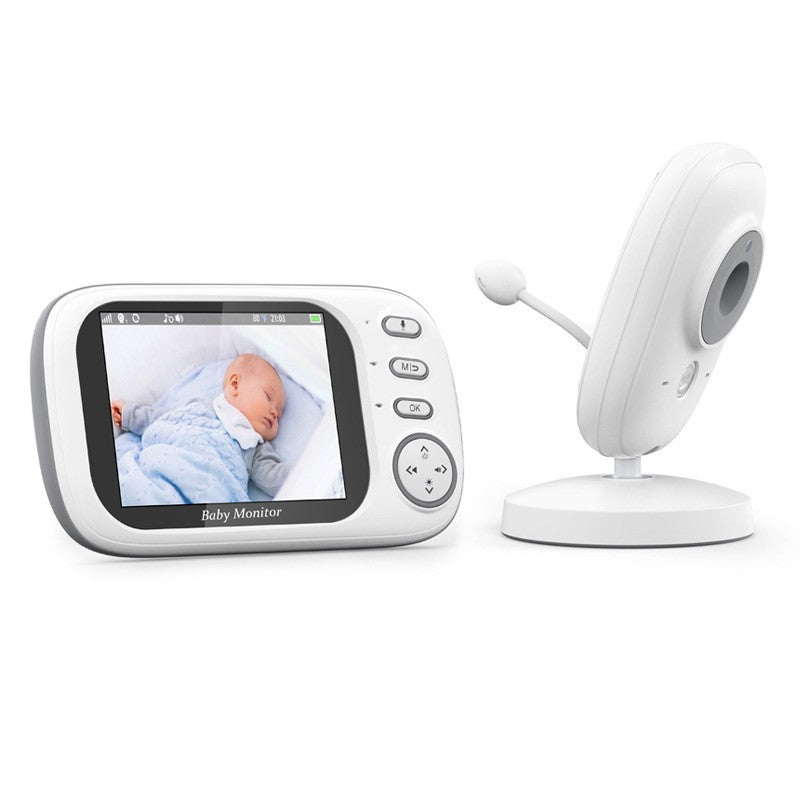

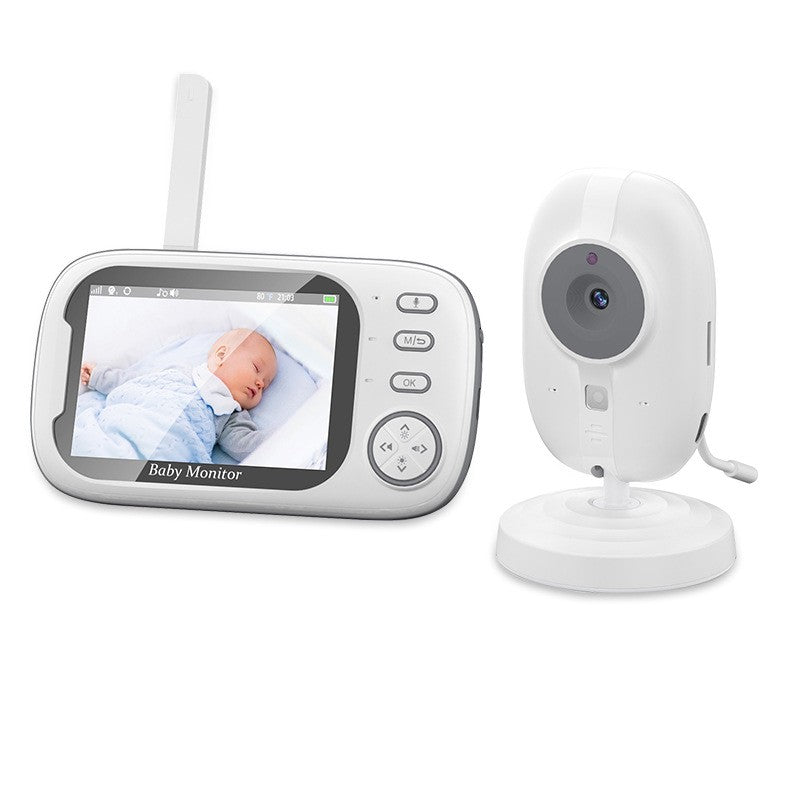

Putbopo 3.5 Inch HD Digital Mountable Video Audio Baby Monitor

ABM600 Product Specification

1. Technical parameters
Model ABM600 camera 1280 * 720P crying alarm, support, working temperature 65 ℃ to -20 ℃
display screen 3.5 inches, shooting angle 60 degrees, lullaby, support, transmission method FHSS
Resolution 800 * 480 SENSOR 1/4COMS Feeding Timing Reminder, Support, Transmission Distance 300M Outdoor
Host power consumption 1.6W Camera power consumption 1.5W Night vision (automatic) Support, camera net weight/
Battery 1500MA/H Camera Video, Support, Temperature Alarm, Support, Display Net Weight/

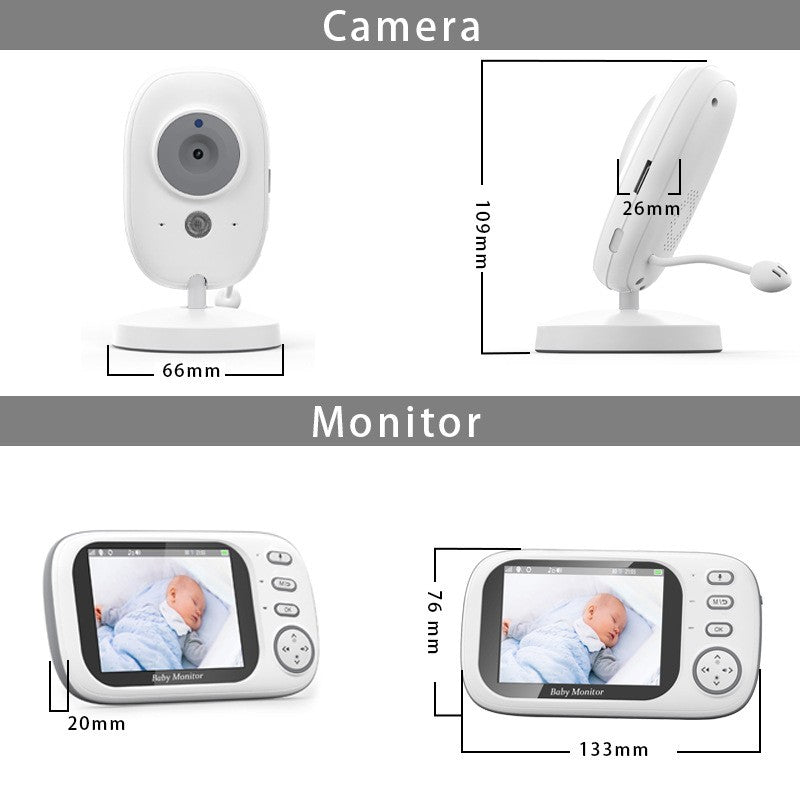

Main body size, length 133 * width 76 * thickness 20MM camera body size, diameter 66 * 108MM
Camera button definition and code matching
The camera matches the code, quickly press the switch button twice to enter the code matching mode, and the blue light flashes.
Display the end code matching, open the menu and select Add Camera, press the OK button to enter the code matching mode, the blue light flashes, and the code matching successfully stops flashing.
Display button definition
Switch button, long on/off; short on/off screen (you can hear the sound from the camera)
Intercom button, press to send a voice to the camera.
Menu key, open/return menu selection: volume, feeding reminder, blue song, time setting, temperature unit toggle, VOX, brightness
Up key, arrow keys
Down button, arrow keys
Left button, arrow keys
Right click, arrow keys
OK key, function confirmation
M key, menu key/return key. Short press to display menu, short press to return to level 2 menu at level 3 menu
Reset key, restart function
Function: two-way intercom, infrared night vision, room temperature monitoring alarm outside 20 ° C -30 ° C, sound detection alarm
Objective: The caregiver needs to go to other rooms to do other things. He can bring a display terminal and monitor the temperature of the baby room at any time at 20-30 ° C. View
Look at the baby's current situation, such as kicking off the quilt, etc. If the baby wakes up crying at this time, you can turn on the intercom to give the baby verbal comfort, so that the family relationship can continue; when the baby needs to rest, you can turn on the lullaby, so that the baby can easily fall asleep. When sleeping at night, you can play VOX mode, the 30S screen goes out, and when the sound in the baby room is greater than the set value, the screen lights up.

4. Function introduction
1. The sound and images of the baby side are transmitted to the display side in real time, and the adult can monitor the baby's condition in real time. When pressing the intercom button of the display side, you can tell the baby.
The child sends language, etc.,
2. Feeding reminder function: When set to 0:30H, 30 minutes from the current time, there are image and sound alarms on the display side to remind you that you are busy.
Adults, babies, it's time to breastfeed, and so on
3. The display side can choose 8 lullabies to play to the baby side
4. Set the time according to different time zones
5. Set the display temperature to: ° C/° F according to personal habits
6. You can select the baby terminal to be displayed. If the two baby terminals are connected at the same time, the display can be automatically switched or manually switched.
7. VOX mode: The default is off. When the ambient sound of the baby side is less than the set value, the display screen of the display side will be turned off after 30S. When the environment of the baby side is located
When the sound is greater than the set value, the display on the display side can be selected according to the environment: HIGH/MED/LOW
3 Operating instructions
Code matching: CAM power-on state, quickly press the power button twice, the blue light flashes (about 10S), which is the code matching mode. At the same time, open the display terminal, and press the M key to open the menu.

Find, enter up, code matching mode, the red light flashes in the upper left corner of the display screen, and appears, which is a successful code matching for CAM1;

The CAM2 operation is like pressing the menu button to return to the main screen, pressing the camera button to go to the code matching CAM, and automatically exiting the code matching mode if there is no connection for 10S after entering the code matching mode.
(Note: A baby terminal can only be connected to one display terminal, and one display terminal can be connected to two baby terminals at the same time; the baby terminal cannot be connected to the adult display terminal.)
Get too close to avoid whistling.
4. Use distance
Outdoor open space: 300M
Indoor: 30M different distances according to the material of the wall
Step 5 Howl
The baby side keeps transmitting sound to the display side. In order to monitor whether the baby is crying, the sound of the environment will be amplified and sent to the display side in this work.
The display side will keep hearing this "noise" cycle, and the sound will get louder and louder, and it will make a sound when the adult side is close to the baby side
It's picked up by the baby's boob and amplified again, and the sound is sent to the adult, creating a squeal.
