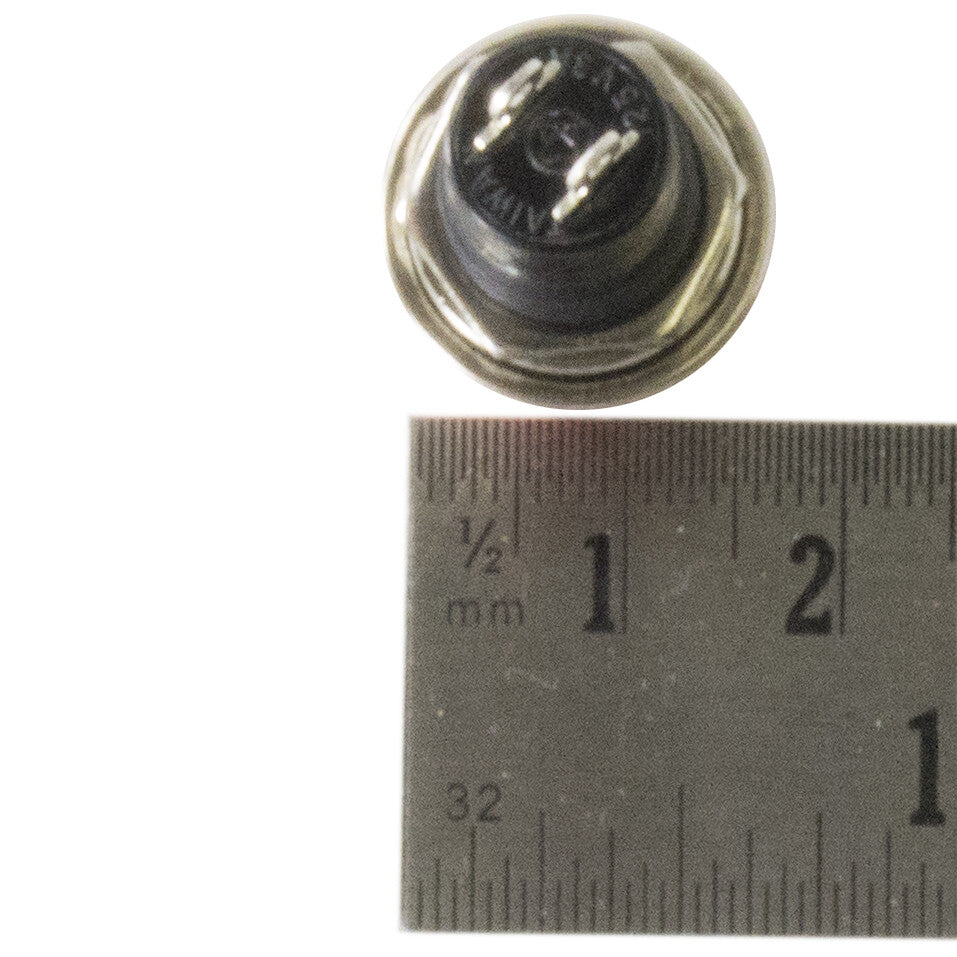

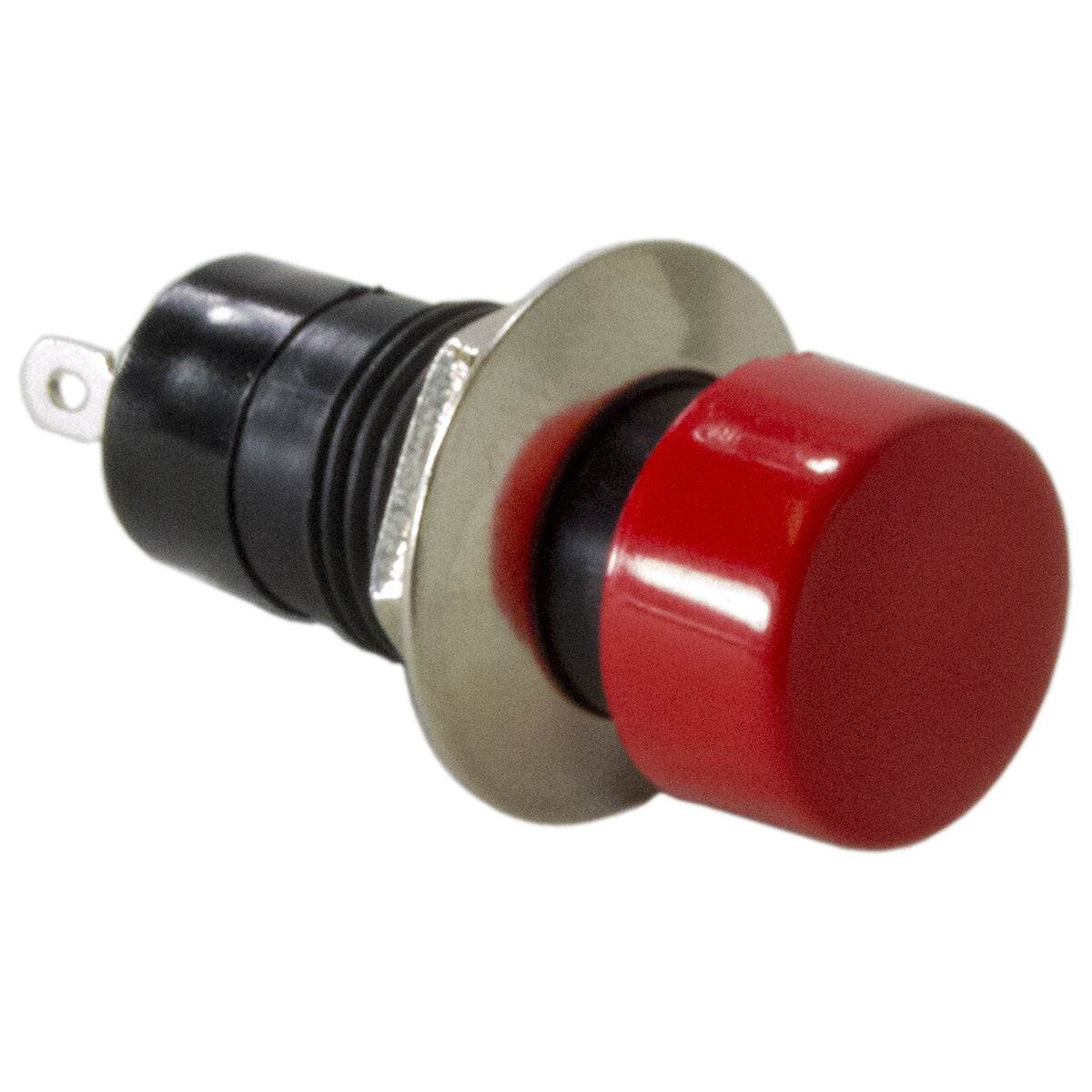

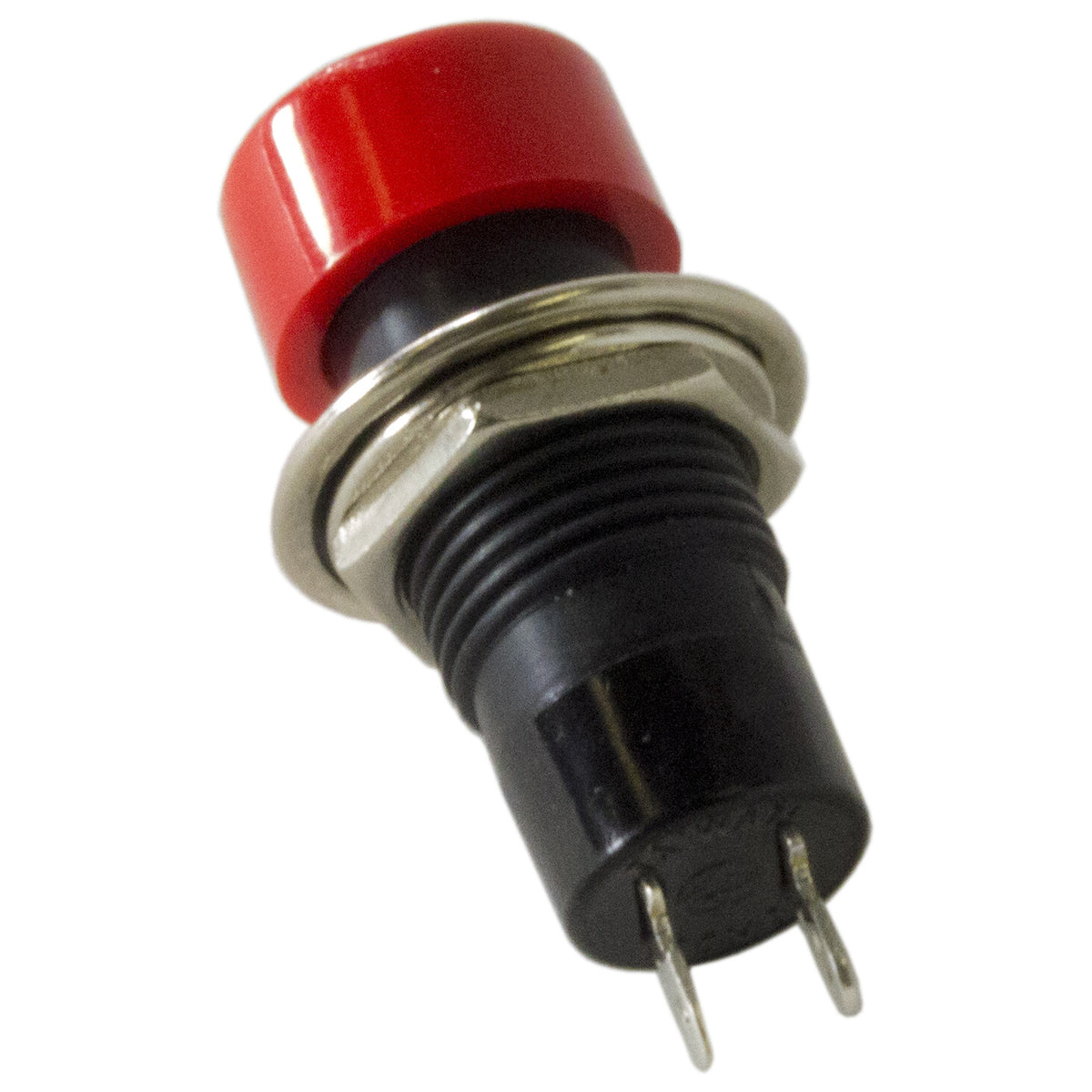

Round Momentary Switch Normally Open 3A @ 125V AC

• Rating: 3A 125V AC
• Contact Resistance: 30mΩ max.
• Insulation Resistance: DC 500V 100 MΩ min.
• Dielectric Strength: AC 1000V 1 minute
• Terminal Material: Copper alloy, silver or gold plated

Specifications:

-Rating: 3A 125V AC

-Contact Resistance: 30mΩ max.

-Insulation Resistance: DC 500V 100 MΩ min.

-Dielectric Strength: AC 1000V 1 minute

-Electrical Life: 30,000 cycles min

-Mechanical Life: 50,000 cycles min

-Terminal Material: Copper alloy, silver or gold plated
