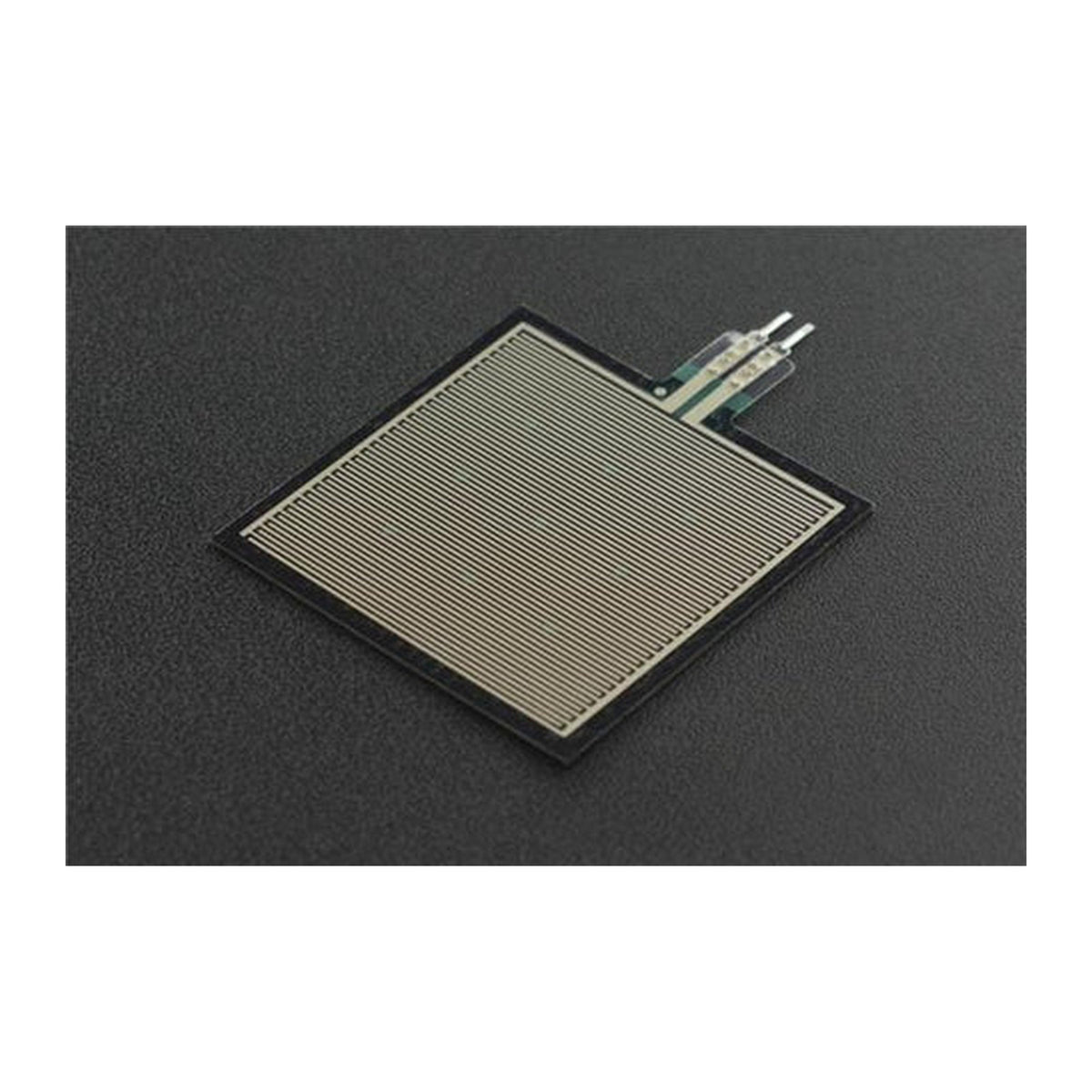

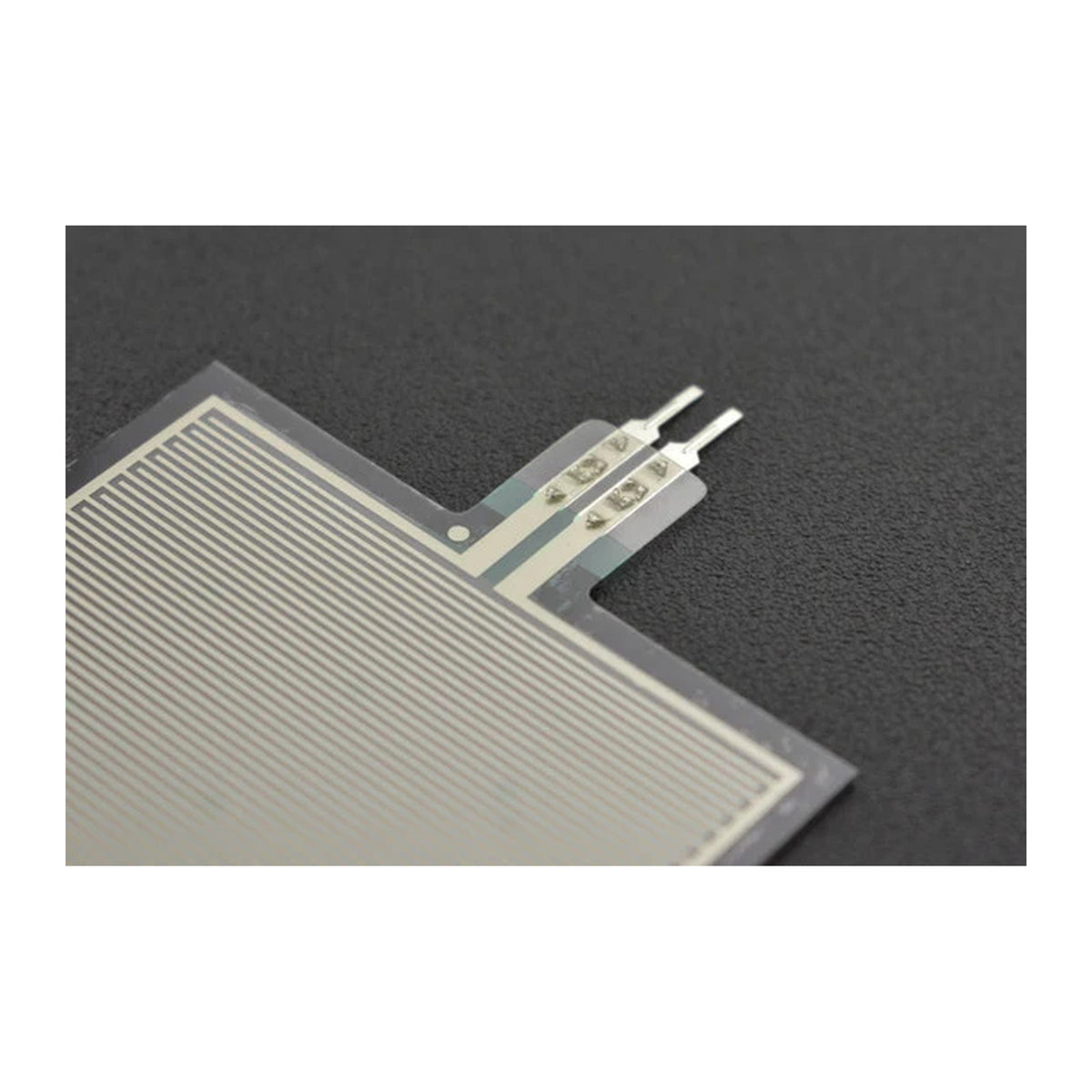

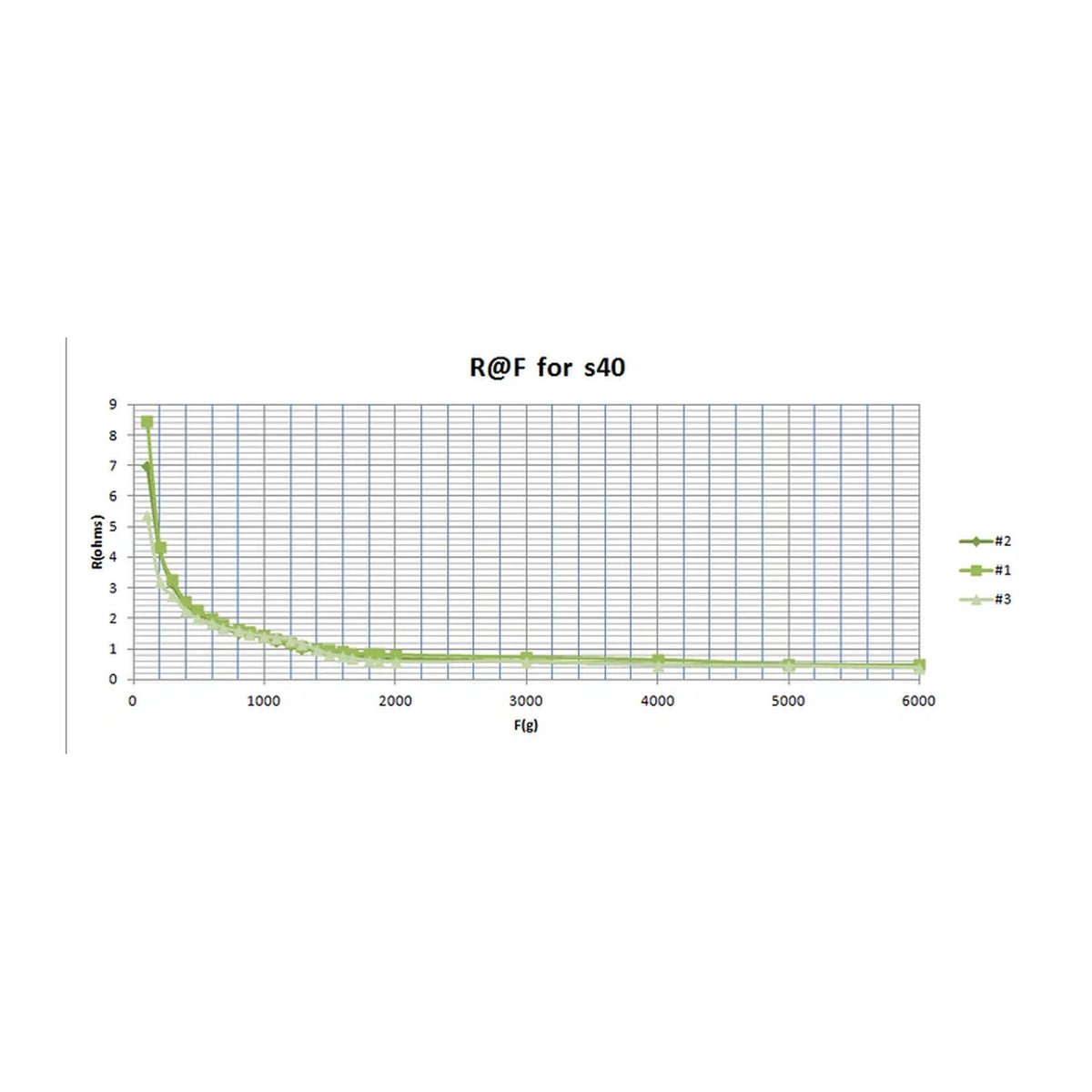

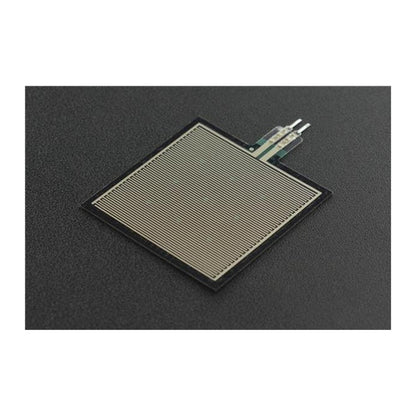

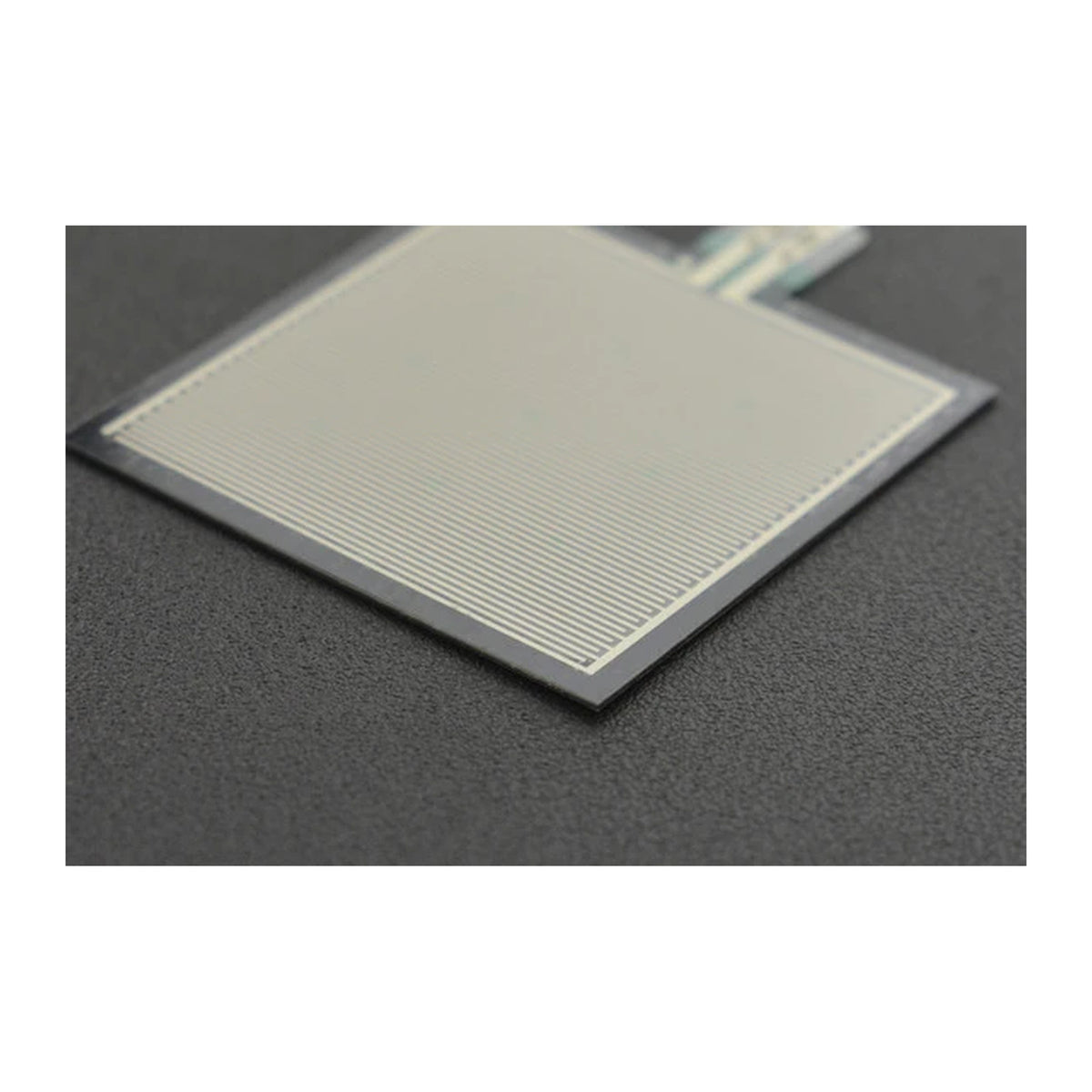

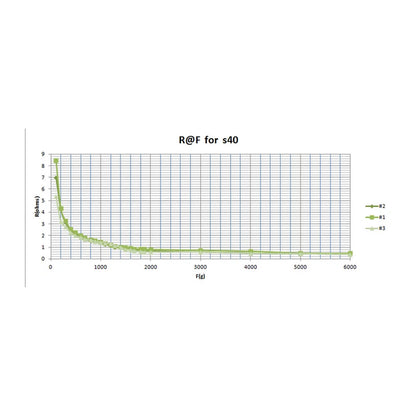

Square 40mm flexible thin-film pressure sensor designed for fast, sensitive detection of both static and dynamic force. Its ultra-thin 0.45mm construction converts applied pressure into changing resistance, with resistance decreasing as force increases. Featuring a 20g–10kg sensing range, < 10 ms response time, and over 1 million-cycle lifespan, it is ideal for pressure switches, bed monitoring, smart footwear, medical devices, robotics, and other pressure-sensing applications.
Specifications:

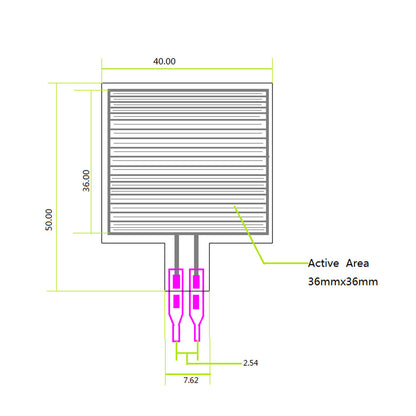

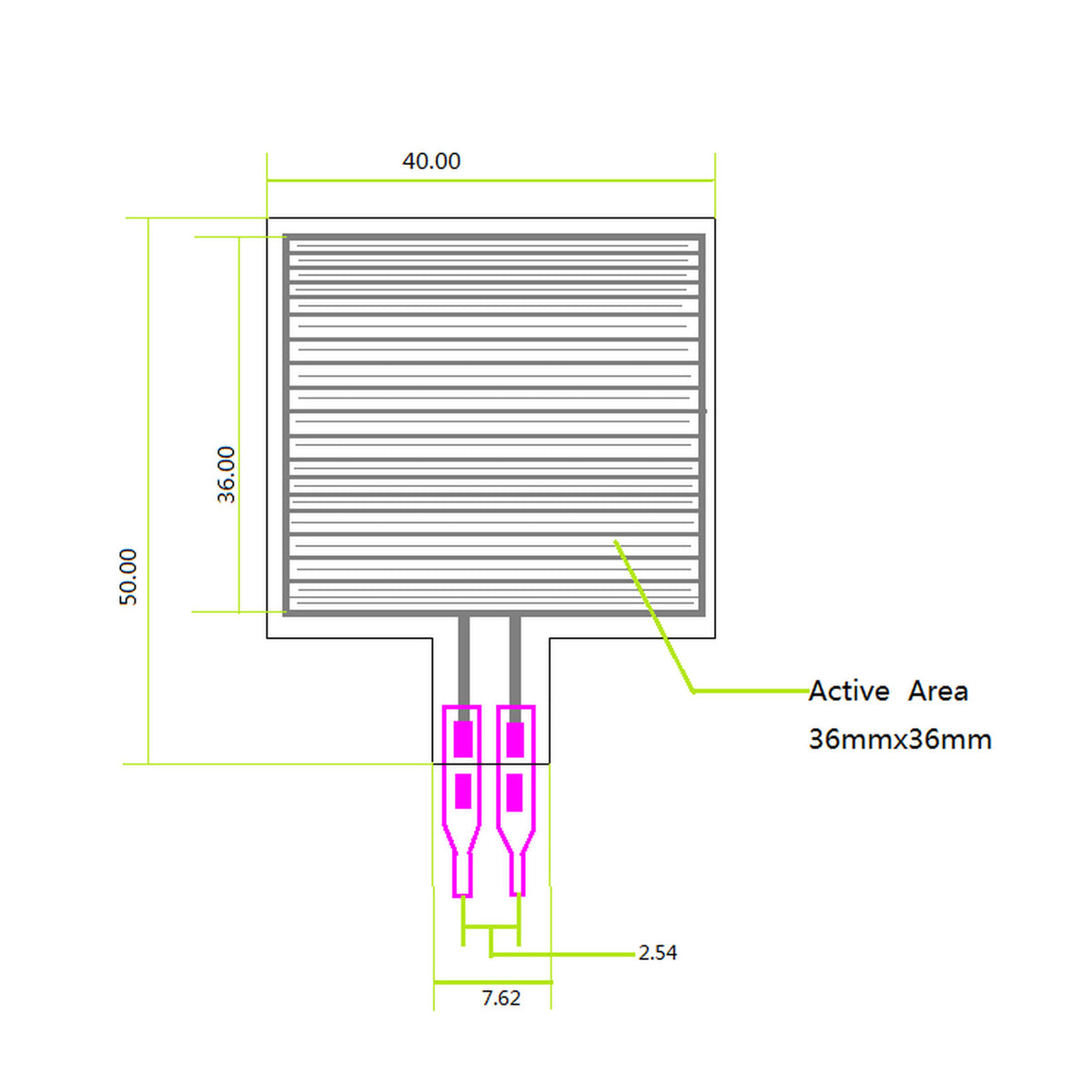

- Thickness: 0.45mm
- Trigger Force: 20g, triggered (default resistance<200kΩ)
- Pressure Measuring Range: 20g~10kg
- Static Pressure & Dynamic Pressure Measurement (within the frequency of 10Hz)
- Initial Resistance: >10MΩ
- Activation Time: <0.01S
- Operating Temperature: -40℃~+85℃
- Lifespan: >1million times
- Hysteresis: +10%，(RF+ -RF-)/FR+，1000g Force
- Response Time: <10ms
- EMI: Not generate
- EDS: Not generate
- Drift: <5%, 2.5Kg Force , Static load 24H
