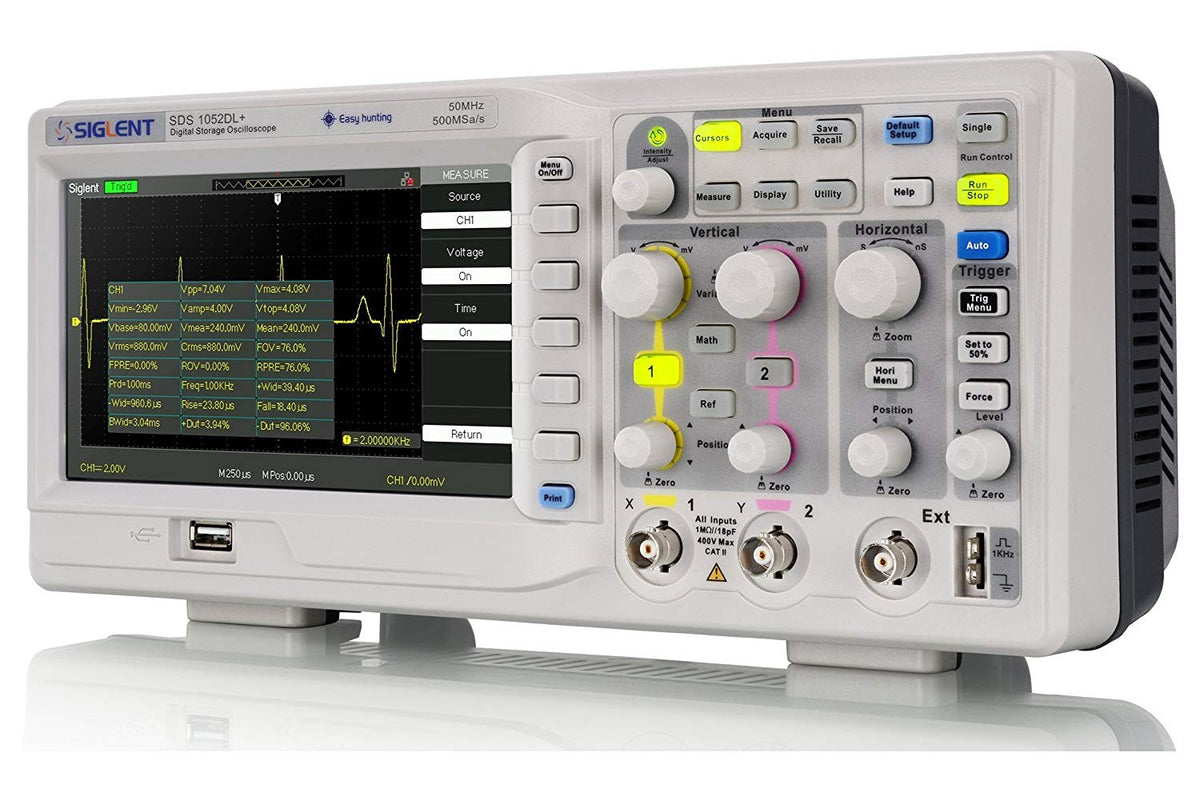

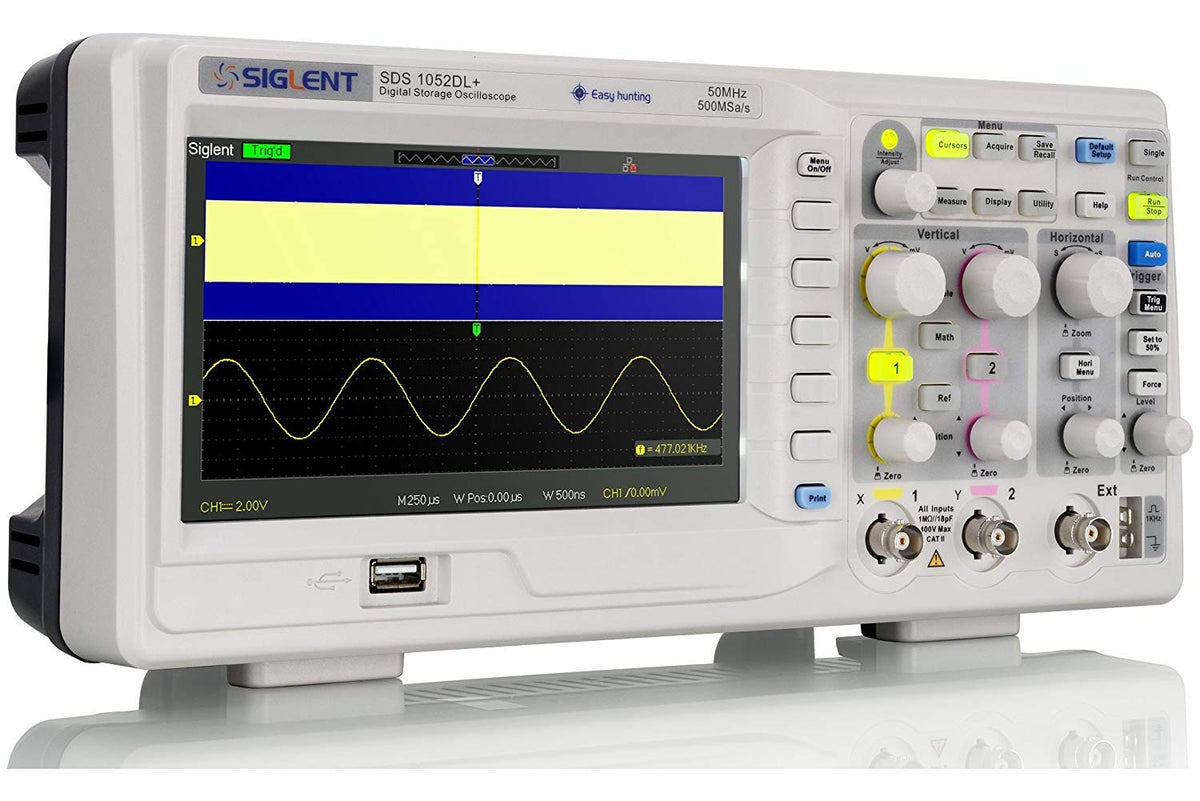

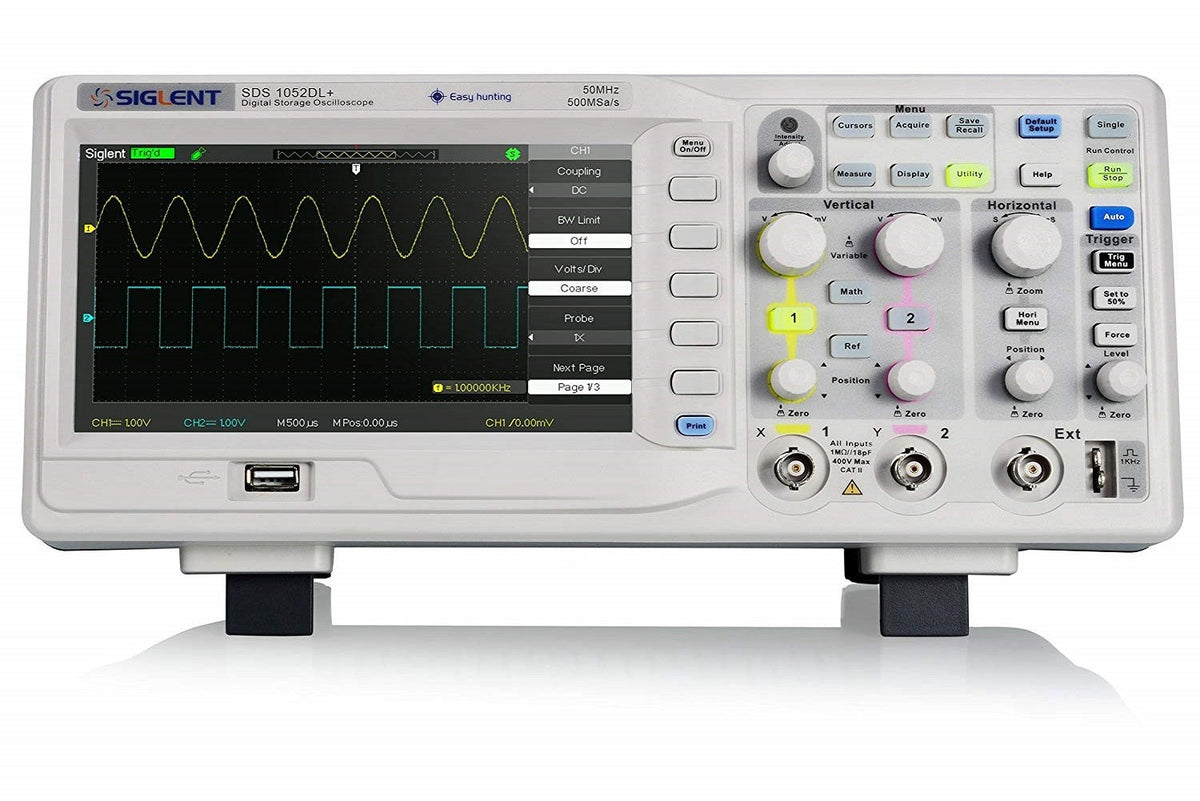

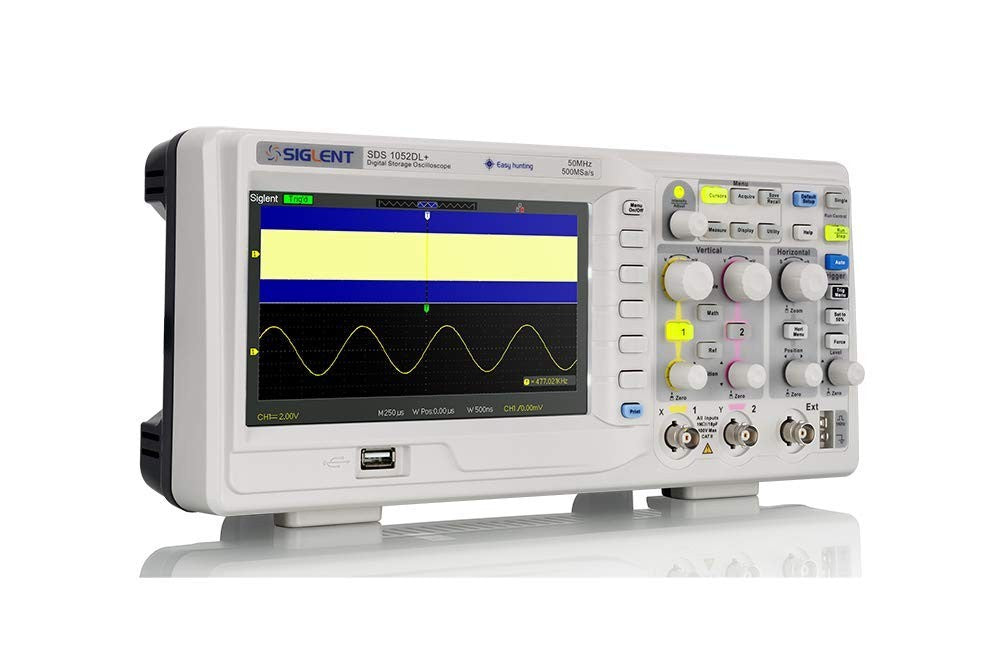

SDS1052DL+ is a dual-channel universal digital oscilloscope with 50 MHz bandwidth. It includes a 32 kpts memory depth that helps to ensure accurate waveform resolution and to capture longer signal lengths. With its 7 inch TFT-LCD (800*480) screen, there is adequate screen space to help better see and analyze waveform details. Along with a 500 MSa/s sampling rate, the SDS1052DL+ supports 32 parameters measurements and common mathematical operations to speed up complex / repetitive measurements.
- 50 MHz bandwidth model
- Real-time sampling rate up to 500 MSa/s
- Memory Depth up to 32 kpts
- Trigger types: Edge, Pulse, Video, Slope, Alternate
- Waveform math functions:+, -, *, /, FFT
- 6 digital frequency counter
- Supports Multi-language display and embedded online help
- Screensaver from 1 minute to 5 hours
- Digital filter and waveform recorder function
- Shortcut storage function key
- 7 inch TFT-LCD display with 800 * 480 resolution

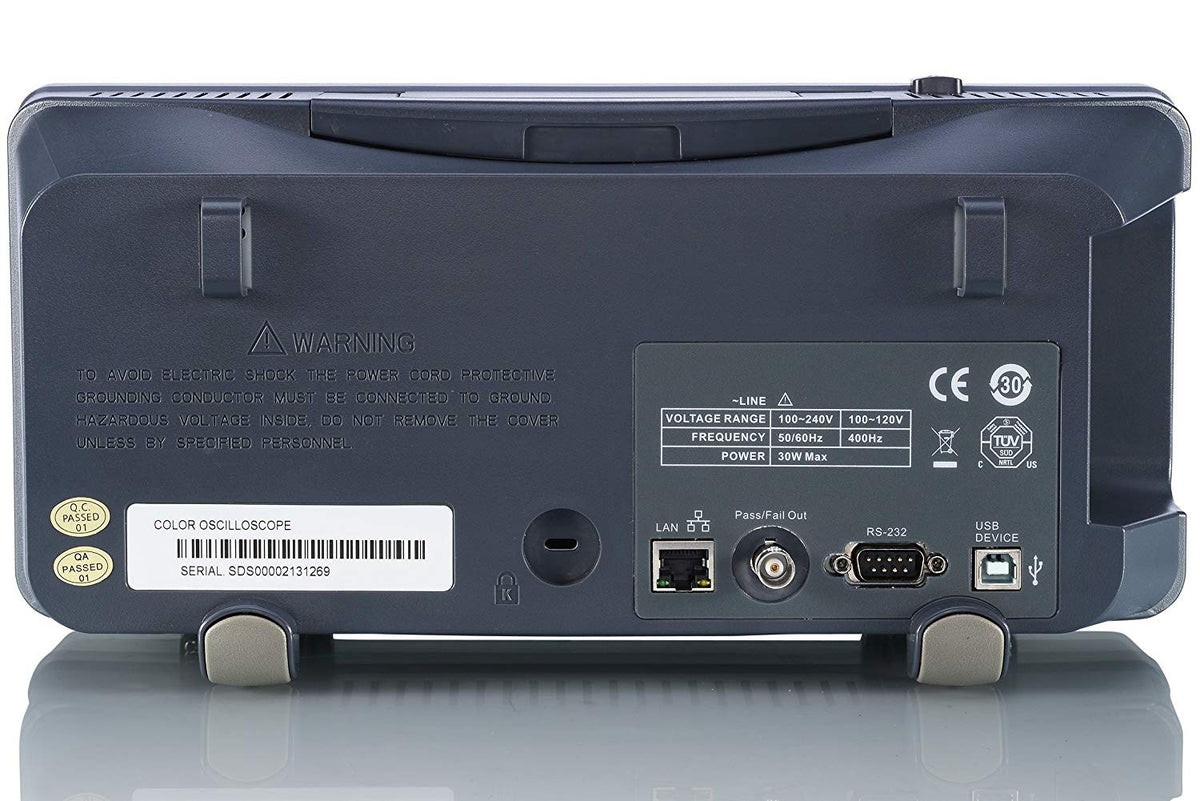

- Multiple interfaces: USB Host, USB Device (USBTMC), LAN (VXI-11), Pass / Fail
